CE107V-AXPDE (1998)

Toyota Corolla

Production Apr 1998 - Jun 2002
Engine 3CE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9804- )3CE

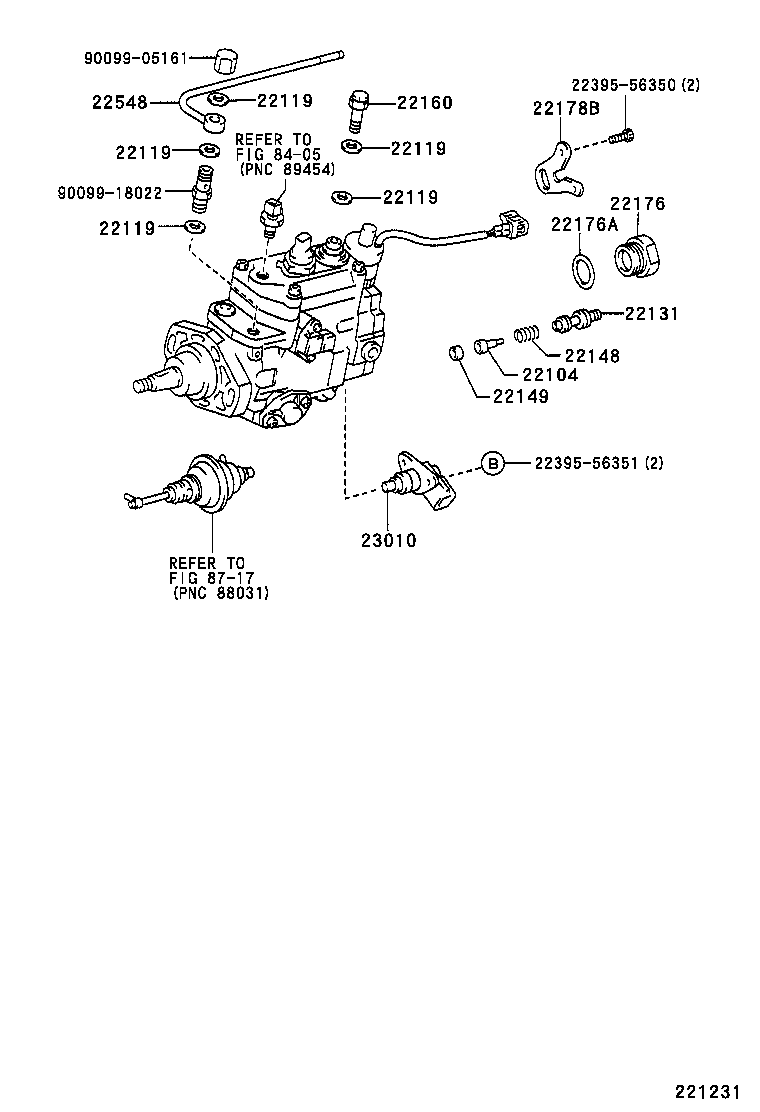

Click highlighted areas on diagram

diagram 22104 22119 22119 22119 22119 22119 22131 22148 22149 22160 22176 22176A 22178B 2239556350 2239556351 22548 23010 8405 8717 9009905161 9009918022
Part # Description Qty Price
22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22104-6A640

3CE..CE10#

 4
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

2C,3CE..CE10#

 5
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

2C,3CE..CE10#

 5
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

2C,3CE..CE10#

 5
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

2C,3CE..CE10#

 5
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

2C,3CE..CE10#

 5
22131 - HOLDER, DELIVERY VALVE
22190-6A680

2C,3CE..CE10#

 4
22148 - SPRING, DELIVERY VALVE
22148-54010

2C,3CE..CE10#

 4
22149 - GASKET, DELIVERY VALVE
22149-56351

2C,3CE..CE10#

 4
22160 - SCREW SUB-ASSY, OVERFLOW
22160-54271

3CE..CE10#

 1
22176 - PLUG, DISTRIBUTIVE HEAD
22176-54640

3CE..CE10#

 1
22178B - BRACKET(FOR INJECTION PUMP ASSY)
22178-64010

2C,3CE..CE10#

 1
22548 - NIPPLE, SWIVEL
22548-6E150

3CE..CE10#

 1
23010 - VALVE ASSY, TIMING CONTROL
23010-67010

3CE..CE10#

 1
23010-64020

3CE..CE10#

 1
Common parts
22395-56350
22395-56351
90099-05161
90099-18022
Linked diagrams
8405
8717
