CE107V-AXMDE (1998)

Toyota Corolla

Production Apr 1998 - Jun 2002
Engine 3CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9804- )3CE

Click highlighted areas on diagram

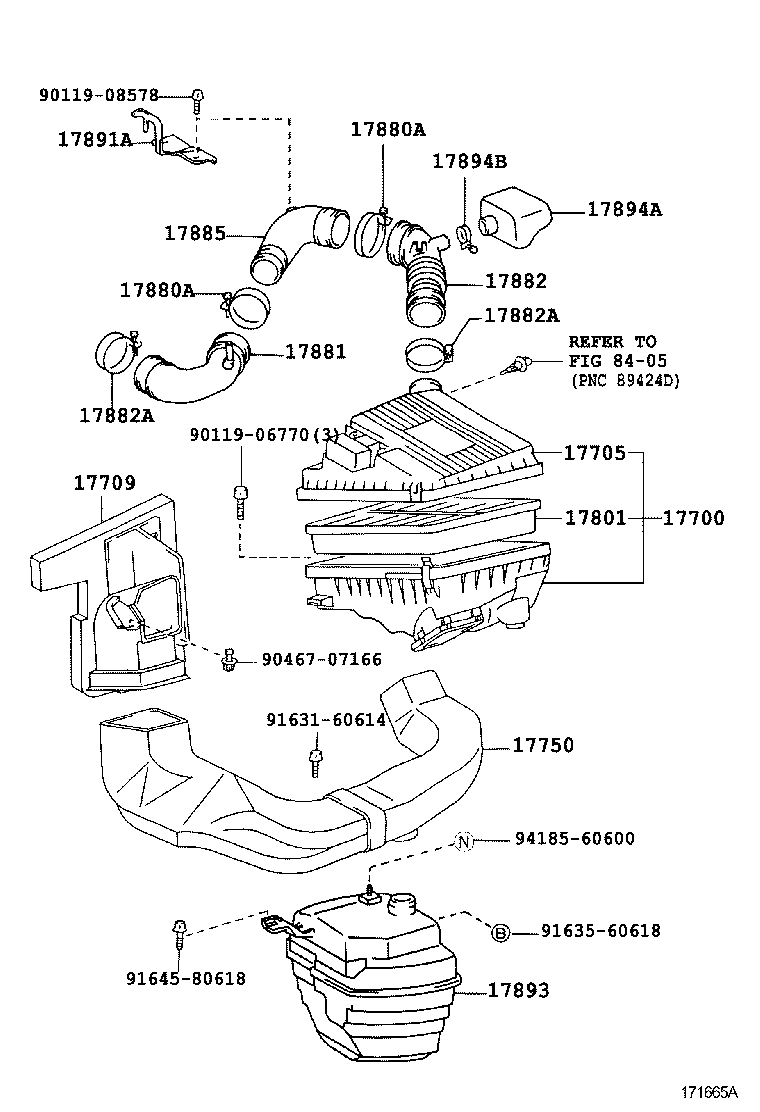

diagram 17700 17705 17709 17750 17801 17880A 17880A 17881 17882 17882A 17882A 17885 17891A 17893 17894A 17894B 8405 9011906770 9011908578 9046707166 9163160614 9163560618 9164580618 9418560600
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-64440

3CE..CE10#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-64310

3CE..CE10#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-64070

2C,3CE..CE10#

 1
17880A - CLAMP, HOSE
96111-10650

3CE..CE10#

 2
17880A - CLAMP, HOSE
96111-10650

3CE..CE10#

 2
17881 - HOSE, AIR CLEANER, NO.1
17881-64360

3CE..CE10#

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-64110

3CE..CE10#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10630

3CE..CE10#

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10630

3CE..CE10#

 2
17885 - PIPE, AIR CLEANER
17885-64010

3CE..CE10#

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-64070

3CE..CE10#

 1
17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
96111-10330

3CE..CE10#

 1
Common parts
90119-06770
90119-08578
90467-07166
91631-60614
91635-60618
91645-80618
94185-60600
Linked diagrams
8405
