CE107V-AUMBE (1998)

Toyota Corolla

Production Apr 1998 - Jun 2002
Engine 3CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9804- )3CE

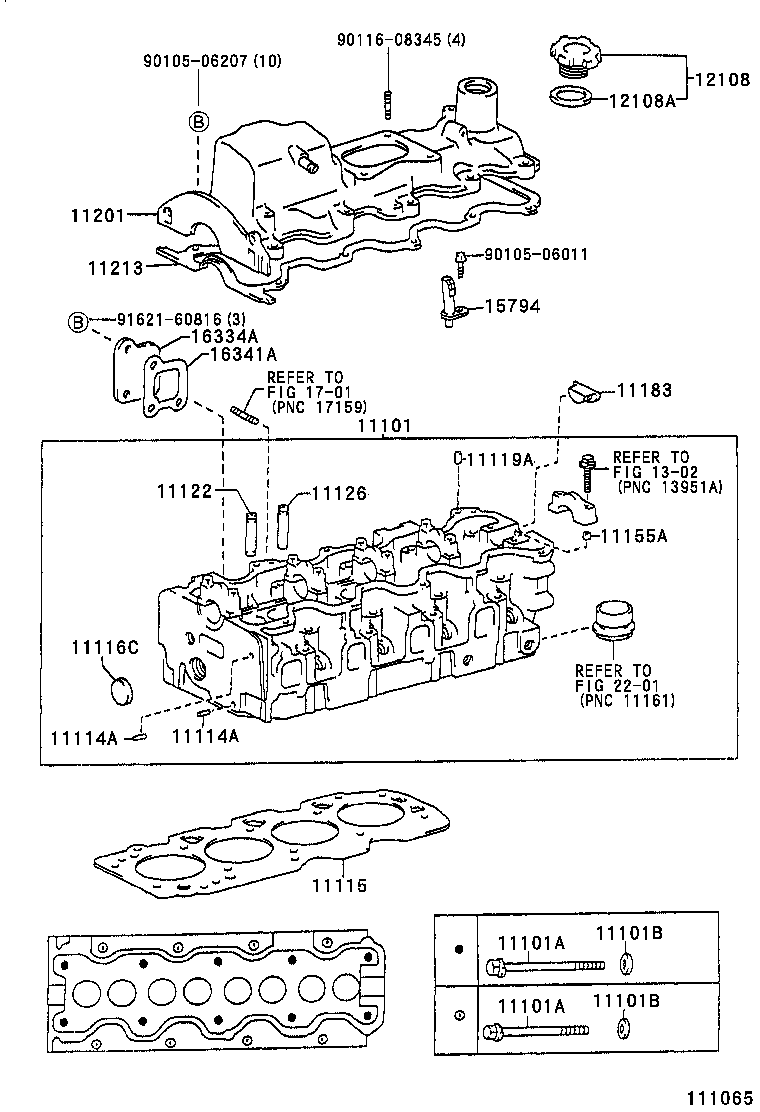

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101B 11101B 11114A 11114A 11115 11116C 11119A 11122 11126 11155A 11183 11201 11213 12108 12108A 1302 15794 16334A 16341A 1701 2201 9010506011 9010506207 9011608345 9162160816
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-64350

3CE..CE10#

 1
11101-64351

3CE..CE10#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02130

3CE..CE10#

*11−1.25PX145−53

 10
90910-02131

3CE..CE10#

*11−1.25PX123−53

 8
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02130

3CE..CE10#

*11−1.25PX145−53

 10
90910-02131

3CE..CE10#

*11−1.25PX123−53

 8
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12222

2C,3CE..CE10#

 18
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12222

2C,3CE..CE10#

 18
11115 - GASKET, CYLINDER HEAD
11115-6418101

3CE..CE10#

MARK 1

 1
11115-64180B0

3CE..CE10#

MARK 2

 1
11115-6418102

3CE..CE10#

MARK 2

 1
11115-6420001

3CE..CE10#

MARK 1

 1
11115-6420003

3CE..CE10#

MARK 3

 1
11115-64180A0

3CE..CE10#

MARK 1

 1
11115-6418103

3CE..CE10#

MARK 3

 1
11115-6420002

3CE..CE10#

MARK 2

 1
11115-64180C0

3CE..CE10#

MARK 3

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-64010

2C,3CE..CE10#

STD

 4
11123-64010

2C,3CE..CE10#

O/S 0.05

 4
11155A - PIN, RING W/HEAD
90253-11021

2C,3CE..CE10#

 10
11183 - PLUG, SEMICIRCULAR
11183-64010

2C,3CE..CE10#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-64160

3CE..CE10#

 1
Common parts
90105-06011
90105-06207
90116-08345
91621-60816
Linked diagrams
1302
1701
2201
