CE106V-AXPNS (1991)

Toyota Corolla

Production Sep 1991 - Apr 1998
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9109- )V,WG

Click highlighted areas on diagram

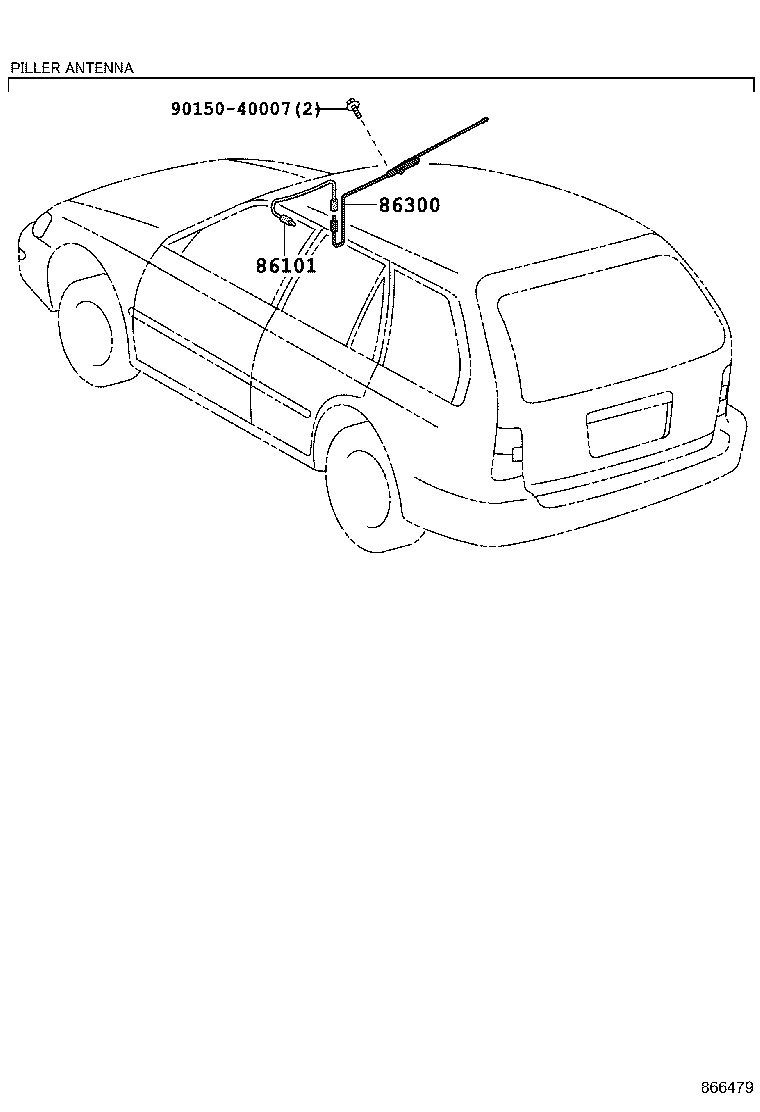

diagram 86101 86300 9015040007
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-12130

AE100,104,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX

 1
86101-12130

AE10#,CE10#,EE10#..BZT,CTD,DX,DXJ,G,GL,L,LT,LX,XE

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-12390

AE100,104,CE10#,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,XE

 1
86300-12391

EE103..GL;EE102..4F..02S;AE100,104,CE100,106,108,109,EE104;EE102,103..(3FC,4F)..(DX,DXJ)..05S

W/GREEN TAPE

 1
86300-12391

CE106,108,109,EE10#

W/GREEN TAPE

 1
86300-12391

AE100,104,CE10#,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,XE

 1
86300-12390

AE100,104,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX

 1
86300-12391

AE10#,CE10#,EE10#

W/GREEN TAPE

 1
86300-12391

AE10#,CE10#,EE10#

W/WHITE TAPE

 1
Common parts
90150-40007
