CE106V-AXPDS (1991)
Toyota Corolla

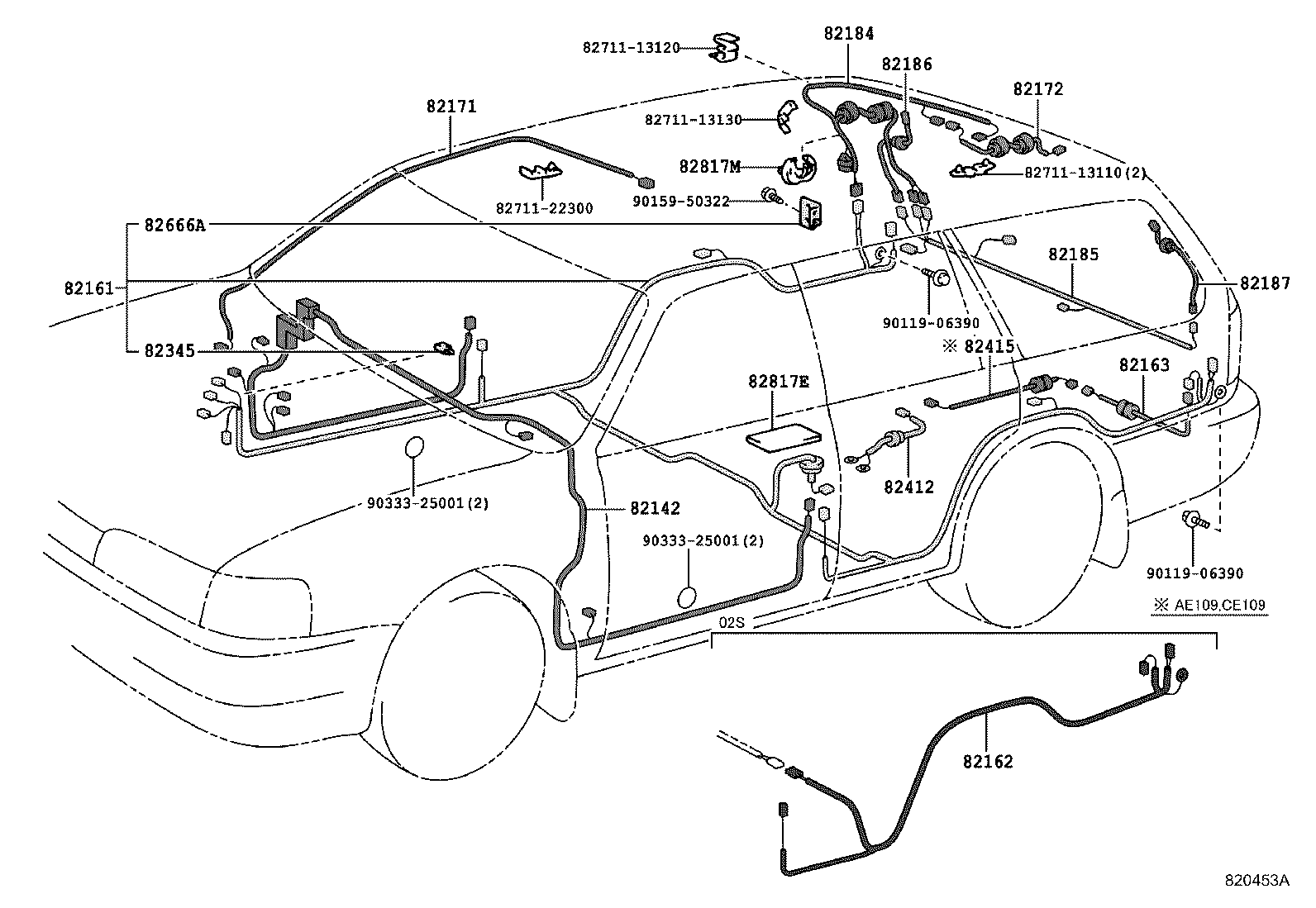

ILLUST NO. 6 OF 9(9109- )V,WG
ﾌﾛｱ,ﾙ-ﾌ & ﾊﾞﾂｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-13720 |
CE108,EE107,108..DX,L;CE106,EE106..(CTD,DX)..05S ｱﾘ(ｾﾝﾀ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82161-13721 |
CE108,EE107,108..DX,L;CE106,EE106..(CTD,DX)..05S ｱﾘ(ｾﾝﾀ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82161-13690 |
CE108,EE107,108..DX,L;CE106,EE106..(CTD,DX)..05S |
1 | ||
| 82161-13721 |
EE106..05S;CE106,108,EE107,108..DX,L ｱﾘ(ｾﾝﾀ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82161-13722 |
CE106,108..DX,L ｱﾘ(ｾﾝﾀ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82161-1F410 |
CE108;CE106..(CTD,DX)..05S |
1 | ||
| 82161-13691 |
CE108;CE106..(CTD,DX)..05S |
1 | ||
| 82161-13723 |
CE108;CE106..(CTD,DX)..05S ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) OR ｱﾘ(ｾﾝﾀ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) |
1 | ||
| 82161-1F420 |
CE108;CE106..05S ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-13100 |
AE100,104,109,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..(V,WG)..(CTD,DX,DXJ,GL,L,LT) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-13020 |
CE106,108,109,EE106,107,108 |
1 | ||
| 82172-13021 |
AE109,CE106,109,EE102,103 |
1 | ||
| 82172-13020 |
CE106,109,EE102,103 |
1 | ||
| 82172-13021 |
AE100,104,109,CE100,101,102,105,106,107,109,EE102,103 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-13180 |
CE106,108,109,EE106,107,108..DX,L ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82184-13190 |
CE106,108,109,EE106,107,108..DX,GL,L ｱﾘ(ｾﾝﾀ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) |
1 | ||
| 82184-13191 |
EE103..GL;EE102,103..(3FC,4F)..DX;AE109,CE106,108,109,EE104,106,107,108..DX,GL,L ｱﾘ(ｾﾝﾀ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) OR ｱﾘ(ｾﾝﾀ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ & ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82184-13170 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..DX,L |
1 | ||
| 82184-13181 |
AE109,CE106,108,109,EE102,103,104,106,107,108..DX,L ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-13250 |
CE106,108,109,EE106,107,108..DX,L ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82185-13440 |
AE109,CE106,108,109,EE102,103,104..DX,L ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82185-13240 |
CE106,108,109,EE106,107,108..DX,L |
1 | ||
| 82185-13430 |
CE107,EE102..5F..DXJ;EE102,103..(3FC,4F)..(DX,DXJ);AE109,CE106,108,109,EE104..CTD,DX,L ｱﾘ(*BDEL) |
1 | ||
| 82185-13510 |
EE103..GL;AE109,CE106,109;CE107,EE102..5F..DXJ;EE102,103..(3FC,4F)..(DX,DXJ) ｱﾘ(*BDEL & ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-13020 |
AE109,CE102,105,106,107,108,109,EE10# |
2 | ||
| 82186-13020 |
AE109,CE106,108,109,EE102,103,104,106,107,108 |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82186-13020 |
EE103..GL;EE102..4F..02S;EE102,103..(3FC,4F)..(DX,DXJ)..05S;AE109,CE106,108,109,EE104,106,107,108 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
AE10#,CE10#,EE10# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-12030 |
AE10#,CE10#,EE10# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-12050 |
AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-13011 |
AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG |
1 | ||
| 82666-13010 |
AE100,CE106,108,109,EE106,107,108..V,WG |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-13130 |
CE108,EE103,104;CE106,EE102..05S |
1 | ||
| 82817-16100 |
CE108,EE107,108;CE106,EE106..05S |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-13100 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| Common parts | ||||
| 82711-13110 | ||||
| 82711-13120 | ||||
| 82711-13130 | ||||
| 82711-22300 | ||||
| 90119-06390 | ||||
| 90159-50322 | ||||
| 90333-25001 | ||||
