CE106V-AXMBS (1991)

Toyota Corolla

Production Sep 1991 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9106-9505)4DS,V,WG ; (9505-9705)AE100,101,104,CE100 ; (9505- )AE109,CE102,105,1

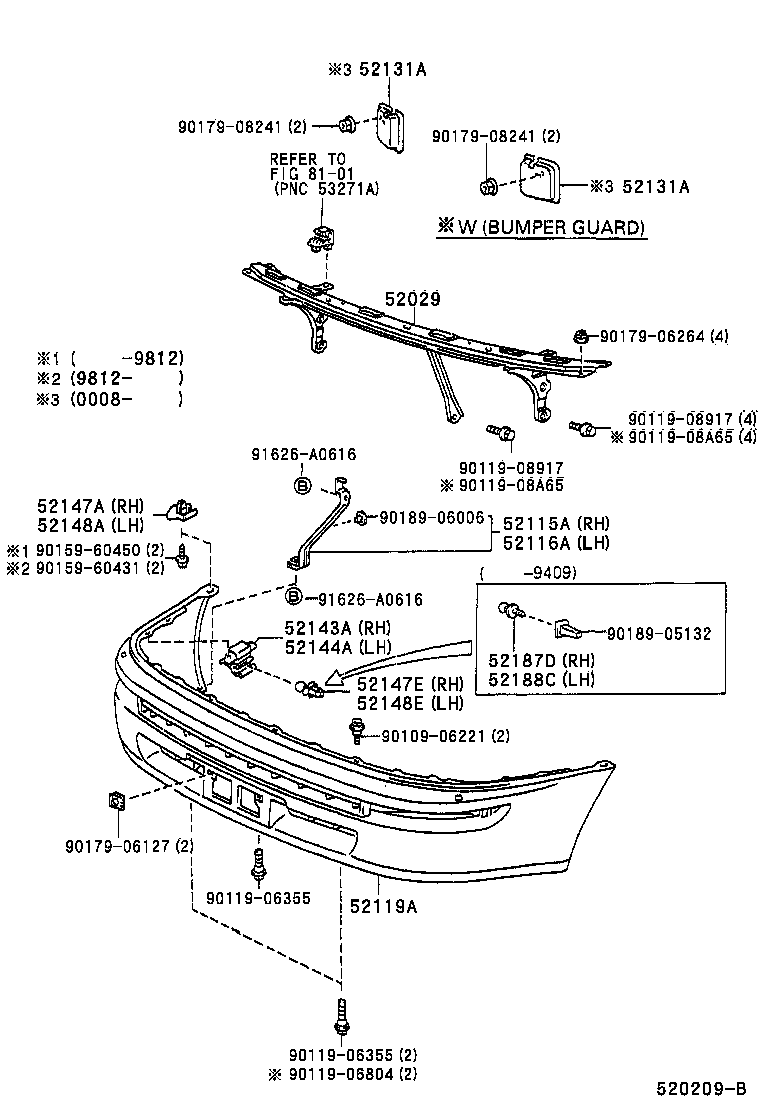

Click highlighted areas on diagram

diagram 52029 52115A 52116A 52119A 52131A 52131A 52143A 52144A 52147A 52147E 52148A 52148E 52187D 52188C 8101 9010906221 9011906355 9011906355 9011906804 9011908917 9011908917 9011908A65 9011908A65 9015960431 9015960450 9017906127 9017906264 9017908241 9017908241 9018905132 9018906006 91626A0616 91626A0616
Part # Description Qty Price
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-12010

AE10#,CE10#,EE10#..4DS,V,WG

 1
52029-13010

AE10#,CE10#,EE10#

 1
52029-13010

AE109,CE106,109,EE102,103

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12340

AE10#,CE10#,EE10#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12270

AE10#,CE10#,EE10#

 1
52119A - COVER, FRONT BUMPER
52119-1E010

AE100,CE100,106,108,109,EE10#..CTD,DX,GL,L

 1
52119-1E010

CE106,108,109,EE106,107,108

 1
52119-1E260

AE10#,CE100,106,108,109,EE10#..BZT,CTD,DX,DXJ,G,GL,L,LT

 1
52119-1E260

AE10#,CE106,108,109,EE10#

 1
52143A - ARM, FRONT BUMPER, INNER RH
52143-12330

AE10#,CE10#,EE10#

 1
52143-12330

AE109,CE102,105,106,107,108,109,EE10#

 1
52143-12300

AE10#,CE10#,EE10#

 1
52144A - ARM, FRONT BUMPER, INNER LH
52143-12300

AE10#,CE10#,EE10#

 1
52143-12330

AE10#,CE10#,EE10#

 1
52143-12330

AE109,CE102,105,106,107,108,109,EE10#

 1
52147A - BRACKET, FRONT BUMPER STAY, RH
52147-12170

AE10#,CE10#,EE10#

 1
52147E - BRACKET, FRONT BUMPER MOUNTING, RH
52148-12130

AE10#,CE10#,EE10#

 1
52148A - BRACKET, FRONT BUMPER STAY, LH
52147-12170

AE10#,CE10#,EE10#

 1
52148E - BRACKET, FRONT BUMPER MOUNTING, LH
52148-12130

AE10#,CE10#,EE10#

 1
52187D - GUIDE, FRONT BUMPER LOCATION, RH
52187-12140

AE10#,CE10#,EE10#

 1
52188C - GUIDE, FRONT BUMPER LOCATION, LH
52187-12140

AE10#,CE10#,EE10#

 1
Common parts
90109-06221
90119-06355
90119-06804
90119-08917
90119-08A65
90159-60431
90159-60450
90179-06127
90179-06264
90179-08241
90189-05132
90189-06006
91626-A0616
Linked diagrams
8101
