CE104-AEMNS (1991)
Toyota Corolla

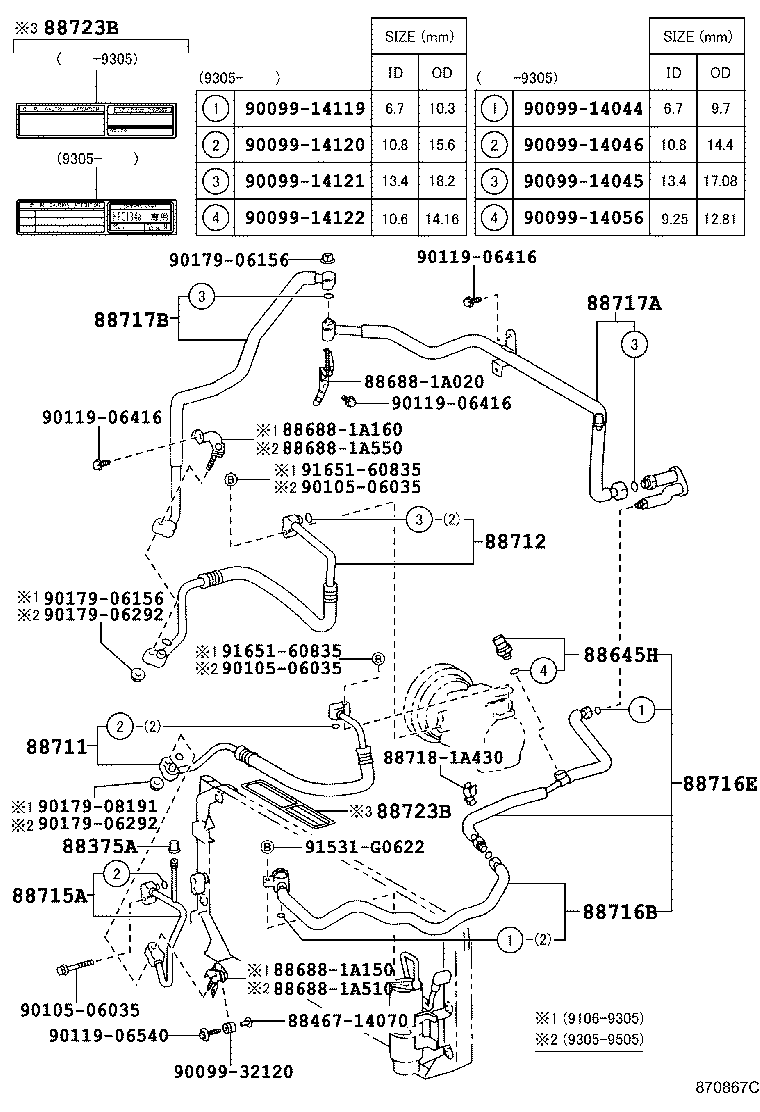

ILLUST NO. 2 OF 2(9106-9505)CE100,104..SEL,XE
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
AE10#,CE10#,EE10# |
1 | ||
| 88375-24010 |
AE10#,CE10#,EE10# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-50010 |
AE10#,CE10#,EE10# |
1 | ||
| 88645-20050 |
AE10#,CE10#,EE10# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12700 |
AE100,104..DX,LT,LX,XE |
1 | ||
| 88711-12700 |
AE100,104..SEL,XE ﾃﾞｲ-ﾗ ｿｳﾁﾔｸ |
1 | ||
| 88711-12671 |
CE100,104..SEL,XE ﾒ-ｶ ｿｳﾁﾔｸ |
1 | ||
| 88711-1A060 |
AE100,104..SEL,XE ﾃﾞｲ-ﾗ ｿｳﾁﾔｸ |
1 | ||
| 88711-1A090 |
CE10# |
1 | ||
| 88711-12730 |
CE10#..CTD,DX,GL,L,LX,XE |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-12870 |
CE10# |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-12390 |
CE100..XE;CE104..LX,XE;CE100..5F..LX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) OR ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88715-12410 |
CE100,104..SEL,XE |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-1A020 |
AE100,104,EE10#..CTD,DX,GL,L,LT,LX,XE |
1 | ||
| 88716-1A020 |
AE100,104,EE10#..CTD,DX,GL,L,LT,LX,SEL,XE |
1 | ||
| 88716-1A040 |
CE10#..CTD,DX,GL,L,LX,XE |
1 | ||
| 88716-1A240 |
AE100,104,109,EE10#..CTD,DX,DXJ,GL,L,LX,SEL,XE |
1 | ||
| 88716-1A370 |
CE100,104..SEL,XE ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-1A030 |
CE100..XE;CE104..LX,XE;CE100..5F..LX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) OR ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88716-1A250 |
AE100,104..SEL,XE ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88706-12090 |
CE100,104..SEL,XE |
1 | ||
| 88716-1A010 |
AE100,104..SEL,XE ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88716-1A340 |
CE10#..CTD,DX,DXJ,G,GL,L,LT,SEL,XE |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-12530 |
CE100..XE;CE104..LX,XE;CE100..5F..LX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) OR ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88717-12530 |
CE100..4FC..LX;CE10#..CTD,DX,GL,L,SEL,XE |
1 | ||
| 88717-12560 |
AE100,104..SEL,XE ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88717-12750 |
CE106,109..5F;CE100,104..SEL,XE |
1 | ||
| 88717-12760 |
AE100,104..SEL,XE ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88717-12780 |
CE100,104..SEL,XE ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88717-12750 |
CE106,109;CE100,104,108..L,SEL,XE |
1 | ||
| 88717-12750 |
CE100,104..SEL,XE |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88707-12040 |
CE10# |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-12050 |
AE10#,CE10#,EE10# ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-12050 |
AE10#,CE10#,EE10# ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 88688-1A020 | ||||
| 88688-1A150 | ||||
| 88688-1A160 | ||||
| 88688-1A510 | ||||
| 88688-1A550 | ||||
| 88718-1A430 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-32120 | ||||
| 90105-06035 | ||||
| 90119-06416 | ||||
| 90119-06540 | ||||
| 90179-06156 | ||||
| 90179-06292 | ||||
| 90179-08191 | ||||
| 91531-G0622 | ||||
| 91651-60835 | ||||

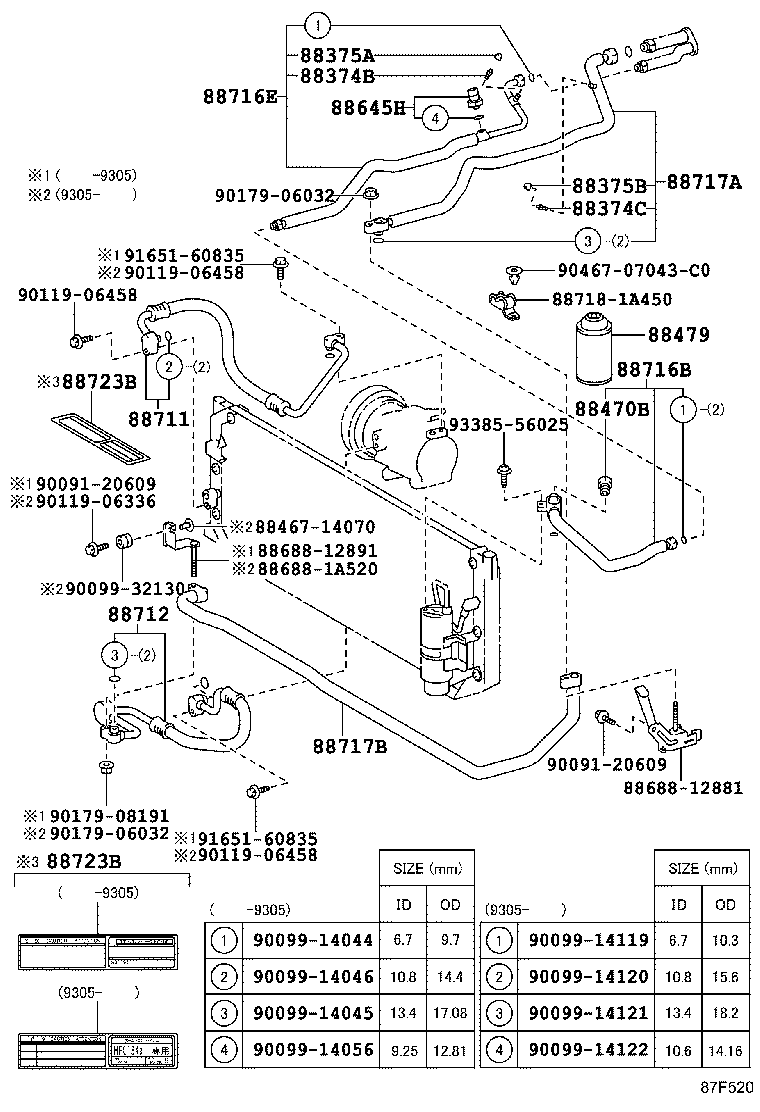

ILLUST NO. 2 OF 2(9106-9505)AE100,104..DX,LT,LX,SEL,XE
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 48094-10010 |
EE107,108..MTM;AE100,104,CE10#,EE101,106..CTD,DX,GL,L,LT,LX,XE |
1 | ||
| 48094-10010 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,SEL,XE |
1 | ||
| 88374-30010 |
AE10#,CE10#,EE10# |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-12020 |
AE100,104,EE10#..CTD,DX,GL,L,LT,LX,XE |
1 | ||
| 88374-30010 |
CE108..4FC;AE100,104,CE100,104,106,109,EE10#..CTD,DX,DXJ,GL,L,LX,SEL,XE |
1 | ||
| 48094-10010 |
CE10# |
1 | ||
| 88374-12020 |
AE100,104,EE10#..CTD,DX,GL,L,LT,LX,SEL,XE |
1 | ||
| 88374-30010 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX,SEL,XE |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
AE10#,CE10#,EE10# |
1 | ||
| 88375-24010 |
AE10#,CE10#,EE10# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30270 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,SEL,XE |
1 | ||
| 88375-30270 |
CE100,104;AE100,104,CE106,108,109,EE10#..CTD,DX,GL,L,LT,LX,XE |
1 | ||
| 88375-30290 |
AE10#,CE10#,EE10# |
1 | ||
| 88375-30290 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,GL,L,LX,SEL,XE |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
AE100,104,EE10#..CTD,DX,GL,L,LT,LX,XE |
1 | ||
| 88475-12020 |
AE100,104,EE10#..CTD,DX,GL,L,LT,LX,SEL,XE |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
EE101..DX;AE100,104,CE102,104,108,EE104,108..L,SEL,XE;AE109,CE100,105,106,107,109,EE102,103,106,107..CTD,DX,DXJ,GL,SEL,XE 200G |
3 | ||
| 90986-02004 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE 250G |
3 | ||
| 90986-02004 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,SEL,XE 250G |
3 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-50010 |
AE10#,CE10#,EE10# |
1 | ||
| 88645-20050 |
AE10#,CE10#,EE10# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12671 |
CE100,104..SEL,XE ﾒ-ｶ ｿｳﾁﾔｸ |
1 | ||
| 88711-12700 |
AE100,104..SEL,XE ﾃﾞｲ-ﾗ ｿｳﾁﾔｸ |
1 | ||
| 88711-12700 |
AE100,104..DX,LT,LX,XE |
1 | ||
| 88711-1A060 |
AE100,104..SEL,XE ﾃﾞｲ-ﾗ ｿｳﾁﾔｸ |
1 | ||
| 88711-1A090 |
CE10# |
1 | ||
| 88711-12730 |
CE10#..CTD,DX,GL,L,LX,XE |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-12870 |
CE10# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-1A020 |
AE100,104,EE10#..CTD,DX,GL,L,LT,LX,XE |
1 | ||
| 88716-1A020 |
AE100,104,EE10#..CTD,DX,GL,L,LT,LX,SEL,XE |
1 | ||
| 88716-1A040 |
CE10#..CTD,DX,GL,L,LX,XE |
1 | ||
| 88716-1A240 |
AE100,104,109,EE10#..CTD,DX,DXJ,GL,L,LX,SEL,XE |
1 | ||
| 88716-1A370 |
CE100,104..SEL,XE ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-1A030 |
CE100..XE;CE104..LX,XE;CE100..5F..LX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) OR ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88716-1A250 |
AE100,104..SEL,XE ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88706-12090 |
CE100,104..SEL,XE |
1 | ||
| 88716-1A010 |
AE100,104..SEL,XE ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88716-1A340 |
CE10#..CTD,DX,DXJ,G,GL,L,LT,SEL,XE |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-12530 |
CE100..XE;CE104..LX,XE;CE100..5F..LX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) OR ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88717-12530 |
CE100..4FC..LX;CE10#..CTD,DX,GL,L,SEL,XE |
1 | ||
| 88717-12560 |
AE100,104..SEL,XE ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88717-12750 |
CE106,109..5F;CE100,104..SEL,XE |
1 | ||
| 88717-12760 |
AE100,104..SEL,XE ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88717-12780 |
CE100,104..SEL,XE ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88717-12750 |
CE106,109;CE100,104,108..L,SEL,XE |
1 | ||
| 88717-12750 |
CE100,104..SEL,XE |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88707-12040 |
CE10# |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-12050 |
AE10#,CE10#,EE10# ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-12050 |
AE10#,CE10#,EE10# ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 88688-12881 | ||||
| 88688-12891 | ||||
| 88688-1A520 | ||||
| 88718-1A450 | ||||
| 90091-20609 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-32130 | ||||
| 90119-06336 | ||||
| 90119-06458 | ||||
| 90179-06032 | ||||
| 90179-08191 | ||||
| 90467-07043C0 | ||||
| 91651-60835 | ||||
| 93385-56025 | ||||

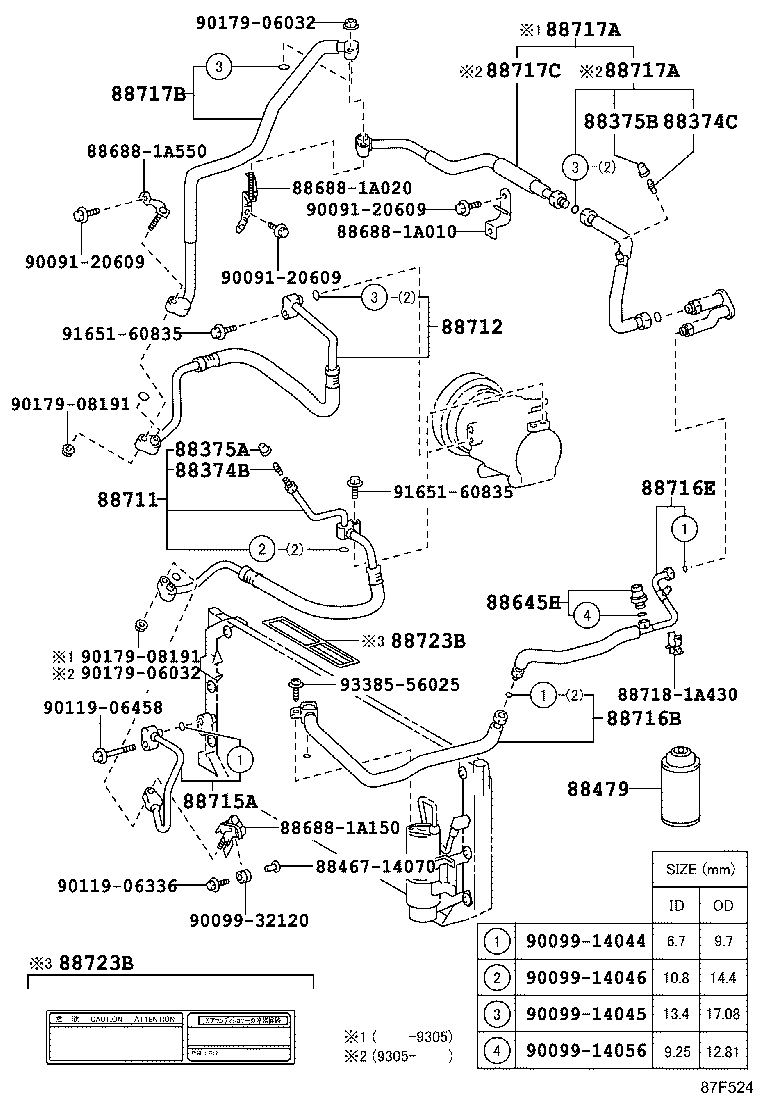

ILLUST NO. 2 OF 2(9106-9305)CE10#
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 48094-10010 |
EE107,108..MTM;AE100,104,CE10#,EE101,106..CTD,DX,GL,L,LT,LX,XE |
1 | ||
| 48094-10010 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,SEL,XE |
1 | ||
| 88374-30010 |
AE10#,CE10#,EE10# |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-12020 |
AE100,104,EE10#..CTD,DX,GL,L,LT,LX,XE |
1 | ||
| 88374-30010 |
CE108..4FC;AE100,104,CE100,104,106,109,EE10#..CTD,DX,DXJ,GL,L,LX,SEL,XE |
1 | ||
| 48094-10010 |
CE10# |
1 | ||
| 88374-12020 |
AE100,104,EE10#..CTD,DX,GL,L,LT,LX,SEL,XE |
1 | ||
| 88374-30010 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX,SEL,XE |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
AE10#,CE10#,EE10# |
1 | ||
| 88375-24010 |
AE10#,CE10#,EE10# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30270 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,SEL,XE |
1 | ||
| 88375-30270 |
CE100,104;AE100,104,CE106,108,109,EE10#..CTD,DX,GL,L,LT,LX,XE |
1 | ||
| 88375-30290 |
AE10#,CE10#,EE10# |
1 | ||
| 88375-30290 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,GL,L,LX,SEL,XE |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
EE101..DX;AE100,104,CE102,104,108,EE104,108..L,SEL,XE;AE109,CE100,105,106,107,109,EE102,103,106,107..CTD,DX,DXJ,GL,SEL,XE 200G |
3 | ||
| 90986-02004 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE 250G |
3 | ||
| 90986-02004 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,SEL,XE 250G |
3 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-50010 |
AE10#,CE10#,EE10# |
1 | ||
| 88645-20050 |
AE10#,CE10#,EE10# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12700 |
AE100,104..DX,LT,LX,XE |
1 | ||
| 88711-12700 |
AE100,104..SEL,XE ﾃﾞｲ-ﾗ ｿｳﾁﾔｸ |
1 | ||
| 88711-12671 |
CE100,104..SEL,XE ﾒ-ｶ ｿｳﾁﾔｸ |
1 | ||
| 88711-1A060 |
AE100,104..SEL,XE ﾃﾞｲ-ﾗ ｿｳﾁﾔｸ |
1 | ||
| 88711-1A090 |
CE10# |
1 | ||
| 88711-12730 |
CE10#..CTD,DX,GL,L,LX,XE |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-12870 |
CE10# |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-12390 |
CE100..XE;CE104..LX,XE;CE100..5F..LX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) OR ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88715-12410 |
CE100,104..SEL,XE |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-1A020 |
AE100,104,EE10#..CTD,DX,GL,L,LT,LX,XE |
1 | ||
| 88716-1A020 |
AE100,104,EE10#..CTD,DX,GL,L,LT,LX,SEL,XE |
1 | ||
| 88716-1A040 |
CE10#..CTD,DX,GL,L,LX,XE |
1 | ||
| 88716-1A240 |
AE100,104,109,EE10#..CTD,DX,DXJ,GL,L,LX,SEL,XE |
1 | ||
| 88716-1A370 |
CE100,104..SEL,XE ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-1A030 |
CE100..XE;CE104..LX,XE;CE100..5F..LX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) OR ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88716-1A250 |
AE100,104..SEL,XE ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88706-12090 |
CE100,104..SEL,XE |
1 | ||
| 88716-1A010 |
AE100,104..SEL,XE ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88716-1A340 |
CE10#..CTD,DX,DXJ,G,GL,L,LT,SEL,XE |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-12530 |
CE100..XE;CE104..LX,XE;CE100..5F..LX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) OR ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88717-12530 |
CE100..4FC..LX;CE10#..CTD,DX,GL,L,SEL,XE |
1 | ||
| 88717-12560 |
AE100,104..SEL,XE ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88717-12750 |
CE106,109..5F;CE100,104..SEL,XE |
1 | ||
| 88717-12760 |
AE100,104..SEL,XE ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88717-12780 |
CE100,104..SEL,XE ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88717-12750 |
CE106,109;CE100,104,108..L,SEL,XE |
1 | ||
| 88717-12750 |
CE100,104..SEL,XE |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-12530 |
CE100..XE;CE104..LX,XE;CE100..5F..LX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) OR ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88717-12530 |
CE100..4FC..LX;CE10#..CTD,DX,GL,L,SEL,XE |
1 | ||
| 88717-12560 |
AE100,104..SEL,XE ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88717-12750 |
CE106,109..5F;CE100,104..SEL,XE |
1 | ||
| 88717-12760 |
AE100,104..SEL,XE ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88717-12780 |
CE100,104..SEL,XE ｱﾘ(ｴｱｺﾝ=DOP) |
1 | ||
| 88717-12750 |
CE106,109;CE100,104,108..L,SEL,XE |
1 | ||
| 88717-12750 |
CE100,104..SEL,XE |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88707-12040 |
CE10# |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-12790 |
CE100,104 |
1 | ||
| 88717-12790 |
CE106..4FC;CE100,104,108 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-12050 |
AE10#,CE10#,EE10# ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-12050 |
AE10#,CE10#,EE10# ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 88688-1A010 | ||||
| 88688-1A020 | ||||
| 88688-1A150 | ||||
| 88688-1A550 | ||||
| 88718-1A430 | ||||
| 90091-20609 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90099-32120 | ||||
| 90119-06336 | ||||
| 90119-06458 | ||||
| 90179-06032 | ||||
| 90179-08191 | ||||
| 91651-60835 | ||||
| 93385-56025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
