CE104-AEMNS (1991)

Toyota Corolla

Production Sep 1991 - May 1995
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9109-9401)EE106,107,108 ; (9401-9505)EE102,103,104

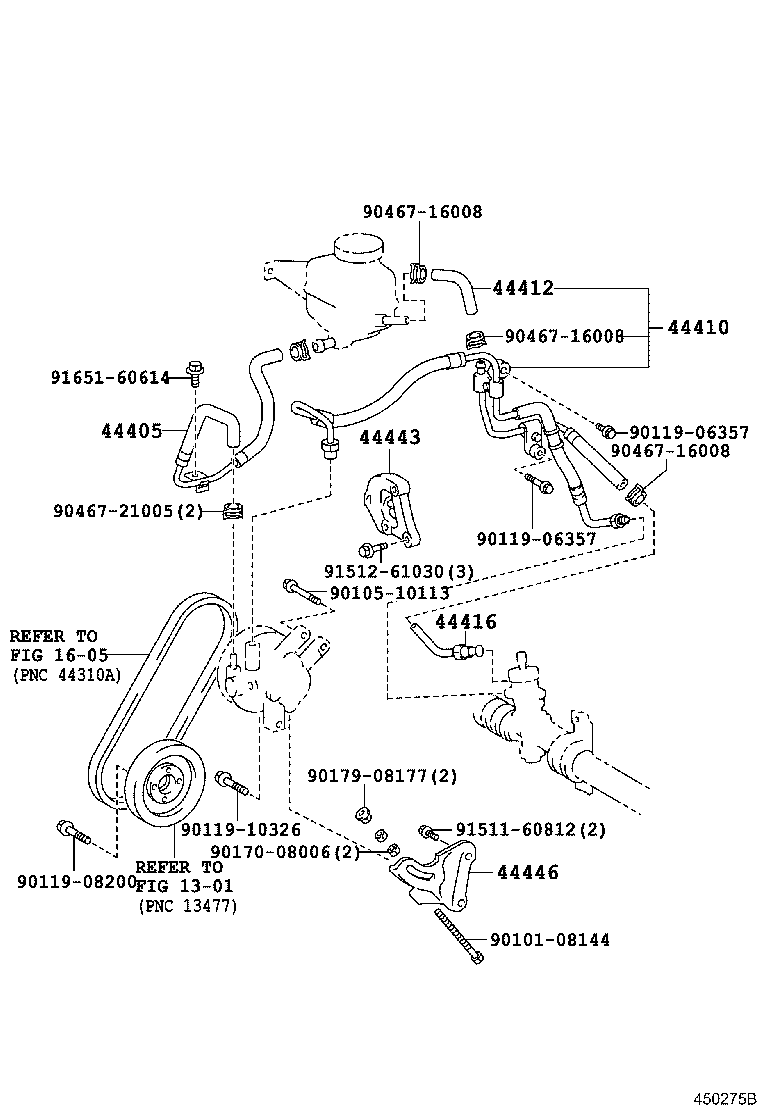

Click highlighted areas on diagram

diagram 1301 1605 44405 44410 44412 44416 44443 44446 9010108144 9010510113 9011906357 9011906357 9011908200 9011910326 9017008006 9017908177 9046716008 9046716008 9046716008 9046721005 9151160812 9151261030 9165160614
Part # Description Qty Price
44405 - TUBE SUB-ASSY, OIL RESERVOIR TO PUMP, NO.1
44405-12100

CE10#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-12391

AE100..5F..DX;AE100,104..LX,SEL,XE

 1
44040-12090

CE104,109

 1
44410-12391

AE100,104..4DS

 1
44040-12091

CE104,109

 1
44412 - HOSE, RETURN
44412-12200

AE101,CE10#,EE10#..BZT,CTD,DX,DXJ,G,GL,GT,L,LT,LX,SEL,XE

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-12210

AE104,CE100,104,EE101;AE100,CE106,108,109,EE106,107,108..V,WG

 1
44406-12181

AE100..5F..DX;AE100,104..LX,SEL,XE

 1
44416-12210

CE10#,EE10#

 1
44406-12181

AE100,104..4DS

 1
44443 - BRACKET, PUMP
44443-10030

EE101,102,103,104

 1
44446 - STRUT, ADJUSTING
44446-16051

EE103,104

 1
Common parts
90101-08144
90105-10113
90119-06357
90119-08200
90119-10326
90170-08006
90179-08177
90467-16008
90467-21005
91511-60812
91512-61030
91651-60614
Linked diagrams
1301
1605
