CE104-AEMNS (1991)

Toyota Corolla

Production Sep 1991 - May 1995
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9109- )CE104,105,109

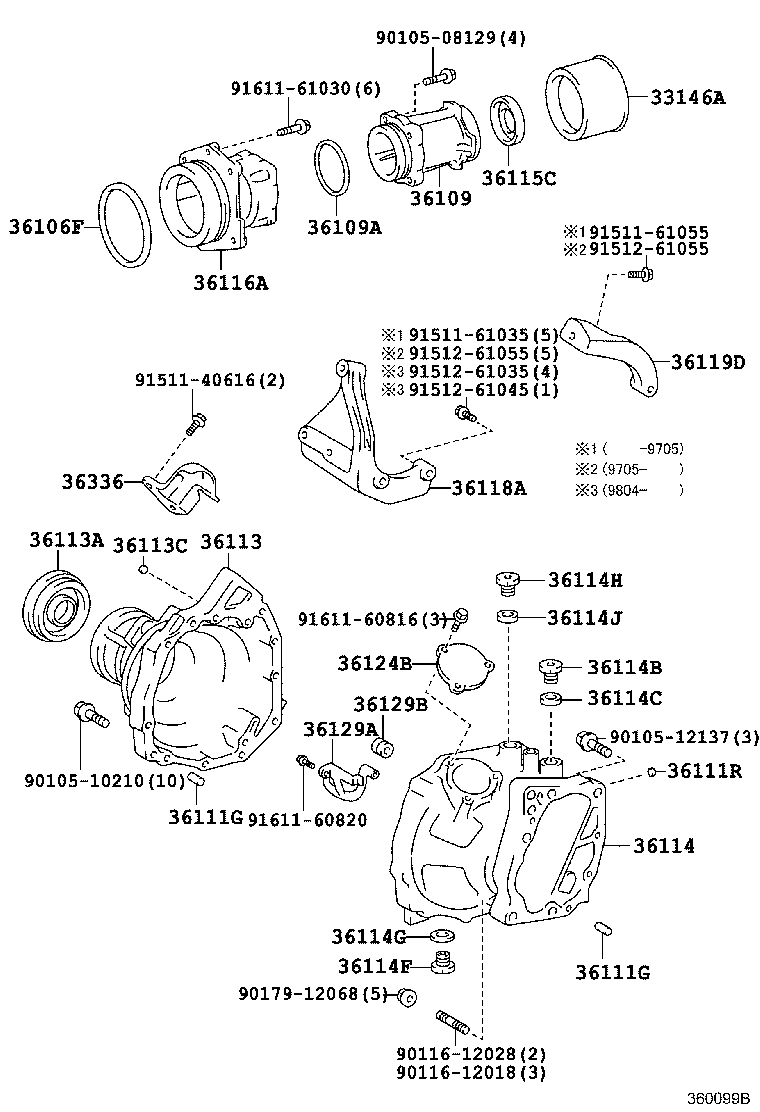

Click highlighted areas on diagram

E59F

diagram 33146A 36106F 36109 36109A 36111G 36111G 36111R 36113 36113A 36113C 36114 36114B 36114C 36114F 36114G 36114H 36114J 36115C 36116A 36118A 36119D 36124B 36129A 36129B 36336 9010508129 9010510210 9010512137 9011612018 9011612028 9017912068 9151140616 9151161035 9151161055 9151261035 9151261045 9151261055 9151261055 9161160816 9161160820 9161161030
Part # Description Qty Price
33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33146-30020

CE104,109

 1
33146-30020

AE104..WG;AE104..4DS..4FC;AE109,CE104,105,109

 1
36336 - INSULATOR, TRANSFER HEAT
36336-12010

CE104,109

 1
Common parts
90105-08129
90105-10210
90105-12137
90116-12018
90116-12028
90179-12068
91511-40616
91511-61035
91511-61055
91512-61035
91512-61045
91512-61055
91611-60816
91611-60820
91611-61030
