CE104-AEMNS (1991)
Toyota Corolla

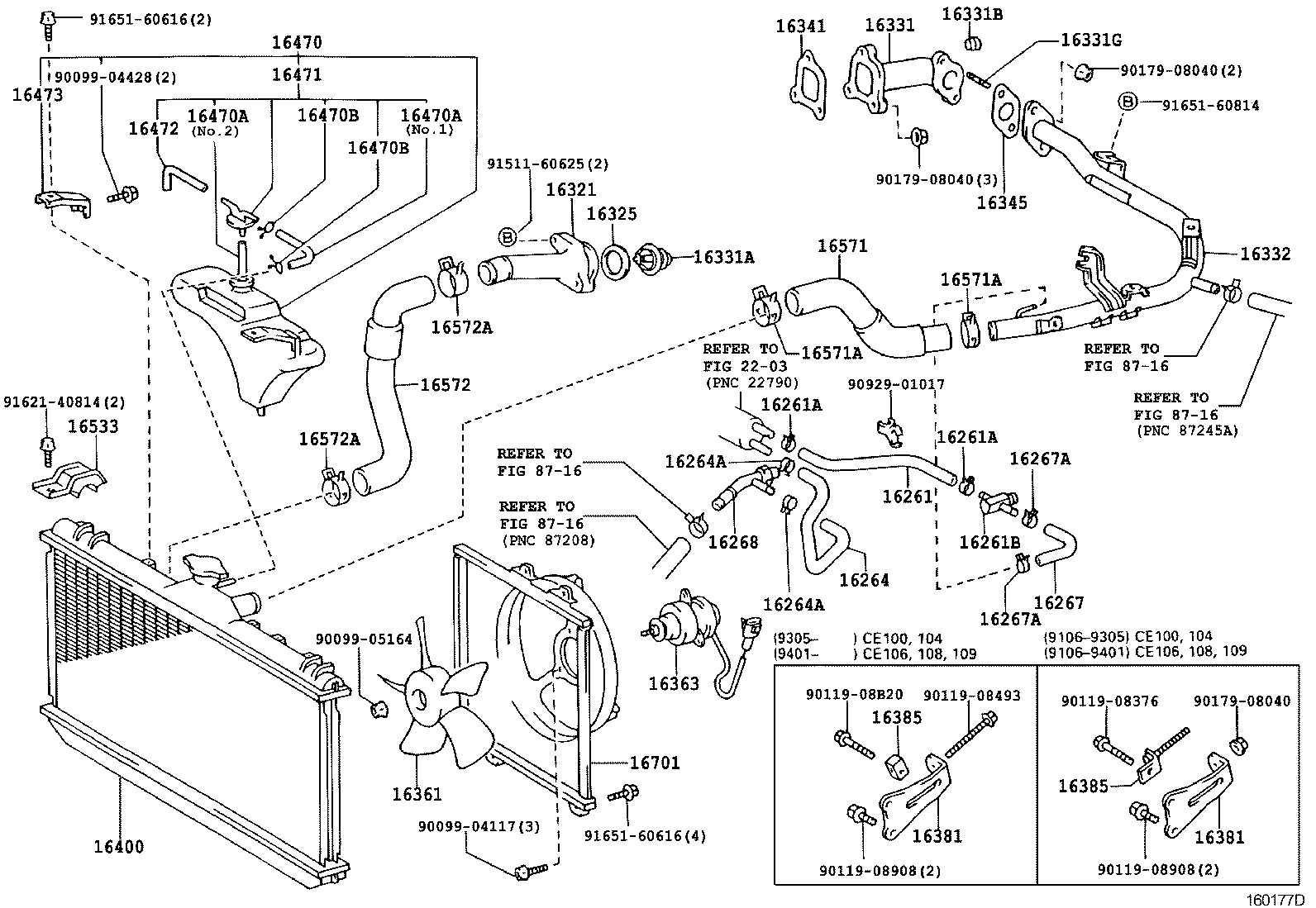

ILLUST NO. 1 OF 2(9106-9508)2C..CTD,DX,GL,L,LX,SEL,XE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-64060 |
2C..CE10# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2C..CE10# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2C..CE10# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53050 |
2C..CE10# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-64090 |
2C..CE10# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2C..CE10# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2C..CE10# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-64010 |
2C..CE10#..CTD,DX,GL,L,LX,SEL,XE |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
2C..CE10#..CTD,DX,GL,L,LX,SEL,XE |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
2C..CE10#..CTD,DX,GL,L,LX,SEL,XE |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-64061 |
2C..CE10# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-64020 |
2C,3CE..CE10# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
2C..CE10# |
1 | ||
| 16325-63011 |
2C,3CE..CE10# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-64070 |
2C..CE10# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
2C,3CE..CE10# *WAX 82−95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90345-53030 |
2C..CE10# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 90345-53030 |
2C..CE10# |
2 | ||
| 16331G - BOLT, STUD(FOR WATER INLET) | ||||
| 92122-60816 |
2C..CE10#..CTD,DX,GL,L,LX,SEL,XE |
2 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16306-64020 |
2C..CE10# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-64020 |
2C..CE10# |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-64040 |
2C..CE10# |
1 | ||
| 16361 - FAN | ||||
| 16361-63020 |
2C,3CE..CE104,105,109;2C..CE100,106,108..4FC |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-74030 |
2C,3CE..CE104,105,109;2C..CE100,106,108..4FC |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-64080 |
2C..CE100,104 |
1 | ||
| 16381-64020 |
2C..CE10# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-64080 |
2C..CE100,104 |
1 | ||
| 16381-64020 |
2C..CE10# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64020 |
2C..CE10# |
1 | ||
| 16385-64011 |
2C..CE100,104 |
1 | ||
| 16385-64011 |
2C,3CE..CE10# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64020 |
2C..CE10# |
1 | ||
| 16385-64011 |
2C..CE100,104 |
1 | ||
| 16385-64011 |
2C,3CE..CE10# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-64650 |
2C..CE104 |
1 | ||
| 16400-64651 |
2C..CE104 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-64130 |
2C,3CE..CE10# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16478-64130 |
2C,3CE..CE10# NO.1 |
1 | ||
| 16471-64130 |
2C,3CE..CE10# NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16478-64130 |
2C,3CE..CE10# NO.1 |
1 | ||
| 16471-64130 |
2C,3CE..CE10# NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2C,3CE..CE10# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2C,3CE..CE10# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-64080 |
2C,3CE..CE10# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16477-64130 |
2C,3CE..CE10# |
1 | ||
| 16473 - SUPPORT(FOR RADIATOR RESERVE TANK) | ||||
| 16473-64130 |
2C,3CE..CE10# |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-64120 |
2C..CE10# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-64160 |
2C..CE10#..CTD,DX,GL,L,LX,SEL,XE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
2C..CE10#..CTD,DX,GL,L,LX,SEL,XE |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
2C..CE10#..CTD,DX,GL,L,LX,SEL,XE |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-64200 |
2C,3CE..CE10# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
2C,3CE..CE10# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37002 |
2C,3CE..CE10# INLET SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
2C,3CE..CE10# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37002 |
2C,3CE..CE10# INLET SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-64310 |
2C..CE104,109;2C..CE100,106,108..4FC |
1 | ||
| 16711-64311 |
2C,3CE..CE104,105,109;2C..CE100,106,108..4FC |
1 | ||
| Common parts | ||||
| 90099-04117 | ||||
| 90099-04428 | ||||
| 90099-05164 | ||||
| 90119-08376 | ||||
| 90119-08493 | ||||
| 90119-08908 | ||||
| 90119-08B20 | ||||
| 90179-08040 | ||||
| 90929-01017 | ||||
| 91511-60625 | ||||
| 91621-40814 | ||||
| 91651-60616 | ||||
| 91651-60814 | ||||
| Linked diagrams | ||||
| 2203 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(9106-9704)2C ; (9704-9705)2C..CE100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-64650 |
2C..CE104 |
1 | ||
| 16400-64651 |
2C..CE104 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2C,3CE..CE10# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
2C,3CE..CE10# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
2C,3CE..CE10# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-16440 |
2C..CE104 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-62050 |
2C,3CE..CE10# |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16452-62050 |
2C..CE10# |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-62050 |
2C..CE10# |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-62050 |
2C,3CE..CE10# |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74070 |
2C..CE10# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74070 |
2C..CE10# |
2 | ||
