CE100G-AWMNS (1995)
Toyota Corolla

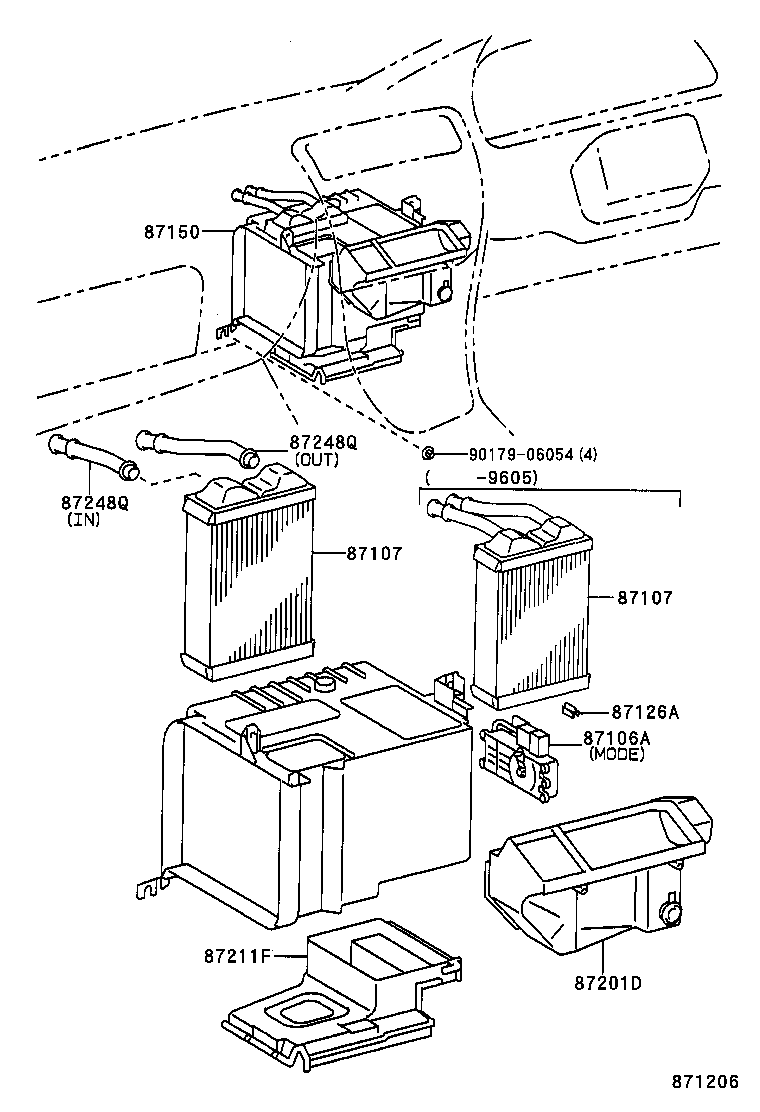

ILLUST NO. 1 OF 3(9505- )BZT,G
ﾌﾟﾂｼﾕｼｷ ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-12070 |
AE10#,CE100,104..G,GT,SEG,SEL |
1 | ||
| 87106-12030 |
AE10#,CE100,104..G,GT,SEG,SEL MODE CONTROL |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-12430 |
CE10# |
1 | ||
| 87107-12470 |
AE10#,CE10#,EE10# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107-12500 |
AE10#,CE10#,EE10# |
1 | ||
| 87107-12510 |
AE10#,CE10#,EE10# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-12430 |
CE10# |
1 | ||
| 87107-12470 |
AE10#,CE10#,EE10# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107-12500 |
AE10#,CE10#,EE10# |
1 | ||
| 87107-12510 |
AE10#,CE10#,EE10# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87126A - CLAMP, HEATER CONTROL | ||||
| 87126-12050 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE |
2 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-12580 |
CE10#..CTD,DX,GL,L,LX,XE |
1 | ||
| 87150-12600 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SJ,XE ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-12650 |
AE10#,CE100,104..G,GT,SEG,SEL ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-12780 |
AE10#,CE100..G ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-12870 |
CE10#..CTD,DX,GL,L,LT |
1 | ||
| 87150-1A050 |
AE10#,CE100 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 87150-12880 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-12861 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT |
1 | ||
| 87150-1A040 |
CE100 ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 87150-12770 |
CE100..G |
1 | ||
| 87150-12881 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87201D - DUCT SUB-ASSY, AIR | ||||
| 87201-12310 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SJ,XE ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87201-12330 |
AE10#,CE100,104..G,GT,SEG,SEL |
1 | ||
| 87201-12300 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SJ,XE |
1 | ||
| 87201-12360 |
AE10#,CE100,104..G,GT,SEG,SEL ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87211F - DUCT, AIR | ||||
| 87211-12200 |
CE100;AE10#..LT ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 87211-12160 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT |
1 | ||
| 87211-12160 |
CE100;AE10#,CE106,108,109,EE10#..CTD,DX,DXJ,GL,L,LT |
1 | ||
| 87211-12200 |
AE100,104,CE100..LT ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 87211-12200 |
AE100,101,104,CE100..BZT,G |
1 | ||
| 87211-12170 |
AE10#,CE10#,EE10# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87211-12160 |
AE10#,CE10#,EE10# |
1 | ||
| 87248Q - PIPE, FRONT HEATER RADIATOR WATER | ||||
| 87156-12040 |
AE10#,CE10#,EE10# ｶﾝﾚｲﾁ ｼﾖｳ,IN |
1 | ||
| 87156-12030 |
AE10#,CE10#,EE10# OUT |
1 | ||
| 87156-12020 |
AE10#,CE10#,EE10# IN |
1 | ||
| 87156-12050 |
AE10#,CE10#,EE10# ｶﾝﾚｲﾁ ｼﾖｳ,OUT |
1 | ||
| 87248Q - PIPE, FRONT HEATER RADIATOR WATER | ||||
| 87156-12040 |
AE10#,CE10#,EE10# ｶﾝﾚｲﾁ ｼﾖｳ,IN |
1 | ||
| 87156-12030 |
AE10#,CE10#,EE10# OUT |
1 | ||
| 87156-12020 |
AE10#,CE10#,EE10# IN |
1 | ||
| 87156-12050 |
AE10#,CE10#,EE10# ｶﾝﾚｲﾁ ｼﾖｳ,OUT |
1 | ||
| Common parts | ||||
| 90179-06054 | ||||
