CE100G-AWMGS (1995)

Toyota Corolla

Production May 1995 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

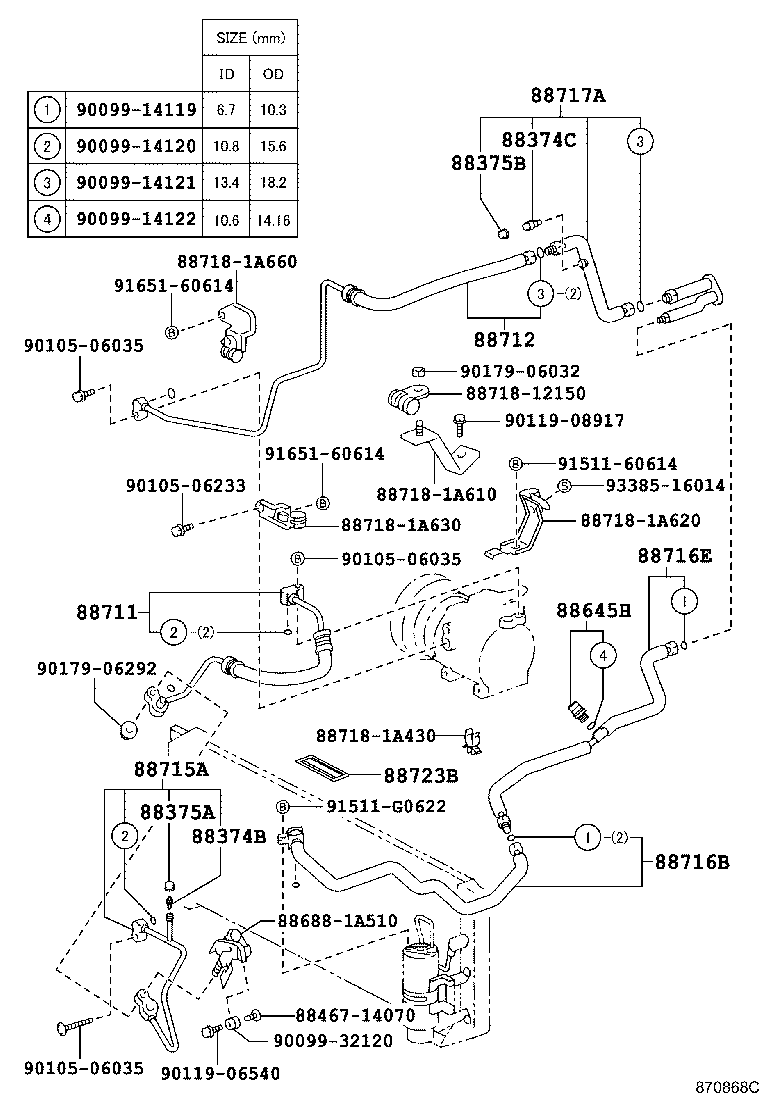

ILLUST NO. 2 OF 2(9505- )CE100,101

Click highlighted areas on diagram

MAKER OPTION

diagram 88374B 88374C 88375A 88375B 8846714070 88645H 886881A510 88711 88712 88715A 88716B 88716E 88717A 8871812150 887181A430 887181A610 887181A620 887181A630 887181A660 88723B 9009914119 9009914120 9009914121 9009914122 9009932120 9010506035 9010506035 9010506035 9010506233 9011906540 9011908917 9017906032 9017906292 9151160614 91511G0622 9165160614 9165160614 9338516014
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AE10#,CE10#,EE10#

 1
88374C - VALVE, SERVICE, NO.2
48094-10010

CE10#

 1
88374-30010

AE10#,CE10#,EE10#

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-24010

AE10#,CE10#,EE10#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30270

CE100,104;AE100,104,CE106,108,109,EE10#..CTD,DX,GL,L,LT,LX,XE

 1
88645H - SWITCH, PRESSURE NO.1
88645-50010

AE10#,CE10#,EE10#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12870

CE10#

 1
88712-1A480

CE100

 1
88712-1A480

CE10#

 1
88712-1A480

CE100

 1
88712-1A570

CE10#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-1A030

CE100

 1
88717-1A050

CE10#

 1
88717-1A030

CE100;CE108..4FC

 1
88717-1A030

CE10#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12050

AE10#,CE10#,EE10#

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
88723-12110

CE106..4FC;AE10#,CE100,108,EE10#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88723-12110

AE10#,CE100

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88723-12110

AE100,101,104,CE10#,EE10#

 1
Common parts
88467-14070
88688-1A510
88718-12150
88718-1A430
88718-1A610
88718-1A620
88718-1A630
88718-1A660
90099-14119
90099-14120
90099-14121
90099-14122
90099-32120
90105-06035
90105-06233
90119-06540
90119-08917
90179-06032
90179-06292
91511-60614
91511-G0622
91651-60614
93385-16014
