CE100G-AWMGS (1995)
Toyota Corolla
ILLUST NO. 2 OF 3(9508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-12210 |
AE10#,CE10#,EE10# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-12300 |
AE10#,CE100,104..G,GT,SEG,SEL |
1 | ||
| 55844-12370 |
AE100,101,104,CE100 |
1 | ||
| 55844-12370 |
AE100,101,104,CE100,EE104..4FC,5F |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-12210 |
AE100,101,104,CE100,108,EE104 |
1 | ||
| 55845-12150 |
AE10#,CE10#,EE10# |
1 | ||
| 55845-12210 |
AE10#,CE10#,EE10# ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-12240 |
AE100,101,104,CE100,108,EE104 |
1 | ||
| 55846-12240 |
AE10#,CE10#,EE10# |
1 | ||
| 55846-12160 |
AE10#,CE100,104..G,GT,SEG,SEL |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-12080 |
CE106,EE102,106..05S;AE100,101,CE100,101,102,107,108,EE101,103,104,107,108 |
1 | ||
| 87213A - DUCT, AIR REAR NO.2 | ||||
| 87213-12050 |
CE106,EE102,106..05S;AE100,101,CE100,101,102,107,108,EE101,103,104,107,108 |
1 | ||
| 87215D - DUCT, AIR, REAR NO.4 | ||||
| 87216-12010 |
CE106,EE102,106..05S;AE10#,CE100,101,102,104,105,107,108,109,EE101,103,104,107,108 |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-12020 |
CE106,EE102,106..05S;AE100,101,CE100,101,102,107,108,EE101,103,104,107,108 |
1 | ||
| Common parts | ||||
| 90159-60125 | ||||
| 90159-60303 | ||||
| 90167-50002 | ||||
| 90179-06054 | ||||
| 90480-26022 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8714 | ||||

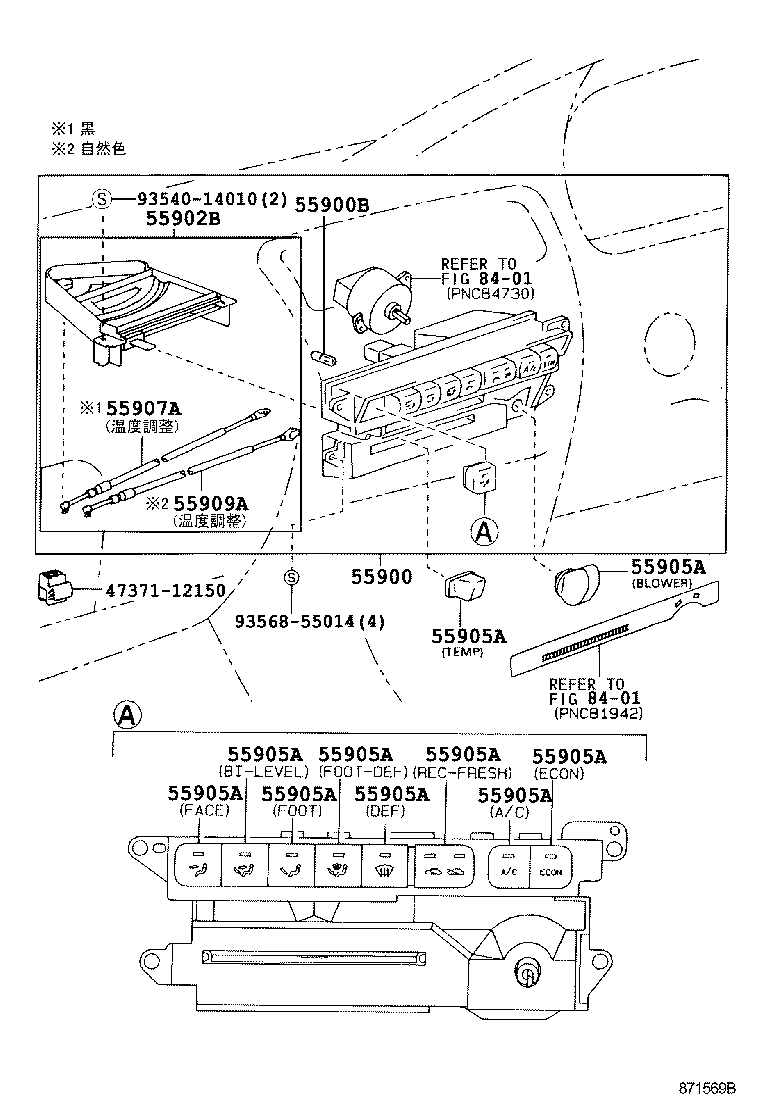

ILLUST NO. 1 OF 3(9505- )BZT,G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-12640 |
AE10#,CE100,104..G,GT,SEG,SEL |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 84999-70001 |
AE10#,CE100,104..G,GT,SEG,SEL 13.5V 2W |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12390 |
AE10#,CE100,104..G,GT,SEG,SEL FOOT |
1 | ||
| 55905-12370 |
AE10#,CE100,104..G,GT,SEG,SEL FACE |
1 | ||
| 55905-12280 |
AE10#,CE100,104..G,GT,SEG,SEL A/C |
1 | ||
| 55905-12400 |
AE10#,CE100,104..G,GT,SEG,SEL FOOT-DEF |
1 | ||
| 55905-12260 |
AE10#,CE100,104..G,GT,SEG,SEL ﾌﾞﾛﾜ |
1 | ||
| 55905-12380 |
AE10#,CE100,104..G,GT,SEG,SEL BI-LEVEL |
1 | ||
| 55905-12270 |
AE10#,CE100,104..G,GT,SEG,SEL TEMP |
1 | ||
| 55905-12420 |
AE10#,CE100,104..G,GT,SEG,SEL REC-FRESH |
1 | ||
| 55905-12430 |
AE10#,CE100,104..G,GT,SEG,SEL ECON |
1 | ||
| 55905-12410 |
AE10#,CE100,104..G,GT,SEG,SEL DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12370 |
AE10#,CE100,104..G,GT,SEG,SEL FACE |
1 | ||
| 55905-12280 |
AE10#,CE100,104..G,GT,SEG,SEL A/C |
1 | ||
| 55905-12400 |
AE10#,CE100,104..G,GT,SEG,SEL FOOT-DEF |
1 | ||
| 55905-12260 |
AE10#,CE100,104..G,GT,SEG,SEL ﾌﾞﾛﾜ |
1 | ||
| 55905-12380 |
AE10#,CE100,104..G,GT,SEG,SEL BI-LEVEL |
1 | ||
| 55905-12270 |
AE10#,CE100,104..G,GT,SEG,SEL TEMP |
1 | ||
| 55905-12420 |
AE10#,CE100,104..G,GT,SEG,SEL REC-FRESH |
1 | ||
| 55905-12430 |
AE10#,CE100,104..G,GT,SEG,SEL ECON |
1 | ||
| 55905-12390 |
AE10#,CE100,104..G,GT,SEG,SEL FOOT |
1 | ||
| 55905-12410 |
AE10#,CE100,104..G,GT,SEG,SEL DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12370 |
AE10#,CE100,104..G,GT,SEG,SEL FACE |
1 | ||
| 55905-12280 |
AE10#,CE100,104..G,GT,SEG,SEL A/C |
1 | ||
| 55905-12400 |
AE10#,CE100,104..G,GT,SEG,SEL FOOT-DEF |
1 | ||
| 55905-12260 |
AE10#,CE100,104..G,GT,SEG,SEL ﾌﾞﾛﾜ |
1 | ||
| 55905-12380 |
AE10#,CE100,104..G,GT,SEG,SEL BI-LEVEL |
1 | ||
| 55905-12270 |
AE10#,CE100,104..G,GT,SEG,SEL TEMP |
1 | ||
| 55905-12420 |
AE10#,CE100,104..G,GT,SEG,SEL REC-FRESH |
1 | ||
| 55905-12430 |
AE10#,CE100,104..G,GT,SEG,SEL ECON |
1 | ||
| 55905-12390 |
AE10#,CE100,104..G,GT,SEG,SEL FOOT |
1 | ||
| 55905-12410 |
AE10#,CE100,104..G,GT,SEG,SEL DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12370 |
AE10#,CE100,104..G,GT,SEG,SEL FACE |
1 | ||
| 55905-12280 |
AE10#,CE100,104..G,GT,SEG,SEL A/C |
1 | ||
| 55905-12400 |
AE10#,CE100,104..G,GT,SEG,SEL FOOT-DEF |
1 | ||
| 55905-12260 |
AE10#,CE100,104..G,GT,SEG,SEL ﾌﾞﾛﾜ |
1 | ||
| 55905-12380 |
AE10#,CE100,104..G,GT,SEG,SEL BI-LEVEL |
1 | ||
| 55905-12270 |
AE10#,CE100,104..G,GT,SEG,SEL TEMP |
1 | ||
| 55905-12420 |
AE10#,CE100,104..G,GT,SEG,SEL REC-FRESH |
1 | ||
| 55905-12430 |
AE10#,CE100,104..G,GT,SEG,SEL ECON |
1 | ||
| 55905-12390 |
AE10#,CE100,104..G,GT,SEG,SEL FOOT |
1 | ||
| 55905-12410 |
AE10#,CE100,104..G,GT,SEG,SEL DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12370 |
AE10#,CE100,104..G,GT,SEG,SEL FACE |
1 | ||
| 55905-12280 |
AE10#,CE100,104..G,GT,SEG,SEL A/C |
1 | ||
| 55905-12400 |
AE10#,CE100,104..G,GT,SEG,SEL FOOT-DEF |
1 | ||
| 55905-12260 |
AE10#,CE100,104..G,GT,SEG,SEL ﾌﾞﾛﾜ |
1 | ||
| 55905-12380 |
AE10#,CE100,104..G,GT,SEG,SEL BI-LEVEL |
1 | ||
| 55905-12270 |
AE10#,CE100,104..G,GT,SEG,SEL TEMP |
1 | ||
| 55905-12420 |
AE10#,CE100,104..G,GT,SEG,SEL REC-FRESH |
1 | ||
| 55905-12430 |
AE10#,CE100,104..G,GT,SEG,SEL ECON |
1 | ||
| 55905-12390 |
AE10#,CE100,104..G,GT,SEG,SEL FOOT |
1 | ||
| 55905-12410 |
AE10#,CE100,104..G,GT,SEG,SEL DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12370 |
AE10#,CE100,104..G,GT,SEG,SEL FACE |
1 | ||
| 55905-12280 |
AE10#,CE100,104..G,GT,SEG,SEL A/C |
1 | ||
| 55905-12400 |
AE10#,CE100,104..G,GT,SEG,SEL FOOT-DEF |
1 | ||
| 55905-12260 |
AE10#,CE100,104..G,GT,SEG,SEL ﾌﾞﾛﾜ |
1 | ||
| 55905-12380 |
AE10#,CE100,104..G,GT,SEG,SEL BI-LEVEL |
1 | ||
| 55905-12270 |
AE10#,CE100,104..G,GT,SEG,SEL TEMP |
1 | ||
| 55905-12420 |
AE10#,CE100,104..G,GT,SEG,SEL REC-FRESH |
1 | ||
| 55905-12430 |
AE10#,CE100,104..G,GT,SEG,SEL ECON |
1 | ||
| 55905-12390 |
AE10#,CE100,104..G,GT,SEG,SEL FOOT |
1 | ||
| 55905-12410 |
AE10#,CE100,104..G,GT,SEG,SEL DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12370 |
AE10#,CE100,104..G,GT,SEG,SEL FACE |
1 | ||
| 55905-12280 |
AE10#,CE100,104..G,GT,SEG,SEL A/C |
1 | ||
| 55905-12400 |
AE10#,CE100,104..G,GT,SEG,SEL FOOT-DEF |
1 | ||
| 55905-12260 |
AE10#,CE100,104..G,GT,SEG,SEL ﾌﾞﾛﾜ |
1 | ||
| 55905-12380 |
AE10#,CE100,104..G,GT,SEG,SEL BI-LEVEL |
1 | ||
| 55905-12270 |
AE10#,CE100,104..G,GT,SEG,SEL TEMP |
1 | ||
| 55905-12420 |
AE10#,CE100,104..G,GT,SEG,SEL REC-FRESH |
1 | ||
| 55905-12430 |
AE10#,CE100,104..G,GT,SEG,SEL ECON |
1 | ||
| 55905-12390 |
AE10#,CE100,104..G,GT,SEG,SEL FOOT |
1 | ||
| 55905-12410 |
AE10#,CE100,104..G,GT,SEG,SEL DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12370 |
AE10#,CE100,104..G,GT,SEG,SEL FACE |
1 | ||
| 55905-12280 |
AE10#,CE100,104..G,GT,SEG,SEL A/C |
1 | ||
| 55905-12400 |
AE10#,CE100,104..G,GT,SEG,SEL FOOT-DEF |
1 | ||
| 55905-12260 |
AE10#,CE100,104..G,GT,SEG,SEL ﾌﾞﾛﾜ |
1 | ||
| 55905-12380 |
AE10#,CE100,104..G,GT,SEG,SEL BI-LEVEL |
1 | ||
| 55905-12270 |
AE10#,CE100,104..G,GT,SEG,SEL TEMP |
1 | ||
| 55905-12420 |
AE10#,CE100,104..G,GT,SEG,SEL REC-FRESH |
1 | ||
| 55905-12430 |
AE10#,CE100,104..G,GT,SEG,SEL ECON |
1 | ||
| 55905-12390 |
AE10#,CE100,104..G,GT,SEG,SEL FOOT |
1 | ||
| 55905-12410 |
AE10#,CE100,104..G,GT,SEG,SEL DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12370 |
AE10#,CE100,104..G,GT,SEG,SEL FACE |
1 | ||
| 55905-12280 |
AE10#,CE100,104..G,GT,SEG,SEL A/C |
1 | ||
| 55905-12400 |
AE10#,CE100,104..G,GT,SEG,SEL FOOT-DEF |
1 | ||
| 55905-12260 |
AE10#,CE100,104..G,GT,SEG,SEL ﾌﾞﾛﾜ |
1 | ||
| 55905-12380 |
AE10#,CE100,104..G,GT,SEG,SEL BI-LEVEL |
1 | ||
| 55905-12270 |
AE10#,CE100,104..G,GT,SEG,SEL TEMP |
1 | ||
| 55905-12420 |
AE10#,CE100,104..G,GT,SEG,SEL REC-FRESH |
1 | ||
| 55905-12430 |
AE10#,CE100,104..G,GT,SEG,SEL ECON |
1 | ||
| 55905-12390 |
AE10#,CE100,104..G,GT,SEG,SEL FOOT |
1 | ||
| 55905-12410 |
AE10#,CE100,104..G,GT,SEG,SEL DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12390 |
AE10#,CE100,104..G,GT,SEG,SEL FOOT |
1 | ||
| 55905-12370 |
AE10#,CE100,104..G,GT,SEG,SEL FACE |
1 | ||
| 55905-12280 |
AE10#,CE100,104..G,GT,SEG,SEL A/C |
1 | ||
| 55905-12400 |
AE10#,CE100,104..G,GT,SEG,SEL FOOT-DEF |
1 | ||
| 55905-12260 |
AE10#,CE100,104..G,GT,SEG,SEL ﾌﾞﾛﾜ |
1 | ||
| 55905-12380 |
AE10#,CE100,104..G,GT,SEG,SEL BI-LEVEL |
1 | ||
| 55905-12270 |
AE10#,CE100,104..G,GT,SEG,SEL TEMP |
1 | ||
| 55905-12420 |
AE10#,CE100,104..G,GT,SEG,SEL REC-FRESH |
1 | ||
| 55905-12430 |
AE10#,CE100,104..G,GT,SEG,SEL ECON |
1 | ||
| 55905-12410 |
AE10#,CE100,104..G,GT,SEG,SEL DEF |
1 | ||
| Common parts | ||||
| 47371-12150 | ||||
| 93540-14010 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(9106-9508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-12210 |
AE10#,CE10#,EE10# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-12300 |
AE10#,CE100,104..G,GT,SEG,SEL |
1 | ||
| 55844-12370 |
AE100,101,104,CE100 |
1 | ||
| 55844-12370 |
AE100,101,104,CE100,EE104..4FC,5F |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-12210 |
AE100,101,104,CE100,108,EE104 |
1 | ||
| 55845-12150 |
AE10#,CE10#,EE10# |
1 | ||
| 55845-12210 |
AE10#,CE10#,EE10# ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-12240 |
AE100,101,104,CE100,108,EE104 |
1 | ||
| 55846-12240 |
AE10#,CE10#,EE10# |
1 | ||
| 55846-12160 |
AE10#,CE100,104..G,GT,SEG,SEL |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-12080 |
CE106,EE102,106..05S;AE100,101,CE100,101,102,107,108,EE101,103,104,107,108 |
1 | ||
| 87213A - DUCT, AIR REAR NO.2 | ||||
| 87213-12050 |
CE106,EE102,106..05S;AE100,101,CE100,101,102,107,108,EE101,103,104,107,108 |
1 | ||
| 87215D - DUCT, AIR, REAR NO.4 | ||||
| 87216-12010 |
CE106,EE102,106..05S;AE10#,CE100,101,102,104,105,107,108,109,EE101,103,104,107,108 |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-12020 |
CE106,EE102,106..05S;AE100,101,CE100,101,102,107,108,EE101,103,104,107,108 |
1 | ||
| Common parts | ||||
| 90159-60125 | ||||
| 90159-60303 | ||||
| 90167-50002 | ||||
| 90480-26022 | ||||
| 93568-55014 | ||||
