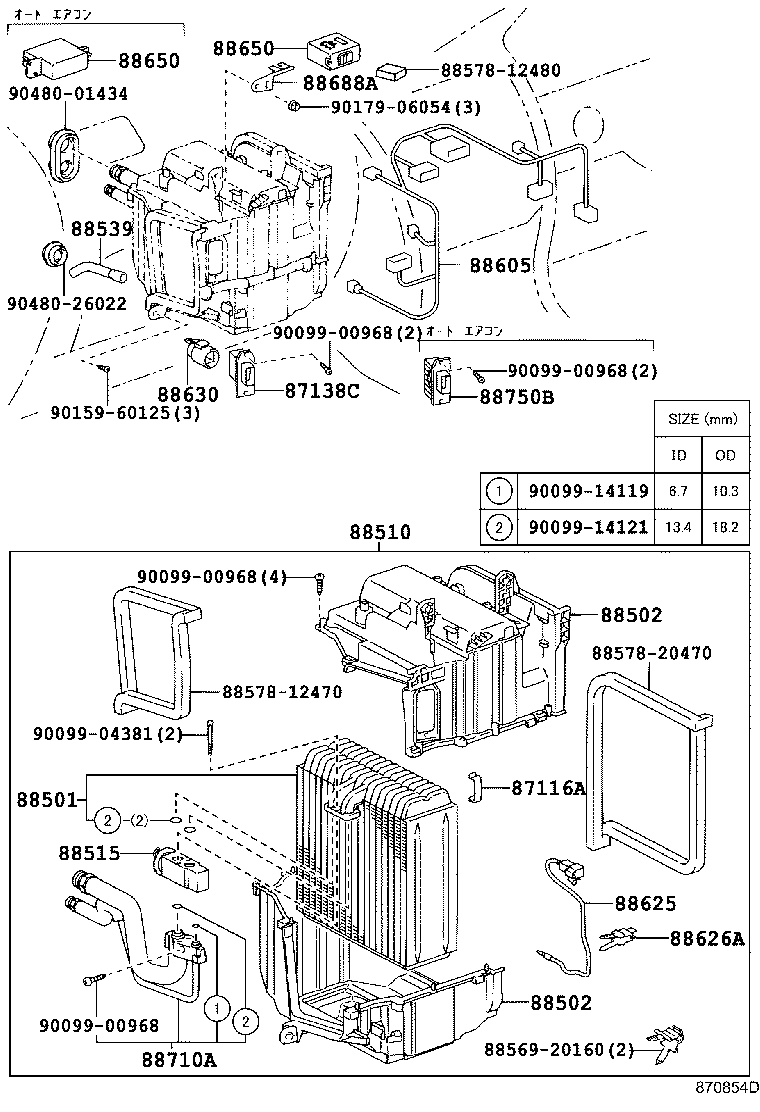

CE100G-AWMGS (1995)
Toyota Corolla
(9505- )AE100,101,104,CE100,101,EE104
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
AE10#,CE10#,EE10# |
3 | ||
| 87116-14010 |
AE100,101,104,CE100,EE104..4FC,5F |
3 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-12130 |
AE10#,CE100 |
1 | ||
| 87138-12130 |
AE100,101,104,CE100,EE104..4FC,5F |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-12391 |
AE100,101,104,CE100,EE104..4FC,5F |
1 | ||
| 88501-12360 |
AE10#,CE10#,EE10# ﾚｲﾊﾞｲ:R12 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-12180 |
AE10#,CE100,104..G,GT,SEG,SEL UPPER |
1 | ||
| 88502-12200 |
AE100,101,104,CE100,EE104..4FC,5F LOWER |
1 | ||
| 88502-12190 |
AE101,CE100 UPPER |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-12180 |
AE10#,CE100,104..G,GT,SEG,SEL UPPER |
1 | ||
| 88502-12200 |
AE100,101,104,CE100,EE104..4FC,5F LOWER |
1 | ||
| 88502-12190 |
AE101,CE100 UPPER |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-14062 |
AE10#,CE100,104,108,EE10# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-12120 |
AE100,101,104,CE100 |
1 | ||
| 88539-12120 |
CE100 |
1 | ||
| 88539-12120 |
AE10#,CE10#,EE10# |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-1H770 |
CE100 |
1 | ||
| 88605-1H770 |
CE100,108;CE106..4FC |
1 | ||
| 88605-1H730 |
CE100 ｵ-ﾄ |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12280 |
AE101,109,CE10#,EE10# |
1 | ||
| 88625-12280 |
EE104..3FC;AE101,109,CE10#,EE102,103 |
1 | ||
| 88625-12280 |
CE10#,EE10# |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
AE10#,CE10#,EE10# |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-12140 |
AE100,101,104,CE101,104;CE100,EE101..G,LT,LX,SEL,XE |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-1A460 |
AE10#,CE100,104..G,GT,SEG,SEL |
1 | ||
| 88650-1E010 |
CE100 |
1 | ||
| 88650-1E010 |
CE100,108;CE106..4FC |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-1A460 |
AE10#,CE100,104..G,GT,SEG,SEL |
1 | ||
| 88650-1E010 |
CE100 |
1 | ||
| 88650-1E010 |
CE100,108;CE106..4FC |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-1A430 |
AE100,101,104,CE100,EE104..4FC,5F |
1 | ||
| 88688-1A430 |
AE10#,CE100 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-12240 |
AE10#,CE10#,EE10# |
1 | ||
| 88750B - TRANSISTOR ASSY, BLOWER RESISTOR | ||||
| 88750-12010 |
AE100,101,104,CE101,104;CE100,EE101..G,LT,LX,SEL,XE |
1 | ||
| Common parts | ||||
| 88569-20160 | ||||
| 88578-12470 | ||||
| 88578-12480 | ||||
| 88578-20470 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90159-60125 | ||||
| 90179-06054 | ||||
| 90480-01434 | ||||
| 90480-26022 | ||||
(9106-9508)CTD,DX,DXJ,GL,L,LT,LX,SEL,XE ; (9508-)AE100,101,104,CE100
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
AE10#,CE10#,EE10# |
3 | ||
| 87116-14010 |
AE100,101,104,CE100,EE104..4FC,5F |
3 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-12391 |
AE100,101,104,CE100,EE104..4FC,5F |
1 | ||
| 88501-12360 |
AE10#,CE10#,EE10# ﾚｲﾊﾞｲ:R12 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-12180 |
AE10#,CE100,104..G,GT,SEG,SEL UPPER |
1 | ||
| 88502-12200 |
AE100,101,104,CE100,EE104..4FC,5F LOWER |
1 | ||
| 88502-12190 |
AE101,CE100 UPPER |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-12180 |
AE10#,CE100,104..G,GT,SEG,SEL UPPER |
1 | ||
| 88502-12200 |
AE100,101,104,CE100,EE104..4FC,5F LOWER |
1 | ||
| 88502-12190 |
AE101,CE100 UPPER |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-12010 |
AE10#,CE10#,EE10# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-14062 |
AE10#,CE100,104,108,EE10# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-12120 |
AE100,101,104,CE100 |
1 | ||
| 88539-12120 |
CE100 |
1 | ||
| 88539-12120 |
AE10#,CE10#,EE10# |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-1H770 |
CE100 |
1 | ||
| 88605-1H770 |
CE100,108;CE106..4FC |
1 | ||
| 88605-1H730 |
CE100 ｵ-ﾄ |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12280 |
AE101,109,CE10#,EE10# |
1 | ||
| 88625-12280 |
EE104..3FC;AE101,109,CE10#,EE102,103 |
1 | ||
| 88625-12280 |
CE10#,EE10# |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
AE10#,CE10#,EE10# |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-12140 |
AE100,101,104,CE101,104;CE100,EE101..G,LT,LX,SEL,XE |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-1A460 |
AE10#,CE100,104..G,GT,SEG,SEL |
1 | ||
| 88650-1E010 |
CE100 |
1 | ||
| 88650-1E010 |
CE100,108;CE106..4FC |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-1A430 |
AE100,101,104,CE100,EE104..4FC,5F |
1 | ||
| 88688-1A430 |
AE10#,CE100 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-12240 |
AE10#,CE10#,EE10# |
1 | ||
| 88750B - TRANSISTOR ASSY, BLOWER RESISTOR | ||||
| 88750-12010 |
AE100,101,104,CE101,104;CE100,EE101..G,LT,LX,SEL,XE |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-12110 |
AE10#,CE10#,EE10# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88578-12470 | ||||
| 88578-20470 | ||||
| 88897-12240 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90099-32129 | ||||
| 90179-06239 | ||||
| 90467-07043C0 | ||||
| Linked diagrams | ||||
| 8715 | ||||
