CE100G-AWMGS (1995)

Toyota Corolla

Production May 1995 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9705- )AE100,101,104,CE100,101

Click highlighted areas on diagram

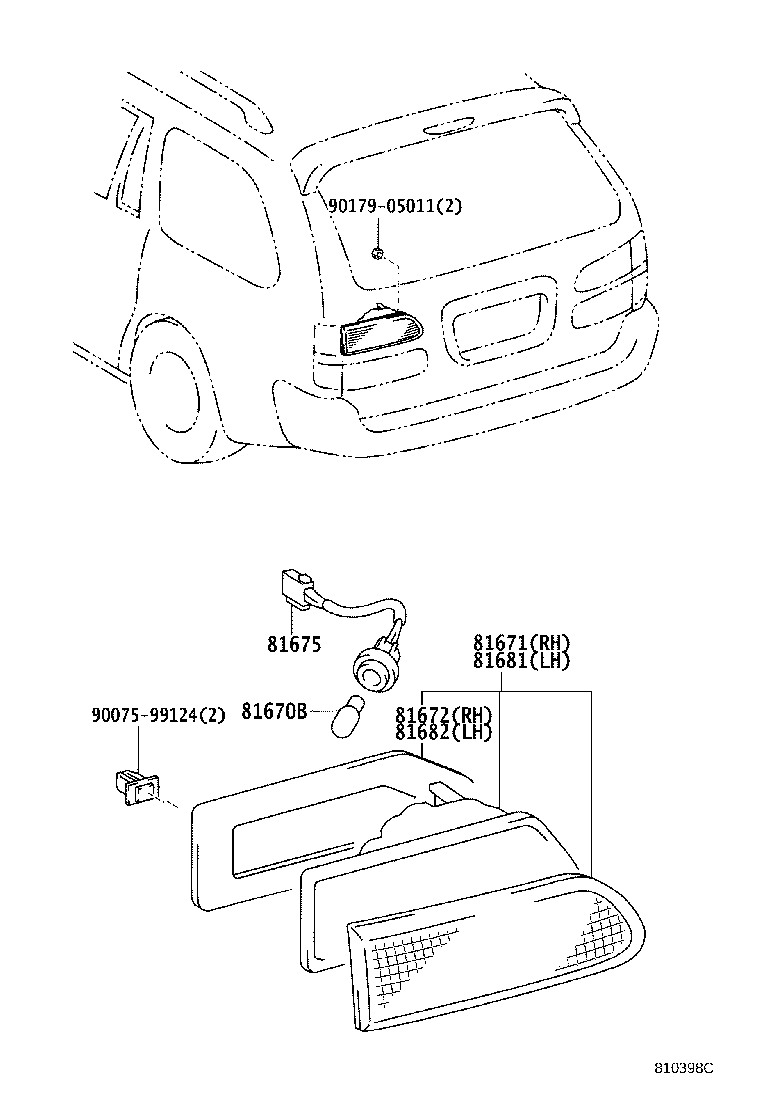

diagram 81670B 81671 81672 81675 81681 81682 9007599124 9017905011
Part # Description Qty Price
81671 - LENS, BACK-UP LAMP, RH
81671-13040

AE100,101,104,CE100,101

 1
81672 - GASKET, BACK-UP LAMP LENS, RH
81672-13040

AE100,101,104,CE100,101

 1
81675 - SOCKET & WIRE, BACK-UP LAMP
81675-13040

AE100,101,104,CE100,101

 2
81681 - LENS, BACK-UP LAMP, LH
81681-13010

AE100,101,104,CE100,101

 1
81682 - GASKET, BACK UP LAMP LENS, LH
81682-13010

AE100,101,104,CE100,101

 1
Common parts
90075-99124
90179-05011
