CE100G-AWMGS (1995)

Toyota Corolla

Production May 1995 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9705- )AE100,101,104,CE100,101

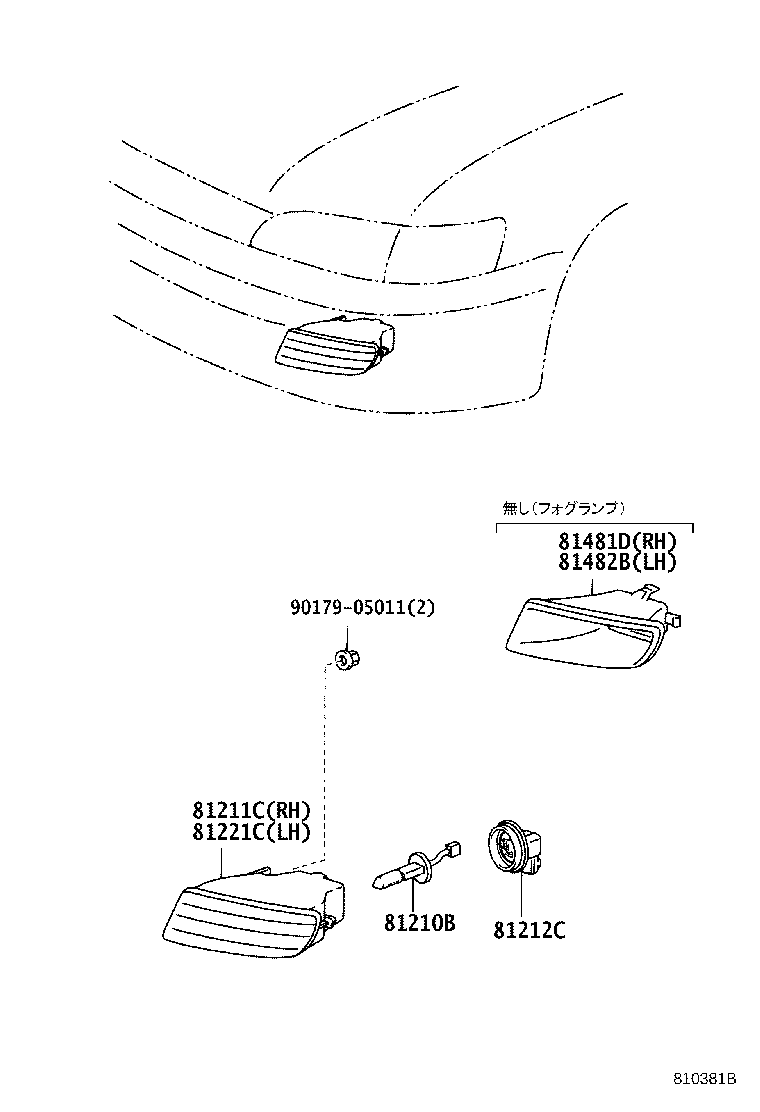

Click highlighted areas on diagram

diagram 81210B 81211C 81212C 81221C 81481D 81482B 9017905011
Part # Description Qty Price
81210B - BULB, FOG LAMP
90981-13040

AE100,101,104,CE100,101

12V 35W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-13080

AE100,101,104,CE100,101

 1
81212C - COVER, FOG LAMP
90075-66001

AE100,101,104,CE100,101

 2
81221C - LAMP UNIT, FOG LAMP, LH
81221-13080

AE100,101,104,CE100,101

 1
81481D - COVER, FOG LAMP, RH
81481-13010

AE100,104,CE100,101

 1
81482B - COVER, FOG LAMP, LH
81482-13010

AE100,104,CE100,101

 1
Common parts
90179-05011
