CE100G-AWMGS (1995)

Toyota Corolla

Production May 1995 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

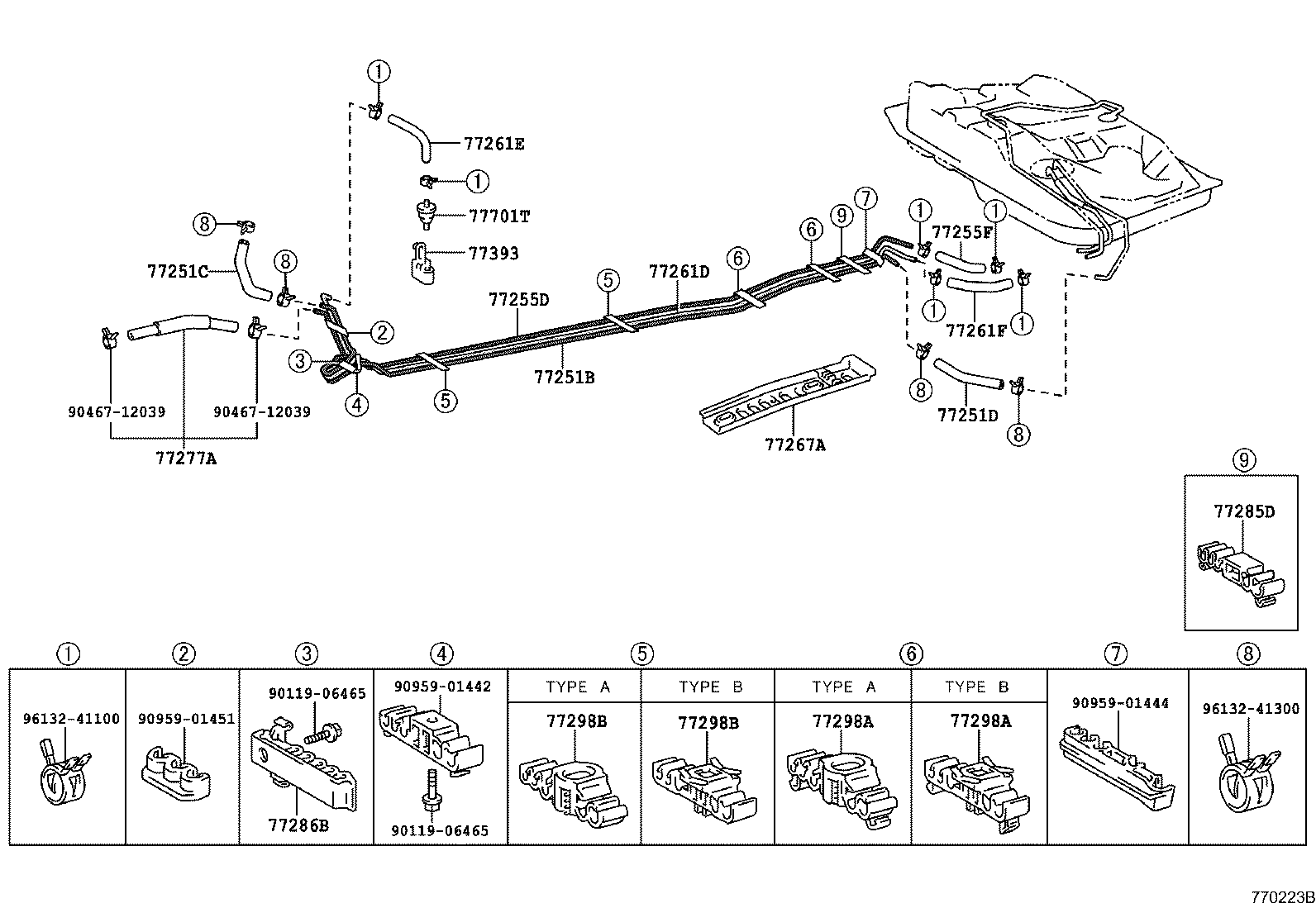

ILLUST NO. 2 OF 2(9505- )CE100,101

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

diagram 77251B 77251C 77251D 77255D 77255F 77261D 77261E 77261F 77267A 77277A 77285D 77286B 77298A 77298A 77298B 77298B 77393 77701T 9011906465 9011906465 9046712039 9046712039 9095901442 9095901444 9095901451 9613241100 9613241300
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-12530

CE100,101,102,106,107,108

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
95333-08020

CE10#

*H,L=140,内径=7.6

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-08020

CE100,104,106,108

*H,L=130,内径=7.6

 1
77255D - TUBE, FUEL RETURN
77255-12470

CE100,101,102,106,107,108

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-06020

CE100,101,102,104,106,107,108

*H,L=130

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-12240

CE100,101,102,106,107,108

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

AE100,101,104,CE100,101,102,104,106,107,108,EE101,102,103,104

*H,L=160

 1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

AE100,101,CE100,106,108,EE10#

*H,L=120

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-12100

AE10#,CE10#,EE10#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
77267-12130

AE10#,CE100,106,108,EE10#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-64160

CE100,106,108,109

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-12040

AE101,CE100,106,108,EE10#

 2
77285-12040

AE104,CE100,101,102,106,107,108

 2
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77286-12040

AE10#,CE10#,EE10#

 1
77286-12020

AE10#,CE10#,EE101,102,103,104

 1
77286-12040

CE100,106,108,EE10#

 1
77298A - CLAMP, FUEL TUBE, NO.4
77298-12030

AE109,CE10#

 2
77298-12030

AE10#,CE100,106,108,EE10#

 2
77298-12030

AE10#,CE10#,EE10#

 2
77298A - CLAMP, FUEL TUBE, NO.4
77298-12030

AE109,CE10#

 2
77298-12030

AE10#,CE100,106,108,EE10#

 2
77298-12030

AE10#,CE10#,EE10#

 2
77298B - CLAMP, FUEL TUBE, NO.4
77298-12050

AE10#,CE100,106,108,EE10#

ﾀｲﾌﾟ B

 2
77298-12040

AE10#,CE10#,EE10#

ﾀｲﾌﾟ A

 2
77298-12050

AE10#,CE10#,EE10#

ﾀｲﾌﾟ B

 2
77298-12040

AE10#,CE100,106,108,EE10#

ﾀｲﾌﾟ A

 2
77298B - CLAMP, FUEL TUBE, NO.4
77298-12050

AE10#,CE100,106,108,EE10#

ﾀｲﾌﾟ B

 2
77298-12040

AE10#,CE10#,EE10#

ﾀｲﾌﾟ A

 2
77298-12050

AE10#,CE10#,EE10#

ﾀｲﾌﾟ B

 2
77298-12040

AE10#,CE100,106,108,EE10#

ﾀｲﾌﾟ A

 2
77393 - PROTECTOR, CHECK VALVE
77393-12010

CE100,101,102,104,106,107,108

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10082

CE100,104,106,108

 1
Common parts
90119-06465
90467-12039
90959-01442
90959-01444
90959-01451
96132-41100
96132-41300
