CE100G-AWMGS (1995)
Toyota Corolla
Production
May 1995
-
Apr 1998
Engine
2C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9705- )AE100,101,104,CE100,101

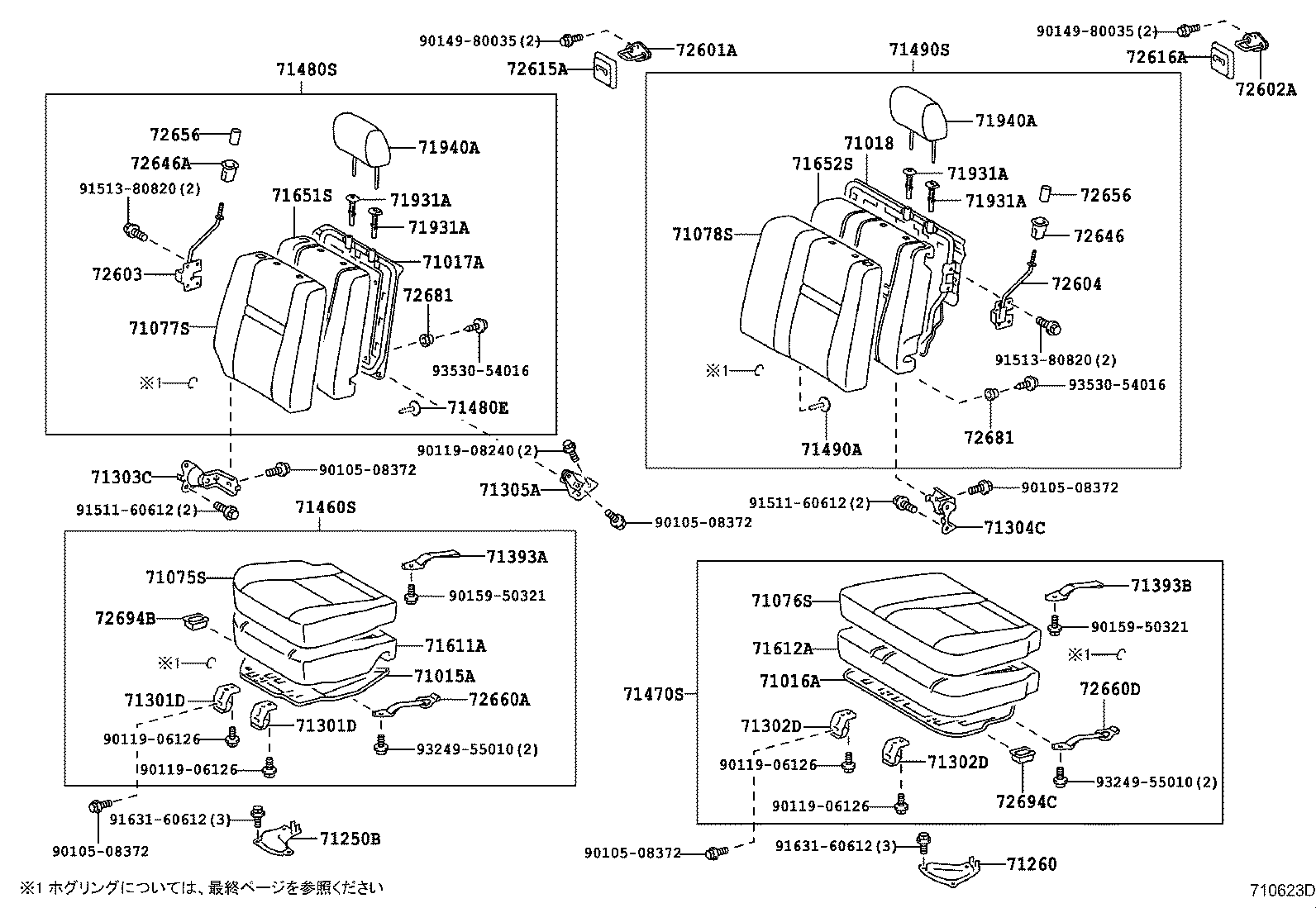

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-13642B2 |
AE100,104,CE100..G SHADOW GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-13192B2 |
AE100,104,CE100..G SHADOW GRAY,TRIM1# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12110 |
AE100,101,104,CE100..BZT,G,GT,LT,SJ |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1F152B3 |
AE100,104,CE100..G ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-13232B2 |
AE100,104,CE100..G ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-13240 |
AE100,101,104,CE100 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-13120 |
AE100,101,104,CE100 |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-13020C0 |
AE100,101,104,CE100 BLACK,TRIM1# |
1 | ||
| 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-13020C0 |
AE100,101,104,CE100 BLACK,TRIM1# |
1 | ||
| 72694B - COVER, REAR SEAT CUSHION LOCK, RH | ||||
| 72694-13020 |
AE100,101,104,CE100 |
1 | ||
| 72694C - COVER, REAR SEAT CUSHION LOCK, LH | ||||
| 72694-13020 |
AE100,101,104,CE100 |
1 | ||
| Common parts | ||||
| 90105-08372 | ||||
| 90119-06126 | ||||
| 90119-08240 | ||||
| 90149-80035 | ||||
| 90159-50321 | ||||
| 91511-60612 | ||||
| 91513-80820 | ||||
| 91631-60612 | ||||
| 93249-55010 | ||||
| 93530-54016 | ||||
