CE100G-AWMGS (1995)
Toyota Corolla

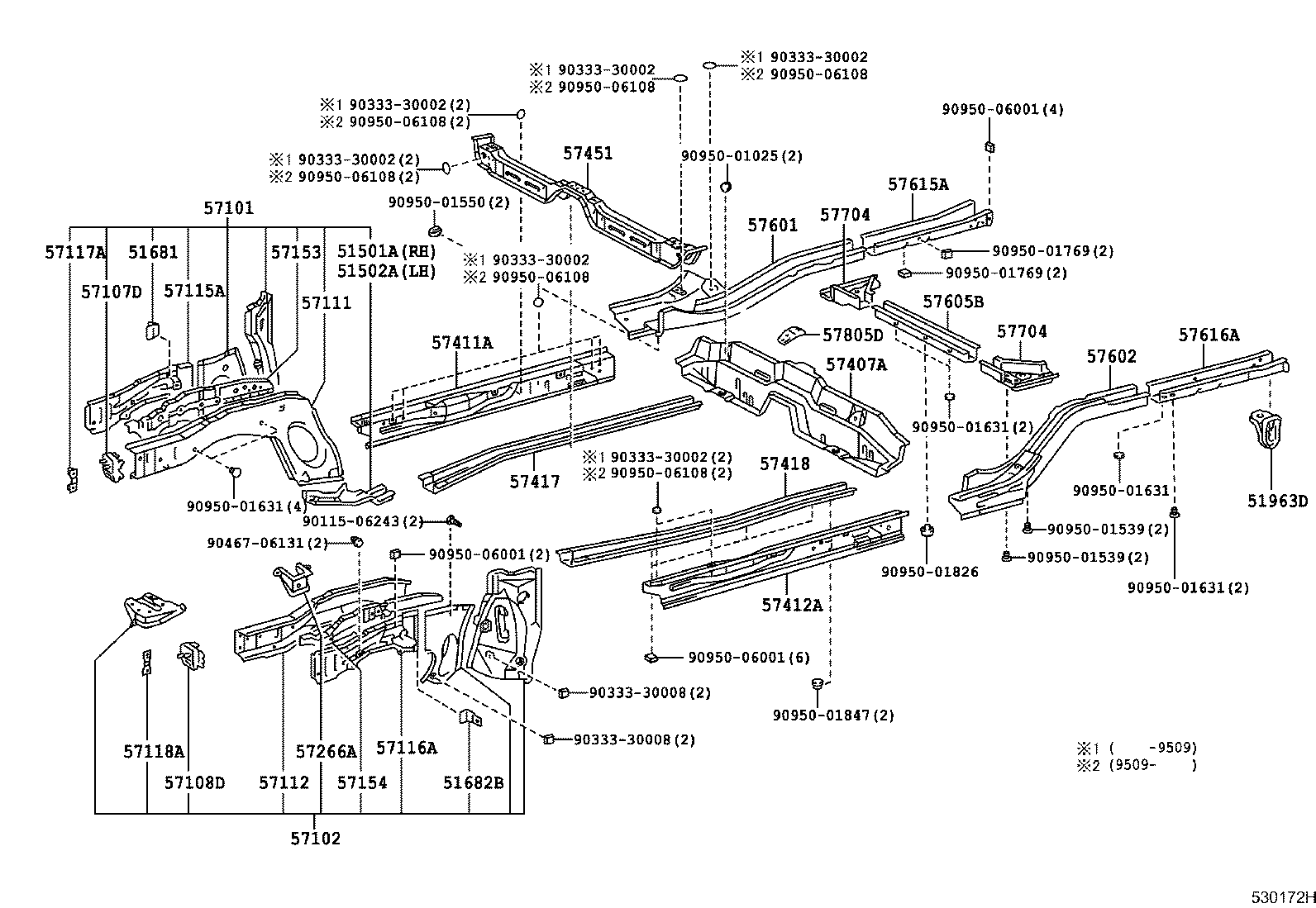

(9505-9705)AE100,101,CE100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51681 - BRACKET, FLEXIBLE HOSE | ||||
| 51681-12050 |
AE10#,CE10#,EE10# |
1 | ||
| 51682B - BRACKET, FLEXIBLE HOSE, LH | ||||
| 51682-12060 |
AE10#,CE10#,EE10# |
1 | ||
| 51963D - HOOK, TRANSPORT, REAR LH | ||||
| 51096-12040 |
AE100,101,104,CE100 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-12440 |
CE10#,EE10# |
1 | ||
| 57101-12441 |
CE100 |
1 | ||
| 57101-12441 |
CE10#,EE10# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-12400 |
CE10# |
1 | ||
| 57102-12401 |
CE10# |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-12200 |
AE10#,CE10#,EE10# |
1 | ||
| 57111-12201 |
AE10#,CE10#,EE10# |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-12142 |
AE10#,CE10#,EE10# |
1 | ||
| 57112-12141 |
AE10#,CE10#,EE10# |
1 | ||
| 57112-12140 |
AE10#,CE10#,EE10# |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-12060 |
AE10#,CE10#,EE10# |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-12060 |
AE10#,CE10#,EE10# |
1 | ||
| 57117A - REINFORCEMENT, FRONT BUMPER MOUNTING | ||||
| 57117-12110 |
AE10#,CE10#,EE10# |
1 | ||
| 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH | ||||
| 57117-12110 |
AE10#,CE10#,EE10# |
1 | ||
| 57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57017-13010 |
AE10#,CE10#,EE10# |
1 | ||
| 57017-12040 |
CE10# |
1 | ||
| 57266A - BRACKET, ENGINE MOUNTING, LH | ||||
| 57208-12111 |
CE10# |
1 | ||
| 57208-12110 |
CE10# |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-12040 |
AE100,101,CE100,EE101 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-12460 |
AE10#,CE10#,EE10#..4DS,V,WG |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-12460 |
AE10#,CE10#,EE10#..4DS,V,WG |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-12100 |
AE10#,CE10#,EE10# |
1 | ||
| 57417-13010 |
AE10#,CE10#,EE10# |
1 | ||
| 57417-12100 |
AE100,101,104,CE100 |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-12060 |
AE10#,CE10#,EE10# |
1 | ||
| 57418-13010 |
AE10#,CE10#,EE10# |
1 | ||
| 57418-12060 |
AE100,101,104,CE100 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57451-12130 |
AE100,101,CE100,106,108,EE10# |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-12924 |
AE100,101,CE100 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-12929 |
AE100,101,CE100,EE101..4DS,WG |
1 | ||
| 57602-12926 |
AE100,101,CE100 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-12130 |
AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,XE |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-12901 |
AE10#,CE100,104,EE101..4DS,WG |
1 | ||
| 57615-12903 |
AE100,101,104,CE100 |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-12901 |
AE10#,CE100,104,EE101..4DS,WG |
1 | ||
| 57616-12905 |
AE100,101,104,CE100 |
1 | ||
| 57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING | ||||
| 57703-12060 |
AE100,101,CE100,EE101 右側 |
1 | ||
| 57704-12080 |
AE100,101,CE100,EE101 左側 |
1 | ||
| 57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING | ||||
| 57703-12060 |
AE100,101,CE100,EE101 右側 |
1 | ||
| 57704-12080 |
AE100,101,CE100,EE101 左側 |
1 | ||
| Common parts | ||||
| 90115-06243 | ||||
| 90333-30002 | ||||
| 90333-30008 | ||||
| 90467-06131 | ||||
| 90950-01025 | ||||
| 90950-01539 | ||||
| 90950-01550 | ||||
| 90950-01631 | ||||
| 90950-01769 | ||||
| 90950-01826 | ||||
| 90950-01847 | ||||
| 90950-06001 | ||||
| 90950-06108 | ||||

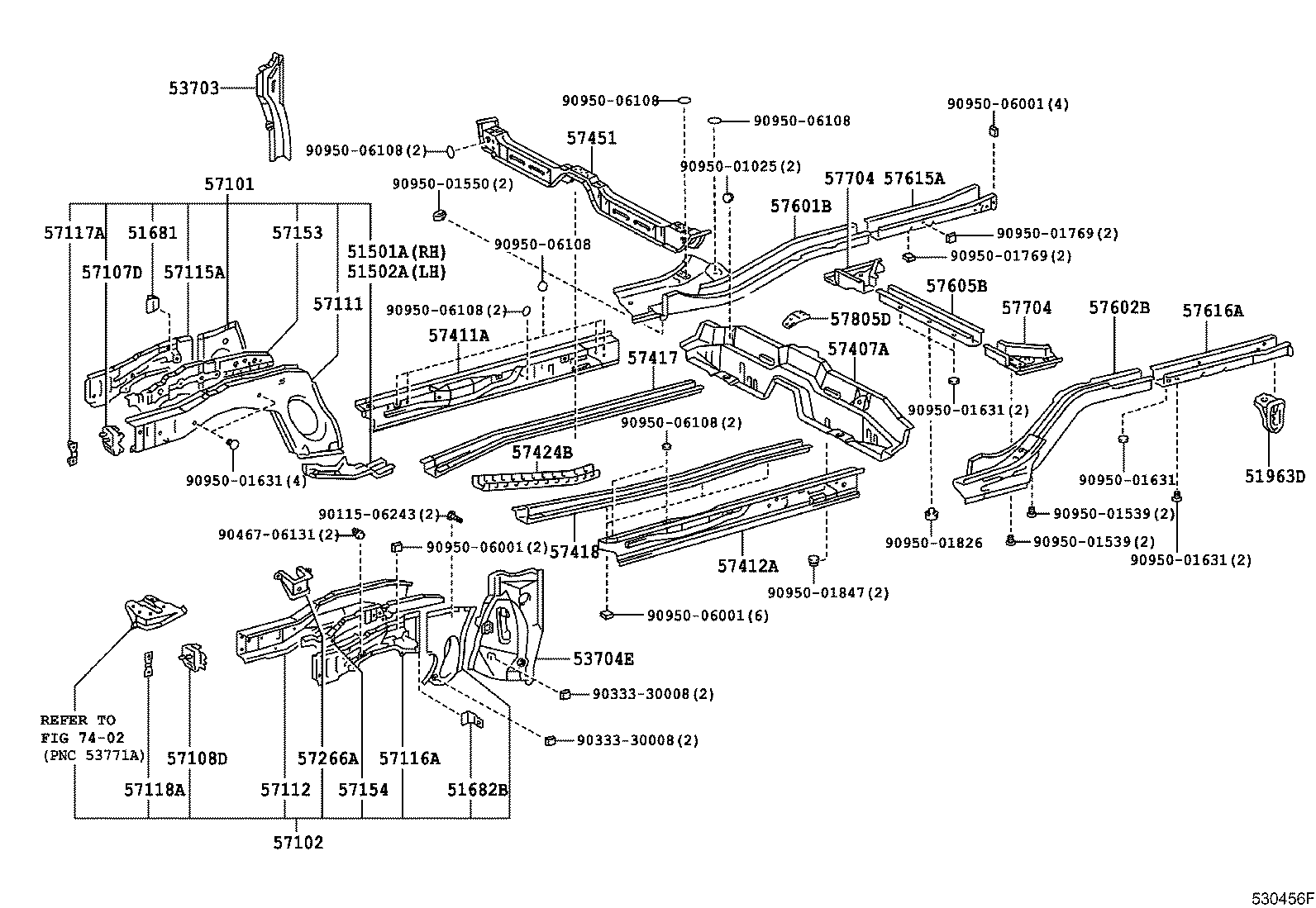

(9705- )AE100,101,CE100,101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51681 - BRACKET, FLEXIBLE HOSE | ||||
| 51681-12050 |
AE10#,CE10#,EE10# |
1 | ||
| 51682B - BRACKET, FLEXIBLE HOSE, LH | ||||
| 51682-12060 |
AE10#,CE10#,EE10# |
1 | ||
| 51963D - HOOK, TRANSPORT, REAR LH | ||||
| 51096-12040 |
AE100,101,104,CE100 |
1 | ||
| 53704E - APRON SUB-ASSY, FRONT FENDER, REAR LH | ||||
| 53704-12020 |
AE10#,CE10#,EE10# |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-12440 |
CE10#,EE10# |
1 | ||
| 57101-12441 |
CE100 |
1 | ||
| 57101-12441 |
CE10#,EE10# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-12400 |
CE10# |
1 | ||
| 57102-12401 |
CE10# |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-12200 |
AE10#,CE10#,EE10# |
1 | ||
| 57111-12201 |
AE10#,CE10#,EE10# |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-12142 |
AE10#,CE10#,EE10# |
1 | ||
| 57112-12141 |
AE10#,CE10#,EE10# |
1 | ||
| 57112-12140 |
AE10#,CE10#,EE10# |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-12060 |
AE10#,CE10#,EE10# |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-12060 |
AE10#,CE10#,EE10# |
1 | ||
| 57117A - REINFORCEMENT, FRONT BUMPER MOUNTING | ||||
| 57117-12110 |
AE10#,CE10#,EE10# |
1 | ||
| 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH | ||||
| 57117-12110 |
AE10#,CE10#,EE10# |
1 | ||
| 57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57017-13010 |
AE10#,CE10#,EE10# |
1 | ||
| 57017-12040 |
CE10# |
1 | ||
| 57266A - BRACKET, ENGINE MOUNTING, LH | ||||
| 57208-12111 |
CE10# |
1 | ||
| 57208-12110 |
CE10# |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-12040 |
AE100,101,CE100,EE101 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-12460 |
AE10#,CE10#,EE10#..4DS,V,WG |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-12460 |
AE10#,CE10#,EE10#..4DS,V,WG |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-12100 |
AE10#,CE10#,EE10# |
1 | ||
| 57417-13010 |
AE10#,CE10#,EE10# |
1 | ||
| 57417-12100 |
AE100,101,104,CE100 |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-12060 |
AE10#,CE10#,EE10# |
1 | ||
| 57418-13010 |
AE10#,CE10#,EE10# |
1 | ||
| 57418-12060 |
AE100,101,104,CE100 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57451-12130 |
AE100,101,CE100,106,108,EE10# |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-12130 |
AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,XE |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-12901 |
AE10#,CE100,104,EE101..4DS,WG |
1 | ||
| 57615-12903 |
AE100,101,104,CE100 |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-12901 |
AE10#,CE100,104,EE101..4DS,WG |
1 | ||
| 57616-12905 |
AE100,101,104,CE100 |
1 | ||
| 57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING | ||||
| 57703-12060 |
AE100,101,CE100,EE101 右側 |
1 | ||
| 57704-12080 |
AE100,101,CE100,EE101 左側 |
1 | ||
| 57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING | ||||
| 57703-12060 |
AE100,101,CE100,EE101 右側 |
1 | ||
| 57704-12080 |
AE100,101,CE100,EE101 左側 |
1 | ||
| Common parts | ||||
| 90115-06243 | ||||
| 90333-30008 | ||||
| 90467-06131 | ||||
| 90950-01025 | ||||
| 90950-01539 | ||||
| 90950-01550 | ||||
| 90950-01631 | ||||
| 90950-01769 | ||||
| 90950-01826 | ||||
| 90950-01847 | ||||
| 90950-06001 | ||||
| 90950-06108 | ||||
| Linked diagrams | ||||
| 7402 | ||||
