CE100G-AWMGS (1995)
Toyota Corolla
(9505- )AE100,CE100,101

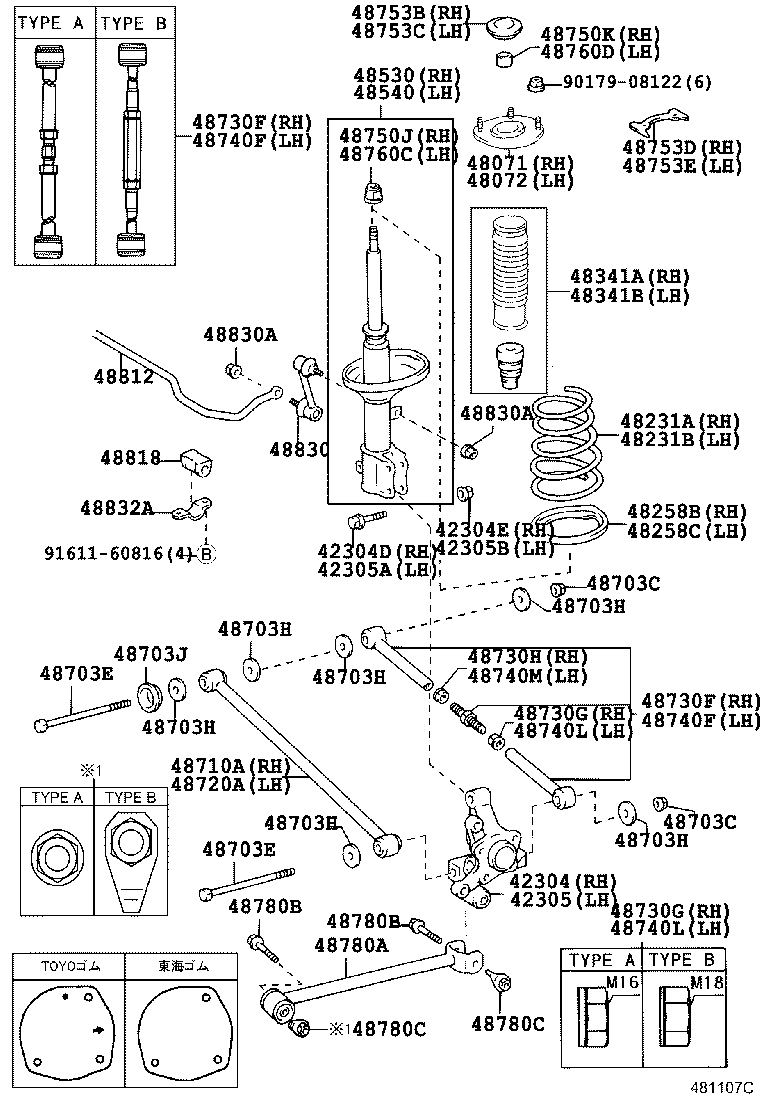

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-12090 |
AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE ｱﾘ(ABS) |
1 | ||
| 42304-12130 |
AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 42304D - BOLT (FOR REAR AXLE CARRIER RH) | ||||
| 90105-12102 |
AE100,101,CE100,101,EE101 |
2 | ||
| 42304E - NUT (FOR REAR AXLE CARRIER RH) | ||||
| 90179-12025 |
AE100,101,CE100,101,EE101 |
2 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-12130 |
AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 42305-12090 |
AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE ｱﾘ(ABS) |
1 | ||
| 42305A - BOLT (FOR REAR AXLE CARRIER LH) | ||||
| 90105-12102 |
AE100,101,CE100,101,EE101 |
2 | ||
| 42305B - NUT (FOR REAR AXLE CARRIER LH) | ||||
| 90179-12025 |
AE100,101,CE100,101,EE101 |
2 | ||
| 48071 - SUPPORT SUB-ASSY, REAR SUSPENSION, RH | ||||
| 48071-12080 |
AE10#,CE100,104,EE101 |
1 | ||
| 48072 - SUPPORT SUB-ASSY, REAR SUSPENSION, LH | ||||
| 48072-12080 |
AE10#,CE100,104,EE101 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-12030 |
AE10#,CE100,104,EE101 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-12030 |
AE10#,CE100,104,EE101 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-12550 |
CE100..WG;AE100,EE101 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-12490 |
CE100..WG;AE100,EE101 |
1 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14019 |
AE100,101,CE100,EE101 |
4 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14019 |
AE100,101,CE100,EE101 |
4 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-14083 |
AE100,101,CE100,EE101 *14−1.50PX225−32 |
4 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-14083 |
AE100,101,CE100,EE101 *14−1.50PX225−32 |
4 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14017 |
AE100,101,CE100,EE101 |
12 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14017 |
AE100,101,CE100,EE101 |
12 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14017 |
AE100,101,CE100,EE101 |
12 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14017 |
AE100,101,CE100,EE101 |
12 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14017 |
AE100,101,CE100,EE101 |
12 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14017 |
AE100,101,CE100,EE101 |
12 | ||
| 48703J - WASHER, NO.2(FOR REAR SUSPENSION ARM) | ||||
| 90209-15002 |
AE100,101,CE100,101,EE101 |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-12190 |
AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-12190 |
AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-12060 |
AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 48730-12110 |
AE100,CE100 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730-12110 |
AE100,CE100 |
1 | ||
| 48730-12110 |
AE100,CE100 |
1 | ||
| 48730-13020 |
AE100,CE100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-12060 |
AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 48730-12110 |
AE100,CE100 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730-12110 |
AE100,CE100 |
1 | ||
| 48730-12110 |
AE100,CE100 |
1 | ||
| 48730-13020 |
AE100,CE100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730G - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH) | ||||
| 90179-16022 |
AE100,CE100 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-18016 |
AE100,101,CE100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-16022 |
AE100,101,CE100,EE101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730G - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH) | ||||
| 90179-16022 |
AE100,CE100 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-18016 |
AE100,101,CE100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-16022 |
AE100,101,CE100,EE101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730H - NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH) | ||||
| 90179-16021 |
AE100,101,CE100,EE101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-16021 |
AE100,CE100 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-18017 |
AE100,101,CE100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-12110 |
AE100,CE100 |
1 | ||
| 48730-12060 |
AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 48730-13020 |
AE100,CE100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730-12110 |
AE100,CE100 |
1 | ||
| 48730-12110 |
AE100,CE100 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-12110 |
AE100,CE100 |
1 | ||
| 48730-12060 |
AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 48730-13020 |
AE100,CE100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730-12110 |
AE100,CE100 |
1 | ||
| 48730-12110 |
AE100,CE100 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48740L - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH) | ||||
| 90179-16022 |
AE100,101,CE100,EE101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-16022 |
AE100,CE100 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-18016 |
AE100,101,CE100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48740L - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH) | ||||
| 90179-16022 |
AE100,101,CE100,EE101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-16022 |
AE100,CE100 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-18016 |
AE100,101,CE100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48740M - NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH) | ||||
| 90179-16021 |
AE100,CE100 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-16021 |
AE100,101,CE100,EE101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-18017 |
AE100,101,CE100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90179-14015 |
AE100,101,104,CE100,101,104,EE101 |
1 | ||
| 48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90387-15012 |
AE10#,CE100,104,EE101 |
1 | ||
| 48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH | ||||
| 48753-12010 |
AE10#,CE100,104,EE101 |
1 | ||
| 48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH | ||||
| 48753-12010 |
AE10#,CE100,104,EE101 |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90179-14015 |
AE100,101,104,CE100,101,104,EE101 |
1 | ||
| 48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90387-15012 |
AE10#,CE100,104,EE101 |
1 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-12010 |
AE10#,CE100,104,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12152 |
AE100,101,104,CE100,104,EE101 |
4 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12152 |
AE100,101,104,CE100,104,EE101 |
4 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12091 |
AE100,101,104,CE100 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｷﾔﾘｱ ｻｲﾄﾞ |
2 | ||
| 90179-12062 |
AE10#,CE100,104,EE101 ｷﾔﾘｱ ｻｲﾄﾞ |
2 | ||
| 90179-12063 |
AE104..4DS;AE100,101,CE100,104,EE101 ﾎﾞﾃﾞｰ側 |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12091 |
AE100,101,104,CE100 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｷﾔﾘｱ ｻｲﾄﾞ |
2 | ||
| 90179-12062 |
AE10#,CE100,104,EE101 ｷﾔﾘｱ ｻｲﾄﾞ |
2 | ||
| 90179-12063 |
AE104..4DS;AE100,101,CE100,104,EE101 ﾎﾞﾃﾞｰ側 |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-12060 |
AE100,101,CE100 |
2 | ||
| 48830-20010 |
AE100,101,CE100,EE101 |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10183 |
AE100,101,104,CE100,101,104,EE101 |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10183 |
AE100,101,104,CE100,101,104,EE101 |
4 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-20030 |
AE104..WG;AE100,101,CE100,101,EE101 |
2 | ||
| Common parts | ||||
| 90179-08122 | ||||
| 91611-60816 | ||||
