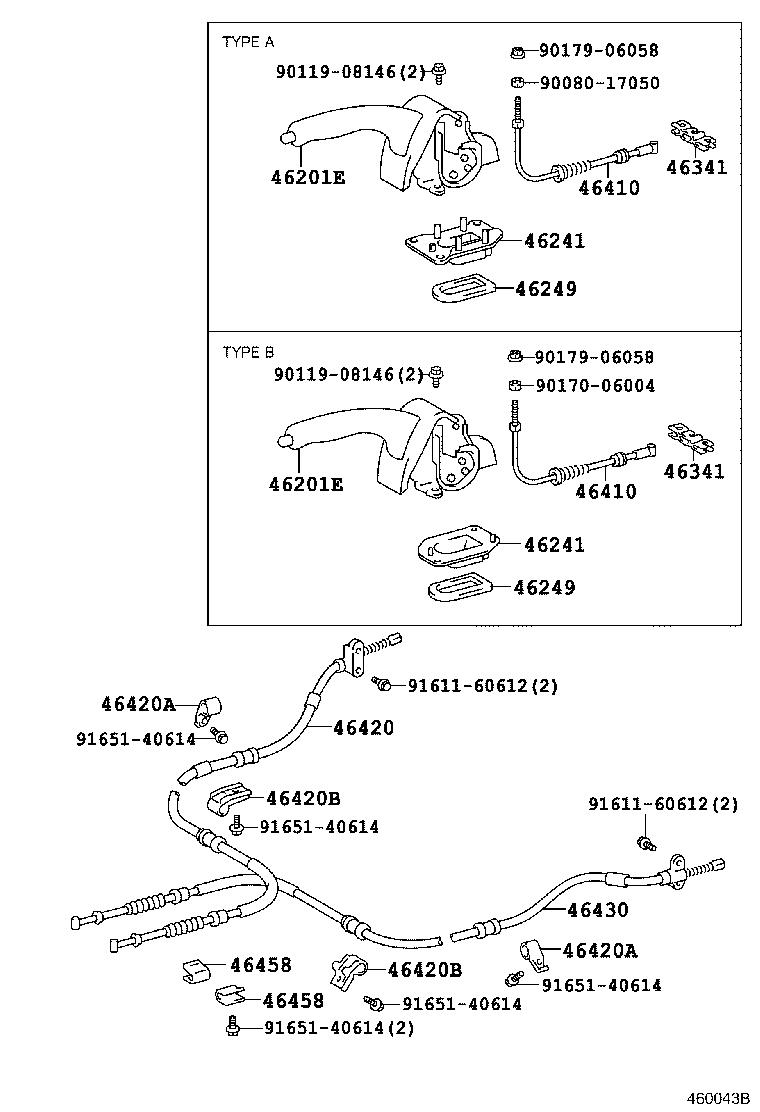

CE100G-AWMGS (1995)
Toyota Corolla
(9505- )AE100,CE100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-12160B0 |
AE100,101,CE100,EE101..G,LT,LX,SEG,SEL,SJ,XE TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1# |
1 | ||
| 46201-12190B0 |
AE100,CE100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1# |
1 | ||
| 46201-02021B0 |
AE100,CE100 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1# |
1 | ||
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-12160B0 |
AE100,101,CE100,EE101..G,LT,LX,SEG,SEL,SJ,XE TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1# |
1 | ||
| 46201-12190B0 |
AE100,CE100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1# |
1 | ||
| 46201-02021B0 |
AE100,CE100 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1# |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-12090 |
AE100,101,CE100,106,108,EE10# |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-12090 |
AE100,101,CE100,106,108,EE10# |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-12010 |
AE10#,CE10#,EE10# |
1 | ||
| 46249-12010 |
AE100,101,104,CE100 (J) |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-12010 |
AE10#,CE10#,EE10# |
1 | ||
| 46249-12010 |
AE100,101,104,CE100 (J) |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-12020 |
AE10#,CE10#,EE10# |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-12020 |
AE10#,CE10#,EE10# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-02030 |
AE100,CE100 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 46410-12210 |
AE100,101,CE100,106,108,EE10# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-02030 |
AE100,CE100 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 46410-12210 |
AE100,101,CE100,106,108,EE10# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-12400 |
CE100 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01746 |
AE10#,CE10#,EE10# |
2 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01746 |
AE10#,CE10#,EE10# |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01744 |
AE100,101,CE100,101,102,106,107,108,EE10# 左側 |
1 | ||
| 90949-01747 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90949-01747 |
AE100,101,CE100,101,102,106,107,108,EE10# 右側 |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01744 |
AE100,101,CE100,101,102,106,107,108,EE10# 左側 |
1 | ||
| 90949-01747 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90949-01747 |
AE100,101,CE100,101,102,106,107,108,EE10# 右側 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-12300 |
CE100 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
AE10#,CE10#,EE10# |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
AE10#,CE10#,EE10# |
2 | ||
| Common parts | ||||
| 90080-17050 | ||||
| 90119-08146 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 91611-60612 | ||||
| 91651-40614 | ||||
