Toyota Corolla CE100 EXHAUST PIPE

CE100G-AWMGS (1995)

Toyota Corolla

Production May 1995 - Apr 1998

Engine 2C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

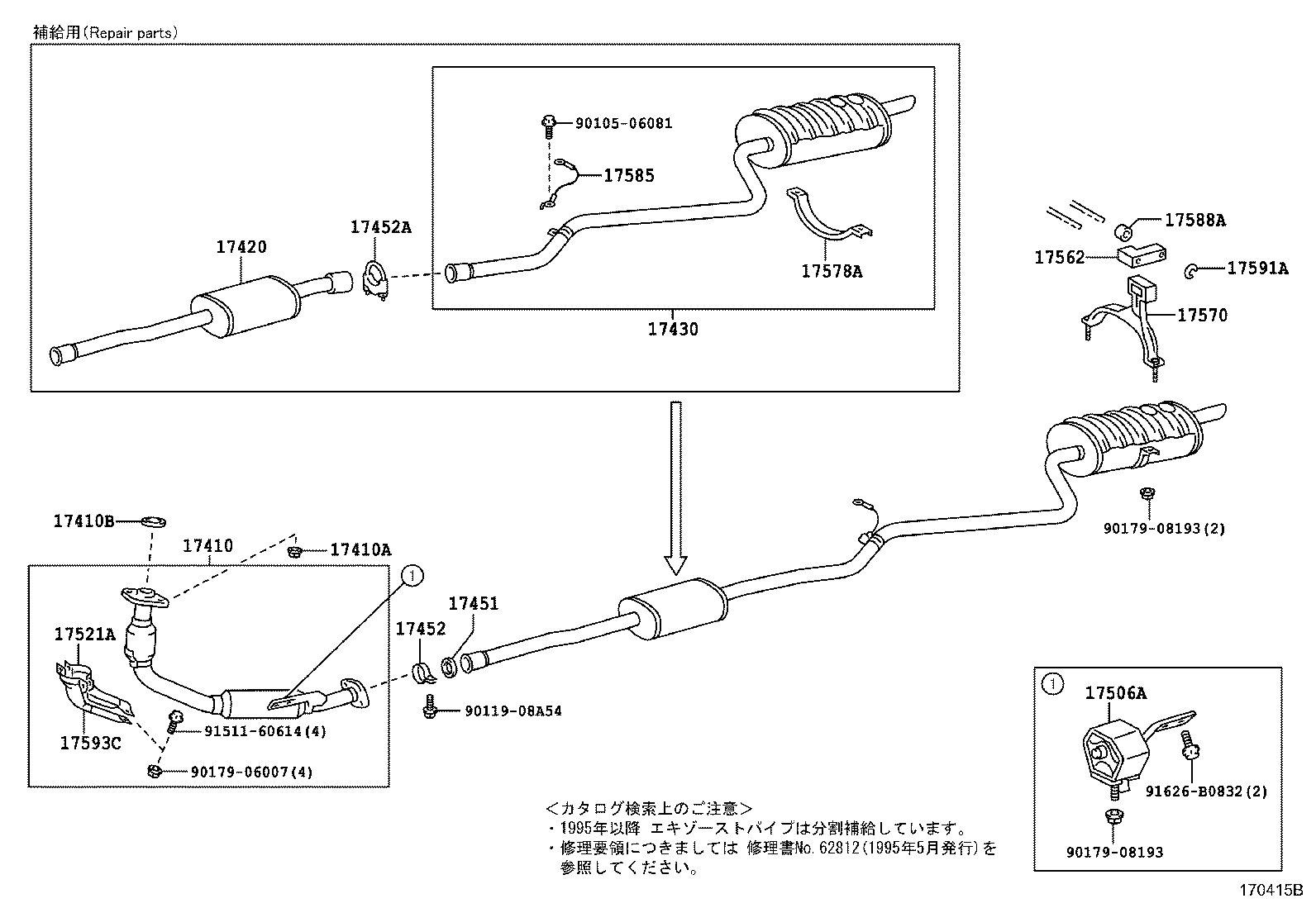

(9505-9705)2C..CE100

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64530	2C..CE100	06/1991 - 01/1992	1
17410-64691	2C..CE100	05/1995 - 04/1997	1
17410-64780	2C..CE100,106,108	04/1997 - 04/1998	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	2C,4EFE,5EFE..CE10#,EE10#	05/1995 - 05/1997	2
90179-10070	2C,3CE..CE100,101,102,106,107,108,109	05/1997 - 12/2999	2
90179-10070	5AFE,2C..AE100,CE100	06/1991 - 08/1991	2
17410B - GASKET, EXHAUST PIPE
90917-06061	2C..CE100,106,108 ﾌﾛﾝﾄ	04/1997 - 04/1998	1
90917-06061	2C,2E,3E,4EFE..CE10#,EE10#	06/1991 - 05/1993	1
90917-06080	2C..CE100,106,108 ﾘﾔ	04/1997 - 04/1998	1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-64130	2C..CE100	06/1991 - 01/1992	1
17420-64270	2C..CE100	05/1995 - 04/1997	1
17420-64290	2C..CE100	05/1997 - 04/1998	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-64680	2C..CE100	06/1991 - 05/1995	1
17430-6A230	2C..CE100	05/1997 - 04/1998	1
17430-6A120	2C..CE100	05/1995 - 04/1997	1
17451 - GASKET, EXHAUST PIPE
90917-06074	2C..CE100,106,108	06/1991 - 05/1993	1
90917-06082	5AFE,2C..AE100,CE100	05/1995 - 04/1997	1
90917-06082	5AFE,2C,3CE,4EFE,5EFE..AE100,CE100,101,102,106,107,108,EE10#	04/1997 - 12/2999	1
17452 - CLAMP, EXHAUST PIPE
90461-15013	2C..CE100	05/1995 - 04/1997	1
17452A - CLAMP, EXHAUST PIPE
17452-15020	2C..CE100	05/1995 - 04/1998	1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-15070	4A#,5AFE,2C,2E,3E,4EFE,5EFE..AE100,101,CE100,106,108,EE10#	06/1991 - 02/1995	1
17506-16120	4AGE,2C,4EFE,5EFE..AE101,CE100,106,108,EE10#	05/1995 - 04/1997	1
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-64040	2C..CE100,106,108	06/1991 - 05/1993	1
17521-64120	2C..CE100	05/1995 - 04/1997	1
17521-64170	2C,3CE..CE100,101,102,106,107,108	04/1997 - 12/2999	1
17585 - HANGER, EXHAUST PIPE
17585-16060	4AGE,5AFE,2C..AE100,101,CE100	05/1995 - 05/1997	1
17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1
17593-64040	2C..CE100,106,108	06/1991 - 05/1993	1
17593-64110	2C..CE100	05/1995 - 04/1997	1
17593-64140	2C,3CE..CE100,101,102,106,107,108	04/1997 - 12/2999	1
Common parts
90105-06081
90119-08A54
90179-06007
90179-08193
91511-60614
91626-B0832

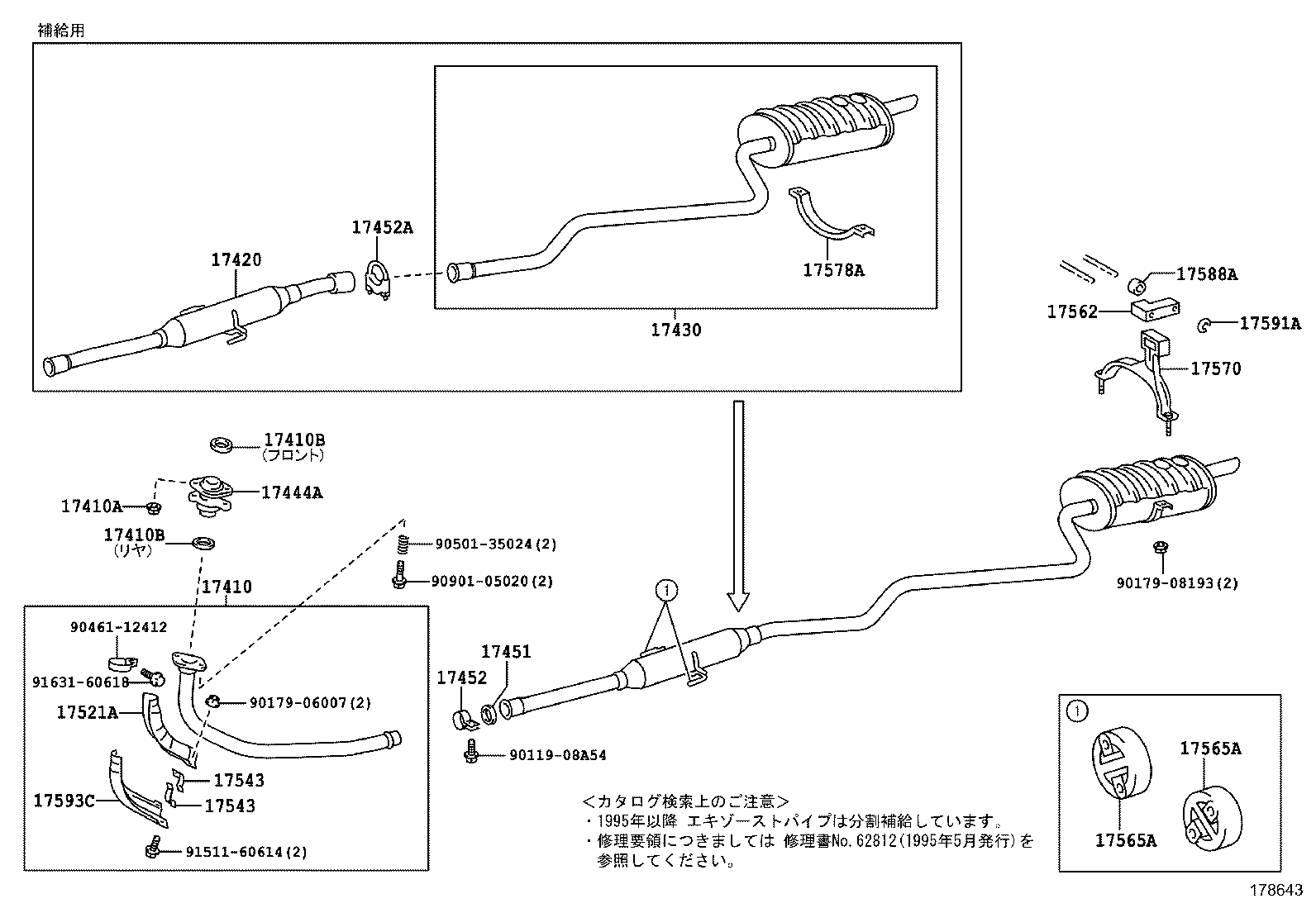

(9705-9804)2C..CE100

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64530	2C..CE100	06/1991 - 01/1992	1
17410-64691	2C..CE100	05/1995 - 04/1997	1
17410-64780	2C..CE100,106,108	04/1997 - 04/1998	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	2C,4EFE,5EFE..CE10#,EE10#	05/1995 - 05/1997	2
90179-10070	2C,3CE..CE100,101,102,106,107,108,109	05/1997 - 12/2999	2
90179-10070	5AFE,2C..AE100,CE100	06/1991 - 08/1991	2
17410B - GASKET, EXHAUST PIPE
90917-06061	2C..CE100,106,108 ﾌﾛﾝﾄ	04/1997 - 04/1998	1
90917-06061	2C,2E,3E,4EFE..CE10#,EE10#	06/1991 - 05/1993	1
90917-06080	2C..CE100,106,108 ﾘﾔ	04/1997 - 04/1998	1
17410B - GASKET, EXHAUST PIPE
90917-06061	2C..CE100,106,108 ﾌﾛﾝﾄ	04/1997 - 04/1998	1
90917-06061	2C,2E,3E,4EFE..CE10#,EE10#	06/1991 - 05/1993	1
90917-06080	2C..CE100,106,108 ﾘﾔ	04/1997 - 04/1998	1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-64130	2C..CE100	06/1991 - 01/1992	1
17420-64270	2C..CE100	05/1995 - 04/1997	1
17420-64290	2C..CE100	05/1997 - 04/1998	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-64680	2C..CE100	06/1991 - 05/1995	1
17430-6A230	2C..CE100	05/1997 - 04/1998	1
17430-6A120	2C..CE100	05/1995 - 04/1997	1
17444A - SPACER, EXHAUST FRONT PIPE
17444-64030	2C,3CE..CE100,101,102,106,107,108	04/1997 - 12/2999	1
17451 - GASKET, EXHAUST PIPE
90917-06074	2C..CE100,106,108	06/1991 - 05/1993	1
90917-06082	5AFE,2C..AE100,CE100	05/1995 - 04/1997	1
90917-06082	5AFE,2C,3CE,4EFE,5EFE..AE100,CE100,101,102,106,107,108,EE10#	04/1997 - 12/2999	1
17452 - CLAMP, EXHAUST PIPE
90461-15013	2C..CE100	05/1995 - 04/1997	1
17452A - CLAMP, EXHAUST PIPE
17452-15020	2C..CE100	05/1995 - 04/1998	1
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-64040	2C..CE100,106,108	06/1991 - 05/1993	1
17521-64120	2C..CE100	05/1995 - 04/1997	1
17521-64170	2C,3CE..CE100,101,102,106,107,108	04/1997 - 12/2999	1
17543 - STAY, EXHAUST PIPE PROTECTOR, NO.3
17543-26010	2C,3CE..CE100,101,102,106,107,108	04/1997 - 12/2999	2
17543-64010	2C..CE100,106,108	06/1991 - 05/1993	1
17543 - STAY, EXHAUST PIPE PROTECTOR, NO.3
17543-26010	2C,3CE..CE100,101,102,106,107,108	04/1997 - 12/2999	2
17543-64010	2C..CE100,106,108	06/1991 - 05/1993	1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-16230	4A#,5AFE,2C,4EFE..AE100,101,CE100,EE101	06/1991 - 05/1995	1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-16230	4A#,5AFE,2C,4EFE..AE100,101,CE100,EE101	06/1991 - 05/1995	1
17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1
17593-64040	2C..CE100,106,108	06/1991 - 05/1993	1
17593-64110	2C..CE100	05/1995 - 04/1997	1
17593-64140	2C,3CE..CE100,101,102,106,107,108	04/1997 - 12/2999	1
Common parts
90119-08A54
90179-06007
90179-08193
90461-12412
90501-35024
90901-05020
91511-60614
91631-60618

CE100G-AWMGS (1995)

(9505-9705)2C..CE100

(9705-9804)2C..CE100
