CE100-AEPNS (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )4DS

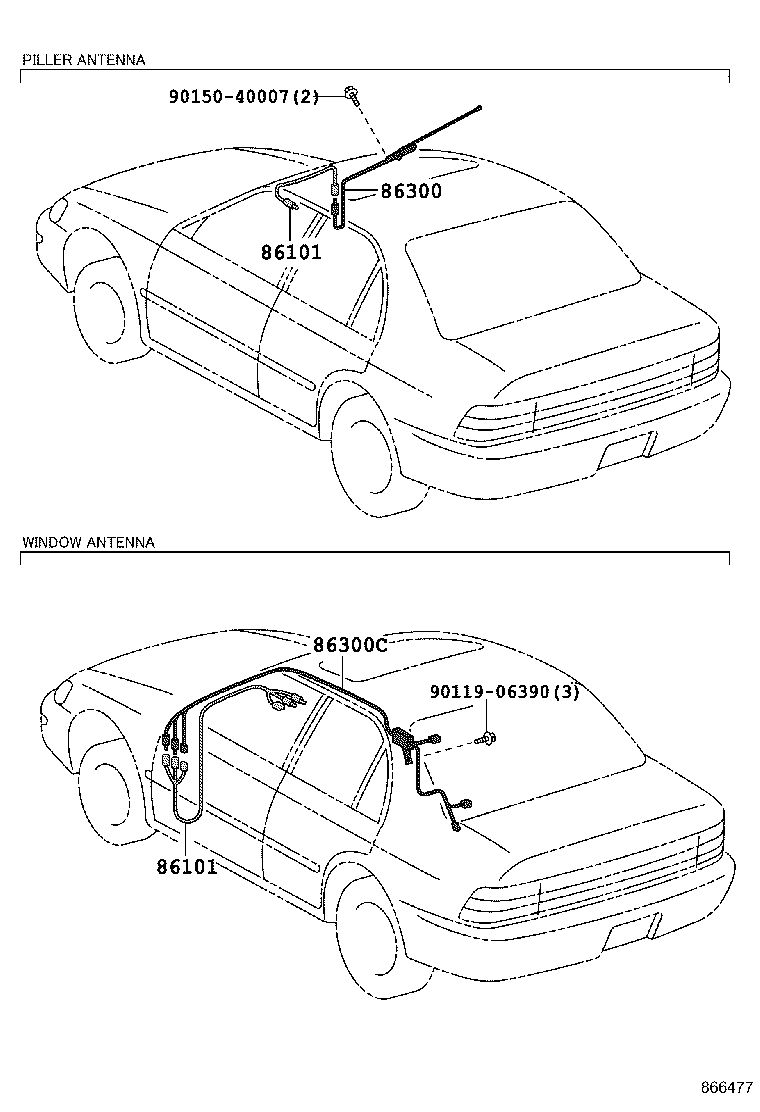

Click highlighted areas on diagram

diagram 86101 86101 86300 86300C 9011906390 9015040007
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-12120

AE10#,CE100,104,EE101..4DS..(GT,SEG,SEL,XE)

 1
86101-12140

AE10#,CE100,104,EE101..4DS..(GT,SEG,SEL,XE)

ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ)

 1
86101-12130

AE10#,CE10#,EE10#..BZT,CTD,DX,DXJ,G,GL,L,LT,LX,XE

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-12120

AE10#,CE100,104,EE101..4DS..(GT,SEG,SEL,XE)

 1
86101-12140

AE10#,CE100,104,EE101..4DS..(GT,SEG,SEL,XE)

ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ)

 1
86101-12130

AE10#,CE10#,EE10#..BZT,CTD,DX,DXJ,G,GL,L,LT,LX,XE

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-12390

AE100,104,CE10#,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,XE

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-12420

AE10#,CE100,104,EE101..4DS..(GT,SEL,XE)

 1
86300-12490

AE10#,CE100,104,EE101..4DS..(GT,SEL,XE)

ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ)

 1
Common parts
90119-06390
90150-40007
