CE100-AEPNS (1991)
Toyota Corolla
(9106-9305)4FC ; (9305-9505)AE100,104,CE100,106,108..4FC
A240L,A240E,A241L,A241H

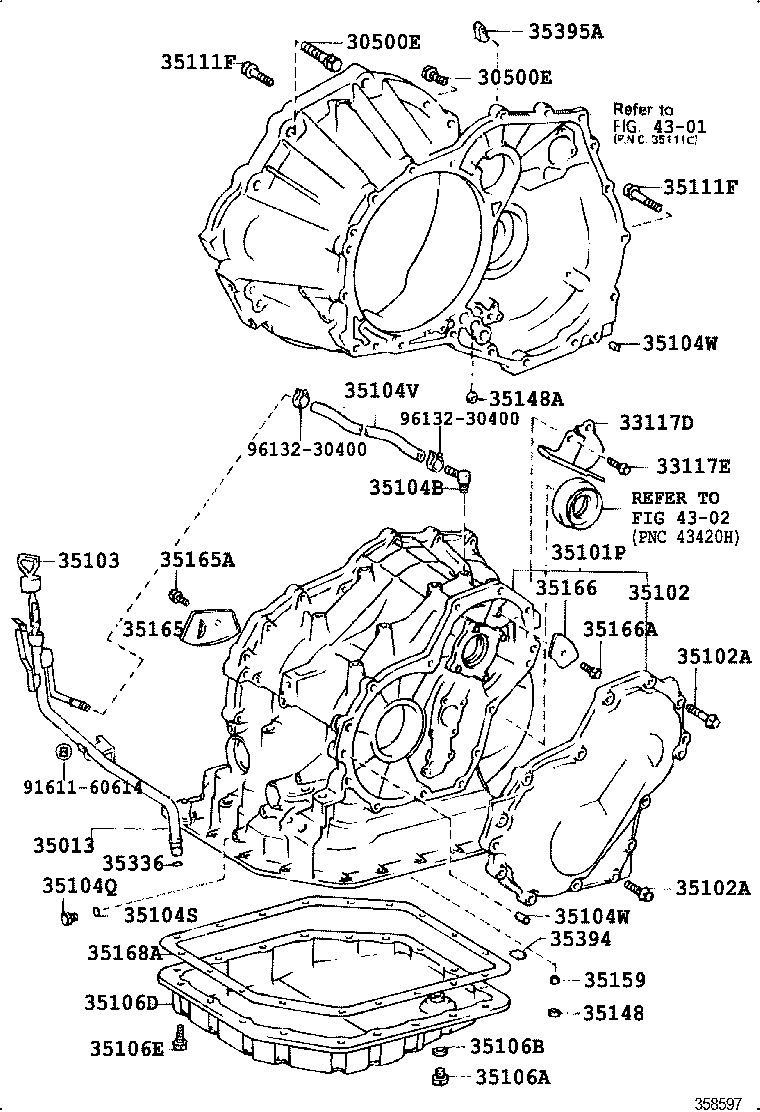

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-10077 |
AE10#,CE100,106,108..ATM *10−1.25PX43−26 |
1 | ||
| 90105-08040 |
CE100,106,108..4FC *8−1.25PX18−15 |
1 | ||
| 91619-61245 |
CE100,106,108..4FC *12−1.25PX45−30 |
3 | ||
| 90105-10077 |
AE100,104,CE100,106,108..ATM *10−1.25PX43−26 |
1 | ||
| 90105-10077 |
AE10#,CE100,101,102,106,107,108..ATM *10−1.25PX43−26 |
1 | ||
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-10077 |
AE10#,CE100,106,108..ATM *10−1.25PX43−26 |
1 | ||
| 90105-08040 |
CE100,106,108..4FC *8−1.25PX18−15 |
1 | ||
| 91619-61245 |
CE100,106,108..4FC *12−1.25PX45−30 |
3 | ||
| 90105-10077 |
AE100,104,CE100,106,108..ATM *10−1.25PX43−26 |
1 | ||
| 90105-10077 |
AE10#,CE100,101,102,106,107,108..ATM *10−1.25PX43−26 |
1 | ||
| 33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE | ||||
| 33117-12030 |
AE10#,CE100,101,102,106,107,108..4FC |
1 | ||
| 33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
EE10#..3FC;AE10#,CE100,101,102,106,107,108..4FC |
2 | ||
| 90105-08040 |
AE10#,CE100,106,108,EE10#..ATM |
2 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-12340 |
CE100,106,108..4FC |
1 | ||
| 35101P - CASE & COVER SUB-ASSY, TRANSAXLE | ||||
| 35101-20030 |
CE100,106,108..4FC |
1 | ||
| 35102 - COVER SUB-ASSY, TRANSAXLE REAR | ||||
| 35102-20050 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-08068 |
AE10#,CE100,106,108..4FC *8−1.25PX35−30 |
3 | ||
| 90105-08065 |
AE10#,CE100,106,108..4FC *8−1.25PX45−35 |
10 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-08068 |
AE10#,CE100,106,108..4FC *8−1.25PX35−30 |
3 | ||
| 90105-08065 |
AE10#,CE100,106,108..4FC *8−1.25PX45−35 |
10 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-12230 |
CE100,106,108..4FC |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03101 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90447-11030 |
AE104,CE100,106,108..4FC |
1 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10007 |
AE10#,CE100,106,108..4FC HOUSING SIDE |
2 | ||
| 90250-11001 |
AE10#,CE100,106,108..4FC RR COVER SIDE |
2 | ||
| 90250-10007 |
AE100,104,CE100,106,108..4FC HOUSING SIDE |
2 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10007 |
AE10#,CE100,106,108..4FC HOUSING SIDE |
2 | ||
| 90250-11001 |
AE10#,CE100,106,108..4FC RR COVER SIDE |
2 | ||
| 90250-10007 |
AE100,104,CE100,106,108..4FC HOUSING SIDE |
2 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
AE10#,CE100,101,102,106,107,108..4FC |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-12070 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
AE10#,CE100,101,102,106,107,108..4FC |
18 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08066 |
AE10#,CE100,106,108..4FC *8−1.25PX72−30 |
1 | ||
| 90105-08065 |
AE10#,CE100,106,108..4FC *8−1.25PX45−35 |
10 | ||
| 90105-08071 |
AE10#,CE100,106,108..4FC *8−1.25PX30−25 |
2 | ||
| 90105-08082 |
CE100,106,108..4FC *8−1.25PX48−30 |
1 | ||
| 90105-08068 |
AE10#,CE100,106,108..4FC *8−1.25PX35−30 |
5 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08066 |
AE10#,CE100,106,108..4FC *8−1.25PX72−30 |
1 | ||
| 90105-08065 |
AE10#,CE100,106,108..4FC *8−1.25PX45−35 |
10 | ||
| 90105-08071 |
AE10#,CE100,106,108..4FC *8−1.25PX30−25 |
2 | ||
| 90105-08082 |
CE100,106,108..4FC *8−1.25PX48−30 |
1 | ||
| 90105-08068 |
AE10#,CE100,106,108..4FC *8−1.25PX35−30 |
5 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
AE10#,CE100,101,102,106,107,108,EE10#..ATM |
1 | ||
| 35148A - GASKET, GOVERNOR APPLY, NO.2 | ||||
| 35148-12010 |
AE100,104,109,CE100,101,102,106,107,108..4FC |
3 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-20010 |
AE10#,CE100,101,102,106,107,108..4FC |
1 | ||
| 35165 - PLATE, TRANSMISSION CASE, NO.1 | ||||
| 35165-20010 |
CE100,101,102,106,107,108..4FC |
1 | ||
| 35165A - BOLT (FOR TRANSMISSION CASE PLATE NO.1) | ||||
| 90105-06049 |
AE10#,CE100,101,102,106,107,108..4FC |
1 | ||
| 35166 - PLATE, TRANSMISSION CASE, NO.3 | ||||
| 35166-12010 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35166A - BOLT (FOR TRANSMISSION CASE PLATE NO.3) | ||||
| 90105-06049 |
AE10#,CE100,101,102,106,107,108..4FC |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-12020 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
AE10#,CE100,101,102,106,107,108,EE10#..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
AE10#,CE100,106,108,EE10#..ATM |
3 | ||
| 35394-30011 |
AE100,CE100,106,108..ATM |
2 | ||
| 35394-30011 |
AE100,101,CE100,106,108..ATM |
2 | ||
| 35395A - STRAINER, GOVERNOR OIL | ||||
| 35395-12020 |
AE100,104,109,CE100,101,102,106,107,108..4FC |
1 | ||
| Common parts | ||||
| 91611-60614 | ||||
| 96132-30400 | ||||
| Linked diagrams | ||||
| 4301 | ||||
| 4302 | ||||
