CE100-AEPES (1991)
Toyota Corolla

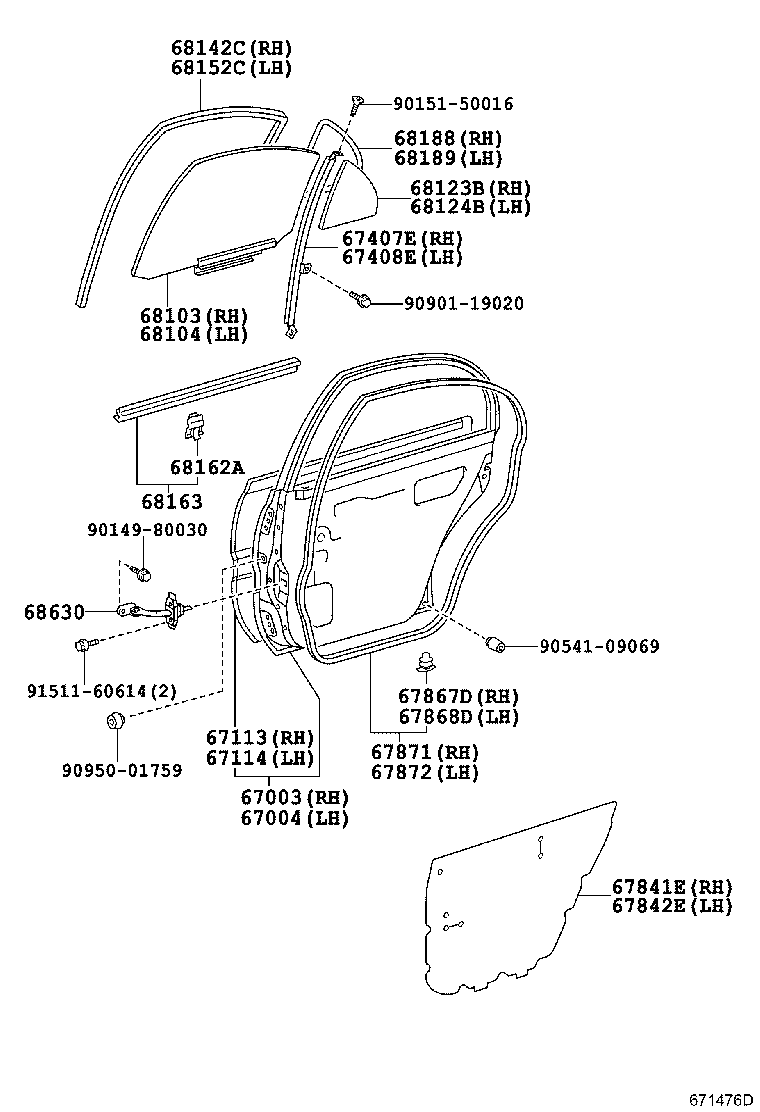

ILLUST NO. 1 OF 3(9106- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-12680 |
AE10#,CE100,104..4DS..(GT,SEG,SEL) |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-12680 |
AE10#,CE100,104..4DS..(GT,SEG,SEL) |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-12230 |
AE10#,CE10#,EE10#..(4DS,V,WG)..(DX,G,GL,GT,L,LT,LX,SEG,SEL,XE) |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-12230 |
AE10#,CE10#,EE10#..(4DS,V,WG)..(DX,G,GL,GT,L,LT,LX,SEG,SEL,XE) |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-12150 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-12150 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-12250 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ---ﾌﾛﾝﾄ ﾉﾐ) |
1 | ||
| 67841-12250 |
AE10#,CE100,101,102,104,105,106,107,109,EE101,102,103..(4DS,V,WG)..(BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,XE) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ---ﾌﾛﾝﾄ ﾉﾐ) |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-12080 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG |
1 | ||
| 67841-12250 |
AE10#,CE100,101,102,104,105,106,107,109,EE101,102,103..(4DS,V,WG)..(BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,XE) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ---ﾌﾛﾝﾄ ﾉﾐ) |
1 | ||
| 67841-12250 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ---ﾌﾛﾝﾄ ﾉﾐ) |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-20140 |
AE10#,CE100,104,EE101..4DS PURPLE |
18 | ||
| 67867-12150 |
AE10#,CE10#,EE10#..4DS,V,WG |
18 | ||
| 67868-12050 |
AE10#,CE100,104,EE101..4DS YELLOW OR RED |
18 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-12050 |
AE10#,CE100,104,EE101..4DS YELLOW OR RED |
18 | ||
| 67868-20140 |
AE10#,CE100,104,EE101..4DS PURPLE |
18 | ||
| 67867-12150 |
AE10#,CE10#,EE10#..4DS,V,WG |
18 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-12380 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-12380 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-12350 |
AE10#,CE100,104,EE101..4DS *TT,厚さ=3.5 |
1 | ||
| 68103-12360 |
AE10#,CE100,104,EE101..SEG,SEL,XE *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68103-12360 |
AE10#,CE100,104..SEG,SEL *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-12370 |
AE10#,CE100,104,EE101..SEG,SEL,XE *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68104-12370 |
AE10#,CE100,104..SEG,SEL *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68104-12360 |
AE10#,CE100,104,EE101..4DS *TT,厚さ=3.5 |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-12440 |
AE10#,CE100,104,EE101..SEG,SEL,XE *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68123-12440 |
AE10#,CE100,104..SEG,SEL *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68123-12430 |
AE10#,CE100,104,EE101..4DS *TT,厚さ=3.5 |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-12430 |
AE10#,CE100,104,EE101..4DS *TT,厚さ=3.5 |
1 | ||
| 68124-12440 |
AE10#,CE100,104,EE101..SEG,SEL,XE *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68124-12440 |
AE10#,CE100,104..SEG,SEL *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-12110 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-12030 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-12240 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-12210 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-12051 |
AE10#,CE10#,EE10#..4DS,V,WG 右側 |
1 | ||
| 68640-12011 |
AE10#,CE10#,EE10#..4DS,V,WG 左側 |
1 | ||
| 68630-12050 |
AE10#,CE10#,EE10#..4DS,V,WG 右側 |
1 | ||
| 68640-12010 |
AE10#,CE10#,EE10#..4DS,V,WG 左側 |
1 | ||
| Common parts | ||||
| 90149-80030 | ||||
| 90151-50016 | ||||
| 90541-09069 | ||||
| 90901-19020 | ||||
| 90950-01759 | ||||
| 91511-60614 | ||||

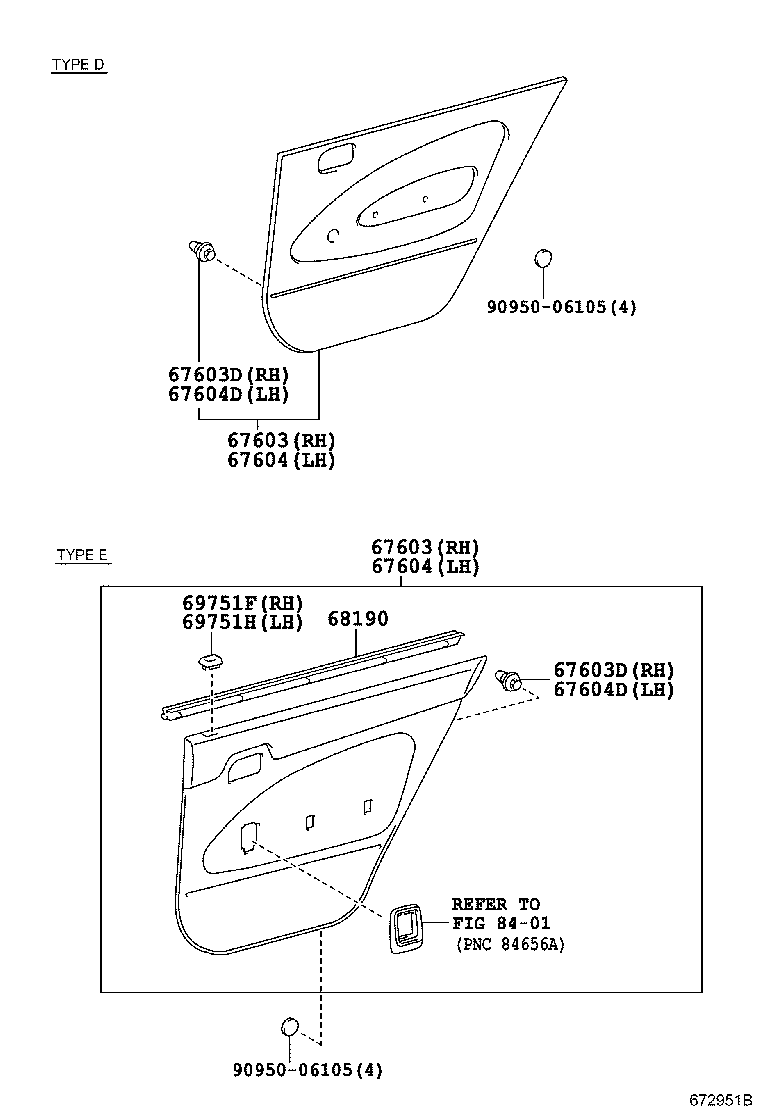

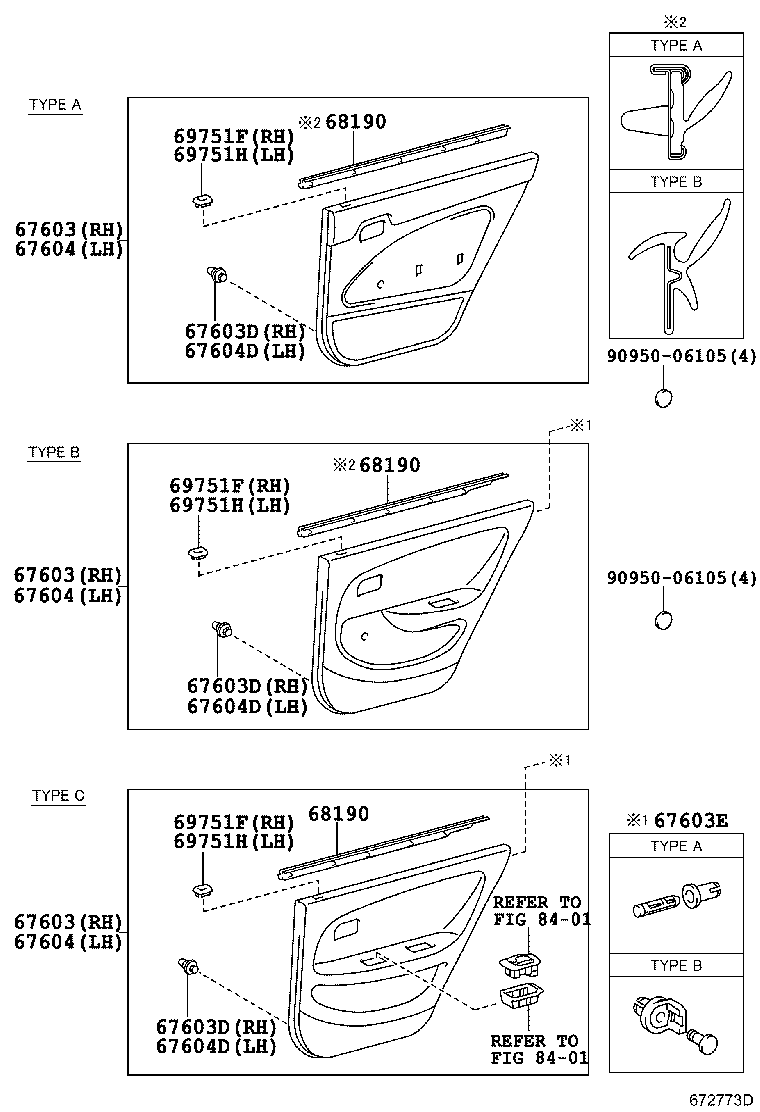

ILLUST NO. 2 OF 3(9106- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1E370B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1E380B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1E300K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9# |
1 | ||
| 67630-1E380K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1E370J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1E300B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1E370K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1H130K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1H130B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1E370B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1E380B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1E300K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9# |
1 | ||
| 67630-1E380K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1E370J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1E300B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1E370K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1H130K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1H130B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1E370B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1E380B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1E300K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9# |
1 | ||
| 67630-1E380K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1E370J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1E300B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1E370K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1H130K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1H130B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX ｵﾚﾝｼﾞ |
2 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
6 | ||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX ｵﾚﾝｼﾞ |
2 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE) |
6 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX ｵﾚﾝｼﾞ |
2 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
6 | ||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX ｵﾚﾝｼﾞ |
2 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE) |
6 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX ｵﾚﾝｼﾞ |
2 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
6 | ||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX ｵﾚﾝｼﾞ |
2 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE) |
6 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-0706603 |
AE10#,CE100,104,EE101..G,GT,LT,SEG,SEL,XE SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0706603 |
AE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,LX,SEG,SEL,XE) SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A |
4 | ||
| 90467-09141 |
AE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,LX,SEG,SEL,XE) ﾀｲﾌﾟ B |
4 | ||
| 90467-07066J0 |
AE10#,CE100,104,EE101..SEG,SEL,XE DARK BLUE,TRIM8#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0706603 |
AE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE) SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A |
4 | ||
| 90467-07066K0 |
AE10#,CE100,104,EE101..SEG,SEL,XE TAUPE,TRIM9#,ﾀｲﾌﾟ A |
4 | ||
| 90467-07066K0 |
AE10#,CE100,104,EE101..SEG,SEL,XE TAUPE,TRIM9#,ﾀｲﾌﾟ A |
4 | ||
| 90467-07066J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8#,ﾀｲﾌﾟ A |
4 | ||
| 90467-09141 |
AE10#,CE100,104,EE101..G,GT,LT,SEG,SEL,XE ﾀｲﾌﾟ B |
4 | ||
| 90467-07066K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9#,ﾀｲﾌﾟ A |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1E370K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E370B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E380B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E370J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E380K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E300K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9# |
1 | ||
| 67640-1E300B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1H130K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1H130B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1E370K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E370B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E380B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E370J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E380K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E300K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9# |
1 | ||
| 67640-1E300B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1H130K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1H130B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1E370K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E370B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E380B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E370J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E380K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E300K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9# |
1 | ||
| 67640-1E300B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1H130K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1H130B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX ｵﾚﾝｼﾞ |
2 | ||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX ｵﾚﾝｼﾞ |
2 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
6 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE) |
6 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX ｵﾚﾝｼﾞ |
2 | ||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX ｵﾚﾝｼﾞ |
2 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
6 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE) |
6 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX ｵﾚﾝｼﾞ |
2 | ||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX ｵﾚﾝｼﾞ |
2 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
6 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE) |
6 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12050 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
2 | ||
| 68173-12050 |
EE103..GL;EE102,103..(3FC,4F)..DX;AE10#,CE100,101,102,104,105,106,107,109,EE101..(4DS,V,WG)..(BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,XE) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12050 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
2 | ||
| 68173-12050 |
EE103..GL;EE102,103..(3FC,4F)..DX;AE10#,CE100,101,102,104,105,106,107,109,EE101..(4DS,V,WG)..(BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,XE) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12050 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
2 | ||
| 68173-12050 |
EE103..GL;EE102,103..(3FC,4F)..DX;AE10#,CE100,101,102,104,105,106,107,109,EE101..(4DS,V,WG)..(BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,XE) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
2 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-12050K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 69751-12050B0 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050B0 |
AE10#,CE100,104,EE101..DX,GT,LT,LX,SEG,SEL,XE SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-12050K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 69751-12050B0 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050B0 |
AE10#,CE100,104,EE101..DX,GT,LT,LX,SEG,SEL,XE SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-12050K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 69751-12050B0 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050B0 |
AE10#,CE100,104,EE101..DX,GT,LT,LX,SEG,SEL,XE SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-12050B0 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050B0 |
AE10#,CE100,104,EE101..DX,GT,LT,LX,SEG,SEL,XE SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-12050B0 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050B0 |
AE10#,CE100,104,EE101..DX,GT,LT,LX,SEG,SEL,XE SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-12050B0 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050B0 |
AE10#,CE100,104,EE101..DX,GT,LT,LX,SEG,SEL,XE SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90950-06105 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(9106- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1E370B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1E380B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1E300K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9# |
1 | ||
| 67630-1E380K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1E370J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1E300B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1E370K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1H130K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1H130B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1E370B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1E380B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1E300K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9# |
1 | ||
| 67630-1E380K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1E370J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1E300B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1E370K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1H130K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67630-1H130B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX ｵﾚﾝｼﾞ |
2 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
6 | ||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX ｵﾚﾝｼﾞ |
2 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE) |
6 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX ｵﾚﾝｼﾞ |
2 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
6 | ||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX ｵﾚﾝｼﾞ |
2 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE) |
6 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1E370K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E370B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E380B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E370J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E380K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E300K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9# |
1 | ||
| 67640-1E300B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1H130K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1H130B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1E370K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E370B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E380B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E370J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E380K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1E300K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9# |
1 | ||
| 67640-1E300B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1H130K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67640-1H130B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX ｵﾚﾝｼﾞ |
2 | ||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX ｵﾚﾝｼﾞ |
2 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
6 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE) |
6 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX ｵﾚﾝｼﾞ |
2 | ||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX ｵﾚﾝｼﾞ |
2 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
6 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE) |
6 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12050 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
2 | ||
| 68173-12050 |
EE103..GL;EE102,103..(3FC,4F)..DX;AE10#,CE100,101,102,104,105,106,107,109,EE101..(4DS,V,WG)..(BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,XE) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
2 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-12050K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 69751-12050B0 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050B0 |
AE10#,CE100,104,EE101..DX,GT,LT,LX,SEG,SEL,XE SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-12050B0 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050B0 |
AE10#,CE100,104,EE101..DX,GT,LT,LX,SEG,SEL,XE SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90950-06105 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
