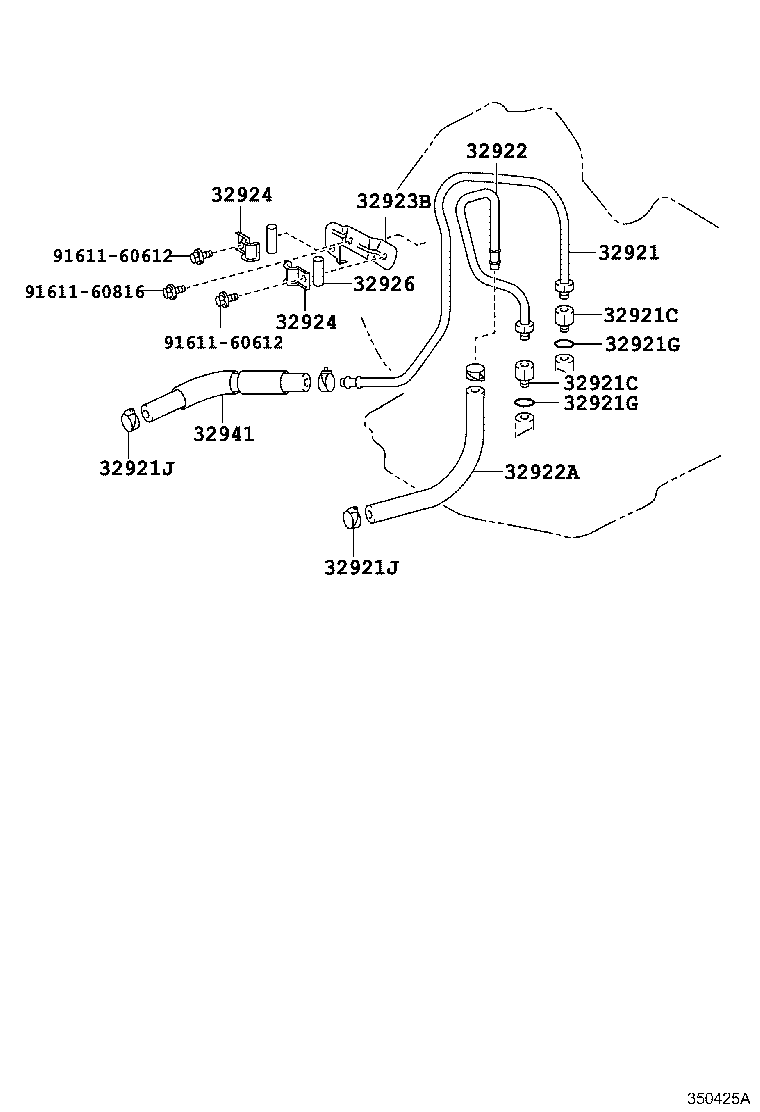

CE100-AEPDS (1991)
Toyota Corolla
(9106-9305)AE100,101,CE100,106,108..4FC ; (9305-)AE100,CE100,101,102,106,107,10
A240L,A240E,A241L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-12210 |
AE100,101,CE100,106,108..4FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
AE100,101,CE100,106,108..4FC |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
AE100,101,CE100,106,108..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AE10#,CE100,106,108,EE10#..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AE10#,CE100,106,108,EE10#..ATM |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
AE100,101,CE100,106,108,EE10#..ATM |
4 | ||
| 90467-13039 |
AE10#,CE100,101,102,106,107,108,EE10#..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
AE100,101,CE100,106,108,EE10#..ATM |
4 | ||
| 90467-13039 |
AE10#,CE100,101,102,106,107,108,EE10#..ATM |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-12320 |
AE100,104,109,CE100,101,102,106,107,108..4FC |
1 | ||
| 32922-12320 |
AE10#,CE100,106,108..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-15042 |
AE10#,CE100..4FC |
1 | ||
| 90445-15042 |
EE10#..3FC;AE10#,CE100,106,108..4FC |
1 | ||
| 90445-15042 |
EE10#..3FC;AE100,104,CE100,106,108..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-12210 |
CE100,101,102,106,107,108..4FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 90462-10082 |
AE100,104,109,CE100,101,102,106,107,108,EE10#..ATM |
2 | ||
| 90462-10082 |
AE10#,CE100,106,108,EE10#..ATM |
2 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 90462-10082 |
AE100,104,109,CE100,101,102,106,107,108,EE10#..ATM |
2 | ||
| 90462-10082 |
AE10#,CE100,106,108,EE10#..ATM |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-10010 |
AE100,EE10#..3FC;AE104,CE100,106,108..4FC 長さ=30,内径=8 |
1 | ||
| 32926-30011 |
AE10#,CE100..ATM 長さ=25,内径=8 |
2 | ||
| 32926-22010 |
AE10#,CE100,106,108..4FC 長さ=35,内径=8 |
1 | ||
| 32926-10010 |
AE100,104,109,CE100,101,102,106,107,108..ATM 長さ=30,内径=8 |
1 | ||
| 32926-22010 |
AE100,104,109,CE100,101,102,106,107,108..4FC 長さ=35,内径=8 |
1 | ||
| 32926-10010 |
AE100,101,CE100,106,108..4FC 長さ=30,内径=8 |
2 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-12210 |
CE100,101,102,106,107,108..4FC |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
