CE100-AEMNS (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

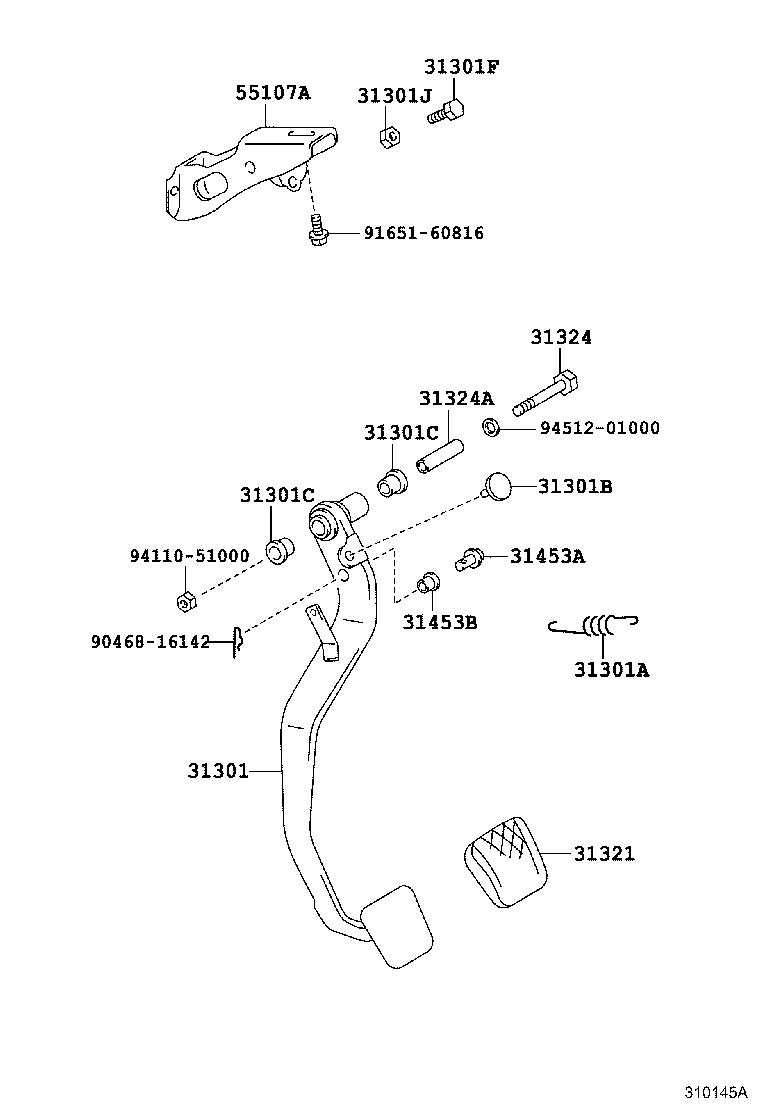

ILLUST NO. 1 OF 2(9106- )AE100,104,109,CE10#,EE10#..MTM ; (9109- )5F..SEG,SJ ; (9305- )MTM.

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31301J 31321 31324 31324A 31453A 31453B 55107A 9046816142 9165160816 9411051000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-12370

AE10#,CE10#,EE10#..MTM..(CTD,DX,G,GL,L,LT,LX,SEG,SEL,SJ,XE)

 1
31301-12370

AE10#,CE10#,EE10#..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-14052

AE10#,CE10#,EE10#..MTM..(CTD,DX,G,GL,L,LT,LX,SEG,SEL,SJ,XE)

 1
90506-14052

AE10#,CE10#,EE10#..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

AE10#,CE10#,EE10#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AE10#,CE10#,EE10#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AE10#,CE10#,EE10#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

AE10#,CE10#,EE10#..MTM

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94120-41000

AE10#,CE10#,EE10#..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-12040

AE10#,CE10#,EE10#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10015

AE10#,CE10#,EE10#..MTM

 1
90101-10015

AE10#,CE10#,EE10#..MTM..(CTD,DX,G,GL,L,LT,LX,SEG,SEL,SJ,XE)

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

AE10#,CE10#,EE10#..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-12010

AE10#,CE10#,EE10#..MTM

長さ=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

AE10#,CE10#,EE10#..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12170

AE10#,CE10#,EE10#..MTM..(CTD,DX,G,GL,L,LT,LX,SEG,SEL,SJ,XE)

 1
55107-12170

AE10#,CE10#,EE10#..MTM

 1
Common parts
90468-16142
91651-60816
94110-51000
94512-01000

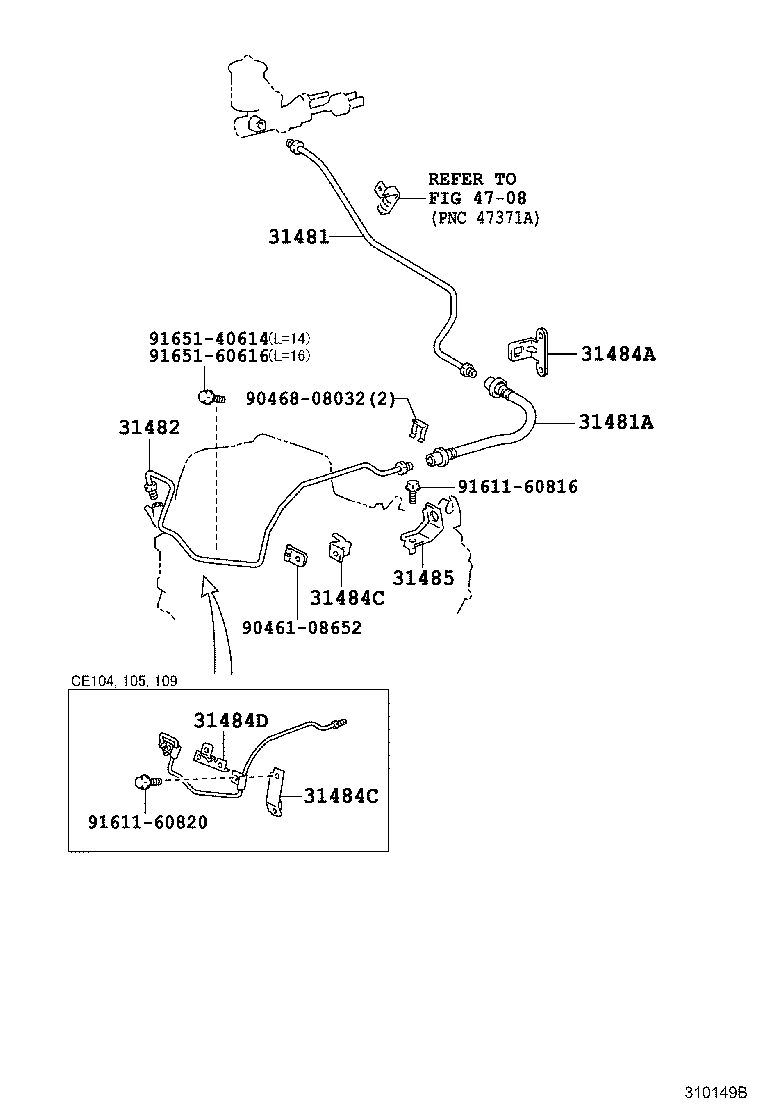

ILLUST NO. 2 OF 2(9106- )CE10#..5F

Click highlighted areas on diagram

diagram 31481 31481A 31482 31484A 31484C 31484C 31484D 31485 4708 9046108652 9046808032 9161160816 9161160820 9165140614 9165160616
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12210

AE10#,CE10#,EE10#..MTM

 1
31481A - HOSE, CLUTCH, NO.1
90931-01060

CE100,106,108..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-32020

CE100,101,102,106,107,108..5F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-12160

AE10#,CE10#,EE10#..MTM

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-32050

CE100,101,102,106,107,108..5F

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-32050

CE100,101,102,106,107,108..5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12190

CE100,101,102,106,107,108..5F

 1
Common parts
90461-08652
90468-08032
91611-60816
91611-60820
91651-40614
91651-60616
Linked diagrams
4708
