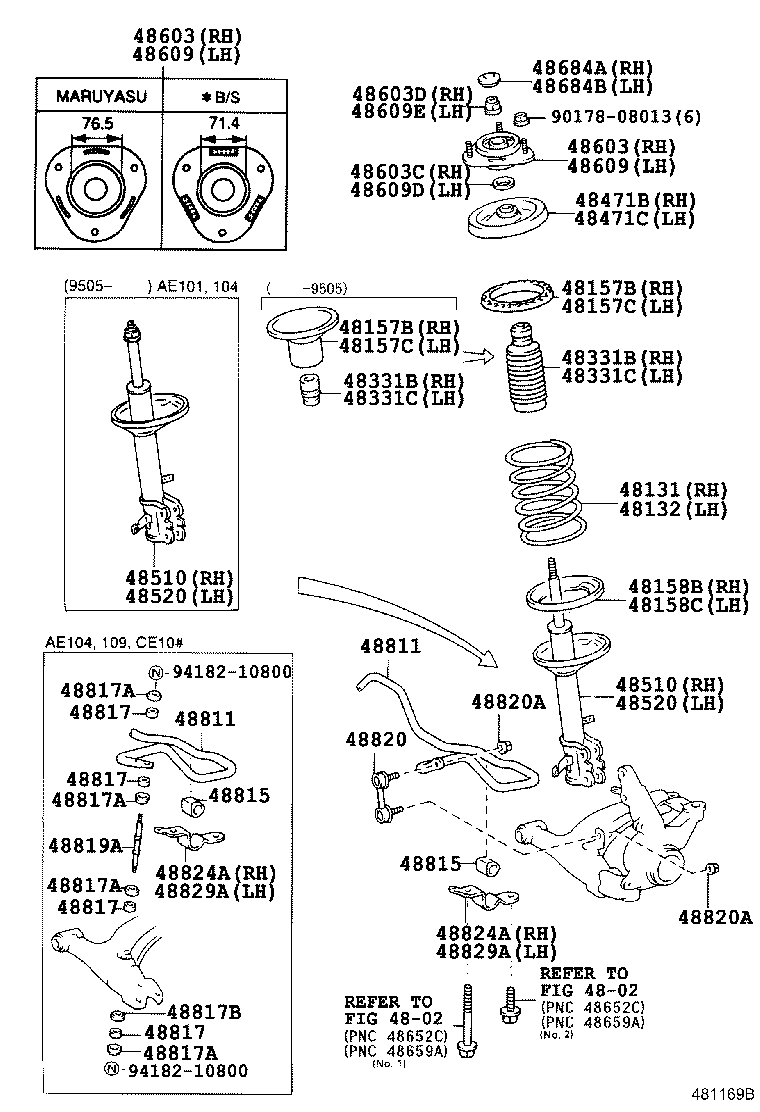

CE100-AEMDS (1991)
Toyota Corolla
(9106- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-1K640 |
AE100..WG..5F;CE100..5F..(DX,LX);AE100..ATM..(DX,LX,XE) |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-1K620 |
AE100..WG..5F;CE100..5F..(DX,LX);AE100..ATM..(DX,LX,XE) |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-12060 |
AE10#,CE10#,EE10# |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-12060 |
AE10#,CE10#,EE10# |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-12060 |
AE10#,CE10#,EE10# |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-12060 |
AE10#,CE10#,EE10# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-12030 |
AE10#,CE10#,EE10# |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-12030 |
AE10#,CE10#,EE10# |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-12130 |
AE101,104,CE10# |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-12130 |
AE101,104,CE10# |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-12130 |
AE101,104,CE10# |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-12130 |
AE101,104,CE10# |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48044-12090 |
AE10#,CE10#,EE10# (J) |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48044-12090 |
AE10#,CE10#,EE10# (J) |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-12770 |
AE101,CE100,106,108..CTD,DX,GL,L,LX,SEG,SEL,XE |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-12770 |
AE101,CE100,106,108..CTD,DX,GL,L,LX,SEG,SEL,XE |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-12650 |
AE101,CE100,106,108..CTD,DX,GL,L,LX,SEG,SEL,XE |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-12650 |
AE101,CE100,106,108..CTD,DX,GL,L,LX,SEG,SEL,XE |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-12270 |
AE104,CE100..4DS;AE100,101,CE104,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-12270 |
AE104,CE100..4DS;AE100,101,CE104,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90303-22049 |
AE10#,CE10#,EE10# |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 94182-11400 |
AE10#,CE10#,EE10# |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-12270 |
AE104,CE100..4DS;AE100,101,CE104,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-12270 |
AE104,CE100..4DS;AE100,101,CE104,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90303-22049 |
AE10#,CE10#,EE10# |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 94182-11400 |
AE10#,CE10#,EE10# |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-32010 |
AE10#,CE10#,EE10# |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-32010 |
AE10#,CE10#,EE10# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-12890 |
CE100,102,106,107,108..CTD,DX,DXJ,GL,L,LX,SEL,XE |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-12890 |
CE100,102,106,107,108..CTD,DX,DXJ,GL,L,LX,SEL,XE |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-12230 |
AE101,CE100,106,108..CTD,DX,GL,GT,L,LX,SEL,XE |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-12230 |
AE101,CE100,106,108..CTD,DX,GL,GT,L,LX,SEL,XE |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
CE100..4DS;AE104,109,CE102,104,105,106,107,108,109 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
CE100..4DS;AE104,109,CE102,104,105,106,107,108,109 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
CE100..4DS;AE104,109,CE102,104,105,106,107,108,109 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
CE100..4DS;AE104,109,CE102,104,105,106,107,108,109 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
CE100..4DS;AE104,109,CE102,104,105,106,107,108,109 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
CE100..4DS;AE104,109,CE102,104,105,106,107,108,109 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
CE100..4DS;AE104,109,CE102,104,105,106,107,108,109 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
CE100..4DS;AE104,109,CE102,104,105,106,107,108,109 |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
CE100..4DS;AE104,109,CE102,104,105,106,107,108,109 |
2 | ||
| 48819A - BOLT, FRONT STABILIZER | ||||
| 48819-20030 |
CE100..4DS;AE104,109,CE102,104,105,106,107,108,109 |
2 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-12130 |
CE100..4DS;AE101,104,109,CE102,104,105,106,107,108,109 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-12130 |
CE100..4DS;AE101,104,109,CE102,104,105,106,107,108,109 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48829-12060 |
CE100..4DS;AE101,104,109,CE102,104,105,106,107,108,109 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48829-12060 |
CE100..4DS;AE101,104,109,CE102,104,105,106,107,108,109 |
1 | ||
| Common parts | ||||
| 90178-08013 | ||||
| 94182-10800 | ||||
| Linked diagrams | ||||
| 4802 | ||||
