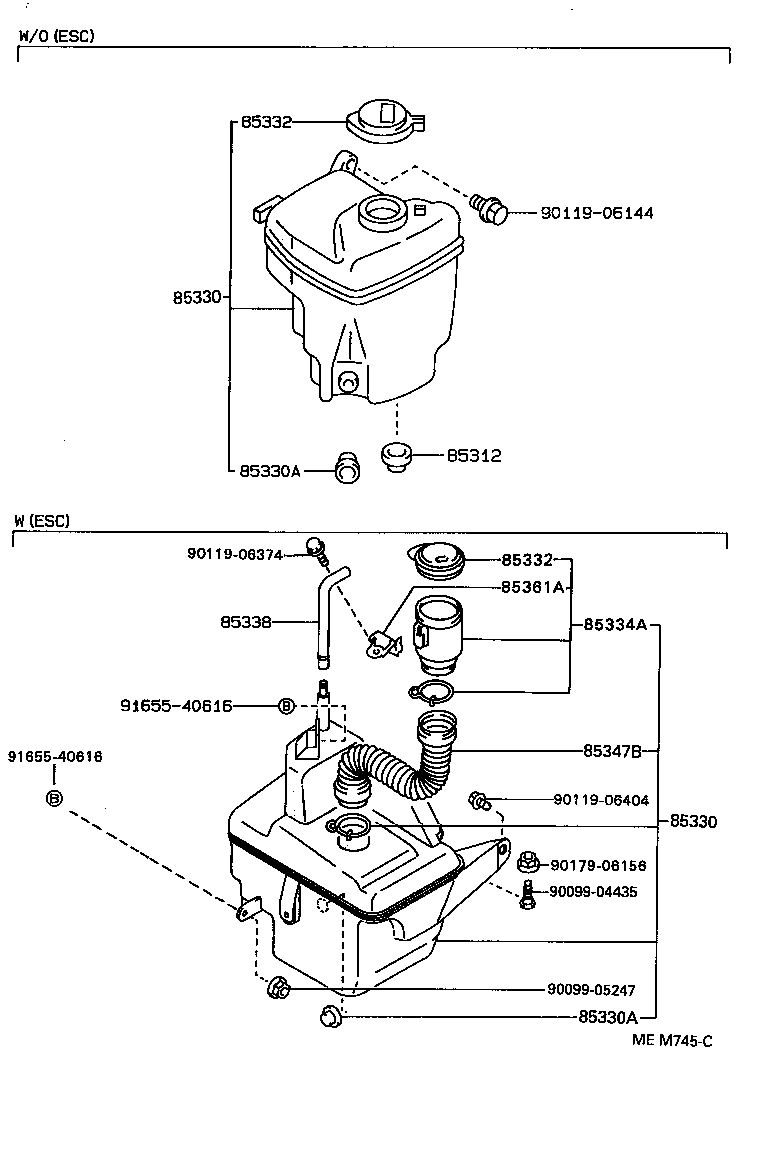

AE92-AGPVF (1987)
Toyota Corolla
(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85312 - PACKING, WINDSHIELD WASHER TANK | ||||
| 85312-12650 |
AE9#,CE9#,EE9# |
1 | ||
| 85312-12650 |
AE9#,CE9#,EE9# |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85331-12660 |
AE92..GT ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR *91 |
1 | ||
| 85331-12660 |
AE92..GT ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR *91 |
1 | ||
| 85331-12740 |
AE91,92..GT,SE ｱﾘ(*66) |
1 | ||
| 85331-12740 |
AE92..GT ｱﾘ(*66) |
1 | ||
| 85331-12650 |
AE9#,CE9#,EE9#..CTD,DX,FXD,GL,GT,L,SE,STD,TX,XE |
1 | ||
| 85331-12740 |
AE91,92..GT,SE ｱﾘ(*66) |
1 | ||
| 85331-12740 |
AE91,92..FXGT,FXGTV,FXVS,FXZS ｱﾘ(*66) |
1 | ||
| 85331-12660 |
AE92..3D ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR ｱﾘ(*RW) |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85331-12660 |
AE92..GT ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR *91 |
1 | ||
| 85331-12660 |
AE92..GT ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR *91 |
1 | ||
| 85331-12740 |
AE91,92..GT,SE ｱﾘ(*66) |
1 | ||
| 85331-12740 |
AE92..GT ｱﾘ(*66) |
1 | ||
| 85331-12650 |
AE9#,CE9#,EE9#..CTD,DX,FXD,GL,GT,L,SE,STD,TX,XE |
1 | ||
| 85331-12740 |
AE91,92..GT,SE ｱﾘ(*66) |
1 | ||
| 85331-12740 |
AE91,92..FXGT,FXGTV,FXVS,FXZS ｱﾘ(*66) |
1 | ||
| 85331-12660 |
AE92..3D ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR ｱﾘ(*RW) |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AE9#,CE9#,EE9# |
1 | ||
| 90099-32089 |
AE9#,CE9#,EE9# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AE9#,CE9#,EE9# |
1 | ||
| 90099-32089 |
AE9#,CE9#,EE9# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-12320 |
AE9#,CE9#,EE9# |
1 | ||
| 85332-12740 |
AE92..GT;AE91..SE..EFIS ｱﾘ(ESC) |
1 | ||
| 85332-12740 |
AE91,92..GT,SE ｱﾘ(ESC) |
1 | ||
| 85332-12650 |
AE9#,CE9#,EE9#..CTD,DX,FXD,GL,GT,L,SE,STD,TX,XE |
1 | ||
| 85332-12740 |
AE91,92..FXGT,FXGTV,FXVS,FXZS ｱﾘ(ESC) |
1 | ||
| 85332-12660 |
AE91,92,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,LT |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-12320 |
AE9#,CE9#,EE9# |
1 | ||
| 85332-12740 |
AE92..GT;AE91..SE..EFIS ｱﾘ(ESC) |
1 | ||
| 85332-12740 |
AE91,92..GT,SE ｱﾘ(ESC) |
1 | ||
| 85332-12650 |
AE9#,CE9#,EE9#..CTD,DX,FXD,GL,GT,L,SE,STD,TX,XE |
1 | ||
| 85332-12740 |
AE91,92..FXGT,FXGTV,FXVS,FXZS ｱﾘ(ESC) |
1 | ||
| 85332-12660 |
AE91,92,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,LT |
1 | ||
| 85334A - CAP SUB-ASSY, TANK | ||||
| 85334-12740 |
AE91,92..GT,SE |
1 | ||
| 85334-12740 |
AE91,92..FXGT,FXGTV,FXVS,FXZS |
1 | ||
| 85338 - HOSE, BREATHER | ||||
| 85338-20270 |
AE91,92..FXGT,FXGTV,FXVS,FXZS |
1 | ||
| 85338-20270 |
AE91,92..GT,SE |
1 | ||
| 85347B - HOSE, TANK | ||||
| 85347-12740 |
AE91,92..FXGT,FXGTV,FXVS,FXZS |
1 | ||
| 85347-12740 |
AE91,92..GT,SE |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85361-12770 |
AE91,92..GT,SE |
1 | ||
| 85361-12770 |
AE91,92..FXGT,FXGTV,FXVS,FXZS |
1 | ||
| Common parts | ||||
| 90099-04435 | ||||
| 90099-05247 | ||||
| 90119-06144 | ||||
| 90119-06374 | ||||
| 90119-06404 | ||||
| 90179-06156 | ||||
| 91655-40616 | ||||

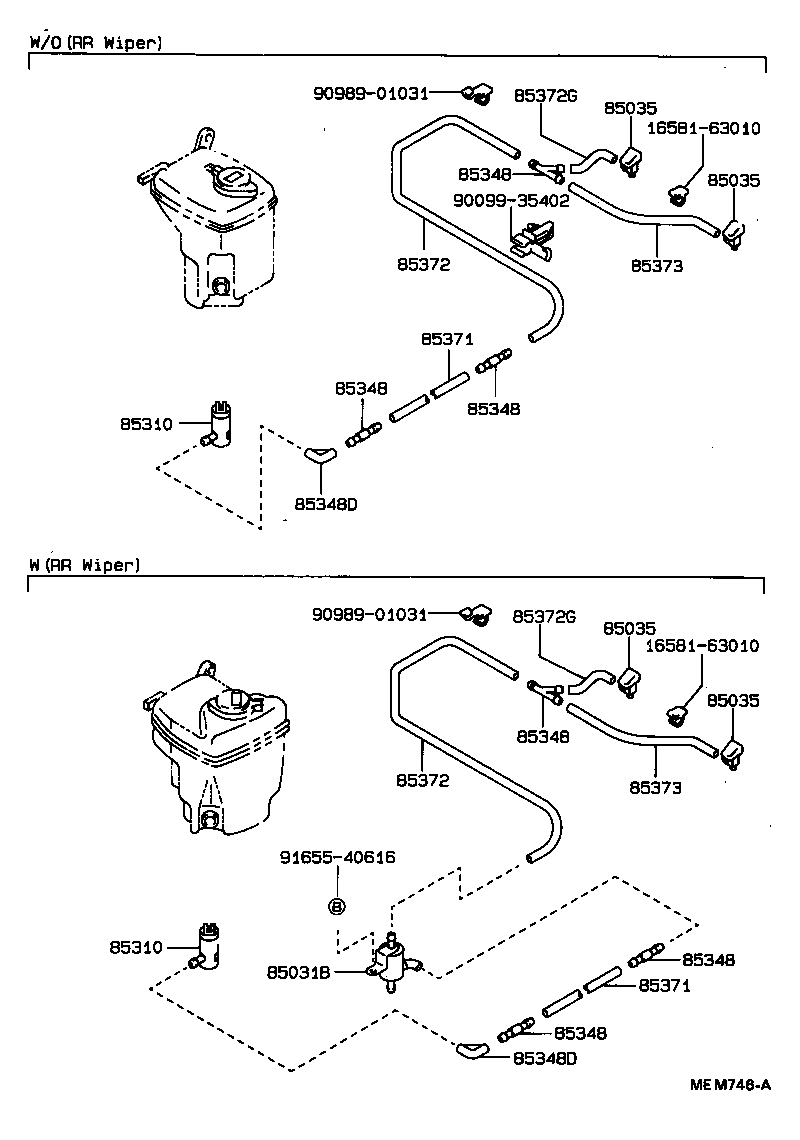

(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85031-12120 |
AE92..FXGT |
1 | ||
| 85031-12121 |
AE92..3D |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-12300 |
AE91,92,EE90..3D,5D |
2 | ||
| 85035-12210 |
AE9#,CE9#,EE9#..4D,V,WG |
2 | ||
| 85035-12210 |
AE92,CE90,95,EE98 |
2 | ||
| 85035-12210 |
AE9#,CE9#,EE9# |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-12300 |
AE91,92,EE90..3D,5D |
2 | ||
| 85035-12210 |
AE9#,CE9#,EE9#..4D,V,WG |
2 | ||
| 85035-12210 |
AE92,CE90,95,EE98 |
2 | ||
| 85035-12210 |
AE9#,CE9#,EE9# |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-12300 |
AE91,92,EE90..3D,5D |
2 | ||
| 85035-12210 |
AE9#,CE9#,EE9#..4D,V,WG |
2 | ||
| 85035-12210 |
AE92,CE90,95,EE98 |
2 | ||
| 85035-12210 |
AE9#,CE9#,EE9# |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-12300 |
AE91,92,EE90..3D,5D |
2 | ||
| 85035-12210 |
AE9#,CE9#,EE9#..4D,V,WG |
2 | ||
| 85035-12210 |
AE92,CE90,95,EE98 |
2 | ||
| 85035-12210 |
AE9#,CE9#,EE9# |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
AE9#,CE9#,EE9# |
1 | ||
| 85310-22080 |
AE9#,CE9#,EE9# |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
AE9#,CE9#,EE9# |
1 | ||
| 85310-22080 |
AE9#,CE9#,EE9# |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AE9#,CE9#,EE9# 3-WAY |
1 | ||
| 85349-89122 |
AE91..(G,SE)..(CBR,EFIS);AE9#,CE9#,EE9#..(CTD,DX,GL,GT,L,SE,STD,TX,XE)..(CBR,DSL,EFI) 2-WAY |
2 | ||
| 85349-89122 |
AE9#,CE9#,EE9# 2-WAY |
2 | ||
| 85348-12250 |
AE9#,CE9#,EE9# 3-WAY |
1 | ||
| 85349-89122 |
AE91,92..3D,5D 2-WAY |
2 | ||
| 85348-12250 |
AE9#,CE9#,EE9#..4D,V,WG 3-WAY |
1 | ||
| 85349-89122 |
AE91,92..3D,5D,WG 2-WAY |
1 | ||
| 85349-89122 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,92,CE96,97,EE97..(3D,5D,V,WG)..(DX,FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,L,LT) 2-WAY |
2 | ||
| 85348-12250 |
AE9#,CE9#,EE9# 3-WAY |
1 | ||
| 85349-89122 |
AE91,92,EE90..FXG,FXGT,FXL,FXZI,G 2-WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AE9#,CE9#,EE9# 3-WAY |
1 | ||
| 85349-89122 |
AE91..(G,SE)..(CBR,EFIS);AE9#,CE9#,EE9#..(CTD,DX,GL,GT,L,SE,STD,TX,XE)..(CBR,DSL,EFI) 2-WAY |
2 | ||
| 85349-89122 |
AE9#,CE9#,EE9# 2-WAY |
2 | ||
| 85348-12250 |
AE9#,CE9#,EE9# 3-WAY |
1 | ||
| 85349-89122 |
AE91,92..3D,5D 2-WAY |
2 | ||
| 85348-12250 |
AE9#,CE9#,EE9#..4D,V,WG 3-WAY |
1 | ||
| 85349-89122 |
AE91,92..3D,5D,WG 2-WAY |
1 | ||
| 85349-89122 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,92,CE96,97,EE97..(3D,5D,V,WG)..(DX,FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,L,LT) 2-WAY |
2 | ||
| 85348-12250 |
AE9#,CE9#,EE9# 3-WAY |
1 | ||
| 85349-89122 |
AE91,92,EE90..FXG,FXGT,FXL,FXZI,G 2-WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AE9#,CE9#,EE9# 3-WAY |
1 | ||
| 85349-89122 |
AE91..(G,SE)..(CBR,EFIS);AE9#,CE9#,EE9#..(CTD,DX,GL,GT,L,SE,STD,TX,XE)..(CBR,DSL,EFI) 2-WAY |
2 | ||
| 85349-89122 |
AE9#,CE9#,EE9# 2-WAY |
2 | ||
| 85348-12250 |
AE9#,CE9#,EE9# 3-WAY |
1 | ||
| 85349-89122 |
AE91,92..3D,5D 2-WAY |
2 | ||
| 85348-12250 |
AE9#,CE9#,EE9#..4D,V,WG 3-WAY |
1 | ||
| 85349-89122 |
AE91,92..3D,5D,WG 2-WAY |
1 | ||
| 85349-89122 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,92,CE96,97,EE97..(3D,5D,V,WG)..(DX,FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,L,LT) 2-WAY |
2 | ||
| 85348-12250 |
AE9#,CE9#,EE9# 3-WAY |
1 | ||
| 85349-89122 |
AE91,92,EE90..FXG,FXGT,FXL,FXZI,G 2-WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AE9#,CE9#,EE9# 3-WAY |
1 | ||
| 85349-89122 |
AE91..(G,SE)..(CBR,EFIS);AE9#,CE9#,EE9#..(CTD,DX,GL,GT,L,SE,STD,TX,XE)..(CBR,DSL,EFI) 2-WAY |
2 | ||
| 85349-89122 |
AE9#,CE9#,EE9# 2-WAY |
2 | ||
| 85348-12250 |
AE9#,CE9#,EE9# 3-WAY |
1 | ||
| 85349-89122 |
AE91,92..3D,5D 2-WAY |
2 | ||
| 85348-12250 |
AE9#,CE9#,EE9#..4D,V,WG 3-WAY |
1 | ||
| 85349-89122 |
AE91,92..3D,5D,WG 2-WAY |
1 | ||
| 85349-89122 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,92,CE96,97,EE97..(3D,5D,V,WG)..(DX,FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,L,LT) 2-WAY |
2 | ||
| 85348-12250 |
AE9#,CE9#,EE9# 3-WAY |
1 | ||
| 85349-89122 |
AE91,92,EE90..FXG,FXGT,FXL,FXZI,G 2-WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AE9#,CE9#,EE9# 3-WAY |
1 | ||
| 85349-89122 |
AE91..(G,SE)..(CBR,EFIS);AE9#,CE9#,EE9#..(CTD,DX,GL,GT,L,SE,STD,TX,XE)..(CBR,DSL,EFI) 2-WAY |
2 | ||
| 85349-89122 |
AE9#,CE9#,EE9# 2-WAY |
2 | ||
| 85348-12250 |
AE9#,CE9#,EE9# 3-WAY |
1 | ||
| 85349-89122 |
AE91,92..3D,5D 2-WAY |
2 | ||
| 85348-12250 |
AE9#,CE9#,EE9#..4D,V,WG 3-WAY |
1 | ||
| 85349-89122 |
AE91,92..3D,5D,WG 2-WAY |
1 | ||
| 85349-89122 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,92,CE96,97,EE97..(3D,5D,V,WG)..(DX,FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,L,LT) 2-WAY |
2 | ||
| 85348-12250 |
AE9#,CE9#,EE9# 3-WAY |
1 | ||
| 85349-89122 |
AE91,92,EE90..FXG,FXGT,FXL,FXZI,G 2-WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AE9#,CE9#,EE9# 3-WAY |
1 | ||
| 85349-89122 |
AE91..(G,SE)..(CBR,EFIS);AE9#,CE9#,EE9#..(CTD,DX,GL,GT,L,SE,STD,TX,XE)..(CBR,DSL,EFI) 2-WAY |
2 | ||
| 85349-89122 |
AE9#,CE9#,EE9# 2-WAY |
2 | ||
| 85348-12250 |
AE9#,CE9#,EE9# 3-WAY |
1 | ||
| 85349-89122 |
AE91,92..3D,5D 2-WAY |
2 | ||
| 85348-12250 |
AE9#,CE9#,EE9#..4D,V,WG 3-WAY |
1 | ||
| 85349-89122 |
AE91,92..3D,5D,WG 2-WAY |
1 | ||
| 85349-89122 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,92,CE96,97,EE97..(3D,5D,V,WG)..(DX,FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,L,LT) 2-WAY |
2 | ||
| 85348-12250 |
AE9#,CE9#,EE9# 3-WAY |
1 | ||
| 85349-89122 |
AE91,92,EE90..FXG,FXGT,FXL,FXZI,G 2-WAY |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
AE9#,CE9#,EE9# |
1 | ||
| 85355-14481 |
AE9#,CE9#,EE9# |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
AE9#,CE9#,EE9# |
1 | ||
| 85355-14481 |
AE9#,CE9#,EE9# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
EE98..4F;EE98..3FC..DX;AE91,92,CE96,97,EE90,96,97..(3D,5D,V,WG)..(DX,FXD,FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL) |
1 | ||
| 90099-33410 |
AE9#,CE9#,EE9#..CTD,DX,FXD,GL,GT,L,SE,STD,TX,XE *H,L=1100 |
1 | ||
| 90446-07001 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,92,CE96,97,EE97..(3D,5D,V,WG)..(DX,FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,L,LT) |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
EE98..4F;EE98..3FC..DX;AE91,92,CE96,97,EE90,96,97..(3D,5D,V,WG)..(DX,FXD,FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL) |
1 | ||
| 90099-33410 |
AE9#,CE9#,EE9#..CTD,DX,FXD,GL,GT,L,SE,STD,TX,XE *H,L=1100 |
1 | ||
| 90446-07001 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,92,CE96,97,EE97..(3D,5D,V,WG)..(DX,FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,L,LT) |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
AE91,92,CE96,97,EE9#..(3D,5D,V,WG)..(DX,FXD,FXG,FXGT,FXL,FXZI,G,GL) L=1450 |
1 | ||
| 90099-33080 |
AE9#,CE9#,EE9# L=1450 |
1 | ||
| 90099-33080 |
EE96..3FC..CTD;AE91,92,CE96,97,EE96,97,98..(3D,5D,V,WG)..(DX,FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GL,L,LT) L=1450 |
1 | ||
| 90099-33196 |
AE9#,CE9#,EE9#..CTD,DX,GL,GT,L,SE,STD,TX,XE *H,L=560 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
AE91,92,CE96,97,EE9#..(3D,5D,V,WG)..(DX,FXD,FXG,FXGT,FXL,FXZI,G,GL) L=1450 |
1 | ||
| 90099-33080 |
AE9#,CE9#,EE9# L=1450 |
1 | ||
| 90099-33080 |
EE96..3FC..CTD;AE91,92,CE96,97,EE96,97,98..(3D,5D,V,WG)..(DX,FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GL,L,LT) L=1450 |
1 | ||
| 90099-33196 |
AE9#,CE9#,EE9#..CTD,DX,GL,GT,L,SE,STD,TX,XE *H,L=560 |
1 | ||
| 85372G - TUBE, RUBBER | ||||
| 90099-33087 |
AE9#,CE9#,EE9# *H,L=40 |
1 | ||
| 90099-33080 |
AE9#,CE9#,EE9# L=1450 |
1 | ||
| 90099-33080 |
AE9#,CE9#,EE9# L=1450 |
1 | ||
| 90099-33080 |
AE9#,CE9#,EE9# L=1450 |
1 | ||
| 85372G - TUBE, RUBBER | ||||
| 90099-33087 |
AE9#,CE9#,EE9# *H,L=40 |
1 | ||
| 90099-33080 |
AE9#,CE9#,EE9# L=1450 |
1 | ||
| 90099-33080 |
AE9#,CE9#,EE9# L=1450 |
1 | ||
| 90099-33080 |
AE9#,CE9#,EE9# L=1450 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AE91,92,EE90..FXG,FXGT,FXL,FXZI,G L=1450 |
1 | ||
| 90099-33080 |
AE91,92..(3D,5D,WG)..(EFI,EFIS) L=1450 |
1 | ||
| 90099-33080 |
AE9#,CE9#,EE9#..CTD,DX,FXD,GL,GT,L,SE,STD,TX,XE L=1450 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AE91,92,EE90..FXG,FXGT,FXL,FXZI,G L=1450 |
1 | ||
| 90099-33080 |
AE91,92..(3D,5D,WG)..(EFI,EFIS) L=1450 |
1 | ||
| 90099-33080 |
AE9#,CE9#,EE9#..CTD,DX,FXD,GL,GT,L,SE,STD,TX,XE L=1450 |
1 | ||
| Common parts | ||||
| 16581-63010 | ||||
| 90099-35402 | ||||
| 90989-01031 | ||||
| 91655-40616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
