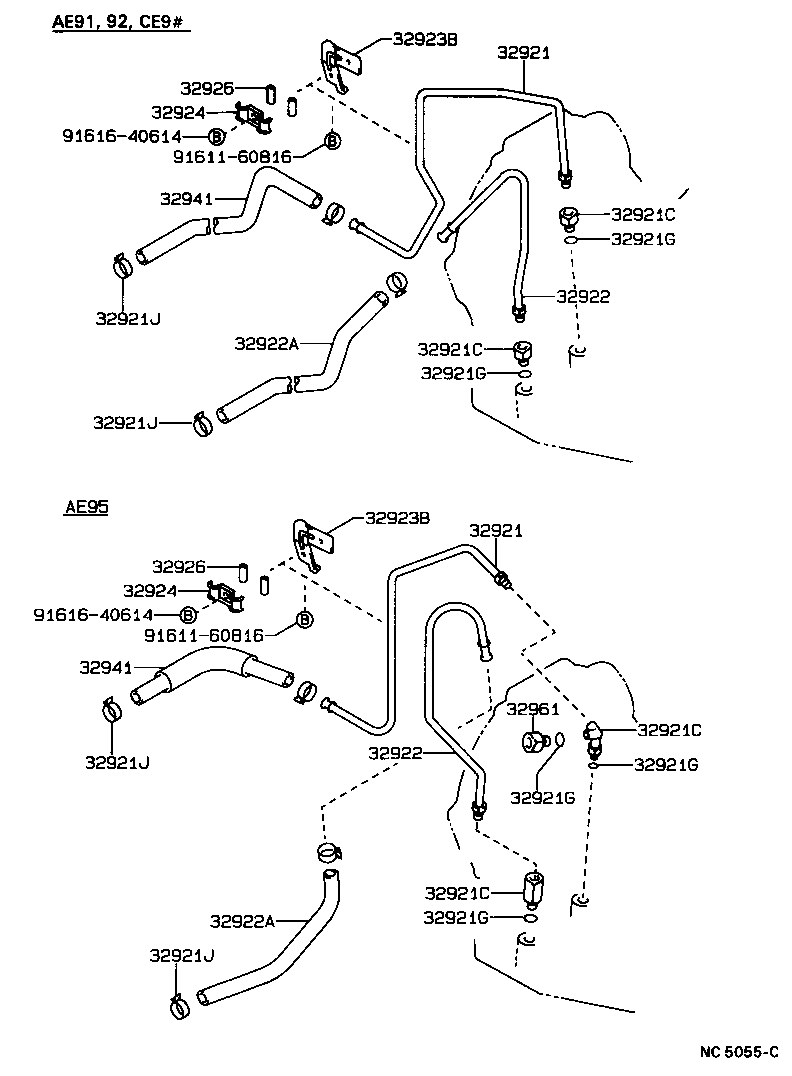

AE92-AGPVF (1987)
Toyota Corolla
(8705- )4FC
A240L,A240E,A241L,A241H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-12350 |
AE91,92,CE9#..4FC |
1 | ||
| 32921-12350 |
AE91,92,CE9#..4FC |
1 | ||
| 32921-12351 |
AE91,92,CE90,96,97..4FC |
1 | ||
| 32921-12350 |
AE91,92,CE9#..4FC |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-12350 |
AE91,92,CE9#..4FC |
1 | ||
| 32921-12350 |
AE91,92,CE9#..4FC |
1 | ||
| 32921-12351 |
AE91,92,CE90,96,97..4FC |
1 | ||
| 32921-12350 |
AE91,92,CE9#..4FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
AE91,92,CE90,96,97..4FC |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
AE91,92,CE90,96,97..4FC |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
AE91,92,CE90,96,97..4FC |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
AE91,92,CE90,96,97..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AE91,92,CE90,96,97,EE90,96,98..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AE91,92,CE90,96,97,EE90,96,98..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AE91,92,CE90,96,97,EE90,96,98..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AE91,92,CE90,96,97,EE90,96,98..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AE91,92,CE90,96,97,EE90,96,98..ATM |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
AE9#,CE90,96,97,EE90,96,98..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
AE9#,CE90,96,97,EE90,96,98..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
AE9#,CE90,96,97,EE90,96,98..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
AE9#,CE90,96,97,EE90,96,98..ATM |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-12280 |
AE91,92,CE9#..4FC |
1 | ||
| 32922-12280 |
AE91,92,CE9#..4FC |
1 | ||
| 32922-12280 |
AE91,92,CE9#..4FC |
1 | ||
| 32922-12281 |
AE91,92,CE90,96,97..4FC |
1 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-12280 |
AE91,92,CE9#..4FC |
1 | ||
| 32922-12280 |
AE91,92,CE9#..4FC |
1 | ||
| 32922-12280 |
AE91,92,CE9#..4FC |
1 | ||
| 32922-12281 |
AE91,92,CE90,96,97..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-15030 |
AE91,92,CE9#..4FC |
1 | ||
| 90445-15051 |
AE9#,CE90,96,97..4FC |
1 | ||
| 90445-15030 |
AE9#,CE9#..4FC |
1 | ||
| 90445-15030 |
AE9#,CE9#..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-15030 |
AE91,92,CE9#..4FC |
1 | ||
| 90445-15051 |
AE9#,CE90,96,97..4FC |
1 | ||
| 90445-15030 |
AE9#,CE9#..4FC |
1 | ||
| 90445-15030 |
AE9#,CE9#..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-12150 |
AE9#..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-12150 |
AE9#..4FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 90462-12085 |
AE9#,CE90,96,97..4FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 90462-12085 |
AE9#,CE90,96,97..4FC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30011 |
AE91,92,CE90,96,97,EE90,96,98..ATM 長さ=25,内径=8 |
2 | ||
| 32926-30011 |
AE9#,CE9#,EE90,98..ATM 長さ=25,内径=8 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30011 |
AE91,92,CE90,96,97,EE90,96,98..ATM 長さ=25,内径=8 |
2 | ||
| 32926-30011 |
AE9#,CE9#,EE90,98..ATM 長さ=25,内径=8 |
2 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-12170 |
AE92..4FC |
1 | ||
| 32941-12171 |
AE92..4FC |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-12170 |
AE92..4FC |
1 | ||
| 32941-12171 |
AE92..4FC |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 91616-40614 | ||||
