AE92-AGMVF (1987)

Toyota Corolla

Production May 1987 - May 1992
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

Click highlighted areas on diagram

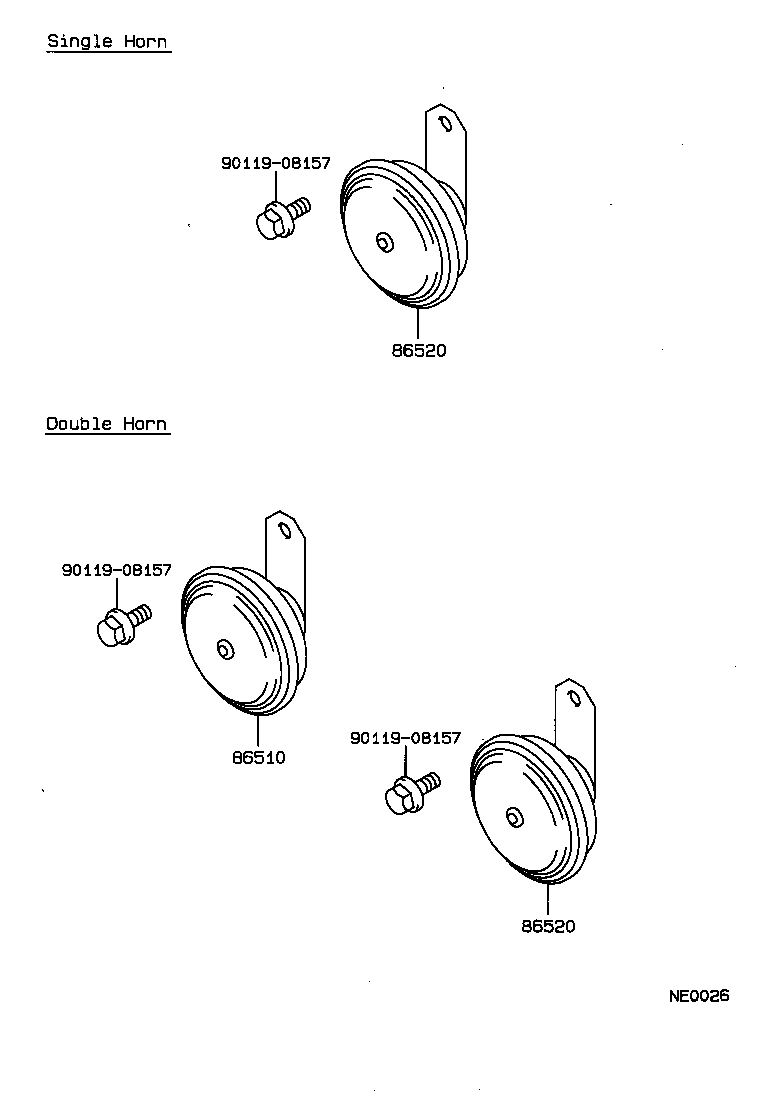

diagram 86510 86520 86520 9011908157 9011908157 9011908157
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-12270

AE9#..EFI

MARUKO

 1
86510-12270

AE9#,CE90,95..FXGT,FXGTV,FXVS,FXZI,FXZS,GT,SE

MARUKO

 1
86510-12280

AE9#..EFI

NIPPONDENSO

 1
86510-12280

AE9#..FXGT,FXGTV,FXVS,FXZS

NIPPONDENSO

 1
86510-12270

AE9#..FXGT,FXGTV,FXVS,FXZS

MARUKO

 1
86510-12280

AE9#,CE90,95..FXGT,FXGTV,FXVS,FXZI,FXZS,GT,SE

NIPPONDENSO

 1
86520 - HORN ASSY, LOW PITCHED
86520-12640

AE9#,CE9#,EE9#

NIPPONDENSO

 1
86520-12640

CE96,97,EE96,97,98;AE9#,CE90..FXGT,FXGTV,FXVS,FXZS,G,GT,SE

NIPPONDENSO

 1
86520-12640

AE9#,CE9#,EE9#

 1
86520-12640

AE9#,CE9#,EE9#

 1
86520-12220

AE9#,CE90,EE90

MARUKO

 1
86520 - HORN ASSY, LOW PITCHED
86520-12640

AE9#,CE9#,EE9#

NIPPONDENSO

 1
86520-12640

CE96,97,EE96,97,98;AE9#,CE90..FXGT,FXGTV,FXVS,FXZS,G,GT,SE

NIPPONDENSO

 1
86520-12640

AE9#,CE9#,EE9#

 1
86520-12640

AE9#,CE9#,EE9#

 1
86520-12220

AE9#,CE90,EE90

MARUKO

 1
Common parts
90119-08157
