AE92-AGMVF (1987)

Toyota Corolla

Production May 1987 - May 1992
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8905- )4D ; (8908- )V,WG

Click highlighted areas on diagram

diagram 81510 81510B 81511 81512 81520 81521 81522 81945A 9017906007 9351064016
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80070

AE91,92..3D,5D

 1
81510-80048

AE91,92,EE90..3D,5D

 1
81510-80054

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81510-80053

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81510-80068

AE9#,CE9#,EE9#..4D,V,WG

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AE9#,CE9#,EE9#

12V 21W

 2
99132-11210

AE9#,CE9#,EE9#

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12580

AE91,92,EE90..3D,5D

 1
81511-12600

AE91,92..3D,5D

 1
81511-12590

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81511-12560

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81511-12591

AE9#,CE9#,EE9#..4D,V,WG

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-12560

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81512-12591

AE9#,CE9#,EE9#..4D,V,WG

 1
81512-12590

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81512-12580

AE91,92,EE90..3D,5D

 1
81512-12600

AE91,92..3D,5D

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80053

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81520-80054

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81520-80048

AE91,92,EE90..3D,5D

 1
81520-80068

AE9#,CE9#,EE9#..4D,V,WG

 1
81520-80070

AE91,92..3D,5D

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12560

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81521-12590

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81521-12591

AE9#,CE9#,EE9#..4D,V,WG

 1
81521-12580

AE91,92,EE90..3D,5D

 1
81521-12600

AE91,92..3D,5D

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-12560

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81512-12600

AE91,92..3D,5D

 1
81512-12590

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81512-12591

AE9#,CE9#,EE9#..4D,V,WG

 1
81512-12580

AE91,92,EE90..3D,5D

 1
81945A - SOCKET, BULB
81945-12010

AE9#,CE9#,EE9#

 2
81945-12010

AE9#,CE9#,EE9#

 2
Common parts
90179-06007
93510-64016

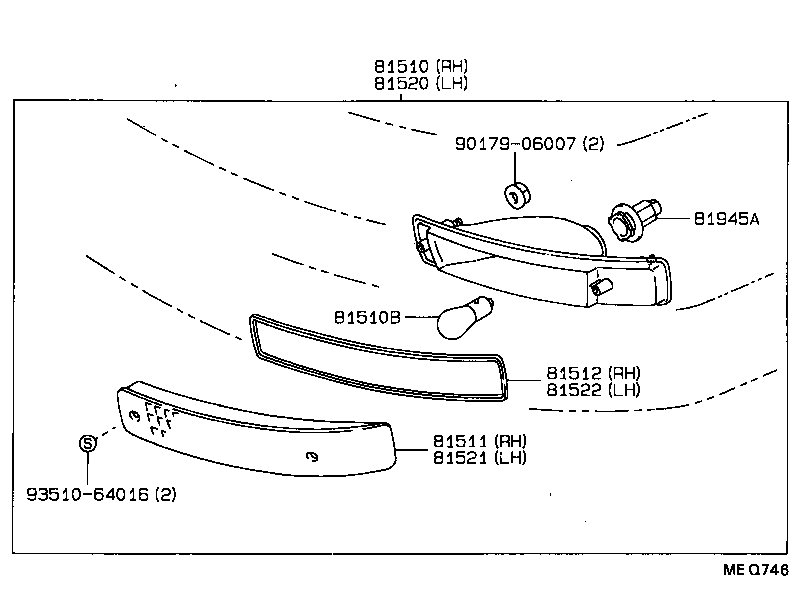

(8705- )3D,5D

Click highlighted areas on diagram

diagram 81510 81510 81510B 81510B 81511 81511 81512 81512 81520 81520 81521 81521 81522 81522 81945A 81945A 9017906007 9017906007 9351064016 9351064016
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80048

AE91,92,EE90..3D,5D

 1
81510-80054

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81510-80053

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81510-80070

AE91,92..3D,5D

 1
81510-80068

AE9#,CE9#,EE9#..4D,V,WG

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80048

AE91,92,EE90..3D,5D

 1
81510-80054

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81510-80053

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81510-80070

AE91,92..3D,5D

 1
81510-80068

AE9#,CE9#,EE9#..4D,V,WG

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AE9#,CE9#,EE9#

12V 21W

 2
99132-11210

AE9#,CE9#,EE9#

12V 21W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AE9#,CE9#,EE9#

12V 21W

 2
99132-11210

AE9#,CE9#,EE9#

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12580

AE91,92,EE90..3D,5D

 1
81511-12600

AE91,92..3D,5D

 1
81511-12590

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81511-12560

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81511-12591

AE9#,CE9#,EE9#..4D,V,WG

 1
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12580

AE91,92,EE90..3D,5D

 1
81511-12600

AE91,92..3D,5D

 1
81511-12590

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81511-12560

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81511-12591

AE9#,CE9#,EE9#..4D,V,WG

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-12560

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81512-12591

AE9#,CE9#,EE9#..4D,V,WG

 1
81512-12590

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81512-12580

AE91,92,EE90..3D,5D

 1
81512-12600

AE91,92..3D,5D

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-12560

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81512-12591

AE9#,CE9#,EE9#..4D,V,WG

 1
81512-12590

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81512-12580

AE91,92,EE90..3D,5D

 1
81512-12600

AE91,92..3D,5D

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80053

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81520-80054

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81520-80048

AE91,92,EE90..3D,5D

 1
81520-80068

AE9#,CE9#,EE9#..4D,V,WG

 1
81520-80070

AE91,92..3D,5D

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80053

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81520-80054

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81520-80048

AE91,92,EE90..3D,5D

 1
81520-80068

AE9#,CE9#,EE9#..4D,V,WG

 1
81520-80070

AE91,92..3D,5D

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12560

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81521-12590

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81521-12591

AE9#,CE9#,EE9#..4D,V,WG

 1
81521-12580

AE91,92,EE90..3D,5D

 1
81521-12600

AE91,92..3D,5D

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12560

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81521-12590

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81521-12591

AE9#,CE9#,EE9#..4D,V,WG

 1
81521-12580

AE91,92,EE90..3D,5D

 1
81521-12600

AE91,92..3D,5D

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-12560

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81512-12600

AE91,92..3D,5D

 1
81512-12590

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81512-12591

AE9#,CE9#,EE9#..4D,V,WG

 1
81512-12580

AE91,92,EE90..3D,5D

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-12560

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81512-12600

AE91,92..3D,5D

 1
81512-12590

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81512-12591

AE9#,CE9#,EE9#..4D,V,WG

 1
81512-12580

AE91,92,EE90..3D,5D

 1
81945A - SOCKET, BULB
81945-12010

AE9#,CE9#,EE9#

 2
81945-12010

AE9#,CE9#,EE9#

 2
81945A - SOCKET, BULB
81945-12010

AE9#,CE9#,EE9#

 2
81945-12010

AE9#,CE9#,EE9#

 2
Common parts
90179-06007
93510-64016

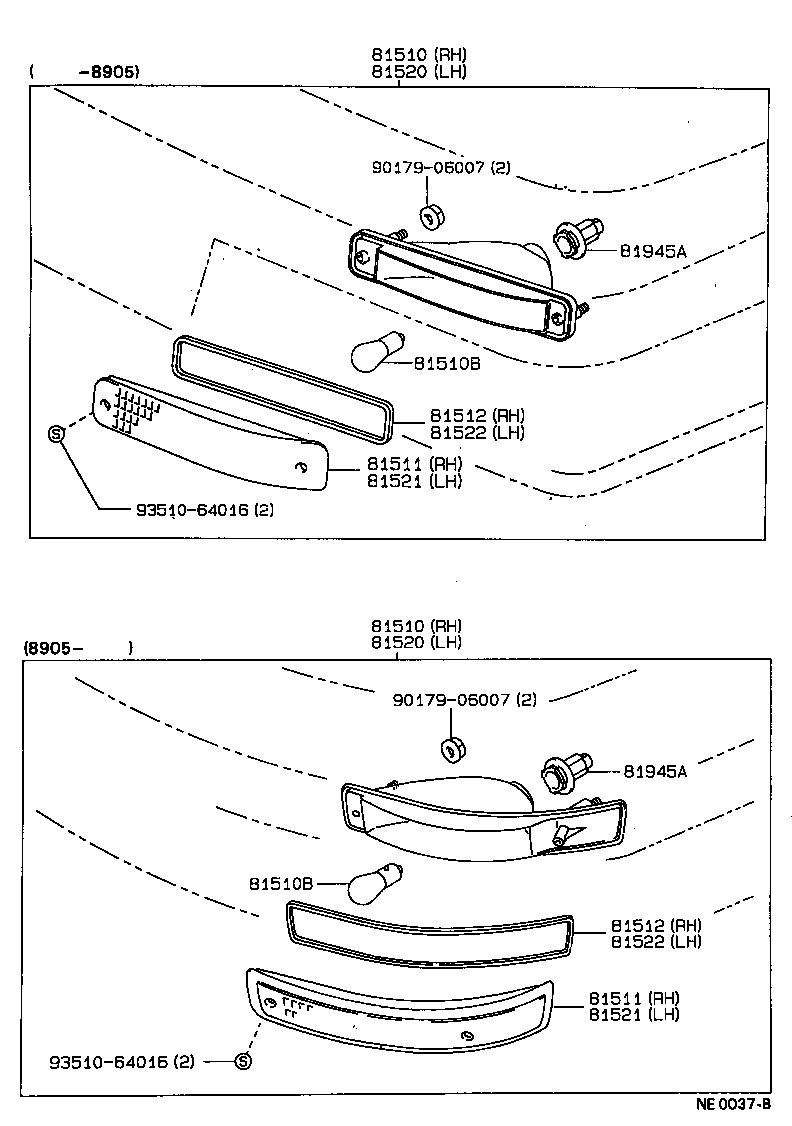

(8705-8905)4D ; (8708-8908)V,WG

Click highlighted areas on diagram

diagram 81510 81510 81510B 81510B 81511 81511 81512 81512 81520 81520 81521 81521 81522 81522 8161920070 81945A 9017906007 9017906007 9351064016
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80070

AE91,92..3D,5D

 1
81510-80048

AE91,92,EE90..3D,5D

 1
81510-80054

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81510-80053

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81510-80068

AE9#,CE9#,EE9#..4D,V,WG

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80048

AE91,92,EE90..3D,5D

 1
81510-80054

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81510-80053

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81510-80070

AE91,92..3D,5D

 1
81510-80068

AE9#,CE9#,EE9#..4D,V,WG

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AE9#,CE9#,EE9#

12V 21W

 2
99132-11210

AE9#,CE9#,EE9#

12V 21W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AE9#,CE9#,EE9#

12V 21W

 2
99132-11210

AE9#,CE9#,EE9#

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12580

AE91,92,EE90..3D,5D

 1
81511-12600

AE91,92..3D,5D

 1
81511-12590

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81511-12560

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81511-12591

AE9#,CE9#,EE9#..4D,V,WG

 1
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12580

AE91,92,EE90..3D,5D

 1
81511-12600

AE91,92..3D,5D

 1
81511-12590

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81511-12560

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81511-12591

AE9#,CE9#,EE9#..4D,V,WG

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-12560

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81512-12591

AE9#,CE9#,EE9#..4D,V,WG

 1
81512-12590

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81512-12580

AE91,92,EE90..3D,5D

 1
81512-12600

AE91,92..3D,5D

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-12560

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81512-12591

AE9#,CE9#,EE9#..4D,V,WG

 1
81512-12590

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81512-12580

AE91,92,EE90..3D,5D

 1
81512-12600

AE91,92..3D,5D

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80053

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81520-80054

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81520-80048

AE91,92,EE90..3D,5D

 1
81520-80068

AE9#,CE9#,EE9#..4D,V,WG

 1
81520-80070

AE91,92..3D,5D

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80053

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81520-80054

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81520-80048

AE91,92,EE90..3D,5D

 1
81520-80068

AE9#,CE9#,EE9#..4D,V,WG

 1
81520-80070

AE91,92..3D,5D

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12560

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81521-12590

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81521-12591

AE9#,CE9#,EE9#..4D,V,WG

 1
81521-12580

AE91,92,EE90..3D,5D

 1
81521-12600

AE91,92..3D,5D

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12560

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81521-12590

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81521-12591

AE9#,CE9#,EE9#..4D,V,WG

 1
81521-12580

AE91,92,EE90..3D,5D

 1
81521-12600

AE91,92..3D,5D

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-12560

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81512-12600

AE91,92..3D,5D

 1
81512-12590

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81512-12591

AE9#,CE9#,EE9#..4D,V,WG

 1
81512-12580

AE91,92,EE90..3D,5D

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-12560

AE9#,CE9#,EE9#..4D,V,WG

小糸

 1
81512-12600

AE91,92..3D,5D

 1
81512-12590

AE9#,CE9#,EE9#..4D,V,WG

IKI

 1
81512-12591

AE9#,CE9#,EE9#..4D,V,WG

 1
81512-12580

AE91,92,EE90..3D,5D

 1
81945A - SOCKET, BULB
81945-12010

AE9#,CE9#,EE9#

 2
81945-12010

AE9#,CE9#,EE9#

 2
Common parts
81619-20070
90179-06007
93510-64016
