AE92-AGMVF (1987)
Toyota Corolla
(8905- )

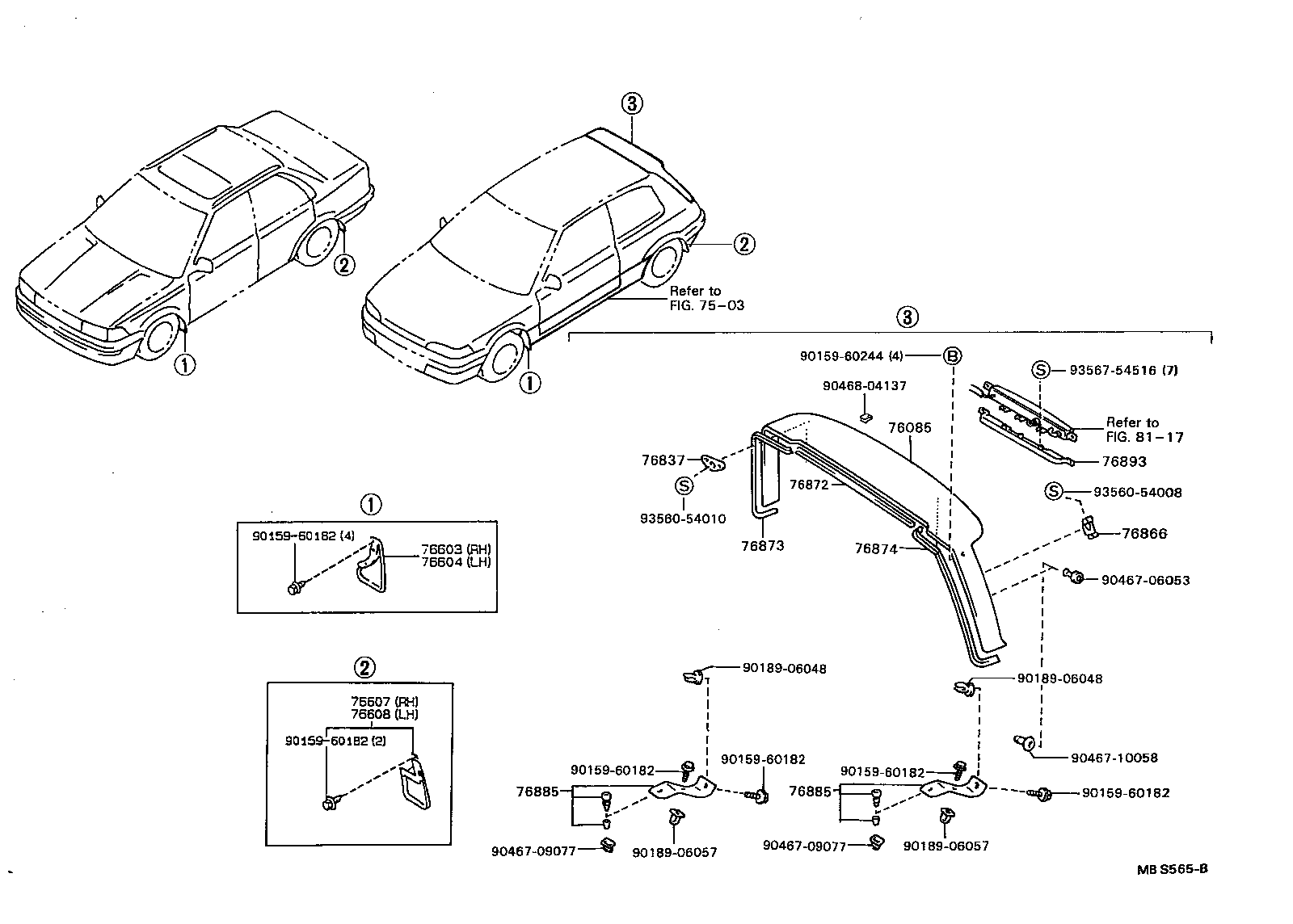

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-12907 |
AE91,92..(3D,5D)..(4FC,5F) |
1 | ||
| 76085-12900 |
AE92..FXGT FX-GT ﾘﾐﾃﾂﾄﾞ |
1 | ||
| 76085-12900 |
AE91,92..(3D,5D)..(4FC,5F) |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-1206008 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE SUPER WHITE 2,040 |
1 | ||
| 76621-12050 |
AE9#,CE9#,EE9#..FXD,FXG,FXL,G,GL,GT,SE,XE |
1 | ||
| 76621-1206005 |
AE91,92..(3D,5D)..(4FC,5F) BEIGE M,27E |
1 | ||
| 76621-1206003 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE GRAY M,168 |
1 | ||
| 76621-12050 |
CE96,97,EE96,97,98;AE9#,CE90,EE90..FXG,G,GT,SE,XE |
1 | ||
| 76621-12050 |
CE96,EE96,97,98;AE9#,CE90,97,EE90..FXD,FXG,FXL,G,GL,GT,SE,XE |
1 | ||
| 76621-1206012 |
AE9#,CE90,95,EE90..G,GT,SE,XE RED MAICA,3H4 |
1 | ||
| 76621-1206002 |
AE9#,CE90..FXG,FXGT,FXZI,GT,SE SUPER RED 2,3E5 |
1 | ||
| 76621-1206005 |
AE91,92..FXGT,FXGTV,FXV,FXVS BEIGE M,8E9 |
1 | ||
| 76621-1206001 |
AE91,92..3D,5D BLACK M,205 |
1 | ||
| 76621-1206008 |
AE9#,CE90,95,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,XE SUPER WHITE 2,040 |
1 | ||
| 76621-12050 |
AE9#,CE9#,EE9#..4D,V,WG |
1 | ||
| 76621-12060J0 |
AE9#..3D DK BLUE MICA M,8J7 |
1 | ||
| 76621-1206017 |
AE91,92..3D,5D GRAYISH GREEN M,040 ,205 ,6K6 |
1 | ||
| 76621-1206002 |
AE91,92..3D,5D SUPER RED 2,3E5 |
1 | ||
| 76621-1206017 |
AE9#,CE90,95,EE90..GT,SE,XE GRAYISH GREEN M,6K6 |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-12050 |
AE9#,CE9#,EE9#..FXD,FXG,FXL,G,GL,GT,SE,XE |
1 | ||
| 76622-1206005 |
AE91,92..(3D,5D)..(4FC,5F) BEIGE M,27E |
1 | ||
| 76622-1206003 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE GRAY M,168 |
1 | ||
| 76622-1206002 |
AE9#,CE90..FXG,FXGT,FXZI,GT,SE SUPER RED 2,3E5 |
1 | ||
| 76622-1206008 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE SUPER WHITE 2,040 |
1 | ||
| 76622-12050 |
CE96,97,EE96,97,98;AE9#,CE90,EE90..FXG,G,GT,SE,XE |
1 | ||
| 76622-1206005 |
AE91,92..FXGT,FXGTV,FXV,FXVS BEIGE M,8E9 |
1 | ||
| 76622-12050 |
CE96,EE96,97,98;AE9#,CE90,97,EE90..FXD,FXG,FXL,G,GL,GT,SE,XE |
1 | ||
| 76622-1206008 |
AE9#,CE90,95,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,XE SUPER WHITE 2,040 |
1 | ||
| 76622-1206017 |
AE91,92..3D,5D GRAYISH GREEN M,040 ,205 ,6K6 |
1 | ||
| 76622-1206017 |
AE9#,CE90,95,EE90..GT,SE,XE GRAYISH GREEN M,6K6 |
1 | ||
| 76622-1206012 |
AE9#,CE90,95,EE90..G,GT,SE,XE RED MAICA,3H4 |
1 | ||
| 76622-12050 |
AE9#,CE9#,EE9#..4D,V,WG |
1 | ||
| 76622-12060J0 |
AE9#..3D DK BLUE MICA M,8J7 |
1 | ||
| 76622-1206001 |
AE91,92..3D,5D BLACK M,205 |
1 | ||
| 76622-1206002 |
AE91,92..3D,5D SUPER RED 2,3E5 |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-1927502 |
AE9#,CE90..GT,SE SUPER RED 2,3E5 |
1 | ||
| 76625-1923503 |
AE91,92..(3D,5D)..(4FC,5F) GRAY M,168 |
1 | ||
| 76625-1923502 |
AE91,92..(3D,5D)..(4FC,5F) SUPER RED 2,3E5 |
1 | ||
| 76625-1927503 |
AE9#,CE90..GT,SE GRAY M,168 |
1 | ||
| 76625-1927508 |
AE9#,CE90..GT,SE SUPER WHITE,040 |
1 | ||
| 76625-1923505 |
AE91,92..(3D,5D)..(4FC,5F) BEIGE M,27E |
1 | ||
| 76625-19245 |
AE9#,CE90,EE90..GT,SE,XE |
1 | ||
| 76625-1923508 |
AE91,92..(3D,5D)..(4FC,5F) SUPER WHITE 2,040 |
1 | ||
| 76625-1927512 |
AE9#,CE90,95,EE90..GT,SE,XE RED MAICA,3H4 |
1 | ||
| 76625-1927508 |
AE9#,CE90,95,EE90..GT,SE,XE SUPER WHITE,040 |
1 | ||
| 76625-1927507 |
AE9#,CE90,95,EE90..GT,SE,XE GRAYISH GREEN M,6K6 |
1 | ||
| 76625-1931505 |
AE91,92..3D BEIGE M,8E9 |
1 | ||
| 76625-1931501 |
AE91,92..3D,5D BLACK M,205 |
1 | ||
| 76625-1931507 |
AE91,92..3D,5D GRAYISH GREEN M,6K6 |
1 | ||
| 76625-1931508 |
AE91,92..3D,5D SUPER WHITE 2,040 |
1 | ||
| 76625-1931502 |
AE91,92..3D,5D SUPER RED 2,3E5 |
1 | ||
| 76625-1931505 |
AE9#..3D BEIGE M,8J7 |
1 | ||
| 76625-1933507 |
AE91,92..3D GRAYISH GREEN M,040 ,205 ,6K6 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-1924502 |
AE91,92..(3D,5D)..(4FC,5F) SUPER RED 2,3E5 |
1 | ||
| 76626-19255 |
AE9#,CE90,EE90..GT,SE,XE |
1 | ||
| 76626-1928502 |
AE9#,CE90..GT,SE SUPER RED 2,3E5 |
1 | ||
| 76626-1924508 |
AE91,92..(3D,5D)..(4FC,5F) SUPER WHITE 2,040 |
1 | ||
| 76626-1928508 |
AE9#,CE90..GT,SE SUPER WHITE 2,040 |
1 | ||
| 76626-1928503 |
AE9#,CE90..GT,SE GRAY M,168 |
1 | ||
| 76626-1924503 |
AE91,92..(3D,5D)..(4FC,5F) GRAY M,168 |
1 | ||
| 76626-1924505 |
AE91,92..(3D,5D)..(4FC,5F) BEIGE M,27E |
1 | ||
| 76626-1924501 |
AE92..FXGT FX-GT ﾘﾐﾃﾂﾄﾞ,BLACK M |
1 | ||
| 76626-1928507 |
AE9#,CE90,95,EE90..GT,SE,XE GRAYISH GREEN M,6K6 |
1 | ||
| 76626-1928508 |
AE9#,CE90,95,EE90..GT,SE,XE SUPER WHITE 2,040 |
1 | ||
| 76626-1934507 |
AE91,92..3D GRAYISH GREEN M,040 ,205 ,6K6 |
1 | ||
| 76626-1932502 |
AE91,92..3D,5D SUPER RED 2,3E5 |
1 | ||
| 76626-1928512 |
AE9#,CE90,95,EE90..GT,SE,XE RED MAICA,3H4 |
1 | ||
| 76626-1932505 |
AE91,92..3D BEIGE M,8E9 |
1 | ||
| 76626-1932508 |
AE91,92..3D,5D SUPER WHITE 2,040 |
1 | ||
| 76626-1932501 |
AE91,92..3D,5D BLACK M,205 |
1 | ||
| 76626-1932507 |
AE91,92..3D,5D GRAYISH GREEN M,6K6 |
1 | ||
| 76626-1932505 |
AE9#..3D BEIGE M,8J7 |
1 | ||
| 76837 - RETAINER, REAR SPOILER, NO.7 | ||||
| 76837-12020 |
AE91,92..(3D,5D)..(4FC,5F) |
1 | ||
| 76866 - RETAINER, REAR SPOILER, NO.2 | ||||
| 76866-12030 |
AE91,92..(3D,5D)..(4FC,5F) |
2 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-12090 |
AE91,92..(3D,5D)..(4FC,5F) |
1 | ||
| 76872-12070 |
AE91,92..(3D,5D)..(4FC,5F) |
1 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-12100 |
AE91,92..(3D,5D)..(4FC,5F) |
1 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-12110 |
AE91,92..(3D,5D)..(4FC,5F) |
1 | ||
| 76885 - RETAINER, REAR SPOILER, NO.5 | ||||
| 76885-12050 |
AE91,92..(3D,5D)..(4FC,5F) |
2 | ||
| 76885 - RETAINER, REAR SPOILER, NO.5 | ||||
| 76885-12050 |
AE91,92..(3D,5D)..(4FC,5F) |
2 | ||
| 76893 - COVER, REAR SPOILER, NO.1 | ||||
| 76893-12020 |
AE91,92..(3D,5D)..(4FC,5F) |
1 | ||
| Common parts | ||||
| 90159-60182 | ||||
| 90159-60244 | ||||
| 90189-06048 | ||||
| 90189-06057 | ||||
| 90467-06053 | ||||
| 90467-09077 | ||||
| 90467-10058 | ||||
| 90468-04137 | ||||
| 93560-54008 | ||||
| 93560-54010 | ||||
| 93567-54516 | ||||
| Linked diagrams | ||||
| 7503 | ||||
| 8117 | ||||

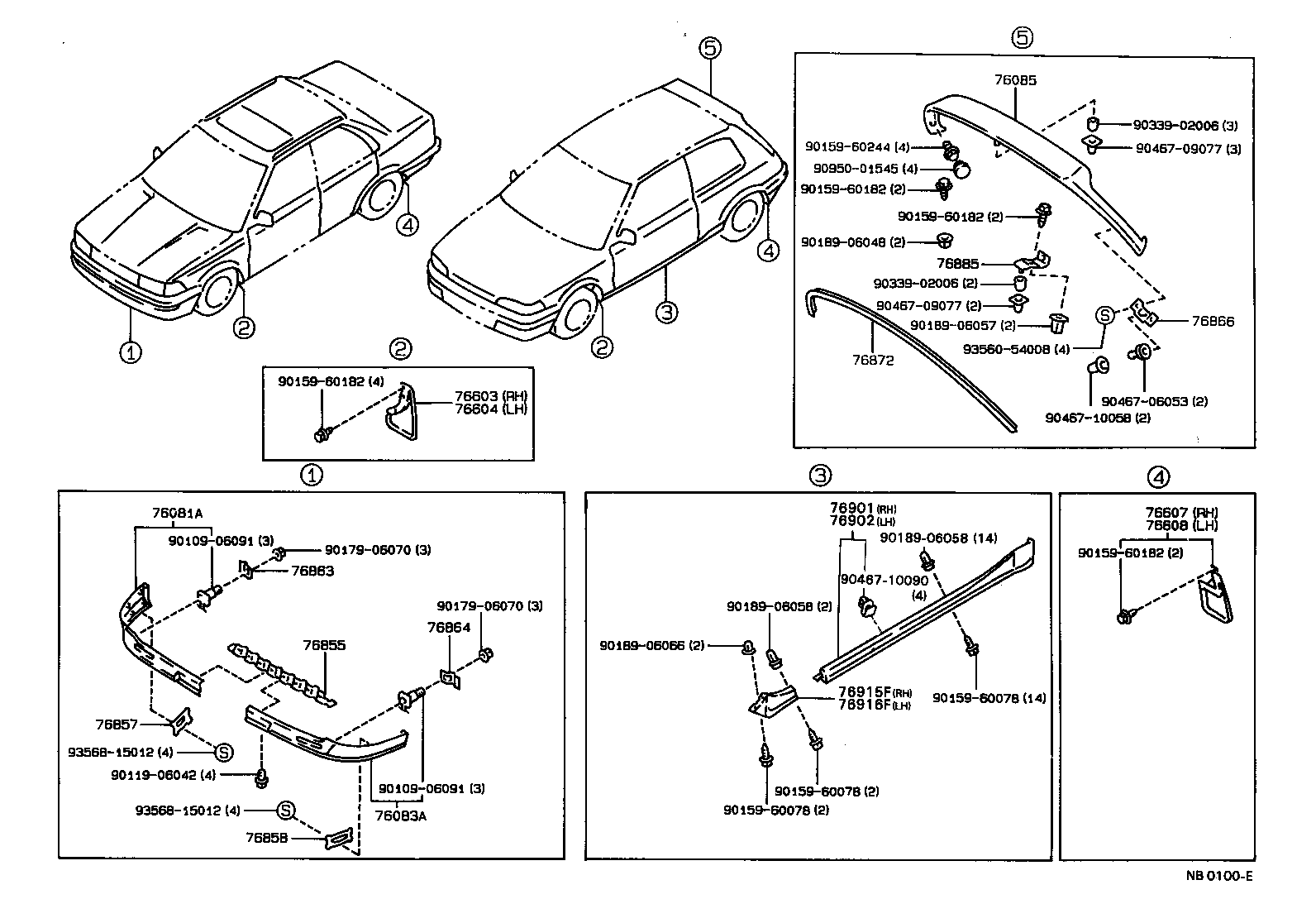

(8705-8905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76081A - SPOILER SUB-ASSY, FRONT RH | ||||
| 76081-1203008 |
AE92..GT SUPER WHITE 2,040 |
1 | ||
| 76081-1203002 |
AE92..GT SUPER RED 2,3E5 |
1 | ||
| 76081-1203003 |
AE92..GT GRAY M,168 |
1 | ||
| 76083A - SPOILER SUB-ASSY, FRONT LH | ||||
| 76083-1203003 |
AE92..GT GRAY M,168 |
1 | ||
| 76083-1203002 |
AE92..GT SUPER RED 2,3E5 |
1 | ||
| 76083-1203008 |
AE92..GT SUPER WHITE 2,040 |
1 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-12907 |
AE91,92..(3D,5D)..(4FC,5F) |
1 | ||
| 76085-12900 |
AE92..FXGT FX-GT ﾘﾐﾃﾂﾄﾞ |
1 | ||
| 76085-12900 |
AE91,92..(3D,5D)..(4FC,5F) |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-1206008 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE SUPER WHITE 2,040 |
1 | ||
| 76621-12050 |
AE9#,CE9#,EE9#..FXD,FXG,FXL,G,GL,GT,SE,XE |
1 | ||
| 76621-1206005 |
AE91,92..(3D,5D)..(4FC,5F) BEIGE M,27E |
1 | ||
| 76621-1206003 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE GRAY M,168 |
1 | ||
| 76621-12050 |
CE96,97,EE96,97,98;AE9#,CE90,EE90..FXG,G,GT,SE,XE |
1 | ||
| 76621-12050 |
CE96,EE96,97,98;AE9#,CE90,97,EE90..FXD,FXG,FXL,G,GL,GT,SE,XE |
1 | ||
| 76621-1206012 |
AE9#,CE90,95,EE90..G,GT,SE,XE RED MAICA,3H4 |
1 | ||
| 76621-1206002 |
AE9#,CE90..FXG,FXGT,FXZI,GT,SE SUPER RED 2,3E5 |
1 | ||
| 76621-1206005 |
AE91,92..FXGT,FXGTV,FXV,FXVS BEIGE M,8E9 |
1 | ||
| 76621-1206001 |
AE91,92..3D,5D BLACK M,205 |
1 | ||
| 76621-1206008 |
AE9#,CE90,95,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,XE SUPER WHITE 2,040 |
1 | ||
| 76621-12050 |
AE9#,CE9#,EE9#..4D,V,WG |
1 | ||
| 76621-12060J0 |
AE9#..3D DK BLUE MICA M,8J7 |
1 | ||
| 76621-1206017 |
AE91,92..3D,5D GRAYISH GREEN M,040 ,205 ,6K6 |
1 | ||
| 76621-1206002 |
AE91,92..3D,5D SUPER RED 2,3E5 |
1 | ||
| 76621-1206017 |
AE9#,CE90,95,EE90..GT,SE,XE GRAYISH GREEN M,6K6 |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-12050 |
AE9#,CE9#,EE9#..FXD,FXG,FXL,G,GL,GT,SE,XE |
1 | ||
| 76622-1206005 |
AE91,92..(3D,5D)..(4FC,5F) BEIGE M,27E |
1 | ||
| 76622-1206003 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE GRAY M,168 |
1 | ||
| 76622-1206002 |
AE9#,CE90..FXG,FXGT,FXZI,GT,SE SUPER RED 2,3E5 |
1 | ||
| 76622-1206008 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE SUPER WHITE 2,040 |
1 | ||
| 76622-12050 |
CE96,97,EE96,97,98;AE9#,CE90,EE90..FXG,G,GT,SE,XE |
1 | ||
| 76622-1206005 |
AE91,92..FXGT,FXGTV,FXV,FXVS BEIGE M,8E9 |
1 | ||
| 76622-12050 |
CE96,EE96,97,98;AE9#,CE90,97,EE90..FXD,FXG,FXL,G,GL,GT,SE,XE |
1 | ||
| 76622-1206008 |
AE9#,CE90,95,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,XE SUPER WHITE 2,040 |
1 | ||
| 76622-1206017 |
AE91,92..3D,5D GRAYISH GREEN M,040 ,205 ,6K6 |
1 | ||
| 76622-1206017 |
AE9#,CE90,95,EE90..GT,SE,XE GRAYISH GREEN M,6K6 |
1 | ||
| 76622-1206012 |
AE9#,CE90,95,EE90..G,GT,SE,XE RED MAICA,3H4 |
1 | ||
| 76622-12050 |
AE9#,CE9#,EE9#..4D,V,WG |
1 | ||
| 76622-12060J0 |
AE9#..3D DK BLUE MICA M,8J7 |
1 | ||
| 76622-1206001 |
AE91,92..3D,5D BLACK M,205 |
1 | ||
| 76622-1206002 |
AE91,92..3D,5D SUPER RED 2,3E5 |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-1927502 |
AE9#,CE90..GT,SE SUPER RED 2,3E5 |
1 | ||
| 76625-1923503 |
AE91,92..(3D,5D)..(4FC,5F) GRAY M,168 |
1 | ||
| 76625-1923502 |
AE91,92..(3D,5D)..(4FC,5F) SUPER RED 2,3E5 |
1 | ||
| 76625-1927503 |
AE9#,CE90..GT,SE GRAY M,168 |
1 | ||
| 76625-1927508 |
AE9#,CE90..GT,SE SUPER WHITE,040 |
1 | ||
| 76625-1923505 |
AE91,92..(3D,5D)..(4FC,5F) BEIGE M,27E |
1 | ||
| 76625-19245 |
AE9#,CE90,EE90..GT,SE,XE |
1 | ||
| 76625-1923508 |
AE91,92..(3D,5D)..(4FC,5F) SUPER WHITE 2,040 |
1 | ||
| 76625-1927512 |
AE9#,CE90,95,EE90..GT,SE,XE RED MAICA,3H4 |
1 | ||
| 76625-1927508 |
AE9#,CE90,95,EE90..GT,SE,XE SUPER WHITE,040 |
1 | ||
| 76625-1927507 |
AE9#,CE90,95,EE90..GT,SE,XE GRAYISH GREEN M,6K6 |
1 | ||
| 76625-1931505 |
AE91,92..3D BEIGE M,8E9 |
1 | ||
| 76625-1931501 |
AE91,92..3D,5D BLACK M,205 |
1 | ||
| 76625-1931507 |
AE91,92..3D,5D GRAYISH GREEN M,6K6 |
1 | ||
| 76625-1931508 |
AE91,92..3D,5D SUPER WHITE 2,040 |
1 | ||
| 76625-1931502 |
AE91,92..3D,5D SUPER RED 2,3E5 |
1 | ||
| 76625-1931505 |
AE9#..3D BEIGE M,8J7 |
1 | ||
| 76625-1933507 |
AE91,92..3D GRAYISH GREEN M,040 ,205 ,6K6 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-1924502 |
AE91,92..(3D,5D)..(4FC,5F) SUPER RED 2,3E5 |
1 | ||
| 76626-19255 |
AE9#,CE90,EE90..GT,SE,XE |
1 | ||
| 76626-1928502 |
AE9#,CE90..GT,SE SUPER RED 2,3E5 |
1 | ||
| 76626-1924508 |
AE91,92..(3D,5D)..(4FC,5F) SUPER WHITE 2,040 |
1 | ||
| 76626-1928508 |
AE9#,CE90..GT,SE SUPER WHITE 2,040 |
1 | ||
| 76626-1928503 |
AE9#,CE90..GT,SE GRAY M,168 |
1 | ||
| 76626-1924503 |
AE91,92..(3D,5D)..(4FC,5F) GRAY M,168 |
1 | ||
| 76626-1924505 |
AE91,92..(3D,5D)..(4FC,5F) BEIGE M,27E |
1 | ||
| 76626-1924501 |
AE92..FXGT FX-GT ﾘﾐﾃﾂﾄﾞ,BLACK M |
1 | ||
| 76626-1928507 |
AE9#,CE90,95,EE90..GT,SE,XE GRAYISH GREEN M,6K6 |
1 | ||
| 76626-1928508 |
AE9#,CE90,95,EE90..GT,SE,XE SUPER WHITE 2,040 |
1 | ||
| 76626-1934507 |
AE91,92..3D GRAYISH GREEN M,040 ,205 ,6K6 |
1 | ||
| 76626-1932502 |
AE91,92..3D,5D SUPER RED 2,3E5 |
1 | ||
| 76626-1928512 |
AE9#,CE90,95,EE90..GT,SE,XE RED MAICA,3H4 |
1 | ||
| 76626-1932505 |
AE91,92..3D BEIGE M,8E9 |
1 | ||
| 76626-1932508 |
AE91,92..3D,5D SUPER WHITE 2,040 |
1 | ||
| 76626-1932501 |
AE91,92..3D,5D BLACK M,205 |
1 | ||
| 76626-1932507 |
AE91,92..3D,5D GRAYISH GREEN M,6K6 |
1 | ||
| 76626-1932505 |
AE9#..3D BEIGE M,8J7 |
1 | ||
| 76855 - RETAINER, FRONT SPOILER, LOWER NO.1 CENTER | ||||
| 76855-12060 |
AE92..GT |
1 | ||
| 76857 - RETAINER, FRONT SPOILER SIDE, RH | ||||
| 76857-12050 |
AE92..GT |
1 | ||
| 76858 - RETAINER, FRONT SPOILER SIDE, LH | ||||
| 76858-12050 |
AE92..GT |
1 | ||
| 76863 - RETAINER, FRONT SPOILER, LOWER NO.2 RH | ||||
| 76863-12040 |
AE92..GT |
1 | ||
| 76864 - RETAINER, FRONT SPOILER, LOWER NO.2 LH | ||||
| 76863-12040 |
AE92..GT |
1 | ||
| 76866 - RETAINER, REAR SPOILER, NO.2 | ||||
| 76866-12030 |
AE91,92..(3D,5D)..(4FC,5F) |
2 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-12090 |
AE91,92..(3D,5D)..(4FC,5F) |
1 | ||
| 76872-12070 |
AE91,92..(3D,5D)..(4FC,5F) |
1 | ||
| 76885 - RETAINER, REAR SPOILER, NO.5 | ||||
| 76885-12050 |
AE91,92..(3D,5D)..(4FC,5F) |
2 | ||
| 76901 - MUDGUARD SUB-ASSY, SIDE, RH | ||||
| 76911-1203002 |
AE91,92..3D..(4FC,5F) SUPER RED 2,3E5 |
1 | ||
| 76911-1203001 |
AE92..FXGT FX-GT ﾘﾐﾃﾂﾄﾞ,BLACK M |
1 | ||
| 76911-1203008 |
AE91,92..3D..(4FC,5F) SUPER WHITE 2,040 |
1 | ||
| 76911-1203005 |
AE91,92..3D..(4FC,5F) BEIGE M,27E |
1 | ||
| 76911-1203003 |
AE91,92..3D..(4FC,5F) GRAY M,168 |
1 | ||
| 76902 - MUDGUARD SUB-ASSY, SIDE, LH | ||||
| 76912-1203003 |
AE91,92..3D..(4FC,5F) GRAY M,168 |
1 | ||
| 76912-1203008 |
AE91,92..3D..(4FC,5F) SUPER WHITE 2,040 |
1 | ||
| 76912-1203005 |
AE91,92..3D..(4FC,5F) BEIGE M,27E |
1 | ||
| 76912-1203002 |
AE91,92..3D..(4FC,5F) SUPER RED,3E5 |
1 | ||
| 76912-1203001 |
AE92..FXGT FX-GT ﾘﾐﾃﾂﾄﾞ,BLACK M |
1 | ||
| 76915F - MUDGUARD, SIDE, FR RH | ||||
| 76915-1203003 |
AE91,92..3D..(4FC,5F) GRAY M,168 |
1 | ||
| 76915-1203002 |
AE91,92..3D..(4FC,5F) SUPER RED 2,3E5 |
1 | ||
| 76915-1203005 |
AE91,92..3D..(4FC,5F) BEIGE M,27E |
1 | ||
| 76915-1203001 |
AE92..FXGT FX-GT ﾘﾐﾃﾂﾄﾞ,BLACK M,BLACK M,204 |
1 | ||
| 76915-1203008 |
AE91,92..3D..(4FC,5F) SUPER WHITE 2,040 |
1 | ||
| 76916F - MUDGUARD, SIDE, FR LH | ||||
| 76916-1203008 |
AE91,92..3D..(4FC,5F) SUPER WHITE 2,040 |
1 | ||
| 76916-1203003 |
AE91,92..3D..(4FC,5F) GRAY M,168 |
1 | ||
| 76916-1203005 |
AE91,92..3D..(4FC,5F) BEIGE M,27E |
1 | ||
| 76916-1203001 |
AE92..FXGT FX-GT ﾘﾐﾃﾂﾄﾞ,BLACK M,BLACK M 2,204 |
1 | ||
| 76916-1203002 |
AE91,92..3D..(4FC,5F) SUPER RED 2,3E5 |
1 | ||
| Common parts | ||||
| 90109-06091 | ||||
| 90119-06042 | ||||
| 90159-60078 | ||||
| 90159-60182 | ||||
| 90159-60244 | ||||
| 90179-06070 | ||||
| 90189-06048 | ||||
| 90189-06057 | ||||
| 90189-06058 | ||||
| 90189-06066 | ||||
| 90339-02006 | ||||
| 90467-06053 | ||||
| 90467-09077 | ||||
| 90467-10058 | ||||
| 90467-10090 | ||||
| 90950-01545 | ||||
| 93560-54008 | ||||
| 93568-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
