AE92-AGMVF (1987)
Toyota Corolla

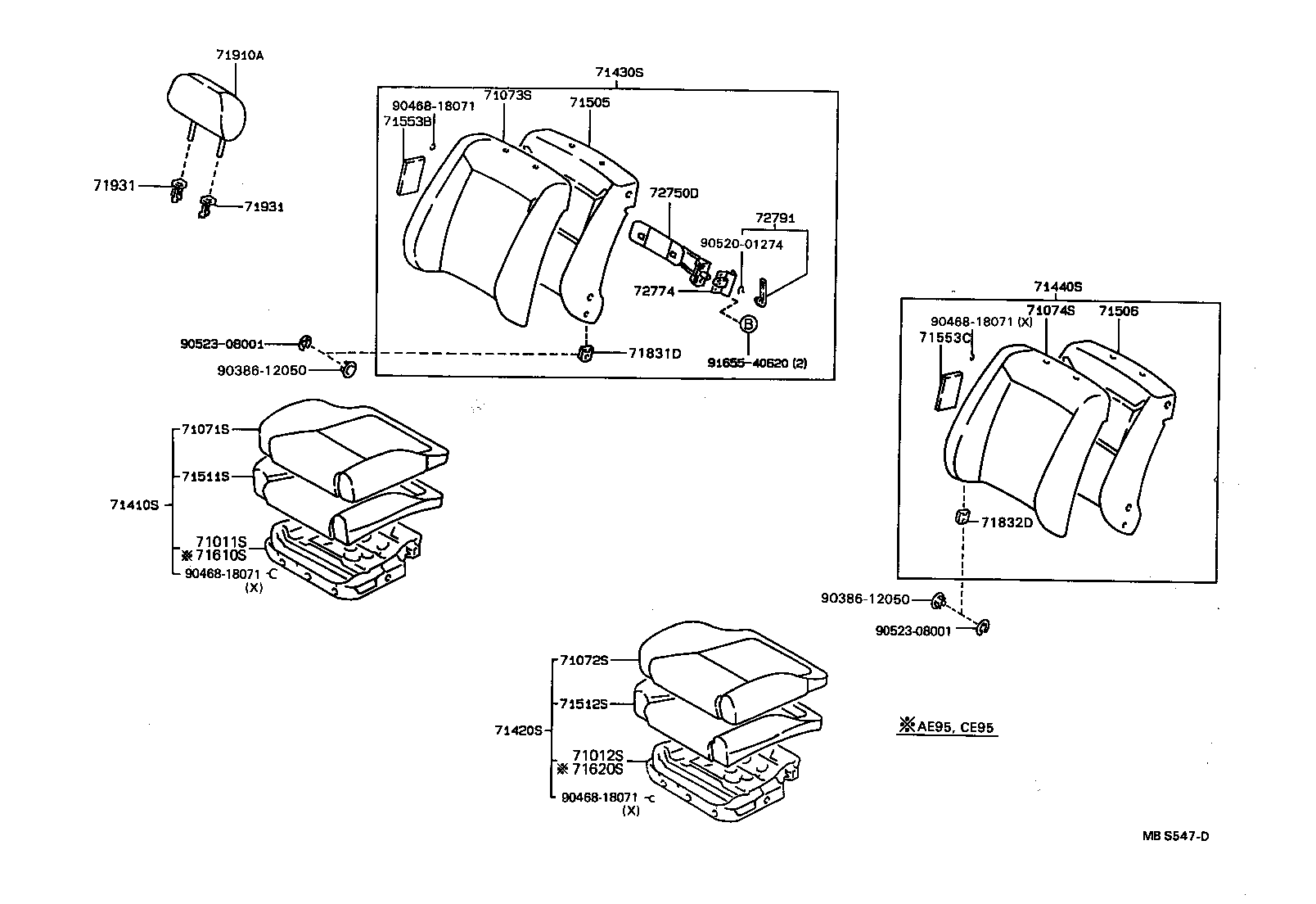

ILLUST NO. 1 OF 2(8705- )CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,L,LT,SE,STD,TX,XE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-12280 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-12280 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1K25003 |
AE92..FXGT FX-GT ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H14003 |
AE92 SADOW GRAY,TRIM1# |
1 | ||
| 71071-1H14103 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1K26003 |
AE92..FXGT FX-GT ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H21003 |
AE92 SADOW GRAY,TRIM1# |
1 | ||
| 71071-1H21103 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1H79003 |
AE92..FXGT FX-GT ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H20003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H20103 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1E77003 |
AE92..FXGT FX-GT ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E16003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E16103 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1H48003 |
AE92 ***,SADOW GRAY,TRIM1# |
1 | ||
| 71410-1H48103 |
AE92..FXGT,GT ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-1H49003 |
AE92 ***,SADOW GRAY,TRIM1# |
1 | ||
| 71410-1H49103 |
AE92..FXGT,GT ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1H51003 |
AE92 ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H51103 |
AE92..FXGT,GT ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1H45003 |
AE92 ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H45103 |
AE92..FXGT,GT ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-12060 |
AE91,92,EE90..FXG,FXGTV,FXL,FXV,FXVS,G,LT |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-12050 |
AE91,92,EE90..FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,LT |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12580 |
AE91,92..FXG,FXGT,FXZI,FXZS,G,GT |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12580 |
AE91,92..FXG,FXGT,FXZI,FXZS,G,GT |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-12200 |
CE96,97,EE96,97,98..GL;AE9#,CE90,95,EE90..DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,LT,SE,TX,XE |
1 | ||
| 71553C - PAD, FRONT SEAT BACK, C | ||||
| 71553-12200 |
CE96,97,EE96,97,98..GL;AE9#,CE90,95,EE90..DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,LT,SE,TX,XE |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-12010 |
AE9#,CE9#,EE9#..CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,L,LT,SE,STD,TX,XE |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-12010 |
AE9#,CE9#,EE9#..CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,L,LT,SE,STD,TX,XE |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1284013 |
AE92 SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1287101 |
AE92..FXGT,GT BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1206003 |
AE92..FXGT,GT ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205003 |
CE96,97,EE96,97,98..GL;AE9#,CE90,95,EE90..DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,LT,SE,TX,XE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1203003 |
AE92..FXGT,GT ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
CE96,97,EE96,97,98..GL;AE9#,CE90,95,EE90..DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,LT,SE,TX,XE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1206003 |
AE92..FXGT,GT ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205003 |
CE96,97,EE96,97,98..GL;AE9#,CE90,95,EE90..DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,LT,SE,TX,XE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1203003 |
AE92..FXGT,GT ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
CE96,97,EE96,97,98..GL;AE9#,CE90,95,EE90..DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,LT,SE,TX,XE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-12070 |
AE92..FXGT,GT |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2202023 |
AE92..FXGT,GT GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90386-12050 | ||||
| 90468-18071 | ||||
| 90520-01274 | ||||
| 90523-08001 | ||||
| 91655-40620 | ||||

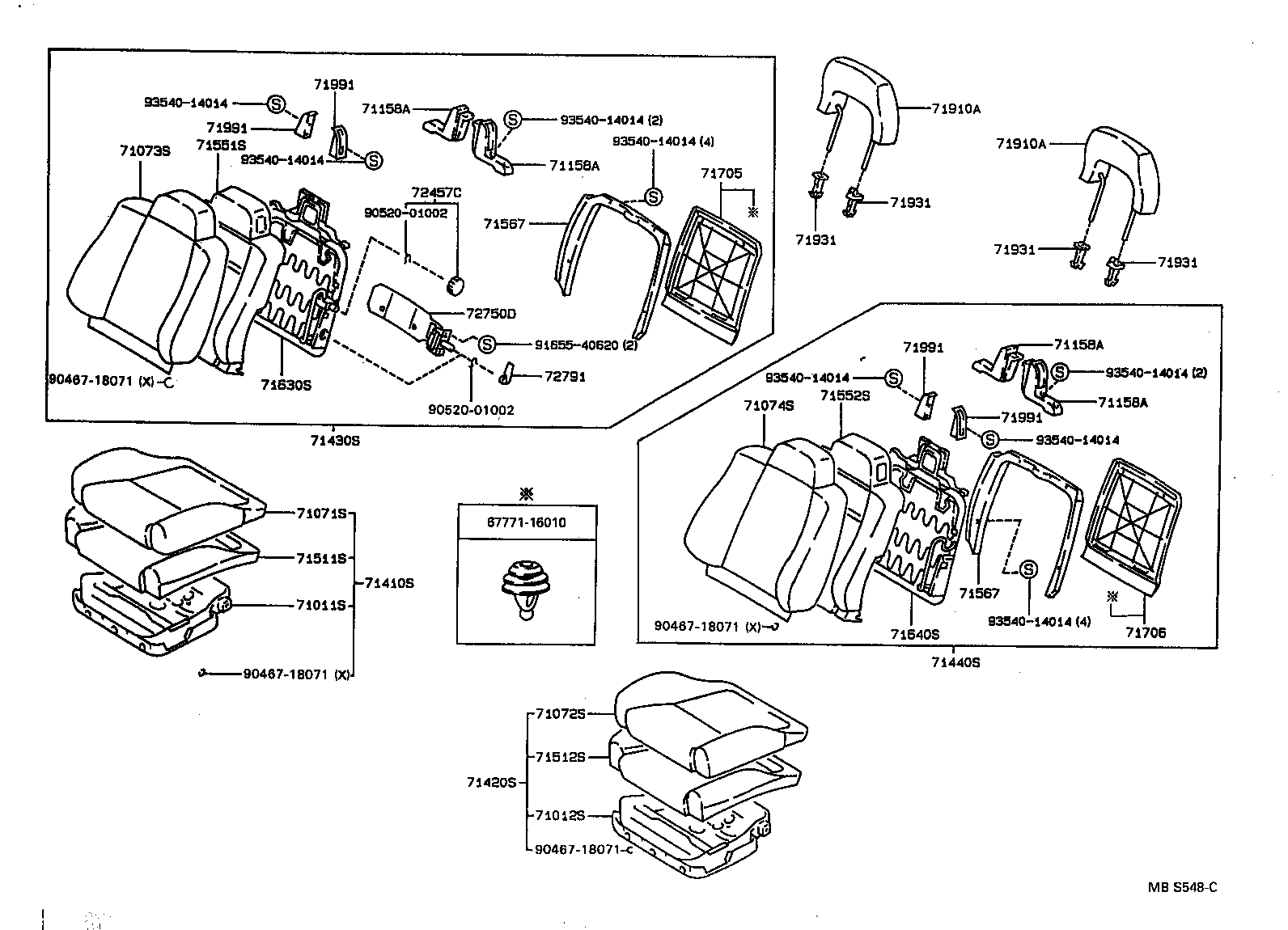

ILLUST NO. 1 OF 2(8705- )FXGT,GT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-12280 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-12280 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1K25003 |
AE92..FXGT FX-GT ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H14003 |
AE92 SADOW GRAY,TRIM1# |
1 | ||
| 71071-1H14103 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1K26003 |
AE92..FXGT FX-GT ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H21003 |
AE92 SADOW GRAY,TRIM1# |
1 | ||
| 71071-1H21103 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1H79003 |
AE92..FXGT FX-GT ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H20003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H20103 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1E77003 |
AE92..FXGT FX-GT ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E16003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E16103 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71158A - FRAME, FRONT SEAT BACK, UPPER OUTER | ||||
| 71158-12090 |
AE92..FXGT,GT |
4 | ||
| 71158A - FRAME, FRONT SEAT BACK, UPPER OUTER | ||||
| 71158-12090 |
AE92..FXGT,GT |
4 | ||
| 71158A - FRAME, FRONT SEAT BACK, UPPER OUTER | ||||
| 71158-12090 |
AE92..FXGT,GT |
4 | ||
| 71158A - FRAME, FRONT SEAT BACK, UPPER OUTER | ||||
| 71158-12090 |
AE92..FXGT,GT |
4 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1H48003 |
AE92 ***,SADOW GRAY,TRIM1# |
1 | ||
| 71410-1H48103 |
AE92..FXGT,GT ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-1H49003 |
AE92 ***,SADOW GRAY,TRIM1# |
1 | ||
| 71410-1H49103 |
AE92..FXGT,GT ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1H51003 |
AE92 ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H51103 |
AE92..FXGT,GT ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1H45003 |
AE92 ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H45103 |
AE92..FXGT,GT ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12580 |
AE91,92..FXG,FXGT,FXZI,FXZS,G,GT |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12580 |
AE91,92..FXG,FXGT,FXZI,FXZS,G,GT |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12540 |
AE92 |
1 | ||
| 71551-12550 |
AE92..FXGT,GT |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-12540 |
AE92 |
1 | ||
| 71551-12550 |
AE92..FXGT,GT |
1 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-12010 |
AE92..FXGT,GT |
2 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-12010 |
AE92..FXGT,GT |
2 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-12490 |
AE92..FXGT,GT |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-12480 |
AE92..FXGT,GT |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-1205003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-1205003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1284013 |
AE92 SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1287101 |
AE92..FXGT,GT BLACK,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1284013 |
AE92 SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1287101 |
AE92..FXGT,GT BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1206003 |
AE92..FXGT,GT ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205003 |
CE96,97,EE96,97,98..GL;AE9#,CE90,95,EE90..DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,LT,SE,TX,XE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1203003 |
AE92..FXGT,GT ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
CE96,97,EE96,97,98..GL;AE9#,CE90,95,EE90..DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,LT,SE,TX,XE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1206003 |
AE92..FXGT,GT ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205003 |
CE96,97,EE96,97,98..GL;AE9#,CE90,95,EE90..DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,LT,SE,TX,XE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1203003 |
AE92..FXGT,GT ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
CE96,97,EE96,97,98..GL;AE9#,CE90,95,EE90..DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,LT,SE,TX,XE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1206003 |
AE92..FXGT,GT ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205003 |
CE96,97,EE96,97,98..GL;AE9#,CE90,95,EE90..DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,LT,SE,TX,XE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1203003 |
AE92..FXGT,GT ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
CE96,97,EE96,97,98..GL;AE9#,CE90,95,EE90..DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,LT,SE,TX,XE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1206003 |
AE92..FXGT,GT ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205003 |
CE96,97,EE96,97,98..GL;AE9#,CE90,95,EE90..DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,LT,SE,TX,XE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1203003 |
AE92..FXGT,GT ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
CE96,97,EE96,97,98..GL;AE9#,CE90,95,EE90..DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,LT,SE,TX,XE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71991 - COVER, HEADREST SUPPORT BASE | ||||
| 71991-1201003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
4 | ||
| 71991 - COVER, HEADREST SUPPORT BASE | ||||
| 71991-1201003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
4 | ||
| 71991 - COVER, HEADREST SUPPORT BASE | ||||
| 71991-1201003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
4 | ||
| 71991 - COVER, HEADREST SUPPORT BASE | ||||
| 71991-1201003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
4 | ||
| 72457C - KNOB, SIDE SUPPORT ADJUSTER | ||||
| 72457-1403023 |
AE92..FXGT,GT GRAY,TRIM1# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-12070 |
AE92..FXGT,GT |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2202023 |
AE92..FXGT,GT GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-16010 | ||||
| 90467-18071 | ||||
| 90520-01002 | ||||
| 91655-40620 | ||||
| 93540-14014 | ||||

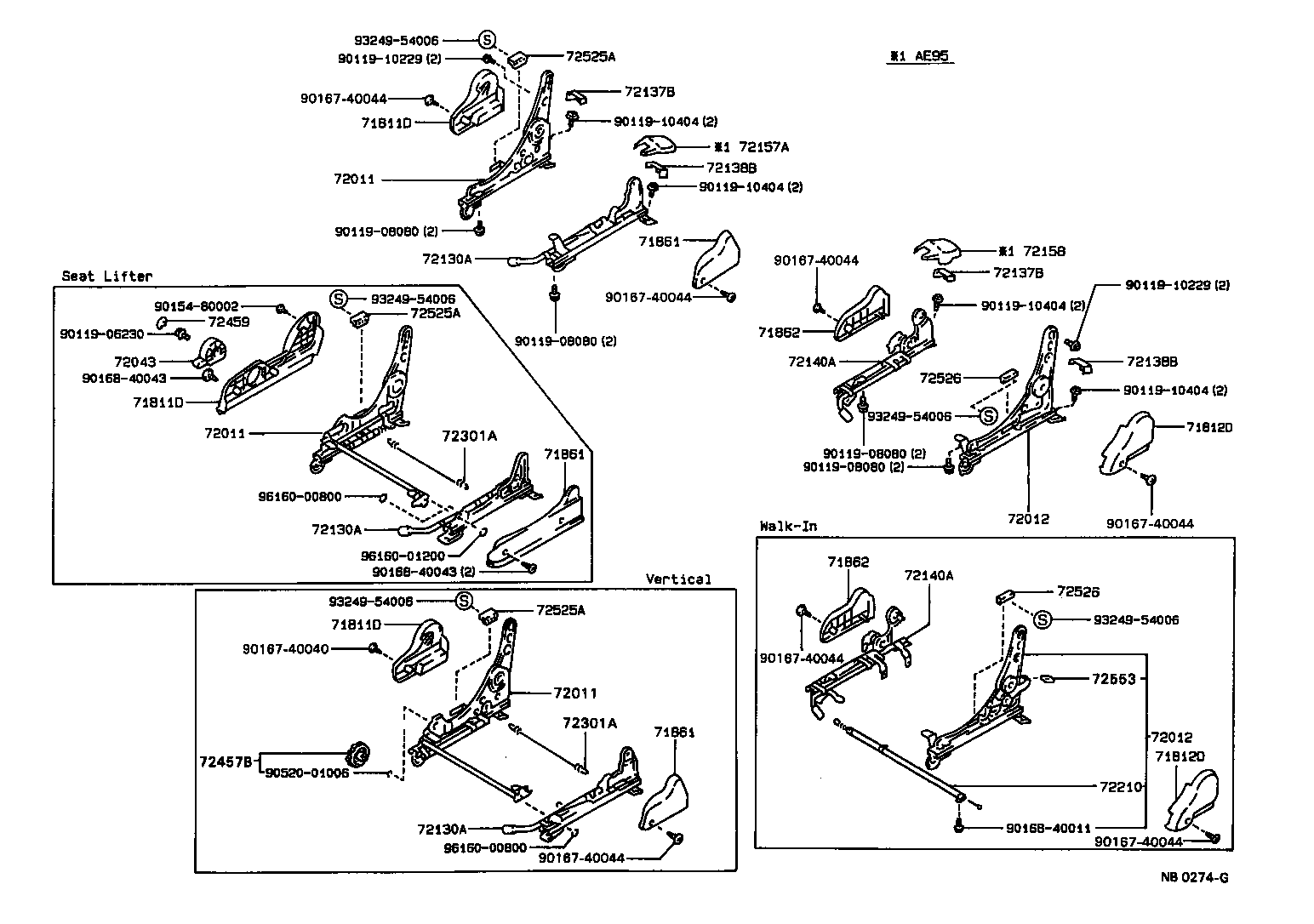

ILLUST NO. 2 OF 2(8705- )CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,L,LT,SE,STD,TX,XE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1218003 |
AE91,92,CE90,96,97,EE9#..CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,L,LT,SE,STD,TX,XE SHADOW GRAY,TRIM1# |
1 | ||
| 71811-1217003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1218003 |
AE91,92,CE90,96,97,EE9#..CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,L,LT,SE,STD,TX,XE SHADOW GRAY,TRIM1# |
1 | ||
| 71811-1217003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1218003 |
AE91,92,CE90,96,97,EE9#..CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,L,LT,SE,STD,TX,XE SHADOW GRAY,TRIM1# |
1 | ||
| 71811-1217003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1213003 |
AE91,92,EE90..3D..(FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS) SHADOW GRAY,TRIM1# |
1 | ||
| 71812-1214003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1213003 |
AE91,92,EE90..3D..(FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS) SHADOW GRAY,TRIM1# |
1 | ||
| 71812-1214003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1208003 |
AE91,92,CE90,96,97,EE9#..CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,L,LT,SE,STD,TX,XE SHADOW GRAY,TRIM1# |
1 | ||
| 71861-1212003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1208003 |
AE91,92,CE90,96,97,EE9#..CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,L,LT,SE,STD,TX,XE SHADOW GRAY,TRIM1# |
1 | ||
| 71861-1212003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1208003 |
AE91,92,CE90,96,97,EE9#..CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,L,LT,SE,STD,TX,XE SHADOW GRAY,TRIM1# |
1 | ||
| 71861-1212003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1208003 |
AE91,92,CE90,96,97,EE9#..CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,L,LT,SE,STD,TX,XE SHADOW GRAY,TRIM1# |
1 | ||
| 71862-1211003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1208003 |
AE91,92,CE90,96,97,EE9#..CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,L,LT,SE,STD,TX,XE SHADOW GRAY,TRIM1# |
1 | ||
| 71862-1211003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12310 |
AE91,92,CE90,97,EE90,97..DX,FXGTV,FXL,FXV,FXVS,G,GL,L,LT,TX |
1 | ||
| 72011-12110 |
AE92..FXGT,GT |
1 | ||
| 72010-12310 |
AE9#,CE97,EE97..FXGTV,FXL,FXV,FXVS,G,L,LT |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12310 |
AE91,92,CE90,97,EE90,97..DX,FXGTV,FXL,FXV,FXVS,G,GL,L,LT,TX |
1 | ||
| 72011-12110 |
AE92..FXGT,GT |
1 | ||
| 72010-12310 |
AE9#,CE97,EE97..FXGTV,FXL,FXV,FXVS,G,L,LT |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12310 |
AE91,92,CE90,97,EE90,97..DX,FXGTV,FXL,FXV,FXVS,G,GL,L,LT,TX |
1 | ||
| 72011-12110 |
AE92..FXGT,GT |
1 | ||
| 72010-12310 |
AE9#,CE97,EE97..FXGTV,FXL,FXV,FXVS,G,L,LT |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-12100 |
AE92..GT |
1 | ||
| 72012-12120 |
AE92..FXGT |
1 | ||
| 72020-12520 |
AE91,92,EE90..3D..(FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-12100 |
AE92..GT |
1 | ||
| 72012-12120 |
AE92..FXGT |
1 | ||
| 72020-12520 |
AE91,92,EE90..3D..(FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12460 |
AE91,92,CE90,97,EE90,97..DX,FXGTV,FXL,FXV,FXVS,G,GL,L,LT,TX |
1 | ||
| 72130-12460 |
AE9#,CE97,EE97..FXGTV,FXL,FXV,FXVS,G,L,LT |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12460 |
AE91,92,CE90,97,EE90,97..DX,FXGTV,FXL,FXV,FXVS,G,GL,L,LT,TX |
1 | ||
| 72130-12460 |
AE9#,CE97,EE97..FXGTV,FXL,FXV,FXVS,G,L,LT |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12460 |
AE91,92,CE90,97,EE90,97..DX,FXGTV,FXL,FXV,FXVS,G,GL,L,LT,TX |
1 | ||
| 72130-12460 |
AE9#,CE97,EE97..FXGTV,FXL,FXV,FXVS,G,L,LT |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-1202003 |
AE91,92,CE90,96,97,EE9# SHADOW GRAY,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-1202003 |
AE91,92,CE90,96,97,EE9# SHADOW GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-1203003 |
AE91,92,CE90,96,97,EE9# SHADOW GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-1203003 |
AE91,92,CE90,96,97,EE9# SHADOW GRAY,TRIM1# |
2 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12430 |
AE91,92,EE90..3D..(FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS) |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12430 |
AE91,92,EE90..3D..(FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS) |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-12200 |
AE91,92,EE90..3D..(FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS) |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12040 |
AE9#..FXG,FXGT,FXZS |
1 | ||
| 72301-12040 |
AE91,92,CE90..FXGT,FXZI,GT,SE |
1 | ||
| 72301-12040 |
AE91,92,CE90,EE90..FXG,FXGT,FXZS,GT,SE,XE |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12040 |
AE9#..FXG,FXGT,FXZS |
1 | ||
| 72301-12040 |
AE91,92,CE90..FXGT,FXZI,GT,SE |
1 | ||
| 72301-12040 |
AE91,92,CE90,EE90..FXG,FXGT,FXZS,GT,SE,XE |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-1203003 |
AE91,92,CE90..FXGT,FXZI,GT,SE SHADOW GRAY,TRIM1# |
1 | ||
| 72457-1203003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 72457-1203003 |
AE91,92,CE90,EE90..FXG,FXGT,FXZS,GT,SE,XE SHADOW GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209003 |
AE9#,CE9#,EE9# GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209003 |
AE9#,CE9#,EE9# GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209003 |
AE9#,CE9#,EE9# GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203003 |
AE9#,CE9#,EE9# GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203003 |
AE9#,CE9#,EE9# GRAY,TRIM1# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12040 |
AE91,92,EE90..3D |
1 | ||
| Common parts | ||||
| 90119-06230 | ||||
| 90119-08080 | ||||
| 90119-10229 | ||||
| 90119-10404 | ||||
| 90154-80002 | ||||
| 90167-40040 | ||||
| 90167-40044 | ||||
| 90168-40011 | ||||
| 90168-40043 | ||||
| 90520-01006 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||

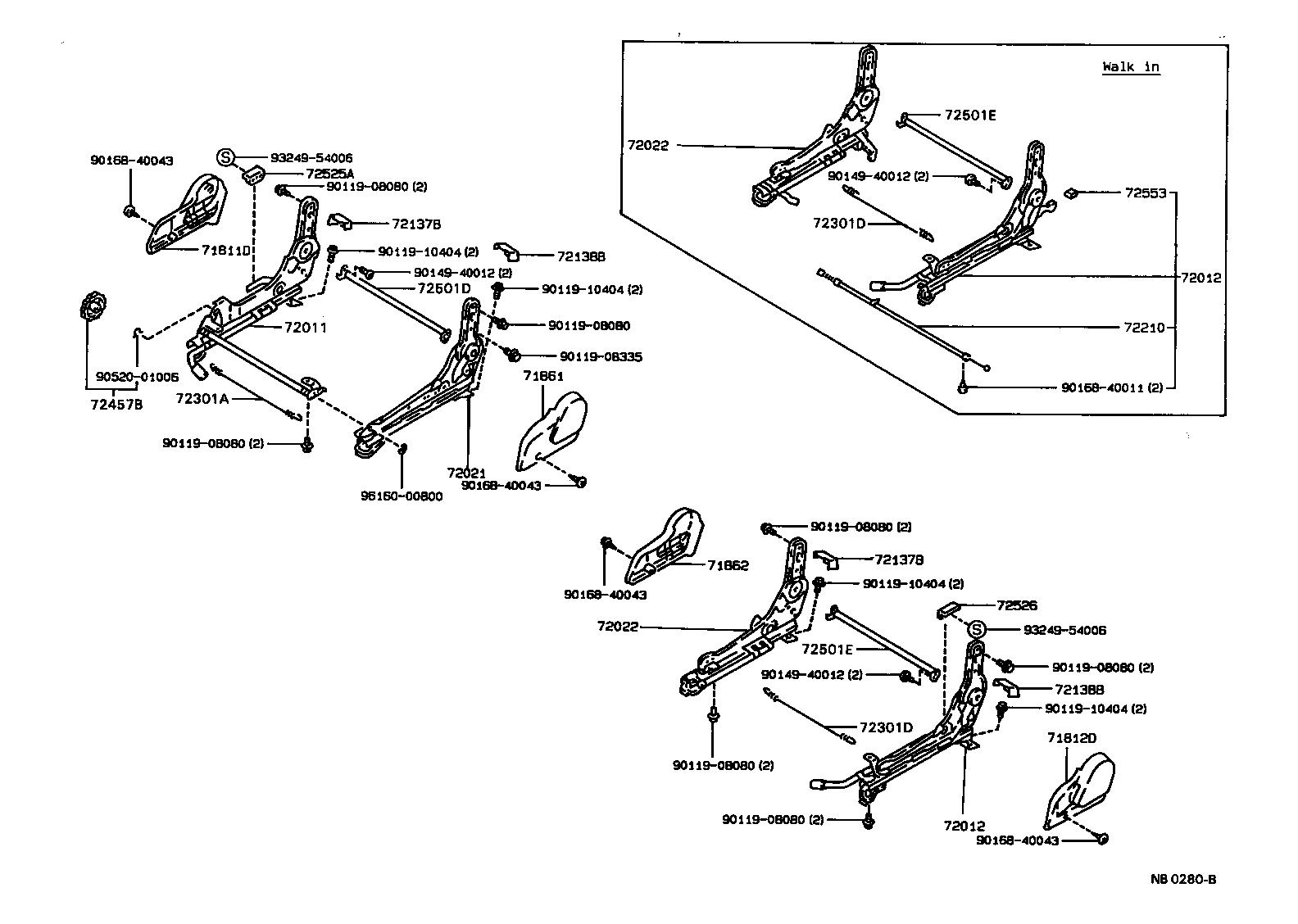

ILLUST NO. 2 OF 2(8705- )FXGT,GT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1218003 |
AE91,92,CE90,96,97,EE9#..CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,L,LT,SE,STD,TX,XE SHADOW GRAY,TRIM1# |
1 | ||
| 71811-1217003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1213003 |
AE91,92,EE90..3D..(FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS) SHADOW GRAY,TRIM1# |
1 | ||
| 71812-1214003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1208003 |
AE91,92,CE90,96,97,EE9#..CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,L,LT,SE,STD,TX,XE SHADOW GRAY,TRIM1# |
1 | ||
| 71861-1212003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1208003 |
AE91,92,CE90,96,97,EE9#..CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,L,LT,SE,STD,TX,XE SHADOW GRAY,TRIM1# |
1 | ||
| 71862-1211003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12310 |
AE91,92,CE90,97,EE90,97..DX,FXGTV,FXL,FXV,FXVS,G,GL,L,LT,TX |
1 | ||
| 72011-12110 |
AE92..FXGT,GT |
1 | ||
| 72010-12310 |
AE9#,CE97,EE97..FXGTV,FXL,FXV,FXVS,G,L,LT |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-12100 |
AE92..GT |
1 | ||
| 72012-12120 |
AE92..FXGT |
1 | ||
| 72020-12520 |
AE91,92,EE90..3D..(FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-12100 |
AE92..GT |
1 | ||
| 72012-12120 |
AE92..FXGT |
1 | ||
| 72020-12520 |
AE91,92,EE90..3D..(FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS) |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-12130 |
AE92..FXGT,GT |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-12120 |
AE92..GT |
1 | ||
| 72022-12140 |
AE92..FXGT |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-12120 |
AE92..GT |
1 | ||
| 72022-12140 |
AE92..FXGT |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-1202003 |
AE91,92,CE90,96,97,EE9# SHADOW GRAY,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-1202003 |
AE91,92,CE90,96,97,EE9# SHADOW GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-1203003 |
AE91,92,CE90,96,97,EE9# SHADOW GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-1203003 |
AE91,92,CE90,96,97,EE9# SHADOW GRAY,TRIM1# |
2 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-12200 |
AE91,92,EE90..3D..(FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS) |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12040 |
AE9#..FXG,FXGT,FXZS |
1 | ||
| 72301-12040 |
AE91,92,CE90..FXGT,FXZI,GT,SE |
1 | ||
| 72301-12040 |
AE91,92,CE90,EE90..FXG,FXGT,FXZS,GT,SE,XE |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12040 |
AE92..FXGT,GT |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12040 |
AE92..FXGT,GT |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-1203003 |
AE91,92,CE90..FXGT,FXZI,GT,SE SHADOW GRAY,TRIM1# |
1 | ||
| 72457-1203003 |
AE92..FXGT,GT SHADOW GRAY,TRIM1# |
1 | ||
| 72457-1203003 |
AE91,92,CE90,EE90..FXG,FXGT,FXZS,GT,SE,XE SHADOW GRAY,TRIM1# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-12050 |
AE92 |
1 | ||
| 72501-12050 |
AE92..FXGT,GT |
1 | ||
| 72501-12090 |
AE92..FXGT,GT |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-12050 |
AE92 |
1 | ||
| 72501-12050 |
AE92..FXGT,GT |
1 | ||
| 72501-12090 |
AE92..FXGT,GT |
1 | ||
| 72501-12050 |
AE92..FXGT |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-12050 |
AE92 |
1 | ||
| 72501-12050 |
AE92..FXGT,GT |
1 | ||
| 72501-12090 |
AE92..FXGT,GT |
1 | ||
| 72501-12050 |
AE92..FXGT |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209003 |
AE9#,CE9#,EE9# GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203003 |
AE9#,CE9#,EE9# GRAY,TRIM1# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12040 |
AE91,92,EE90..3D |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08335 | ||||
| 90119-10404 | ||||
| 90149-40012 | ||||
| 90168-40011 | ||||
| 90168-40043 | ||||
| 90520-01006 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
