AE92-AGMVF (1987)

Toyota Corolla

Production May 1987 - May 1992
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

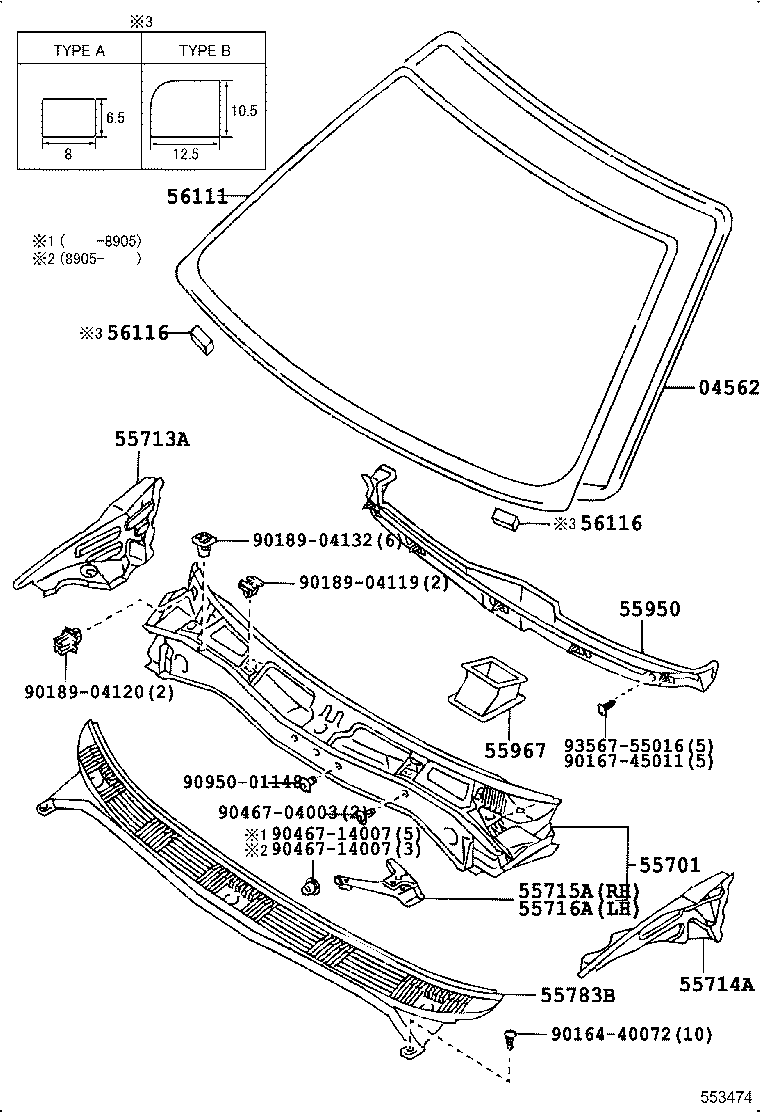

Click highlighted areas on diagram

diagram 04562 55701 55713A 55714A 55715A 55716A 55783B 55950 55967 56111 56116 56116 9016440072 9016745011 9018904119 9018904120 9018904132 9046704003 9046714007 9046714007 9095001148 9356755016
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

AE9#,CE9#,EE9#

 1
04562-12010

AE9#,CE9#,EE9#

 1
55701 - PANEL SUB-ASSY, COWL
55700-12490

AE92

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-12070

AE9#,CE9#,EE9#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-12070

AE9#,CE9#,EE9#

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-12090

AE9#,CE9#,EE9#

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-12090

AE9#,CE9#,EE9#

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55708-12020

AE9#,CE9#,EE9#

 1
55708-12060

AE9#,CE9#,EE9#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55708-12020

AE9#,CE9#,EE9#

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-12100

AE9#,CE9#,EE9#

 1
55950-12100

AE9#,CE9#,EE9#

 1
55967 - NOZZLE, DEFROSTER, LOWER
55967-12010

AE9#,CE9#,EE9#

 1
55967-12010

AE9#,CE9#,EE9#

 1
56111 - GLASS, WINDSHIELD
56111-1A030

AE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,GT,SE,XE

*LAM,T=5.3,ﾌﾞﾛﾝｽﾞ

 1
56111-1A020

AE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,GT,TX,XE

*TL,T=5.3

 1
56111-1A040

AE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,GT,XE

*TL,T=5.3,ｱﾘ(ﾄﾂﾌﾟ ｼｴ-ﾄﾞ)

 1
56111-1A260

AE95..SE;AE91,92,CE90,EE90..FXG,FXGT,FXL,FXZI,GT,SE,XE

*LAM,T=4.7,ﾌﾞﾛﾝｽﾞ

 1
56111-1A260

AE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,GT,SE

*LAM,T=4.7,ﾌﾞﾛﾝｽﾞ

 1
56111-1A230

AE9#,CE9#,EE9#..FXG,FXGT,FXL,FXZI,G,GL,GT,TX,XE

*TL,T=4.7

 1
56111-1A230

AE9#,CE9#,EE9#..FXG,FXGTV,FXL,FXV,FXVS,G,GL,GT,L,LT,TX

*TL,T=4.7

 1
56111-1A230

AE9#,CE9#,EE9#..FXG,FXGTV,FXL,FXV,FXVS,GL,GT,L,LT,TX

*TL,T=4.7

 1
56111-1A270

AE91,92,CE90,EE90..FXG,FXGT,FXL,FXZI,GT,XE

*TL,T=4.7,ｱﾘ(ﾄﾂﾌﾟ ｼｴ-ﾄﾞ)

 1
56111-1A270

AE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,GT,XE

*TL,T=4.7,ｱﾘ(ﾄﾂﾌﾟ ｼｴ-ﾄﾞ)

 1
56111-1A080

AE91,92..FXGT,FXZS

*TL,T=4.7,ｸﾞﾚｰ

 1
56111-1A230

AE9#,CE9#,EE9#..FXG,FXGTV,FXL,FXV,FXVS,GL,L,LT

*TL,T=4.7

 1
56116 - SPACER, WINDSHIELD GLASS
56116-24010

AE9#,CE9#,EE9#

TYPE B:ｲﾗｽﾄ参照

 2
56116-12020

AE9#,CE9#,EE9#

TYPE A:ｲﾗｽﾄ参照

 1
56116-24010

AE9#,CE9#,EE9#

TYPE B:ｲﾗｽﾄ参照

 2
56116-12020

AE9#,CE90,EE90..3D,4D,5D

TYPE A:ｲﾗｽﾄ参照

 1
56116 - SPACER, WINDSHIELD GLASS
56116-24010

AE9#,CE9#,EE9#

TYPE B:ｲﾗｽﾄ参照

 2
56116-12020

AE9#,CE9#,EE9#

TYPE A:ｲﾗｽﾄ参照

 1
56116-24010

AE9#,CE9#,EE9#

TYPE B:ｲﾗｽﾄ参照

 2
56116-12020

AE9#,CE90,EE90..3D,4D,5D

TYPE A:ｲﾗｽﾄ参照

 1
Common parts
90164-40072
90167-45011
90189-04119
90189-04120
90189-04132
90467-04003
90467-14007
90950-01148
93567-55016
