AE92-AGMVF (1987)
Toyota Corolla
(8705- )AE91,92,CE90,EE90

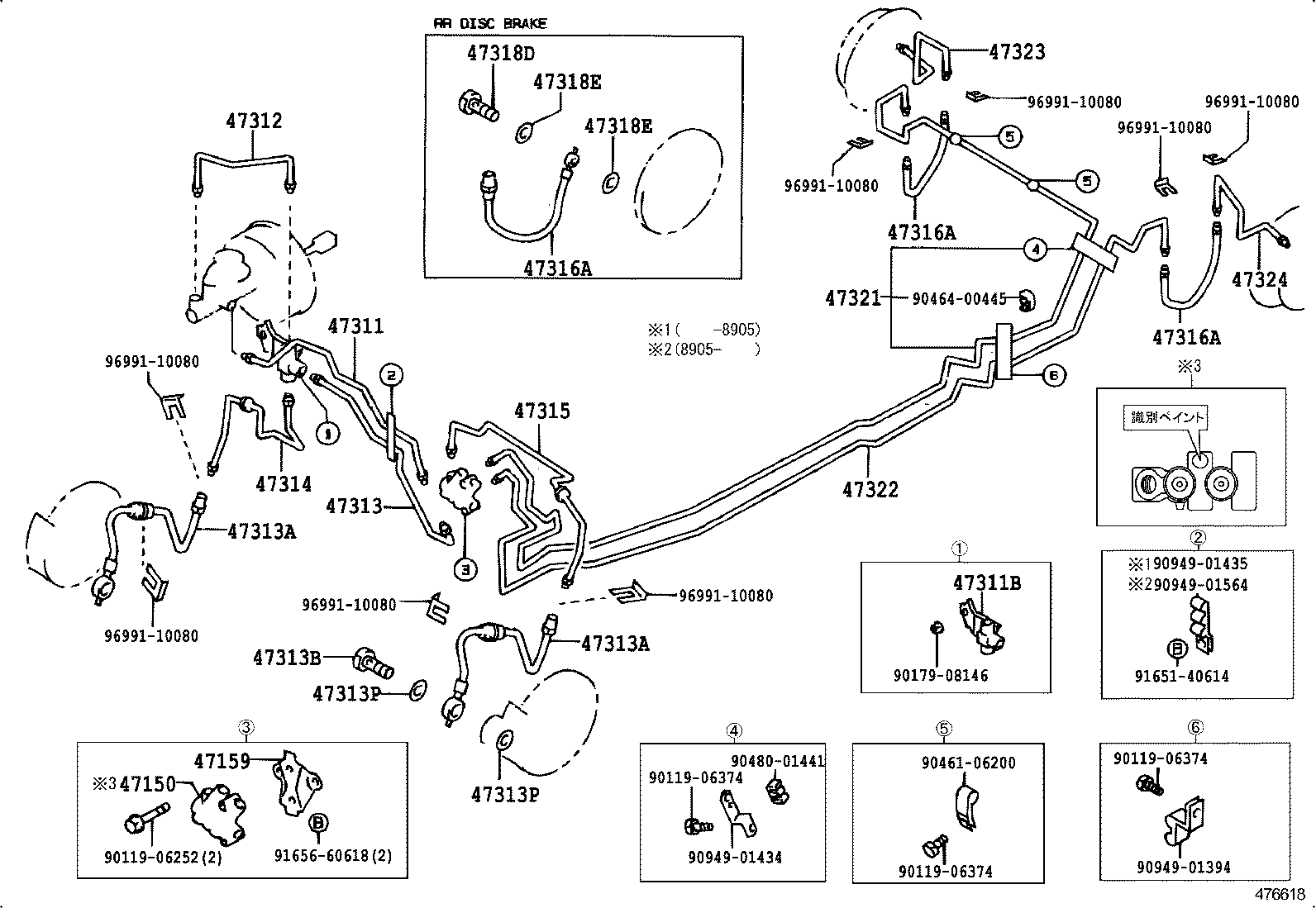

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12091 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) OR ｱﾘ(*66),ﾋﾟﾝｸ ﾍﾟｲﾝﾄ:ｲﾗｽﾄ ｻﾝｼｮｳ |
1 | ||
| 47150-12070 |
AE92 ﾋﾟﾝｸ ﾍﾟｲﾝﾄ:ｲﾗｽﾄ ｻﾝｼｮｳ |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-12050 |
AE9#,CE9#,EE9# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12380 |
AE9#,CE9#,EE9# |
1 | ||
| 47311-12430 |
AE9#,CE9#,EE9# |
1 | ||
| 47311-12430 |
AE9#,CE9#,EE9# |
1 | ||
| 47311-12410 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 47311-12430 |
AE9#,CE90,EE90..3D,4D,5D |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10221 |
AE92 |
1 | ||
| 90412-10116 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 90412-10116 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 90413-10221 |
CE97..L;AE9#,CE90,95..DSL,EFI,EFIS |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12270 |
AE9#,CE9#,EE9# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12240 |
AE9#,CE90,EE90..3D,4D,5D |
1 | ||
| 47313-12220 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 47313-12240 |
AE9#,CE9#,EE9# |
1 | ||
| 47313-12180 |
AE9#,CE9#,EE9# |
1 | ||
| 47313-12240 |
AE9#,CE9#,EE9# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02587 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) OR ｱﾘ(*66) |
2 | ||
| 90947-02587 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) ｱﾘ(ESC) OR ｱﾘ(*66) |
2 | ||
| 90947-02532 |
AE9#,CE9#,EE9# |
2 | ||
| 90947-02532 |
AE9#,CE9#,EE9# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02587 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) OR ｱﾘ(*66) |
2 | ||
| 90947-02587 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) ｱﾘ(ESC) OR ｱﾘ(*66) |
2 | ||
| 90947-02532 |
AE9#,CE9#,EE9# |
2 | ||
| 90947-02532 |
AE9#,CE9#,EE9# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE9#,CE9#,EE9# |
2 | ||
| 90401-10015 |
AE9#,CE9#,EE9# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE9#,CE9#,EE9# |
4 | ||
| 90430-10074 |
AE9#,CE9#,EE9# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE9#,CE9#,EE9# |
4 | ||
| 90430-10074 |
AE9#,CE9#,EE9# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12300 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 47314-12260 |
AE9#,CE9#,EE9# |
1 | ||
| 47314-12260 |
AE9#,CE9#,EE9# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12400 |
AE9#,CE9#,EE9# |
1 | ||
| 47315-12430 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 47315-12400 |
AE9#,CE9#,EE9# |
1 | ||
| 47315-12430 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02541 |
AE92 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02541 |
AE92 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02541 |
AE92 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
4 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12030 |
EE90;AE91,92,CE90..DSL,EFI,EFIS |
1 | ||
| 47321-12030 |
AE92;AE91,CE90,EE90..CBR,DSL |
1 | ||
| 47321-12080 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12180 |
EE90;AE91,92,CE90..DSL,EFI,EFIS |
1 | ||
| 47322-12180 |
AE92;AE91,CE90,EE90..CBR,DSL |
1 | ||
| 47322-12230 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06374 | ||||
| 90179-08146 | ||||
| 90461-06200 | ||||
| 90464-00445 | ||||
| 90480-01441 | ||||
| 90949-01394 | ||||
| 90949-01434 | ||||
| 90949-01435 | ||||
| 90949-01564 | ||||
| 91651-40614 | ||||
| 91656-60618 | ||||
| 96991-10080 | ||||

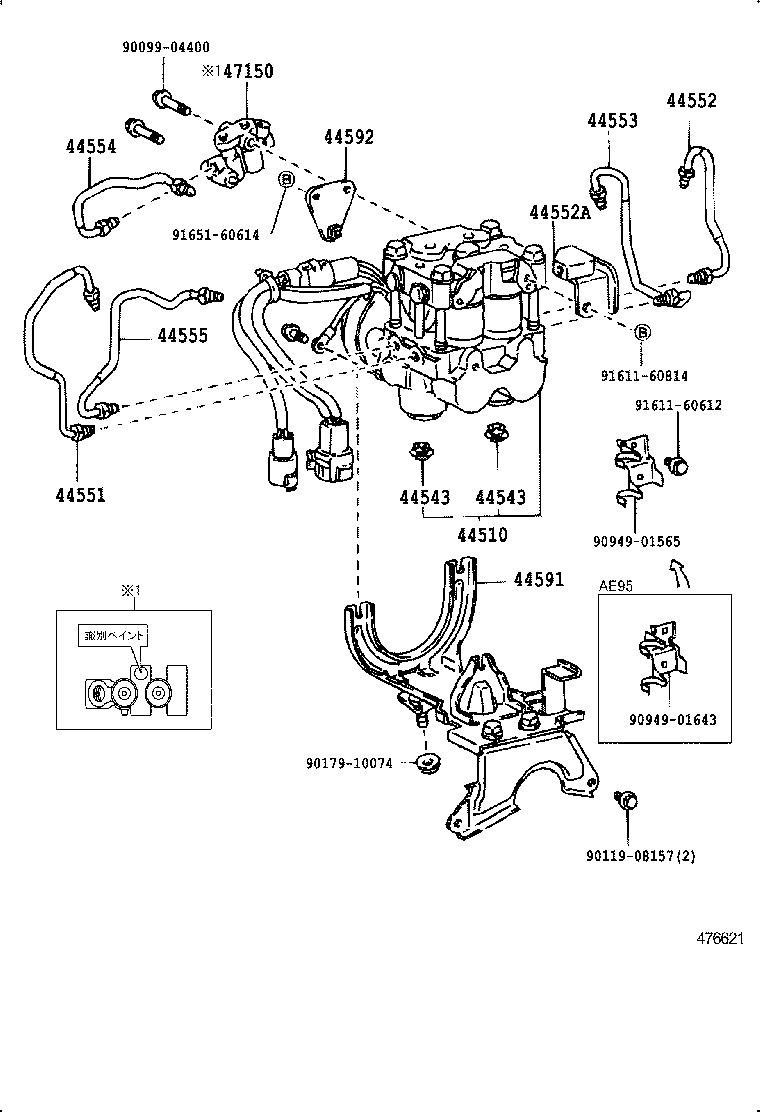

ILLUST NO. 2 OF 2(8905- )AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ;(9008- )AE95
ｱﾘ(ESC) OR ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-12010 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
1 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-14010 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
2 | ||
| 44543-14010 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) |
2 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-14010 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
2 | ||
| 44543-14010 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) |
2 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-12020 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) |
1 | ||
| 44551-12020 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
1 | ||
| 44552 - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-12010 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) |
1 | ||
| 44552-12010 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
1 | ||
| 44552A - WAY, NO.2(FOR BRAKE ACTUATOR) | ||||
| 90413-10215 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) |
1 | ||
| 90413-10215 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
1 | ||
| 44553 - TUBE, BRAKE ACTUATOR, NO.3 | ||||
| 44553-12020 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
1 | ||
| 44553-12020 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) |
1 | ||
| 44554 - TUBE, BRAKE ACTUATOR, NO.4 | ||||
| 44554-20030 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
1 | ||
| 44554-20030 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) |
1 | ||
| 44555 - TUBE, BRAKE ACTUATOR, NO.5 | ||||
| 44555-12010 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
1 | ||
| 44555-12010 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-12010 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
1 | ||
| 44591-12010 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-20010 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
1 | ||
| 44592-20010 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) |
1 | ||
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12091 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) OR ｱﾘ(*66),ﾋﾟﾝｸ ﾍﾟｲﾝﾄ:ｲﾗｽﾄ ｻﾝｼｮｳ |
1 | ||
| 47150-12070 |
AE92 ﾋﾟﾝｸ ﾍﾟｲﾝﾄ:ｲﾗｽﾄ ｻﾝｼｮｳ |
1 | ||
| Common parts | ||||
| 90099-04400 | ||||
| 90119-08157 | ||||
| 90179-10074 | ||||
| 90949-01565 | ||||
| 90949-01643 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91651-60614 | ||||

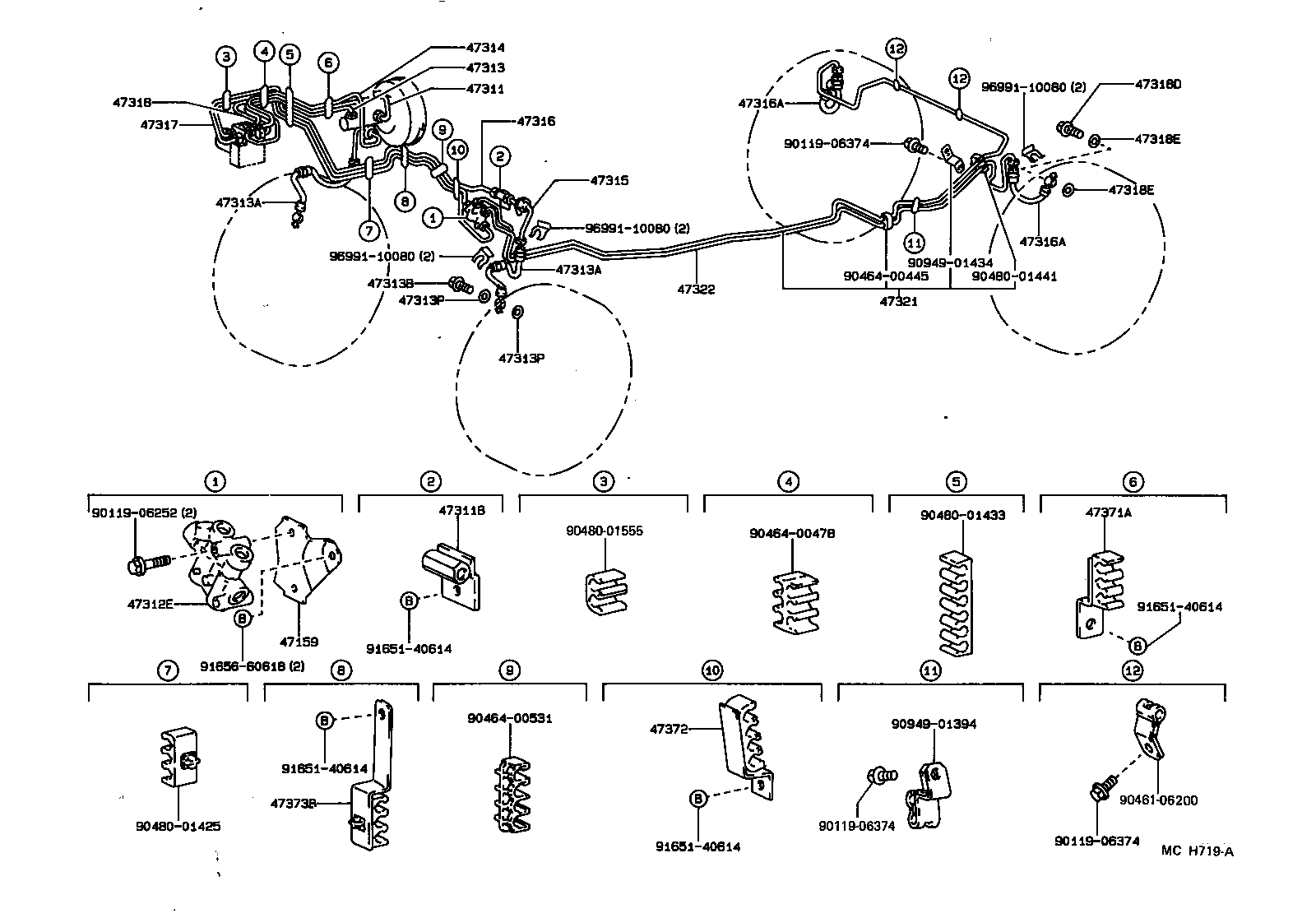

ILLUST NO. 1 OF 2(8905- )AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE
ｱﾘ(ESC) OR ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-12050 |
AE9#,CE9#,EE9# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12380 |
AE9#,CE9#,EE9# |
1 | ||
| 47311-12430 |
AE9#,CE9#,EE9# |
1 | ||
| 47311-12430 |
AE9#,CE9#,EE9# |
1 | ||
| 47311-12410 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 47311-12430 |
AE9#,CE90,EE90..3D,4D,5D |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10221 |
AE92 |
1 | ||
| 90412-10116 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 90412-10116 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 90413-10221 |
CE97..L;AE9#,CE90,95..DSL,EFI,EFIS |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10140 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) |
1 | ||
| 90412-10140 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12240 |
AE9#,CE90,EE90..3D,4D,5D |
1 | ||
| 47313-12220 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 47313-12240 |
AE9#,CE9#,EE9# |
1 | ||
| 47313-12180 |
AE9#,CE9#,EE9# |
1 | ||
| 47313-12240 |
AE9#,CE9#,EE9# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02587 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) OR ｱﾘ(*66) |
2 | ||
| 90947-02587 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) ｱﾘ(ESC) OR ｱﾘ(*66) |
2 | ||
| 90947-02532 |
AE9#,CE9#,EE9# |
2 | ||
| 90947-02532 |
AE9#,CE9#,EE9# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02587 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) OR ｱﾘ(*66) |
2 | ||
| 90947-02587 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) ｱﾘ(ESC) OR ｱﾘ(*66) |
2 | ||
| 90947-02532 |
AE9#,CE9#,EE9# |
2 | ||
| 90947-02532 |
AE9#,CE9#,EE9# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE9#,CE9#,EE9# |
2 | ||
| 90401-10015 |
AE9#,CE9#,EE9# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE9#,CE9#,EE9# |
4 | ||
| 90430-10074 |
AE9#,CE9#,EE9# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE9#,CE9#,EE9# |
4 | ||
| 90430-10074 |
AE9#,CE9#,EE9# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12300 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 47314-12260 |
AE9#,CE9#,EE9# |
1 | ||
| 47314-12260 |
AE9#,CE9#,EE9# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12400 |
AE9#,CE9#,EE9# |
1 | ||
| 47315-12430 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 47315-12400 |
AE9#,CE9#,EE9# |
1 | ||
| 47315-12430 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-12170 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02541 |
AE92 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02541 |
AE92 |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12020 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12160 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
4 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12030 |
EE90;AE91,92,CE90..DSL,EFI,EFIS |
1 | ||
| 47321-12030 |
AE92;AE91,CE90,EE90..CBR,DSL |
1 | ||
| 47321-12080 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12180 |
EE90;AE91,92,CE90..DSL,EFI,EFIS |
1 | ||
| 47322-12180 |
AE92;AE91,CE90,EE90..CBR,DSL |
1 | ||
| 47322-12230 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12030 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
1 | ||
| 47371-12030 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-12040 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) |
1 | ||
| 47371-12040 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-12050 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE |
1 | ||
| 47371-12050 |
AE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE) |
1 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06374 | ||||
| 90461-06200 | ||||
| 90464-00445 | ||||
| 90464-00478 | ||||
| 90464-00531 | ||||
| 90480-01425 | ||||
| 90480-01433 | ||||
| 90480-01441 | ||||
| 90480-01555 | ||||
| 90949-01394 | ||||
| 90949-01434 | ||||
| 91651-40614 | ||||
| 91656-60618 | ||||
| 96991-10080 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
