AE92-AEPVF (1987)

Toyota Corolla

Production May 1987 - Jun 1991
Engine 4AGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

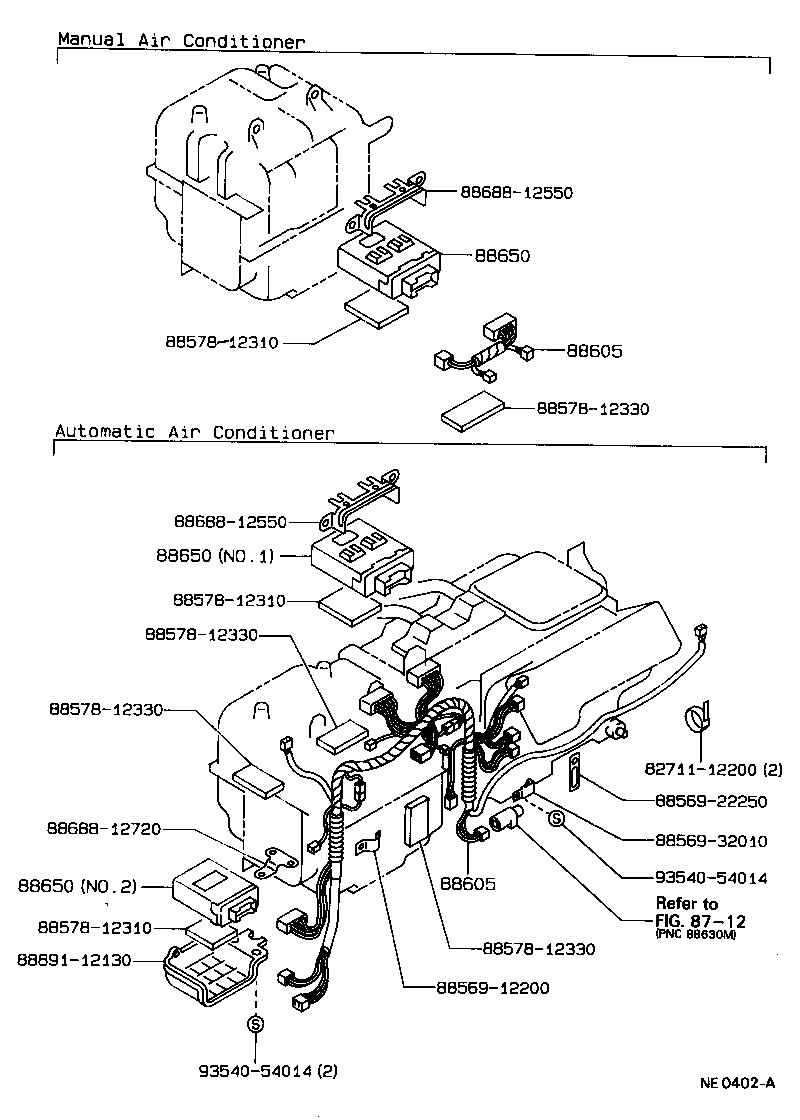

ILLUST NO. 2 OF 2(8705- )

Click highlighted areas on diagram

diagram 8271112200 8712 8856912200 8856922250 8856932010 8857812310 8857812310 8857812310 8857812330 8857812330 8857812330 8857812330 88605 88605 88650 88650 88650 8868812550 8868812550 8868812720 8889112130 9354054014 9354054014
Part # Description Qty Price
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1A440

AE92

 1
88605-1A490

AE92

ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)

 1
88605-1A440

AE92

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1A440

AE92

 1
88605-1A490

AE92

ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)

 1
88605-1A440

AE92

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-12600

AE92

 1
88650-12800

CE90..SE;AE91,92..FXG,FXGT,FXZI,G,GT

NO.2

 1
88650-12800

AE91,CE90..(SE,TX,XE)..(DSL,EFI);AE9#..FXG,FXGT,FXL,FXZI,G,GT,TX,XE

NO.2

 1
88650-12800

AE95;AE91,92,CE90..(4FC,5F)..(FXGT,G,GT,TX,XE)

NO.2

 1
88650-12601

AE92..FXGT,GT

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-12600

AE92

 1
88650-12800

CE90..SE;AE91,92..FXG,FXGT,FXZI,G,GT

NO.2

 1
88650-12800

AE91,CE90..(SE,TX,XE)..(DSL,EFI);AE9#..FXG,FXGT,FXL,FXZI,G,GT,TX,XE

NO.2

 1
88650-12800

AE95;AE91,92,CE90..(4FC,5F)..(FXGT,G,GT,TX,XE)

NO.2

 1
88650-12601

AE92..FXGT,GT

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-12600

AE92

 1
88650-12800

CE90..SE;AE91,92..FXG,FXGT,FXZI,G,GT

NO.2

 1
88650-12800

AE91,CE90..(SE,TX,XE)..(DSL,EFI);AE9#..FXG,FXGT,FXL,FXZI,G,GT,TX,XE

NO.2

 1
88650-12800

AE95;AE91,92,CE90..(4FC,5F)..(FXGT,G,GT,TX,XE)

NO.2

 1
88650-12601

AE92..FXGT,GT

 1
Common parts
82711-12200
88569-12200
88569-22250
88569-32010
88578-12310
88578-12330
88688-12550
88688-12720
88891-12130
93540-54014
Linked diagrams
8712

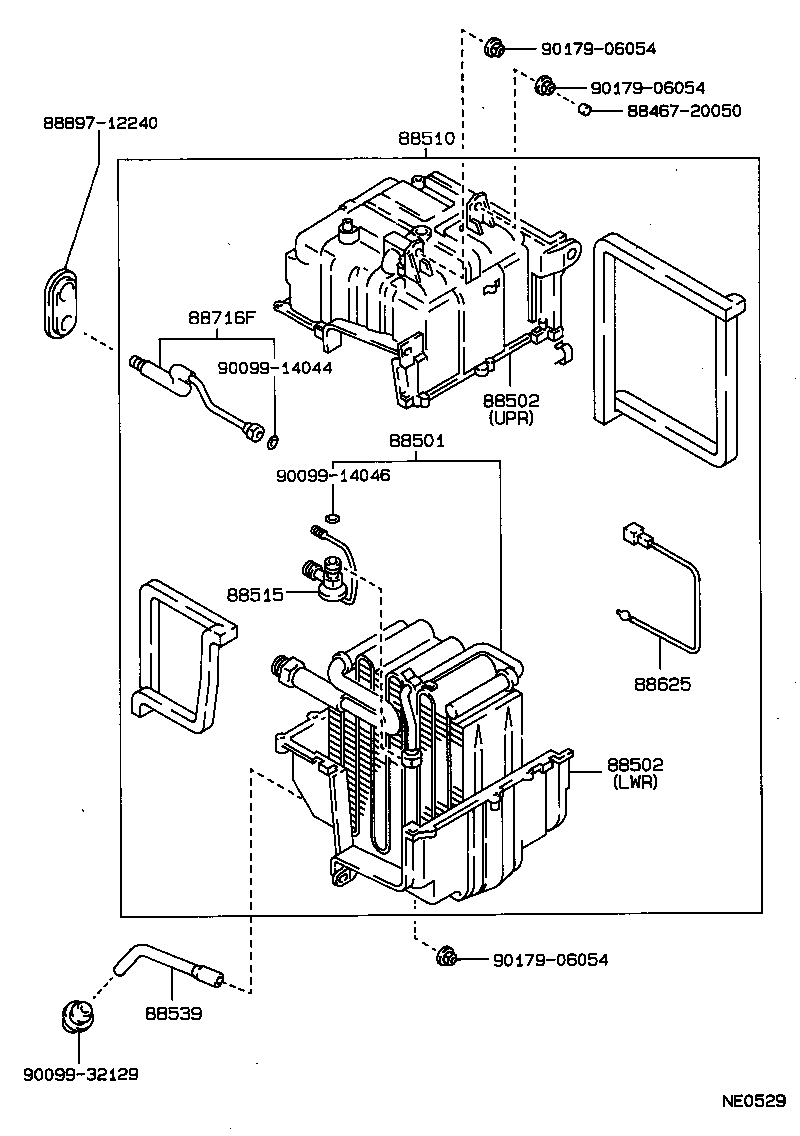

ILLUST NO. 1 OF 2(8705- )

Click highlighted areas on diagram

diagram 8846720050 88501 88502 88502 88510 88515 88539 88625 88716F 8889712240 9009914044 9009914046 9009932129 9017906054 9017906054 9017906054
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12330

CE90..5F..(SE,XE);CE90..4FC..(SE,TX,XE);AE9#,CE95..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,LT,SE,TX,XE

 1
88501-12330

AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE

 1
88501-12330

AE9#,CE90..FXG,FXGT,FXL,FXZI,G,GT,SE,TX,XE

 1
88510 - UNIT ASSY, COOLER
88510-12830

AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE

 1
88515 - VALVE, COOLER EXPANSION
88515-16040

AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12090

AE9#,CE90..FXG,FXGT,FXL,FXZI,G,GT,SE,TX,XE

 1
88539-12090

CE90..5F..(SE,XE);CE90..4FC..(SE,TX,XE);AE9#,CE95..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,LT,SE,TX,XE

 1
88539-12090

AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE

 1
88625 - THERMISTOR, COOLER, NO.1
88625-32040

AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88726-12300

AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE

 1
Common parts
88467-20050
88897-12240
90099-14044
90099-14046
90099-32129
90179-06054
