AE92-AEPVF (1987)
Toyota Corolla
(8705- )

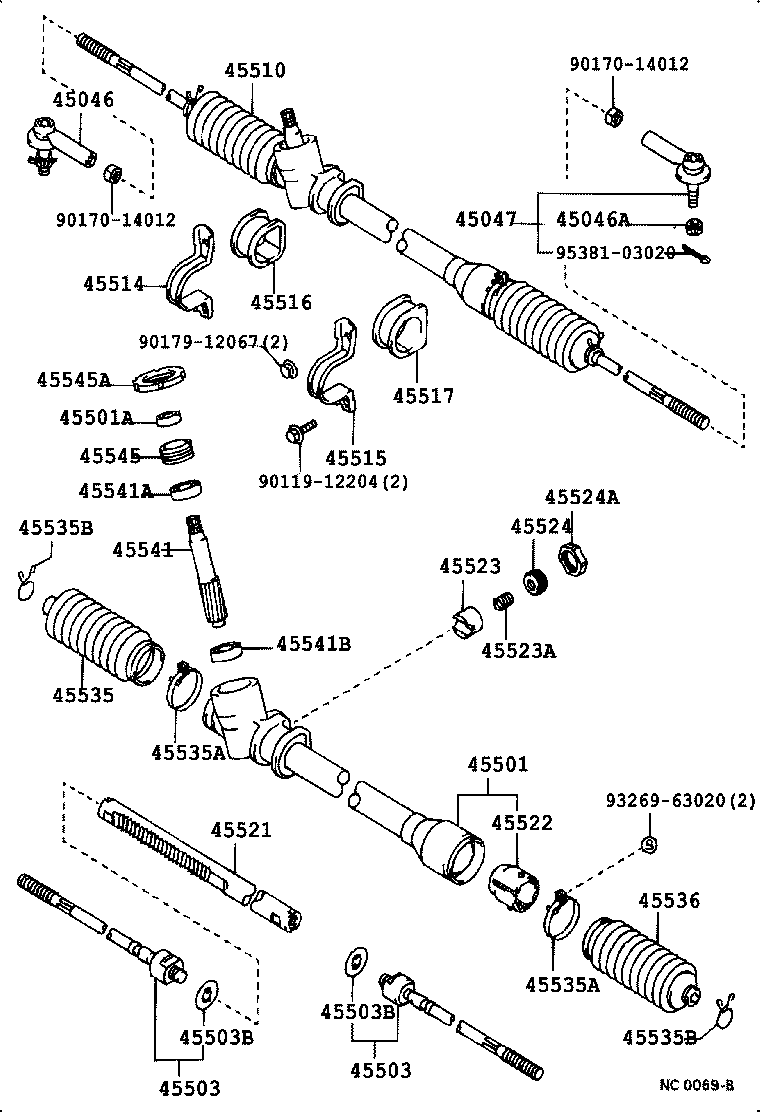

ﾏﾆｭｱﾙ ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
AE9#,CE9#,EE9# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE9#,CE9#,EE9# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AE9#,CE9#,EE9# |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19135 |
EE96;EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
CE95;AE91..G..EFI;AE9#,CE90..FXGT,FXVS,FXZI,FXZS,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19135 |
EE96;EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
CE95;AE91..G..EFI;AE9#,CE90..FXGT,FXVS,FXZI,FXZS,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE9#,CE9#,EE9# 外径=35.2 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE9#,CE9#,EE9# 外径=35.2 |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-12190 |
AE9#,CE9#..(4FC,5F)..(DX,FXG,FXGTV,FXV,G,GL,STD,TX) |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12070 |
CE95;AE91..G..EFI;AE9#,CE90..FXGT,FXVS,FXZI,FXZS,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45514-12070 |
EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12140 |
EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45515-12140 |
CE95;AE91..G..EFI;AE9#,CE90..FXGT,FXVS,FXZI,FXZS,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-20010 |
EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45516-20010 |
AE9#,CE9#,EE9# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12110 |
AE9#,CE90..FXGT,FXZI,GT,SE,XE |
1 | ||
| 45517-12110 |
CE95;AE9#,CE90..(FXGT,FXVS,FXZS,G,GT,SE,XE)..(DSL,EFI,EFIS) |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-12090 |
AE9#,CE9#..(4FC,5F)..(DX,FXG,FXGTV,FXV,G,GL,STD,TX) |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-16040 |
CE95;AE91..G..EFI;AE9#,CE90..FXGT,FXVS,FXZI,FXZS,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45523-16040 |
EE96;EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-26042 |
CE95;AE91..G..EFI;AE9#,CE90..FXGT,FXVS,FXZI,FXZS,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90501-26042 |
EE96;EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-12030 |
CE95;AE91..G..EFI;AE9#,CE90..FXGT,FXVS,FXZI,FXZS,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524-12030 |
EE96;EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-32001 |
EE96;EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90179-32001 |
CE95;AE91..G..EFI;AE9#,CE90..FXGT,FXVS,FXZI,FXZS,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12050 |
CE95;AE91..G..EFI;AE9#,CE90..FXGT,FXVS,FXZI,FXZS,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45535-12050 |
EE96;EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55009 |
AE91,92..(4D,5D)..EFI ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 90460-55009 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE POWER STEERING |
2 | ||
| 90460-55009 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ);POWER STEERING |
2 | ||
| 90460-55009 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55009 |
AE91,92..(4D,5D)..EFI ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 90460-55009 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE POWER STEERING |
2 | ||
| 90460-55009 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ);POWER STEERING |
2 | ||
| 90460-55009 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE9#,CE9#,EE9# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE9#,CE9#,EE9# |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-12050 |
EE96;EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45535-12050 |
CE95;AE91..G..EFI;AE9#,CE90..FXGT,FXVS,FXZI,FXZS,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45541 - PINION, STEERING | ||||
| 45541-12030 |
AE9#,CE9#..(4FC,5F)..(DX,FXG,FXGTV,FXV,G,GL,STD,TX) |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15003 |
EE90;AE9#,CE9#,EE96,97,98..DX,FXG,FXGTV,FXL,FXV,G,GL,STD,TX |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-13001 |
EE90;AE9#,CE9#,EE96,97,98..DX,FXG,FXGTV,FXL,FXV,G,GL,STD,TX |
1 | ||
| Common parts | ||||
| 90119-12204 | ||||
| 90170-14012 | ||||
| 90179-12067 | ||||
| 93269-63020 | ||||
| 95381-03020 | ||||
ILLUST NO. 1 OF 2(8705- )
ﾊﾟﾜｰ ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-12050 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 04445-12050 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 04445-12050 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 04445-12050 |
CE96,EE96,98;AE9#,CE90,95,97,EE90,97..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,L,LT,SE,TX,XE |
1 | ||
| 04445-12050 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGTV,FXL,FXV,FXVS,FXZS,G,SE,TX,XE |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-12030 |
CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 04455-12030 |
EE96;CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 04455-12030 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 04455-12030 |
CE96,EE96,98;AE9#,CE90,95,97,EE90,97..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,L,LT,SE,TX,XE |
1 | ||
| 04455-12030 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGTV,FXL,FXV,FXVS,FXZS,G,SE,TX,XE |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-12200 |
AE92 |
1 | ||
| 44250-12200 |
AE92,EE90,97..FXGT,FXGTV,GT,L,TX,XE |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
AE9#,CE9#,EE9# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE9#,CE9#,EE9# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AE9#,CE9#,EE9# |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12070 |
CE95;AE91..G..EFI;AE9#,CE90..FXGT,FXVS,FXZI,FXZS,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45514-12070 |
EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12140 |
EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45515-12140 |
CE95;AE91..G..EFI;AE9#,CE90..FXGT,FXVS,FXZI,FXZS,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-20010 |
EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45516-20010 |
AE9#,CE9#,EE9# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12110 |
AE9#,CE90..FXGT,FXZI,GT,SE,XE |
1 | ||
| 45517-12110 |
CE95;AE9#,CE90..(FXGT,FXVS,FXZS,G,GT,SE,XE)..(DSL,EFI,EFIS) |
1 | ||
| Common parts | ||||
| 90119-12204 | ||||
| 90170-14012 | ||||
| 90179-12067 | ||||
| 95381-03020 | ||||
ILLUST NO. 2 OF 2(8705- )
ﾊﾟﾜｰ ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-12130 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 44201-12130 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE |
1 | ||
| 44201-12130 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44201-12130 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 90179-10048 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 90179-10048 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE |
1 | ||
| 90179-10048 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 90179-10048 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33001 |
AE91,92..(4D,5D)..EFI |
4 | ||
| 90562-33001 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
4 | ||
| 90562-33001 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
4 | ||
| 90562-33001 |
CE96,EE96,98;AE9#,CE90,95,97,EE90,97..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,L,LT,SE,TX,XE |
4 | ||
| 90562-33001 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGTV,FXL,FXV,FXVS,FXZS,G,SE,TX,XE |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33001 |
AE91,92..(4D,5D)..EFI |
4 | ||
| 90562-33001 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
4 | ||
| 90562-33001 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
4 | ||
| 90562-33001 |
CE96,EE96,98;AE9#,CE90,95,97,EE90,97..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,L,LT,SE,TX,XE |
4 | ||
| 90562-33001 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGTV,FXL,FXV,FXVS,FXZS,G,SE,TX,XE |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33001 |
AE91,92..(4D,5D)..EFI |
4 | ||
| 90562-33001 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
4 | ||
| 90562-33001 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
4 | ||
| 90562-33001 |
CE96,EE96,98;AE9#,CE90,95,97,EE90,97..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,L,LT,SE,TX,XE |
4 | ||
| 90562-33001 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGTV,FXL,FXV,FXVS,FXZS,G,SE,TX,XE |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33001 |
AE91,92..(4D,5D)..EFI |
4 | ||
| 90562-33001 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
4 | ||
| 90562-33001 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
4 | ||
| 90562-33001 |
CE96,EE96,98;AE9#,CE90,95,97,EE90,97..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,L,LT,SE,TX,XE |
4 | ||
| 90562-33001 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGTV,FXL,FXV,FXVS,FXZS,G,SE,TX,XE |
4 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19005 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE |
1 | ||
| 90311-19010 |
AE92 |
1 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90364-19005 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 90364-19005 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 90364-19005 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 90364-19005 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE |
1 | ||
| 44201J - BEARING(FOR POWER STEERING CONTROL VALVE CENTER) | ||||
| 90364-22006 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 90364-22006 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 90364-22006 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 90364-22006 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12006 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 90363-12006 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 90363-12006 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGTV,FXL,FXV,FXVS,FXZS,G,SE,TX,XE |
1 | ||
| 90363-12006 |
CE96,EE96,98;AE9#,CE90,95,97,EE90,97..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,L,LT,SE,TX,XE |
1 | ||
| 90363-12006 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-12100 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 44204-12100 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44204-12100 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE |
1 | ||
| 44204-12100 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-34006 |
AE91,92..(4D,5D)..EFI KOYO,INNER |
1 | ||
| 90562-37003 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE KOYO,OUTER |
1 | ||
| 90562-37003 |
AE91,92..(4D,5D)..EFI KOYO,OUTER |
1 | ||
| 90301-34006 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE KOYO,INNER |
1 | ||
| 90562-37003 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE KOYO,OUTER |
1 | ||
| 90562-37003 |
AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,GT,SE,TX,XE 外側 |
1 | ||
| 90301-34006 |
AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,GT,SE,TX,XE 内側 |
1 | ||
| 90301-34006 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE KOYO,INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-34006 |
AE91,92..(4D,5D)..EFI KOYO,INNER |
1 | ||
| 90562-37003 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE KOYO,OUTER |
1 | ||
| 90562-37003 |
AE91,92..(4D,5D)..EFI KOYO,OUTER |
1 | ||
| 90301-34006 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE KOYO,INNER |
1 | ||
| 90562-37003 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE KOYO,OUTER |
1 | ||
| 90562-37003 |
AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,GT,SE,TX,XE 外側 |
1 | ||
| 90301-34006 |
AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,GT,SE,TX,XE 内側 |
1 | ||
| 90301-34006 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE KOYO,INNER |
1 | ||
| 44205 - STOPPER SUB-ASSY, CYLINDER END | ||||
| 44205-12050 |
CE96,EE96,98;AE9#,CE90,95,97,EE90,97..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,L,LT,SE,TX,XE |
1 | ||
| 44205-12050 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGTV,FXL,FXV,FXVS,FXZS,G,SE,TX,XE |
1 | ||
| 44205-12050 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44205-12050 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 44205-12050 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44205A - RING, O(FOR CYLINDER END STOPPER) | ||||
| 96711-31035 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 96711-31035 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 96711-31035 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 96711-31035 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE |
1 | ||
| 44205B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90311-24008 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 90311-24008 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 90311-24008 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 90311-24008 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE |
1 | ||
| 44209B - SPACER(FOR POWER STEERING CYLINDER HOUSING) | ||||
| 90561-25009 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE |
1 | ||
| 90561-25009 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 90561-25009 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 90561-25009 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-12180 |
AE92 |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-05007 |
AE92 OD=7.69-7.71 |
1 | ||
| 90410-05006 |
AE92 OD=7.71-7.73 |
1 | ||
| 44210D - RING, HOLE SNAP(FOR POWER STEERING CONTROL VALVE) | ||||
| 96151-03200 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 96151-03200 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE |
1 | ||
| 96151-03200 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 96151-03200 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 96151-03200 |
EE90..FXD,FXL,TX,XE;AE9#,CE90..FXG,FXGT,FXL,GT,TX |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-26003 |
EE90..FXD,FXL,TX,XE;AE9#,CE90..FXG,FXGT,FXL,GT,TX |
1 | ||
| 90311-26003 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 90311-26003 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 90311-26003 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE |
1 | ||
| 90311-26003 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-12130 |
AE92 |
1 | ||
| 44218 - GASKET, VALVE HOUSING | ||||
| 44218-12020 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 44218-12020 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44218-12020 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44218-12020 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-12090 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 44240-12090 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGTV,FXL,FXV,FXVS,FXZS,G,SE,TX,XE |
1 | ||
| 44240-12090 |
CE96,EE96,98;AE9#,CE90,95,97,EE90,97..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,L,LT,SE,TX,XE |
1 | ||
| 44240-12090 |
CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44240-12090 |
EE96;CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44253F - SEAL, OIL, NO.1(FOR POWER STEERING RACK HOUSING) | ||||
| 90311-24007 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 90311-24007 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 90311-24007 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE |
1 | ||
| 90311-24007 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-12050 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 44275-12050 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44275-12050 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44275-12050 |
CE96,EE96,98;AE9#,CE90,95,97,EE90,97..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,L,LT,SE,TX,XE |
1 | ||
| 44275-12050 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGTV,FXL,FXV,FXVS,FXZS,G,SE,TX,XE |
1 | ||
| 44275C - WIRE(FOR CYLINDER END STOPPER) | ||||
| 90580-18002 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 90580-18002 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 90580-18002 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 90580-18002 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-16010 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 44283-16010 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44283-16010 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44283-16010 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-12120 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 44418-12120 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44418-12120 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE |
1 | ||
| 44418-12120 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE |
4 | ||
| 90301-03001 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
4 | ||
| 90301-03001 |
AE91,92..(4D,5D)..EFI |
4 | ||
| 90301-03001 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE |
4 | ||
| 90301-03001 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
4 | ||
| 90301-03001 |
AE91,92..(4D,5D)..EFI |
4 | ||
| 90301-03001 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-12110 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 44419-12110 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 44419-12110 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE |
1 | ||
| 44419-12110 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-12080 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE |
1 | ||
| 45222-12080 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 45222-12080 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 45222-12080 |
AE91,92..(4D,5D)..EFI |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19135 |
EE96;EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
CE95;AE91..G..EFI;AE9#,CE90..FXGT,FXVS,FXZI,FXZS,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19135 |
EE96;EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
CE95;AE91..G..EFI;AE9#,CE90..FXGT,FXVS,FXZI,FXZS,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE9#,CE9#,EE9# 外径=35.2 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE9#,CE9#,EE9# 外径=35.2 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-16040 |
CE95;AE91..G..EFI;AE9#,CE90..FXGT,FXVS,FXZI,FXZS,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45523-16040 |
EE96;EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-26042 |
CE95;AE91..G..EFI;AE9#,CE90..FXGT,FXVS,FXZI,FXZS,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90501-26042 |
EE96;EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-12030 |
CE95;AE91..G..EFI;AE9#,CE90..FXGT,FXVS,FXZI,FXZS,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524-12030 |
EE96;EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-32001 |
EE96;EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90179-32001 |
CE95;AE91..G..EFI;AE9#,CE90..FXGT,FXVS,FXZI,FXZS,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12050 |
CE95;AE91..G..EFI;AE9#,CE90..FXGT,FXVS,FXZI,FXZS,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45535-12050 |
EE96;EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55009 |
AE91,92..(4D,5D)..EFI ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 90460-55009 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE POWER STEERING |
2 | ||
| 90460-55009 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ);POWER STEERING |
2 | ||
| 90460-55009 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55009 |
AE91,92..(4D,5D)..EFI ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 90460-55009 |
EE96;CE96,97,EE97,98..DX,GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,TX,XE POWER STEERING |
2 | ||
| 90460-55009 |
EE96;AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ);POWER STEERING |
2 | ||
| 90460-55009 |
AE95,CE90..SE,TX,XE;CE96,97,EE97,98..DX,GL;AE91,92,EE90..FXD,FXG,FXGT,FXL,FXZI,G,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE9#,CE9#,EE9# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE9#,CE9#,EE9# |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-12050 |
EE96;EE90..TX,XE;CE96,97,EE97,98..DX,GL;AE9#,CE90..FXG,FXGTV,FXL,FXV,G,TX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45535-12050 |
CE95;AE91..G..EFI;AE9#,CE90..FXGT,FXVS,FXZI,FXZS,GT,SE,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| Common parts | ||||
| 91611-60825 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
