AE92-AEPVF (1987)
Toyota Corolla
(8705- )4FC
A240L,A240E,A241L,A241H

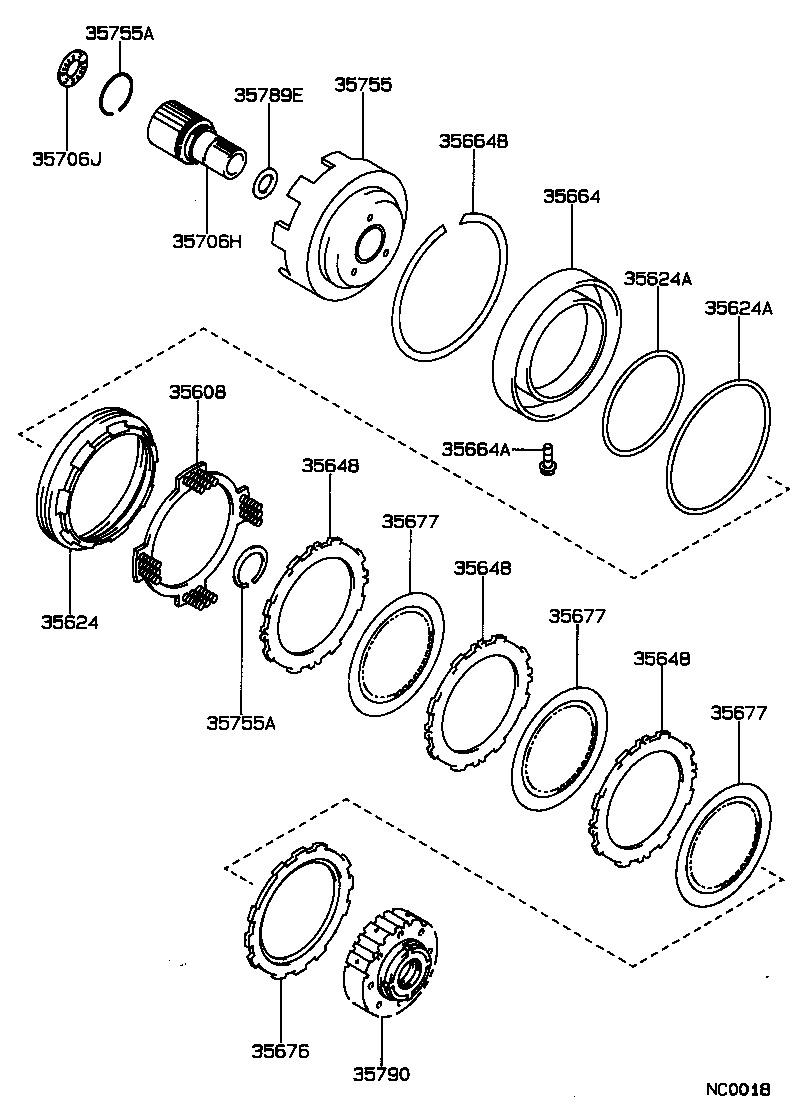

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-32010 |
AE9#,EE90..ATM..(FXGT,FXL,GT,TX,XE) |
1 | ||
| 35608-32010 |
AE9#,CE90,96,EE90,98..ATM..(DX,FXG,FXGT,FXL,G,GL,GT,SE,TX,XE) |
1 | ||
| 35624 - PISTON, 2ND BRAKE | ||||
| 35624-32010 |
AE9#,CE90,96,EE90,98..ATM..(DX,FXG,FXGT,FXL,G,GL,GT,SE,TX,XE) |
1 | ||
| 35624-32010 |
AE9#,EE90..ATM..(FXGT,FXL,GT,TX,XE) |
1 | ||
| 35624A - RING, O (FOR 2ND BRAKE PISTON) | ||||
| 90301-99023 |
AE9#,EE90..ATM..(FXGT,FXL,FXZI,GT,TX,XE) 外側 |
1 | ||
| 90301-99021 |
AE9#,EE90..ATM..(FXGT,FXL,FXZI,GT,TX,XE) 内側 |
1 | ||
| 35624A - RING, O (FOR 2ND BRAKE PISTON) | ||||
| 90301-99023 |
AE9#,EE90..ATM..(FXGT,FXL,FXZI,GT,TX,XE) 外側 |
1 | ||
| 90301-99021 |
AE9#,EE90..ATM..(FXGT,FXL,FXZI,GT,TX,XE) 内側 |
1 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35648-32010 |
AE92,95..4FC 厚さ=1.8 |
3 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35648-32010 |
AE92,95..4FC 厚さ=1.8 |
3 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35648-32010 |
AE92,95..4FC 厚さ=1.8 |
3 | ||
| 35664 - CYLINDER, 2ND BRAKE | ||||
| 35664-32010 |
AE9#,CE90,96,EE90,98..ATM..(DX,FXG,FXGT,FXL,G,GL,GT,SE,TX,XE) |
1 | ||
| 35664-32010 |
AE9#,EE90..ATM..(FXGT,FXL,GT,TX,XE) |
1 | ||
| 35664A - BOLT (FOR 2ND BRAKE CYLINDER) | ||||
| 90109-06060 |
AE9#,CE90,96,97,EE90,96,98..ATM |
1 | ||
| 35664B - RING, HOLE SNAP (FOR 2ND BRAKE CYLINDER) | ||||
| 90521-99013 |
AE9#,CE90,96,EE90,98..ATM..(DX,FXG,FXGT,FXL,G,GL,GT,SE,TX,XE) |
1 | ||
| 90521-99013 |
AE9#,EE90..ATM..(FXGT,FXL,GT,TX,XE) |
1 | ||
| 35676 - FLANGE, BRAKE (FOR 2ND BRAKE) | ||||
| 35676-32010 |
AE9#,CE9#,EE90,98..ATM 厚さ=3.5 |
1 | ||
| 35676-32010 |
AE9#,EE90..ATM..(FXGT,FXL,GT,TX,XE) 厚さ=3.5 |
1 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35677-32050 |
AE92..4FC |
3 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35677-32050 |
AE92..4FC |
3 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35677-32050 |
AE92..4FC |
3 | ||
| 35706H - GEAR SUB-ASSY, PLANETARY SUN | ||||
| 35706-32012 |
AE9#,CE9#,EE90,98..ATM |
1 | ||
| 35706-32012 |
AE9#,CE9#,EE90,98..ATM |
1 | ||
| 35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR) | ||||
| 90374-30006 |
AE9#,CE90,96,97,EE90,96,98..ATM |
1 | ||
| 35755 - DRUM, SUN GEAR INPUT | ||||
| 35755-32020 |
AE9#,CE90,96,97,EE90,96,98..ATM |
1 | ||
| 35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM) | ||||
| 90520-47003 |
AE91..ATM..(FXL,FXZI,TX,XE);AE92,95,CE90,96,EE90,98..ATM 厚さ=2.3,内径=47.1,WD=2.3, ID=47.1 |
1 | ||
| 90520-44002 |
AE9#,CE9#,EE90,98..ATM 厚さ=1.2,内径=44.0,T=1.2, ID=44.0 |
1 | ||
| 90520-44002 |
AE9#,CE90,EE90..(3D,4D,5D)..ATM 厚さ=1.2,内径=44.0,T=1.2,ID=44.0 |
1 | ||
| 90520-47003 |
AE9#,CE9#,EE90,98..ATM 厚さ=2.3,内径=47.1,WD=2.3, ID=47.1 |
1 | ||
| 90520-47003 |
AE9#,CE90,EE90..(3D,4D,5D)..ATM 厚さ=2.3,内径=47.1,T=2.3,ID=47.1 |
1 | ||
| 35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM) | ||||
| 90520-47003 |
AE91..ATM..(FXL,FXZI,TX,XE);AE92,95,CE90,96,EE90,98..ATM 厚さ=2.3,内径=47.1,WD=2.3, ID=47.1 |
1 | ||
| 90520-44002 |
AE9#,CE9#,EE90,98..ATM 厚さ=1.2,内径=44.0,T=1.2, ID=44.0 |
1 | ||
| 90520-44002 |
AE9#,CE90,EE90..(3D,4D,5D)..ATM 厚さ=1.2,内径=44.0,T=1.2,ID=44.0 |
1 | ||
| 90520-47003 |
AE9#,CE9#,EE90,98..ATM 厚さ=2.3,内径=47.1,WD=2.3, ID=47.1 |
1 | ||
| 90520-47003 |
AE9#,CE90,EE90..(3D,4D,5D)..ATM 厚さ=2.3,内径=47.1,T=2.3,ID=47.1 |
1 | ||
| 35789E - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR) | ||||
| 35789-22010 |
AE9#,CE90,96,97,EE90,96,98..ATM |
1 | ||
| 35790 - CLUTCH ASSY, 1 WAY | ||||
| 35790-32020 |
AE9#,CE9#,EE90,98..ATM |
1 | ||
| 35790-32020 |
AE9#,EE90..ATM..(FXGT,FXL,GT,TX,XE) |
1 | ||
| 35790-32020 |
AE9#,CE90,96,EE90,98..ATM..(DX,FXG,FXGT,FXL,G,GL,GT,SE,TX,XE) |
1 | ||
| 35790-32020 |
AE9#,CE9#,EE90,98..ATM |
1 | ||
| 35790-32020 |
AE9#,CE9#,EE90,98..ATM |
1 | ||
