AE92-AEMVF (1987)

Toyota Corolla

Production May 1987 - Jun 1991
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8905- )

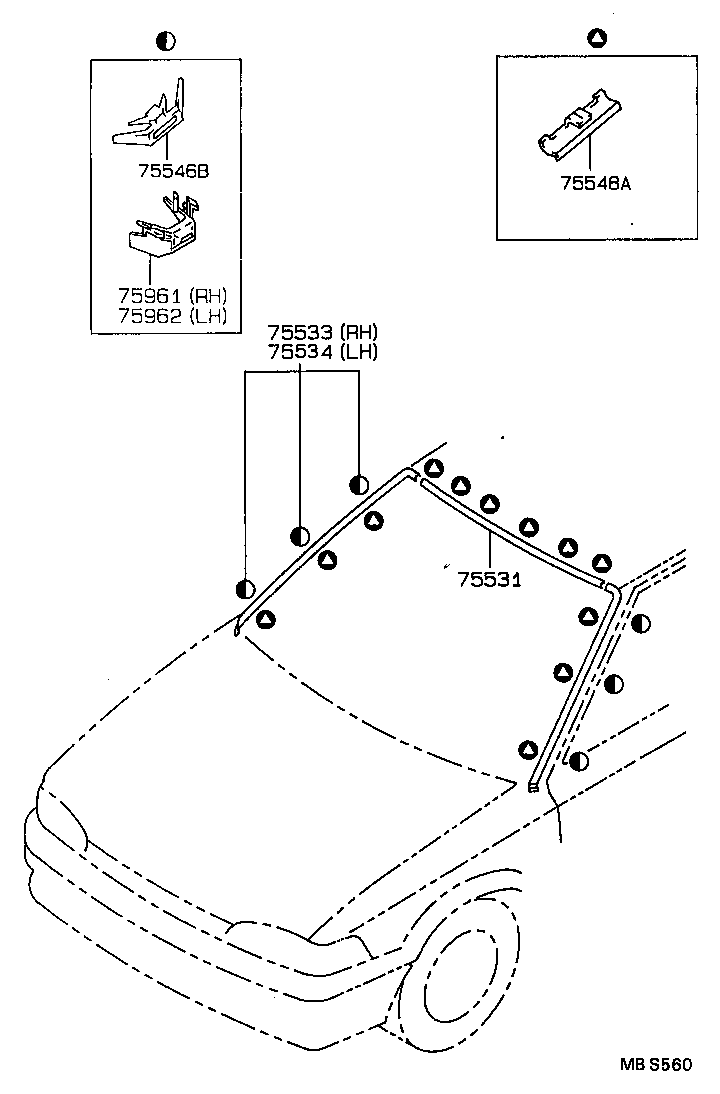

Click highlighted areas on diagram

diagram 75531 75533 75534 75546B 75548A 75961 75962
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-12300

AE9#,CE90,EE90..G,GT,SE,XE

 1
75531-12380

AE92,95,CE90,95,EE90..GT,SE,TX,XE;AE91..(G,LT,SE,TX,XE)..(EFI,EFIS)

 1
75531-12440

AE9#,CE90,95,EE90..GT,SE,TX,XE

ｶｺﾞｼﾏ ｼﾖｳ

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-12360

AE9#,CE90,EE90..G,GT,SE,XE

 1
75533-12380

AE9#,CE90,95,EE90..GT,SE,TX,XE

ｶｺﾞｼﾏ ｼﾖｳ

 1
75533-12440

AE9#,CE90,95,EE90..GT,SE,TX,XE

ｶｺﾞｼﾏ ｼﾖｳ

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-12360

AE9#,CE90,95,EE90..GT,SE,TX,XE

ｶｺﾞｼﾏ ｼﾖｳ

 1
75534-12290

AE9#,CE90,EE90..G,GT,SE,XE

 1
75534-12380

AE9#,CE90,95,EE90..GT,SE,TX,XE

ｶｺﾞｼﾏ ｼﾖｳ

 1
75546B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.2
75546-12070

AE9#,CE9#,EE9#

 8
75546-12070

AE9#,CE90,95,EE90..GT,SE,TX,XE

ｶｺﾞｼﾏ ｼﾖｳ

 8
75546-12090

AE9#,CE90,EE90..3D,4D,5D

 8
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-16030

AE9#,CE9#,EE9#

 8
75961 - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.4
75961-12040

AE9#,CE90,EE90..3D,4D,5D

 1
75961-12020

AE9#,CE9#,EE9#

 1
75961-12040

AE9#,CE9#,EE9#

 1
75961-12040

AE9#,CE90,95,EE90..GT,SE,TX,XE

ｶｺﾞｼﾏ ｼﾖｳ

 1
75962 - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.5
75962-12040

AE9#,CE90,EE90..3D,4D,5D

 1
75962-12020

AE9#,CE9#,EE9#

 1
75962-12040

AE9#,CE9#,EE9#

 1
75962-12040

AE9#,CE90,95,EE90..GT,SE,TX,XE

ｶｺﾞｼﾏ ｼﾖｳ

 1

(8705-8905)

Click highlighted areas on diagram

diagram 75531 75533 75534 75541C 75542C 75546B 75548A 75961 75962
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-12300

AE9#,CE90,EE90..G,GT,SE,XE

 1
75531-12380

AE92,95,CE90,95,EE90..GT,SE,TX,XE;AE91..(G,LT,SE,TX,XE)..(EFI,EFIS)

 1
75531-12440

AE9#,CE90,95,EE90..GT,SE,TX,XE

ｶｺﾞｼﾏ ｼﾖｳ

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-12360

AE9#,CE90,EE90..G,GT,SE,XE

 1
75533-12380

AE9#,CE90,95,EE90..GT,SE,TX,XE

ｶｺﾞｼﾏ ｼﾖｳ

 1
75533-12440

AE9#,CE90,95,EE90..GT,SE,TX,XE

ｶｺﾞｼﾏ ｼﾖｳ

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-12360

AE9#,CE90,95,EE90..GT,SE,TX,XE

ｶｺﾞｼﾏ ｼﾖｳ

 1
75534-12290

AE9#,CE90,EE90..G,GT,SE,XE

 1
75534-12380

AE9#,CE90,95,EE90..GT,SE,TX,XE

ｶｺﾞｼﾏ ｼﾖｳ

 1
75541C - COVER, WINDSHIELD MOULDING JOINT, UPPER RH
75541-12190

AE9#,CE90,EE90..G,GT,SE,XE

 1
75542C - COVER, WINDSHIELD MOULDING JOINT, UPPER LH
75542-12160

AE9#,CE90,EE90..G,GT,SE,XE

 1
75546B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.2
75546-12070

AE9#,CE9#,EE9#

 8
75546-12070

AE9#,CE90,95,EE90..GT,SE,TX,XE

ｶｺﾞｼﾏ ｼﾖｳ

 8
75546-12090

AE9#,CE90,EE90..3D,4D,5D

 8
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-16030

AE9#,CE9#,EE9#

 8
75961 - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.4
75961-12040

AE9#,CE90,EE90..3D,4D,5D

 1
75961-12020

AE9#,CE9#,EE9#

 1
75961-12040

AE9#,CE9#,EE9#

 1
75961-12040

AE9#,CE90,95,EE90..GT,SE,TX,XE

ｶｺﾞｼﾏ ｼﾖｳ

 1
75962 - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.5
75962-12040

AE9#,CE90,EE90..3D,4D,5D

 1
75962-12020

AE9#,CE9#,EE9#

 1
75962-12040

AE9#,CE9#,EE9#

 1
75962-12040

AE9#,CE90,95,EE90..GT,SE,TX,XE

ｶｺﾞｼﾏ ｼﾖｳ

 1
