AE92-AEMVF (1987)

Toyota Corolla

Production May 1987 - Jun 1991
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

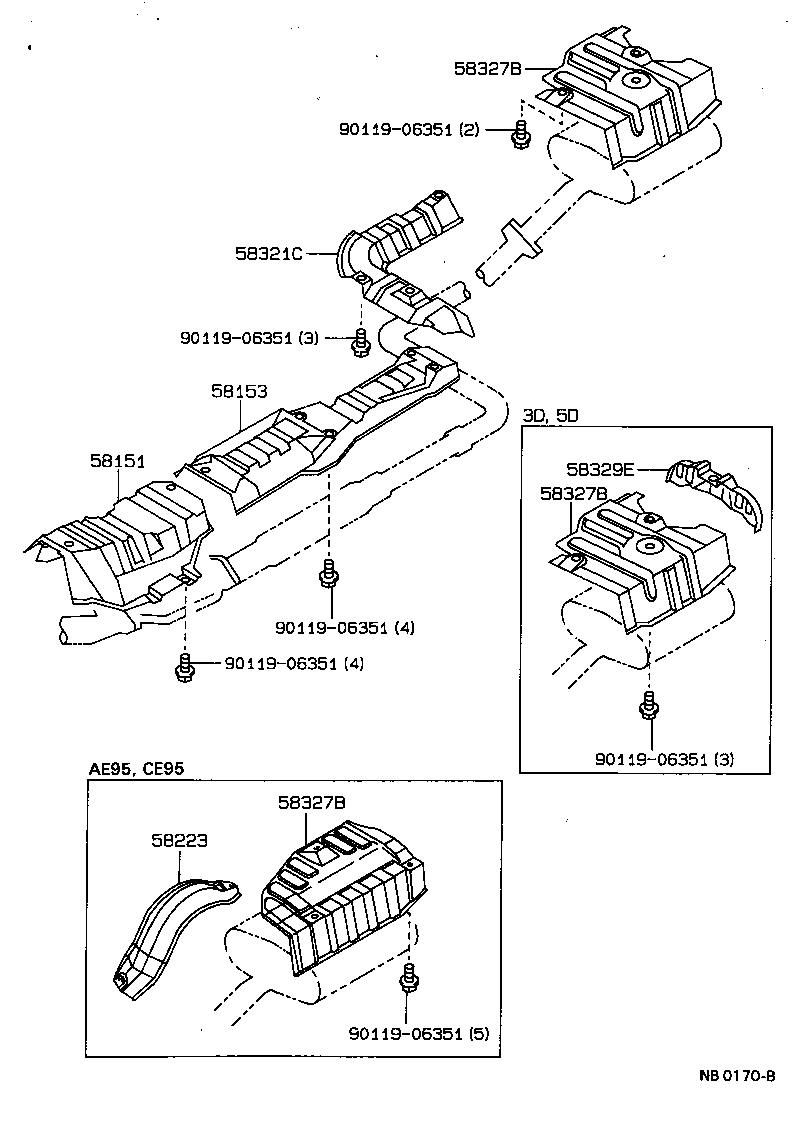

Click highlighted areas on diagram

diagram 58151 58153 58223 58321C 58327B 58327B 58327B 58329E 9011906351 9011906351 9011906351 9011906351 9011906351 9011906351
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-12120

AE92..GT;AE91..SE..EFIS

 1
58151-12120

AE92,EE98;AE91..EFIS

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-12100

AE92..GT;AE91..SE..EFIS

 1
58153-12100

AE92,EE98;AE91..EFIS

 1
58321C - INSULATOR, REAR FLOOR HEAT, FRONT
58321-12030

AE91,92,EE9#

 1
58321-12030

AE91,92,EE9#..CTD,DX,FXG,FXL,FXV,G,GL,GT,L,LT,SE,STD,TX,XE

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-12060

AE91,92,EE90..4D,WG

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-12060

AE91,92,EE90..4D,WG

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-12060

AE91,92,EE90..4D,WG

 1
Common parts
90119-06351
