AE92-AEMVF (1987)
Toyota Corolla

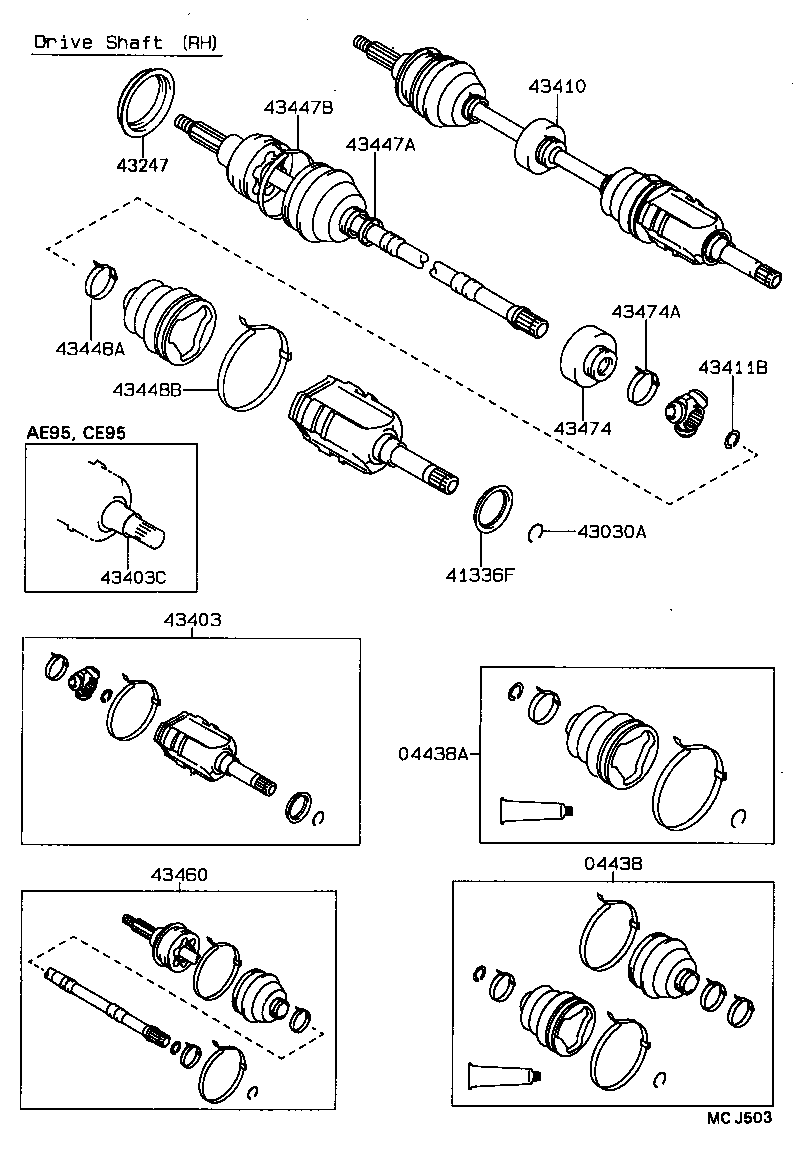

ILLUST NO. 1 OF 2(8905-8909)AE91,92,EE9# ; (8905-9001)AE95,CE95
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-12040 |
AE92..5F |
2 | ||
| 04438-12120 |
AE92..5F |
2 | ||
| 04438-12190 |
AE92..5F |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-12070 |
AE91,92,EE98 |
2 | ||
| 04438-12070 |
AE91,92,EE90..3D,4D,5D |
1 | ||
| 04438-12060 |
AE92..5F |
2 | ||
| 04438-12070 |
AE91,92,EE9# |
2 | ||
| 04438-12160 |
AE92..5F |
2 | ||
| 04438-12070 |
AE92,EE96,98..(3FC,4F,5F)..(DX,FXGT,FXGTV,GL,GT,STD) |
2 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-12010 |
AE92 |
2 | ||
| 41336-12010 |
AE92,EE98 |
2 | ||
| 41336-12010 |
AE92,EE96..MTM |
2 | ||
| 41336-12010 |
AE91,92..EFI |
2 | ||
| 43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90521-26004 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 90521-26004 |
AE9#,EE9# |
2 | ||
| 90521-26004 |
AE9#,EE98 |
2 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-12010 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) |
2 | ||
| 43247-32011 |
AE9#,CE9#,EE9# |
2 | ||
| 43247-32011 |
AE9#,CE90,EE90..3D,4D,5D |
2 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43403-19085 |
AE91,92,EE98 |
1 | ||
| 43403-39025 |
AE92..5F |
1 | ||
| 43403-19085 |
AE91,92,EE9# |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-12140 |
AE92..5F |
1 | ||
| 43410-12200 |
AE92..5F ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 43410-12170 |
AE92..5F |
1 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
AE95;AE92..5F;AE91,CE96,97,EE96,97,98..CBR,DSL |
2 | ||
| 90520-22005 |
AE9#,CE9#,EE9# |
2 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-14010 |
CE90,96;AE92,CE97..5F |
2 | ||
| 90949-01078 |
AE91,92,EE9# |
2 | ||
| 42345-14010 |
AE92..5F;AE95,CE96,97 |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01076 |
AE92..5F;AE95,CE9# |
2 | ||
| 90949-01076 |
AE92..5F;AE95,CE96,97 |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14010 |
CE9#;AE92..5F |
2 | ||
| 90949-01078 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01076 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 90949-01076 |
AE9#,EE9# |
2 | ||
| 90949-01076 |
AE9#,EE98 |
2 | ||
| 42345-14020 |
CE90,96;AE92,CE97..5F |
2 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-19285 |
CE90,96;AE92,CE97..5F |
1 | ||
| 43460-19355 |
AE92..5F ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 43460-19305 |
AE92..5F |
1 | ||
| 43460-19305 |
AE92..5F |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12020 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-14010 |
AE91,92,CE9#,EE9# |
1 | ||

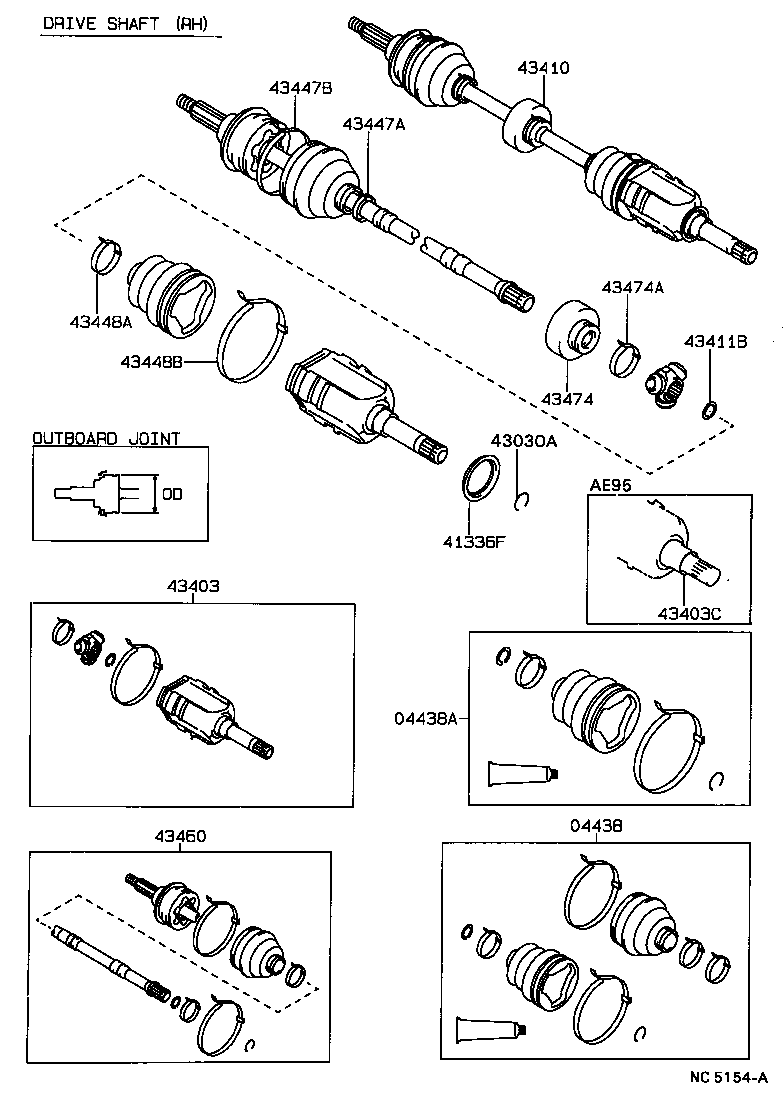

ILLUST NO. 1 OF 2(8909-9009)AE91,92,EE9# ; (9001-9009)AE95,CE95 ;(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-12040 |
AE92..5F |
2 | ||
| 04438-12120 |
AE92..5F |
2 | ||
| 04438-12190 |
AE92..5F |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-12070 |
AE91,92,EE98 |
2 | ||
| 04438-12070 |
AE91,92,EE90..3D,4D,5D |
1 | ||
| 04438-12060 |
AE92..5F |
2 | ||
| 04438-12070 |
AE91,92,EE9# |
2 | ||
| 04438-12160 |
AE92..5F |
2 | ||
| 04438-12070 |
AE92,EE96,98..(3FC,4F,5F)..(DX,FXGT,FXGTV,GL,GT,STD) |
2 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-12010 |
AE92 |
2 | ||
| 41336-12010 |
AE92,EE98 |
2 | ||
| 41336-12010 |
AE92,EE96..MTM |
2 | ||
| 41336-12010 |
AE91,92..EFI |
2 | ||
| 43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90521-26004 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 90521-26004 |
AE9#,EE9# |
2 | ||
| 90521-26004 |
AE9#,EE98 |
2 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-12010 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) |
2 | ||
| 43247-32011 |
AE9#,CE9#,EE9# |
2 | ||
| 43247-32011 |
AE9#,CE90,EE90..3D,4D,5D |
2 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43403-19085 |
AE91,92,EE98 |
1 | ||
| 43403-39025 |
AE92..5F |
1 | ||
| 43403-19085 |
AE91,92,EE9# |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-12140 |
AE92..5F |
1 | ||
| 43410-12200 |
AE92..5F ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 43410-12170 |
AE92..5F |
1 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
AE95;AE92..5F;AE91,CE96,97,EE96,97,98..CBR,DSL |
2 | ||
| 90520-22005 |
AE9#,CE9#,EE9# |
2 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-14010 |
CE90,96;AE92,CE97..5F |
2 | ||
| 90949-01078 |
AE91,92,EE9# |
2 | ||
| 42345-14010 |
AE92..5F;AE95,CE96,97 |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01076 |
AE92..5F;AE95,CE9# |
2 | ||
| 90949-01076 |
AE92..5F;AE95,CE96,97 |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14010 |
CE9#;AE92..5F |
2 | ||
| 90949-01078 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01076 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 90949-01076 |
AE9#,EE9# |
2 | ||
| 90949-01076 |
AE9#,EE98 |
2 | ||
| 42345-14020 |
CE90,96;AE92,CE97..5F |
2 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-19285 |
CE90,96;AE92,CE97..5F |
1 | ||
| 43460-19355 |
AE92..5F ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 43460-19305 |
AE92..5F |
1 | ||
| 43460-19305 |
AE92..5F |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12020 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-14010 |
AE91,92,CE9#,EE9# |
1 | ||

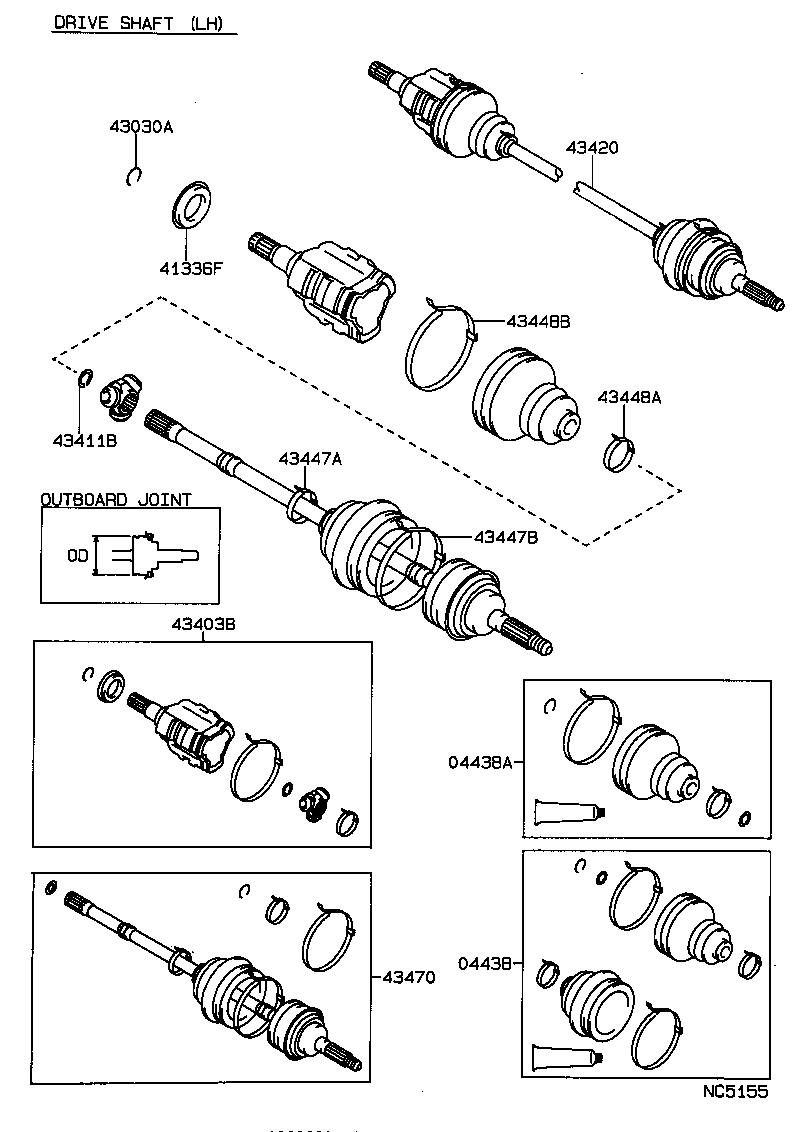

ILLUST NO. 2 OF 2(8909-9009)AE91,92,EE9# ; (9001-9009)AE95,CE95 ;(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-12040 |
AE92..5F |
2 | ||
| 04438-12120 |
AE92..5F |
2 | ||
| 04438-12190 |
AE92..5F |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-12070 |
AE91,92,EE98 |
2 | ||
| 04438-12070 |
AE91,92,EE90..3D,4D,5D |
1 | ||
| 04438-12060 |
AE92..5F |
2 | ||
| 04438-12070 |
AE91,92,EE9# |
2 | ||
| 04438-12160 |
AE92..5F |
2 | ||
| 04438-12070 |
AE92,EE96,98..(3FC,4F,5F)..(DX,FXGT,FXGTV,GL,GT,STD) |
2 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-12010 |
AE92 |
2 | ||
| 41336-12010 |
AE92,EE98 |
2 | ||
| 41336-12010 |
AE92,EE96..MTM |
2 | ||
| 41336-12010 |
AE91,92..EFI |
2 | ||
| 43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90521-26004 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 90521-26004 |
AE9#,EE9# |
2 | ||
| 90521-26004 |
AE9#,EE98 |
2 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-12010 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) |
2 | ||
| 43247-32011 |
AE9#,CE9#,EE9# |
2 | ||
| 43247-32011 |
AE9#,CE90,EE90..3D,4D,5D |
2 | ||
| 43403B - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43403-19085 |
AE91,92,EE9# |
1 | ||
| 43403-39025 |
AE92..5F |
1 | ||
| 43403-19085 |
AE91,92,EE98 |
1 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
AE95;AE92..5F;AE91,CE96,97,EE96,97,98..CBR,DSL |
2 | ||
| 90520-22005 |
AE9#,CE9#,EE9# |
2 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-12100 |
AE92..5F |
1 | ||
| 43420-12140 |
AE92..5F |
1 | ||
| 43420-12170 |
AE92..5F ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-14010 |
CE90,96;AE92,CE97..5F |
2 | ||
| 90949-01078 |
AE91,92,EE9# |
2 | ||
| 42345-14010 |
AE92..5F;AE95,CE96,97 |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01076 |
AE92..5F;AE95,CE9# |
2 | ||
| 90949-01076 |
AE92..5F;AE95,CE96,97 |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14010 |
CE9#;AE92..5F |
2 | ||
| 90949-01078 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01076 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 90949-01076 |
AE9#,EE9# |
2 | ||
| 90949-01076 |
AE9#,EE98 |
2 | ||
| 42345-14020 |
CE90,96;AE92,CE97..5F |
2 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-19235 |
CE90,96;AE92,CE97..5F |
1 | ||
| 43470-19305 |
AE92..5F ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 43470-39085 |
AE92..5F;CE90,96,97 |
1 | ||
| 43470-39085 |
AE92..5F |
1 | ||
ILLUST NO. 2 OF 2(8705-8709)AE92..5F ; (8705-8711)EE90,96,97 ; (8705-9009)CE90,96,97
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-12040 |
AE92..5F |
2 | ||
| 04438-12120 |
AE92..5F |
2 | ||
| 04438-12190 |
AE92..5F |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-12070 |
AE91,92,EE98 |
2 | ||
| 04438-12070 |
AE91,92,EE90..3D,4D,5D |
1 | ||
| 04438-12060 |
AE92..5F |
2 | ||
| 04438-12070 |
AE91,92,EE9# |
2 | ||
| 04438-12160 |
AE92..5F |
2 | ||
| 04438-12070 |
AE92,EE96,98..(3FC,4F,5F)..(DX,FXGT,FXGTV,GL,GT,STD) |
2 | ||
| 41309 - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH | ||||
| 41309-17010 |
AE92..5F |
1 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-12010 |
AE92 |
2 | ||
| 41336-12010 |
AE92,EE98 |
2 | ||
| 41336-12010 |
AE92,EE96..MTM |
2 | ||
| 41336-12010 |
AE91,92..EFI |
2 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-12010 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) |
2 | ||
| 43247-32011 |
AE9#,CE9#,EE9# |
2 | ||
| 43247-32011 |
AE9#,CE90,EE90..3D,4D,5D |
2 | ||
| 43403B - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43403-19085 |
AE91,92,EE9# |
1 | ||
| 43403-39025 |
AE92..5F |
1 | ||
| 43403-19085 |
AE91,92,EE98 |
1 | ||
| 43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT) | ||||
| 90114-08006 |
CE90,96;AE92,CE97,EE90,96,97..3FC,4F,5F |
12 | ||
| 43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90521-26002 |
AE92,EE90,96,97..3FC,4F,5F |
2 | ||
| 43410J - NUT (FOR FRONT DRIVE SHAFT) | ||||
| 90179-08053 |
CE90,96;AE92,CE97,EE90,96,97..3FC,4F,5F |
12 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
AE95;AE92..5F;AE91,CE96,97,EE96,97,98..CBR,DSL |
2 | ||
| 90520-22005 |
AE9#,CE9#,EE9# |
2 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-12100 |
AE92..5F |
1 | ||
| 43420-12140 |
AE92..5F |
1 | ||
| 43420-12170 |
AE92..5F ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-14010 |
CE90,96;AE92,CE97..5F |
2 | ||
| 90949-01078 |
AE91,92,EE9# |
2 | ||
| 42345-14010 |
AE92..5F;AE95,CE96,97 |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01076 |
AE92..5F;AE95,CE9# |
2 | ||
| 90949-01076 |
AE92..5F;AE95,CE96,97 |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14010 |
CE9#;AE92..5F |
2 | ||
| 90949-01078 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01076 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 90949-01076 |
AE9#,EE9# |
2 | ||
| 90949-01076 |
AE9#,EE98 |
2 | ||
| 42345-14020 |
CE90,96;AE92,CE97..5F |
2 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-19235 |
CE90,96;AE92,CE97..5F |
1 | ||
| 43470-19305 |
AE92..5F ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 43470-39085 |
AE92..5F;CE90,96,97 |
1 | ||
| 43470-39085 |
AE92..5F |
1 | ||
ILLUST NO. 1 OF 2(8705-8709)AE92..5F ; (8705-8711)EE90,96,97 ; (8705-9009)CE90,96,97
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-12040 |
AE92..5F |
2 | ||
| 04438-12120 |
AE92..5F |
2 | ||
| 04438-12190 |
AE92..5F |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-12070 |
AE92,EE96,98..(3FC,4F,5F)..(DX,FXGT,FXGTV,GL,GT,STD) |
2 | ||
| 04438-12070 |
AE91,92,EE98 |
2 | ||
| 04438-12070 |
AE91,92,EE90..3D,4D,5D |
1 | ||
| 04438-12060 |
AE92..5F |
2 | ||
| 04438-12070 |
AE91,92,EE9# |
2 | ||
| 04438-12160 |
AE92..5F |
2 | ||
| 41304D - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH | ||||
| 41304-17010 |
AE92..5F |
1 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-12010 |
AE92 |
2 | ||
| 41336-12010 |
AE92,EE98 |
2 | ||
| 41336-12010 |
AE92,EE96..MTM |
2 | ||
| 41336-12010 |
AE91,92..EFI |
2 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-12010 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) |
2 | ||
| 43247-32011 |
AE9#,CE9#,EE9# |
2 | ||
| 43247-32011 |
AE9#,CE90,EE90..3D,4D,5D |
2 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43403-19085 |
AE91,92,EE98 |
1 | ||
| 43403-39025 |
AE92..5F |
1 | ||
| 43403-19085 |
AE91,92,EE9# |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-12140 |
AE92..5F |
1 | ||
| 43410-12200 |
AE92..5F ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 43410-12170 |
AE92..5F |
1 | ||
| 43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT) | ||||
| 90114-08006 |
CE90,96;AE92,CE97,EE90,96,97..3FC,4F,5F |
12 | ||
| 43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90521-26002 |
AE92,EE90,96,97..3FC,4F,5F |
2 | ||
| 43410J - NUT (FOR FRONT DRIVE SHAFT) | ||||
| 90179-08053 |
CE90,96;AE92,CE97,EE90,96,97..3FC,4F,5F |
12 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
AE95;AE92..5F;AE91,CE96,97,EE96,97,98..CBR,DSL |
2 | ||
| 90520-22005 |
AE9#,CE9#,EE9# |
2 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-14010 |
CE90,96;AE92,CE97..5F |
2 | ||
| 90949-01078 |
AE91,92,EE9# |
2 | ||
| 42345-14010 |
AE92..5F;AE95,CE96,97 |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01076 |
AE92..5F;AE95,CE9# |
2 | ||
| 90949-01076 |
AE92..5F;AE95,CE96,97 |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14010 |
CE9#;AE92..5F |
2 | ||
| 90949-01078 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01076 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 90949-01076 |
AE9#,EE9# |
2 | ||
| 90949-01076 |
AE9#,EE98 |
2 | ||
| 42345-14020 |
CE90,96;AE92,CE97..5F |
2 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-19285 |
CE90,96;AE92,CE97..5F |
1 | ||
| 43460-19355 |
AE92..5F ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 43460-19305 |
AE92..5F |
1 | ||
| 43460-19305 |
AE92..5F |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12020 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-14010 |
AE91,92,CE9#,EE9# |
1 | ||
ILLUST NO. 2 OF 2(8905-8909)AE91,92,EE9# ; (8905-9001)AE95,CE95
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-12040 |
AE92..5F |
2 | ||
| 04438-12120 |
AE92..5F |
2 | ||
| 04438-12190 |
AE92..5F |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-12070 |
AE91,92,EE98 |
2 | ||
| 04438-12070 |
AE91,92,EE90..3D,4D,5D |
1 | ||
| 04438-12060 |
AE92..5F |
2 | ||
| 04438-12070 |
AE91,92,EE9# |
2 | ||
| 04438-12160 |
AE92..5F |
2 | ||
| 04438-12070 |
AE92,EE96,98..(3FC,4F,5F)..(DX,FXGT,FXGTV,GL,GT,STD) |
2 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-12010 |
AE92 |
2 | ||
| 41336-12010 |
AE92,EE98 |
2 | ||
| 41336-12010 |
AE92,EE96..MTM |
2 | ||
| 41336-12010 |
AE91,92..EFI |
2 | ||
| 43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90521-26004 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 90521-26004 |
AE9#,EE9# |
2 | ||
| 90521-26004 |
AE9#,EE98 |
2 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-12010 |
AE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE ｱﾘ(ESC) |
2 | ||
| 43247-32011 |
AE9#,CE9#,EE9# |
2 | ||
| 43247-32011 |
AE9#,CE90,EE90..3D,4D,5D |
2 | ||
| 43403B - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43403-19085 |
AE91,92,EE9# |
1 | ||
| 43403-39025 |
AE92..5F |
1 | ||
| 43403-19085 |
AE91,92,EE98 |
1 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
AE95;AE92..5F;AE91,CE96,97,EE96,97,98..CBR,DSL |
2 | ||
| 90520-22005 |
AE9#,CE9#,EE9# |
2 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-12100 |
AE92..5F |
1 | ||
| 43420-12140 |
AE92..5F |
1 | ||
| 43420-12170 |
AE92..5F ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-14010 |
CE90,96;AE92,CE97..5F |
2 | ||
| 90949-01078 |
AE91,92,EE9# |
2 | ||
| 42345-14010 |
AE92..5F;AE95,CE96,97 |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01076 |
AE92..5F;AE95,CE9# |
2 | ||
| 90949-01076 |
AE92..5F;AE95,CE96,97 |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14010 |
CE9#;AE92..5F |
2 | ||
| 90949-01078 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01076 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 90949-01076 |
AE9#,EE9# |
2 | ||
| 90949-01076 |
AE9#,EE98 |
2 | ||
| 42345-14020 |
CE90,96;AE92,CE97..5F |
2 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-19235 |
CE90,96;AE92,CE97..5F |
1 | ||
| 43470-19305 |
AE92..5F ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 43470-39085 |
AE92..5F;CE90,96,97 |
1 | ||
| 43470-39085 |
AE92..5F |
1 | ||
ILLUST NO. 1 OF 2(8705-8709)AE92..4FC ; (8705-8905)AE91,95,EE98 ;(8709-8905)AE92 ; (8711-8905)EE90,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-12040 |
AE92..5F |
2 | ||
| 04438-12120 |
AE92..5F |
2 | ||
| 04438-12190 |
AE92..5F |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-12070 |
AE91,92,EE98 |
2 | ||
| 04438-12070 |
AE91,92,EE90..3D,4D,5D |
1 | ||
| 04438-12060 |
AE92..5F |
2 | ||
| 04438-12070 |
AE91,92,EE9# |
2 | ||
| 04438-12160 |
AE92..5F |
2 | ||
| 04438-12070 |
AE92,EE96,98..(3FC,4F,5F)..(DX,FXGT,FXGTV,GL,GT,STD) |
2 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-12010 |
AE92 |
2 | ||
| 41336-12010 |
AE92,EE98 |
2 | ||
| 41336-12010 |
AE92,EE96..MTM |
2 | ||
| 41336-12010 |
AE91,92..EFI |
2 | ||
| 43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90521-26004 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 90521-26004 |
AE9#,EE9# |
2 | ||
| 90521-26004 |
AE9#,EE98 |
2 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43403-19085 |
AE91,92,EE98 |
1 | ||
| 43403-39025 |
AE92..5F |
1 | ||
| 43403-19085 |
AE91,92,EE9# |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-12140 |
AE92..5F |
1 | ||
| 43410-12200 |
AE92..5F ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 43410-12170 |
AE92..5F |
1 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
AE95;AE92..5F;AE91,CE96,97,EE96,97,98..CBR,DSL |
2 | ||
| 90520-22005 |
AE9#,CE9#,EE9# |
2 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-14010 |
CE90,96;AE92,CE97..5F |
2 | ||
| 90949-01078 |
AE91,92,EE9# |
2 | ||
| 42345-14010 |
AE92..5F;AE95,CE96,97 |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01076 |
AE92..5F;AE95,CE9# |
2 | ||
| 90949-01076 |
AE92..5F;AE95,CE96,97 |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14010 |
CE9#;AE92..5F |
2 | ||
| 90949-01078 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01076 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 90949-01076 |
AE9#,EE9# |
2 | ||
| 90949-01076 |
AE9#,EE98 |
2 | ||
| 42345-14020 |
CE90,96;AE92,CE97..5F |
2 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-19285 |
CE90,96;AE92,CE97..5F |
1 | ||
| 43460-19355 |
AE92..5F ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 43460-19305 |
AE92..5F |
1 | ||
| 43460-19305 |
AE92..5F |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12020 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-14010 |
AE91,92,CE9#,EE9# |
1 | ||
ILLUST NO. 2 OF 2(8705-8709)AE92..4FC ; (8705-8905)AE91,95,EE98 ;(8709-8905)AE92 ; (8711-8905)EE90,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-12040 |
AE92..5F |
2 | ||
| 04438-12120 |
AE92..5F |
2 | ||
| 04438-12190 |
AE92..5F |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-12070 |
AE91,92,EE98 |
2 | ||
| 04438-12070 |
AE91,92,EE90..3D,4D,5D |
1 | ||
| 04438-12060 |
AE92..5F |
2 | ||
| 04438-12070 |
AE91,92,EE9# |
2 | ||
| 04438-12160 |
AE92..5F |
2 | ||
| 04438-12070 |
AE92,EE96,98..(3FC,4F,5F)..(DX,FXGT,FXGTV,GL,GT,STD) |
2 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-12010 |
AE92 |
2 | ||
| 41336-12010 |
AE92,EE98 |
2 | ||
| 41336-12010 |
AE92,EE96..MTM |
2 | ||
| 41336-12010 |
AE91,92..EFI |
2 | ||
| 43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90521-26004 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 90521-26004 |
AE9#,EE9# |
2 | ||
| 90521-26004 |
AE9#,EE98 |
2 | ||
| 43403B - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43403-19085 |
AE91,92,EE9# |
1 | ||
| 43403-39025 |
AE92..5F |
1 | ||
| 43403-19085 |
AE91,92,EE98 |
1 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
AE95;AE92..5F;AE91,CE96,97,EE96,97,98..CBR,DSL |
2 | ||
| 90520-22005 |
AE9#,CE9#,EE9# |
2 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-12100 |
AE92..5F |
1 | ||
| 43420-12140 |
AE92..5F |
1 | ||
| 43420-12170 |
AE92..5F ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-14010 |
CE90,96;AE92,CE97..5F |
2 | ||
| 90949-01078 |
AE91,92,EE9# |
2 | ||
| 42345-14010 |
AE92..5F;AE95,CE96,97 |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01076 |
AE92..5F;AE95,CE9# |
2 | ||
| 90949-01076 |
AE92..5F;AE95,CE96,97 |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14010 |
CE9#;AE92..5F |
2 | ||
| 90949-01078 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01076 |
AE95;AE92..5F;AE91,EE96,97,98..CBR |
2 | ||
| 90949-01076 |
AE9#,EE9# |
2 | ||
| 90949-01076 |
AE9#,EE98 |
2 | ||
| 42345-14020 |
CE90,96;AE92,CE97..5F |
2 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-19235 |
CE90,96;AE92,CE97..5F |
1 | ||
| 43470-19305 |
AE92..5F ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 43470-39085 |
AE92..5F;CE90,96,97 |
1 | ||
| 43470-39085 |
AE92..5F |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
