AE92-AEMVF (1987)

Toyota Corolla

Production May 1987 - Jun 1991
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

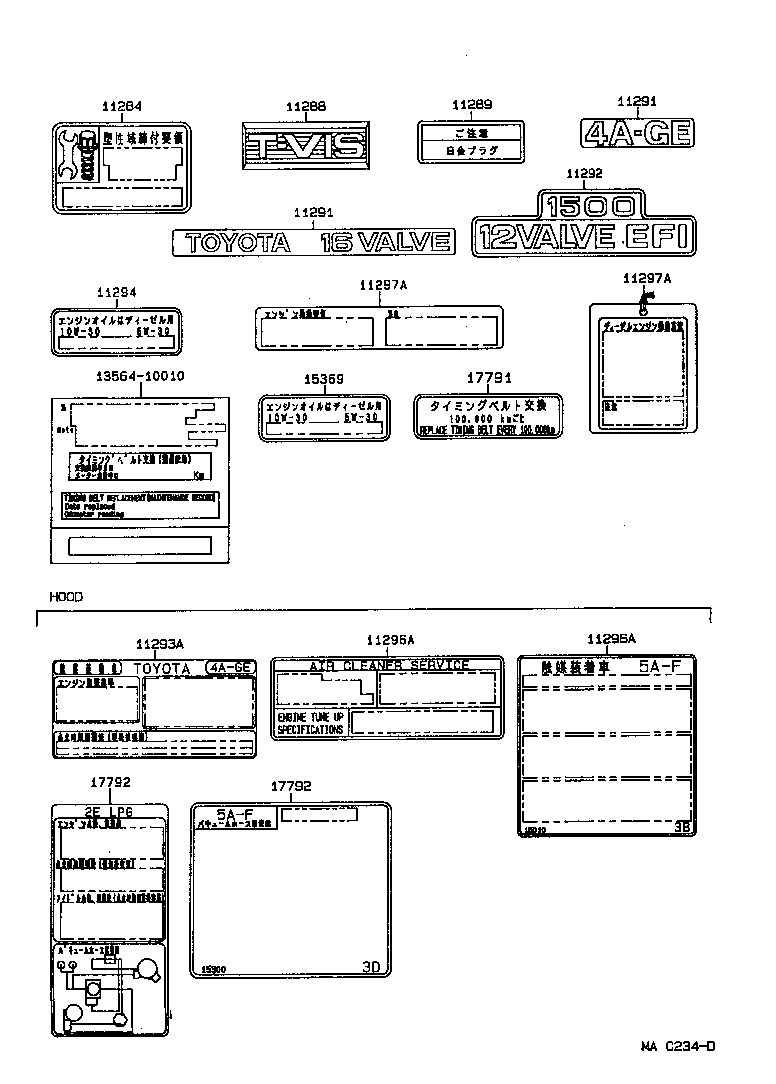

Click highlighted areas on diagram

diagram 11284 11288 11289 11291 11291 11292 11293A 11294 11296A 11296A 11297A 11297A 1356410010 15369 17791 17792 17792
Part # Description Qty Price
11284 - PLATE, ENGINE BOLT INFORMATION
11284-16030

4AGE..AE92

 1
11284-16010

4AGE..AE92

 1
11288 - PLATE, ENGINE SYSTEM
11288-88301

4AGE..AE92..FXGT,GT

 1
11289 - PLATE, SPARK PLUG CAUTION
11289-16010

4AGE..AE92

 1
11291 - PLATE, ENGINE NAME
11291-16040

4AGE..AE92

 1
11291 - PLATE, ENGINE NAME
11291-16040

4AGE..AE92

 1
11293A - PLATE, ENGINE CAUTION
11293-16022

4AGE..AE92

 1
Common parts
13564-10010
