AE91G-AWPGU (1987)
Toyota Corolla

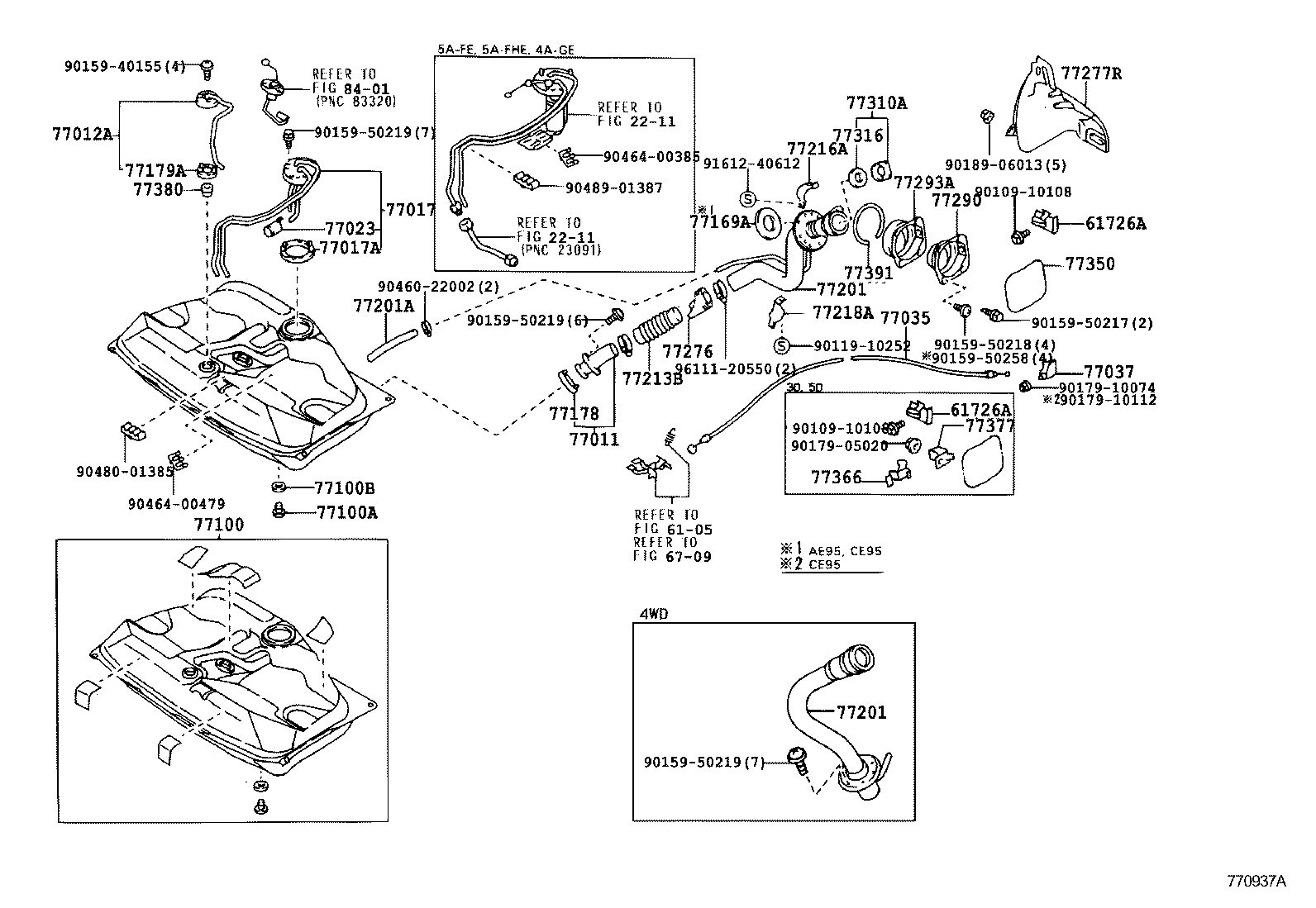

ILLUST NO. 1 OF 3(8905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12060 |
AE9#,EE90 |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-12010 |
AE9#,CE90,EE90 |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-12270 |
AE91,EE90..CBR |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-12020 |
CE90..SE;AE91,95,CE96,97,EE9#..CBR,DSL |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-14030 |
AE91,95,EE9#..CBR |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12130 |
AE91,CE96,97,EE97,98..G,GL |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
CE97..4FC..GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GT,SE,TX,XE |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19575 |
AE91,EE9#..CBR |
1 | ||
| 77001-19575 |
AE91,EE9#..CBR |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
AE91,EE9#..CBR |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AE91,EE9#..CBR ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-12010 |
AE91,92,CE96,97,EE9# |
1 | ||
| 77178-20010 |
AE91,92,CE90,EE90 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
AE95..CBR;AE91,92,CE9#,EE9#;AE95..(TX,XE)..EFI |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12330 |
AE91,92,CE90,EE90 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12330 |
AE91,92,CE90,EE90 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22011 |
AE91,92,CE90,EE90 長さ=220 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-12140 |
AE91,92,CE90,EE90 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-12040 |
AE91,92,CE90,EE90 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-12010 |
AE91,92,CE90,EE90 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-12040 |
AE91,92,CE90,EE90 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12060 |
AE9#,CE9#,EE9# |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12030 |
AE9#,CE9#,EE9# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
AE9#,EE9# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
AE9#,CE9#,EE9# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12200 |
AE91..G |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12010 |
AE91,92,CE96,97,EE9#..3D,5D,V,WG |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12040 |
AE91,92,CE96,97,EE90,97,98..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
AE95..CBR;AE91,92,CE9#,EE9#;AE95..(TX,XE)..EFI |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AE9#,CE9#,EE9# |
1 | ||
| Common parts | ||||
| 90109-10108 | ||||
| 90119-10252 | ||||
| 90159-40155 | ||||
| 90159-50217 | ||||
| 90159-50218 | ||||
| 90159-50219 | ||||
| 90159-50258 | ||||
| 90179-05020 | ||||
| 90179-10074 | ||||
| 90179-10112 | ||||
| 90189-06013 | ||||
| 90460-22002 | ||||
| 90464-00385 | ||||
| 90464-00479 | ||||
| 90480-01385 | ||||
| 90489-01387 | ||||
| 91612-40612 | ||||
| 96111-20550 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 6105 | ||||
| 6709 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(8705-8905)AE91,92..FXGT,FXZI,GT,SE ; (8905-)AE91,92
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12350 |
AE91,EE9#..CBR |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-12330 |
AE91,EE9#..CBR |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-04015 |
AE91,EE9#..CBR *H,L=150 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12250 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-12130 |
AE91,95,EE9#..CBR |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AE91,92,CE90,96,97,EE9# *H,L=200 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12030 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12060 |
AE9#,CE9#,EE9# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-15210 |
AE91,95..CBR |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-15210 |
AE91,95..CBR |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-12360 |
AE91,EE9#..CBR |
1 | ||
| 77704-12361 |
AE91..CBR |
1 | ||
| 77704-12361 |
AE91,EE9#..CBR |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90447-04047 |
AE91..CBR 長さ=270 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-12140 |
AE91,95,EE9#..CBR |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12080 |
AE91,95,EE9#..CBR |
1 | ||
| Common parts | ||||
| 90464-00082 | ||||
| 90464-00403 | ||||
| 90464-00488 | ||||
| 90467-12039 | ||||
| 90467-12058 | ||||
| 90467-13027 | ||||
| 90480-01380 | ||||
| 90929-01093 | ||||
| 90959-01296 | ||||
| 90959-01297 | ||||
| 90959-01298 | ||||
| 90959-01299 | ||||
| 90959-01300 | ||||
| 91651-40614 | ||||
| 91655-40625 | ||||
| 96135-41100 | ||||
ILLUST NO. 3 OF 3(8705-8905)AE91,EE9#..DX,FXD,FXG,FXL,G,GL,SE,STD,TX,XE ; (8905- )EE9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12350 |
AE91,EE9#..CBR |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-12100 |
AE91,EE9#..CBR |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-06020 |
AE91,EE90..CBR *H,L=200 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-12330 |
AE91,EE9#..CBR |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-04015 |
AE91,EE9#..CBR *H,L=150 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12250 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-12130 |
AE91,95,EE9#..CBR |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AE91,92,CE90,96,97,EE9# *H,L=200 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12030 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12060 |
AE9#,CE9#,EE9# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-15210 |
AE91,95..CBR |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-12360 |
AE91,EE9#..CBR |
1 | ||
| 77704-12361 |
AE91..CBR |
1 | ||
| 77704-12361 |
AE91,EE9#..CBR |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90447-04047 |
AE91..CBR 長さ=270 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-12140 |
AE91,95,EE9#..CBR |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12080 |
AE91,95,EE9#..CBR |
1 | ||
| 77791 - HOSE, OUTER VENT VALVE TO CARBURETOR | ||||
| 90445-14129 |
AE91..CBR |
1 | ||
| Common parts | ||||
| 90467-10088 | ||||
| 90467-12039 | ||||
| 90467-12058 | ||||
| 90467-13027 | ||||
| 90480-01381 | ||||
| 90929-01086 | ||||
| 90959-01296 | ||||
| 90959-01297 | ||||
| 90959-01298 | ||||
| 90959-01299 | ||||
| 90959-01300 | ||||
| 90959-01411 | ||||
| 91651-40614 | ||||
| 91665-40616 | ||||
| 96132-30400 | ||||
| Linked diagrams | ||||
| 8401 | ||||

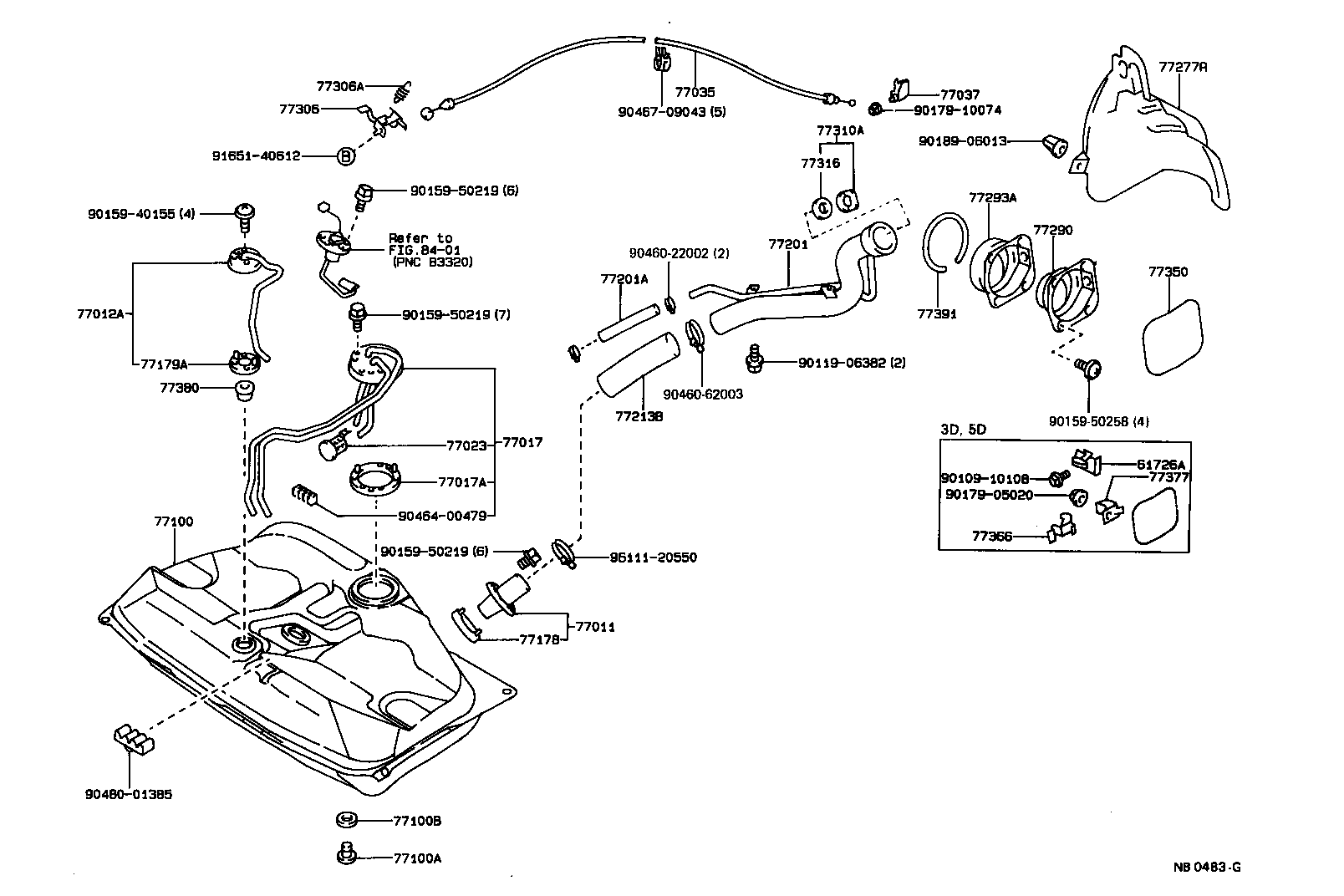

ILLUST NO. 1 OF 3(8705-8908)V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12060 |
AE9#,EE90 |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-12010 |
AE9#,CE90,EE90 |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-12270 |
AE91,EE90..CBR |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-12020 |
CE90..SE;AE91,95,CE96,97,EE9#..CBR,DSL |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-14030 |
AE91,95,EE9#..CBR |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12130 |
AE91,CE96,97,EE97,98..G,GL |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
CE97..4FC..GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GT,SE,TX,XE |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19575 |
AE91,EE9#..CBR |
1 | ||
| 77001-19575 |
AE91,EE9#..CBR |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
AE91,EE9#..CBR |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AE91,EE9#..CBR ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-12010 |
AE91,92,CE96,97,EE9# |
1 | ||
| 77178-20010 |
AE91,92,CE90,EE90 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
AE95..CBR;AE91,92,CE9#,EE9#;AE95..(TX,XE)..EFI |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12330 |
AE91,92,CE90,EE90 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22011 |
AE91,92,CE90,EE90 長さ=220 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-12140 |
AE91,92,CE90,EE90 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12060 |
AE9#,CE9#,EE9# |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12030 |
AE9#,CE9#,EE9# |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-13020 |
AE91,CE96,97,EE97,98..G,GL |
1 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09004 |
AE91,CE96,97,EE97,98..G,GL |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
AE9#,EE9# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
AE9#,CE9#,EE9# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12200 |
AE91..G |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12010 |
AE91,92,CE96,97,EE9#..3D,5D,V,WG |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12040 |
AE91,92,CE96,97,EE90,97,98..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
AE95..CBR;AE91,92,CE9#,EE9#;AE95..(TX,XE)..EFI |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AE9#,CE9#,EE9# |
1 | ||
| Common parts | ||||
| 90109-10108 | ||||
| 90119-06382 | ||||
| 90159-40155 | ||||
| 90159-50219 | ||||
| 90159-50258 | ||||
| 90179-05020 | ||||
| 90179-10074 | ||||
| 90189-06013 | ||||
| 90460-22002 | ||||
| 90460-62003 | ||||
| 90464-00479 | ||||
| 90467-09043 | ||||
| 90480-01385 | ||||
| 91651-40612 | ||||
| 96111-20550 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
