AE91-AHPGU (1987)
Toyota Corolla
(8705-8905)AE91,95
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

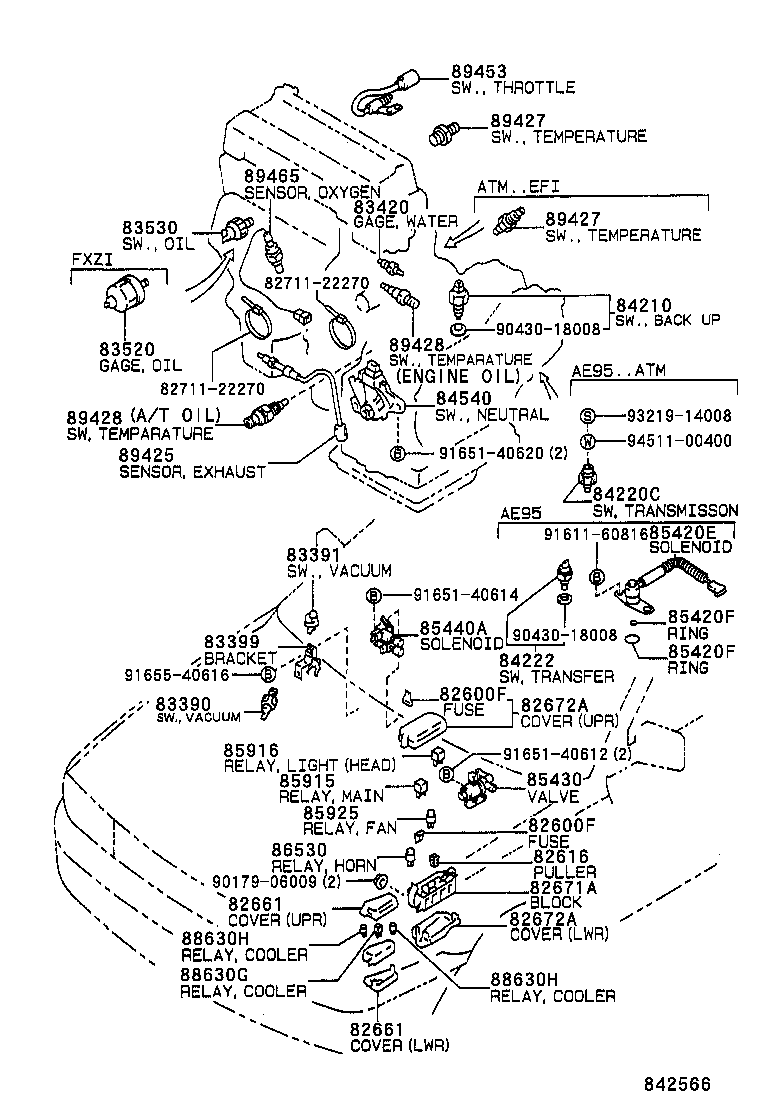

| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
AE9#,CE90..FXG,FXGT,FXZI,GT,SE 20A,黄 |
1 | ||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
AE9#,CE90..FXG,FXGT,FXZI,GT,SE 20A,黄 |
1 | ||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12160 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82661-12140 |
AE9#,CE9#,EE9# 上側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12160 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82661-12140 |
AE9#,CE9#,EE9# 上側 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12050 |
AE91,95,EE90,98..CBR |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12010 |
AE91,95,EE9#..CBR 上側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12010 |
AE91,95,EE9#..CBR 上側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12210 |
AE91,EE90..CBR MARK=80FM,TOKAIRIKA |
1 | ||
| 83391-12210 |
EE90..4F;AE91,EE97..CBR MARK=80FM,TOKAIRIKA |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-12120 |
AE91,95..CBR |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
AE91,95,EE9# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30050 |
AE91,95..DX,FXG,FXL,G,SE,TX,XE |
1 | ||
| 83530-30050 |
AE91,95 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-16030 |
AE91,95,CE90,96,97,EE90,96,98..ATM |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 90925-09036 |
AE91,95..CBR |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE9#,CE9#,EE9# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE9#,CE9#,EE9# HEAD |
1 | ||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO,TAIL |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AE9#,CE9#,EE9# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO |
1 | ||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE |
2 | ||
| 90987-02004 |
AE9#,CE90..FXG,FXGT,FXL,FXZI,G,GT,SE,TX,XE |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE |
2 | ||
| 90987-02004 |
AE9#,CE90..FXG,FXGT,FXL,FXZI,G,GT,SE,TX,XE |
2 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12210 |
AE91,95..CBR,EFI |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-12090 |
AE91,95..4FC |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-12090 |
AE91,95..4FC |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15011 |
AE9# RADIATOR FAN |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15011 |
AE9# RADIATOR FAN |
1 | ||
| 89453 - SWITCH, THROTTLE POSITION (FOR T.C.S.) | ||||
| 89453-12030 |
AE91,95..CBR |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12080 |
AE91,95..CBR |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 90179-06009 | ||||
| 90430-18008 | ||||
| 91611-60816 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91655-40616 | ||||
| 93219-14008 | ||||
| 94511-00400 | ||||
(8705-8905) ; (8905-8908)AE91,CE96,97,EE96,97,98..CBR,DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

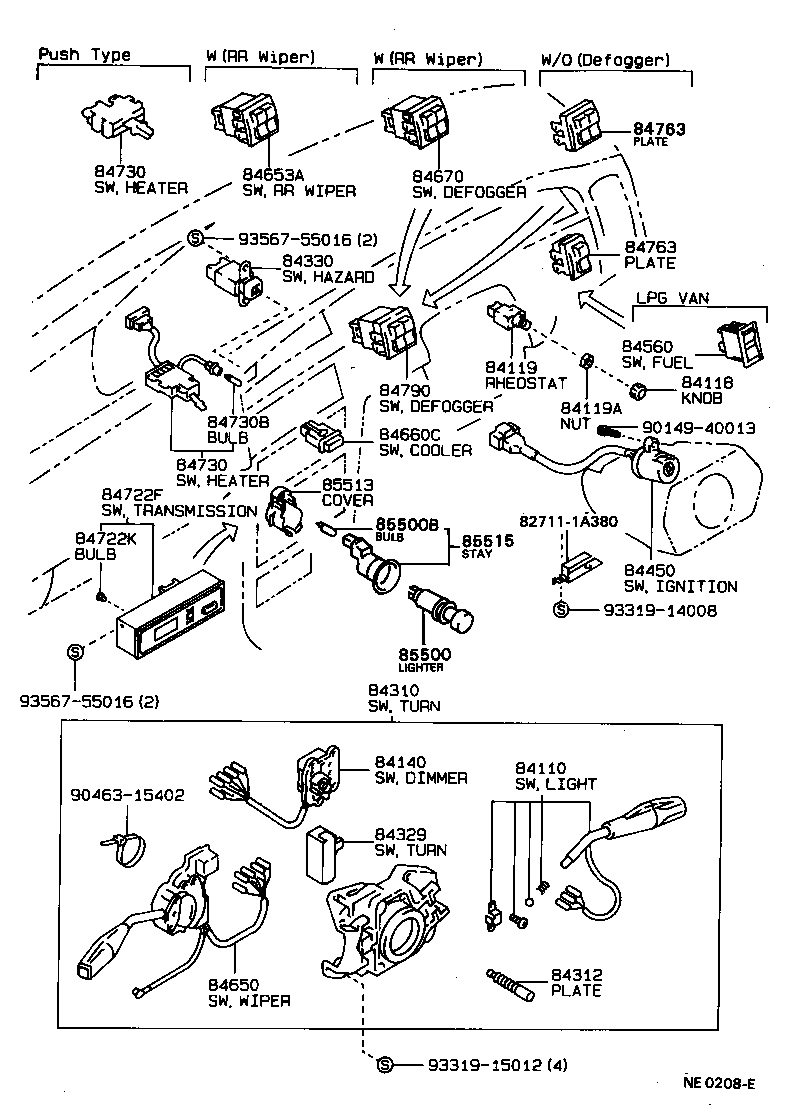

| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80007 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84112-80005 |
AE9#,CE9#,EE9# 東海理化 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12210 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84140-12220 |
AE9#,CE9#,EE9# 東海理化 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12860 |
AE91..FXZI;AE91..(4FC,5F)..CBR;AE92,95,CE90..FXGT,GT,SE |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
AE9#,CE9#,EE9# 東海理化 |
1 | ||
| 84312-12050 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84312-12040 |
AE91..DX,FXG,TX 東海理化 |
1 | ||
| 84312-12040 |
AE91..(4D,5D,WG)..(3FC,4FC,5F)..(FXL,G,SE,XE)..CBR 東海理化 |
1 | ||
| 84312-12050 |
AE91..DX,FXG,TX MATSUSHITA |
1 | ||
| 84312-12050 |
AE91..(4D,5D,WG)..(3FC,4FC,5F)..(FXL,G,SE,XE)..CBR MATSUSHITA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 84329-12010 |
AE9#,CE9#,EE9#..DX,FXD,FXG,FXGT,FXZI,G,GT,SE,STD,TX |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12250 |
AE91,95,CE90,EE90..CBR,DSL |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12150 |
AE9#,CE9#,EE9# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12470 |
AE91..FXZI;AE91..(4FC,5F)..CBR;AE92,95,CE90..FXGT,GT,SE MATSUSHITA |
1 | ||
| 84652-12700 |
AE91..FXZI;AE91..(4FC,5F)..CBR;AE92,95,CE90..FXGT,GT,SE 東海理化 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20090 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 84660-20090 |
AE91..FXZI;AE92,95,CE90..FXGT,GT,SE,TX,XE;AE91..(FXG,FXL,G,SE,TX,XE)..CBR |
1 | ||
| 84670 - SWITCH ASSY, REAR WIPER & DEFOGGER | ||||
| 84670-1203005 |
AE91..FXG,FXZI DARK BEIGE,TRIM4# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12250 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),LEVER TYPE |
1 | ||
| 84732-12230 |
AE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9# LEVER TYPE |
1 | ||
| 84732-12250 |
AE9#,CE90..FXG,FXGT,FXL,FXZI,G,GT,SE,TX,XE ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),LEVER TYPE |
1 | ||
| 84732-12250 |
AE91..FXZI;AE92,95,CE90..FXGT,GT,SE,TX,XE;AE91..(FXG,FXL,G,SE,TX,XE)..CBR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),LEVER TYPE |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12250 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),LEVER TYPE |
1 | ||
| 84732-12230 |
AE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9# LEVER TYPE |
1 | ||
| 84732-12250 |
AE9#,CE90..FXG,FXGT,FXL,FXZI,G,GT,SE,TX,XE ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),LEVER TYPE |
1 | ||
| 84732-12250 |
AE91..FXZI;AE92,95,CE90..FXGT,GT,SE,TX,XE;AE91..(FXG,FXL,G,SE,TX,XE)..CBR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),LEVER TYPE |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9# 14V 1.4W |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-1206003 |
AE91,95,CE9#,EE9# 1 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1206005 |
CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE 1 HOLE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-1206003 |
AE91,95,CE9#,EE9# 1 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1206005 |
CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE 1 HOLE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
AE9#,CE9#,EE9# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE9#,CE9#,EE9# 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12010 |
AE9#,CE9#,EE9# |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90463-15402 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| 93567-55016 | ||||
(8705-8905) ; (8905-8908)AE91,CE96,97,EE96,97,98..CBR,DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE9#,CE9#,EE9# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
AE9#,CE90..FXG,FXGT,FXZI,GT,SE 20A,黄 |
1 | ||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
AE9#,CE90..FXG,FXGT,FXZI,GT,SE 20A,黄 |
1 | ||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12010 |
AE9#,CE90,95..FXG,FXGT,FXGTV,FXVS,FXZI,FXZS,G,GT,SE |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-12020 |
EE97,98..4F;EE98..3FC..DX;AE91,CE96,97..G,GL 14A |
1 | ||
| 82650-20011 |
AE9#,CE9#,EE9# 30A |
1 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-20011 |
AE91..SE..EFI;AE91..FXG,FXZI,G;AE92,95..FXGT,GT,SE 30A |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AE9#,CE9#,EE9# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE9#,CE9#,EE9# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE9#,CE9#,EE9# HEAD |
1 | ||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO,TAIL |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02002 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE MARUKO |
1 | ||
| 90987-02004 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE NIPPONDENSO |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-12020 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-12030 |
AE91,95,EE90,97..CBR |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-1A030 |
AE91..ATM..CBR |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-1A030 |
AE91..ATM..CBR |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90179-06070 | ||||
| 90560-06201 | ||||
| 91655-40616 | ||||
| 93319-15010 | ||||
(8705-8905) ; (8905-8908)AE91,CE96,97,EE96,97,98..CBR,DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80076 |
AE91..(4FC,5F)..CBR |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80076 |
AE91..(4FC,5F)..CBR |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AE9#,CE9#,EE9# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-16060 |
CE96,EE96..05S;AE9#,CE90,97,EE90,97,98..4D,5D,V,WG |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE9#,CE9#,EE9# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006003 |
AE91..(5D,WG)..(FXG,G) SHADOW GRAY,TRIM1# |
3 | ||
| 84810-2006005 |
AE91..5D..FXG DARK BEIGE,TRIM4# |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006003 |
AE91..(5D,WG)..(FXG,G) SHADOW GRAY,TRIM1# |
3 | ||
| 84810-2006005 |
AE91..5D..FXG DARK BEIGE,TRIM4# |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006003 |
AE91..(5D,WG)..(FXG,G) SHADOW GRAY,TRIM1# |
3 | ||
| 84810-2006005 |
AE91..5D..FXG DARK BEIGE,TRIM4# |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-1213005 |
AE91..5D..FXG DARK BEIGE,TRIM4# |
1 | ||
| 84820-1213003 |
AE91..(5D,WG)..(FXG,G) SHADOW GRAY,TRIM1# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20050 |
CE90..SE;EE90..TX;AE91..4F..TX;AE91..(3FC,4FC,5F)..(FXG,FXZI,G,SE,TX,XE);AE92,95,EE98..(3FC,4FC,5F)..(FXGT,GL,GT,SE,XE) |
1 | ||
| 84870-20050 |
AE91..FXZI;AE91,EE90..(FXG,G,SE,TX,XE)..CBR;AE92,95,CE90,EE98..(3FC,4FC,5F)..(FXGT,GL,GT,SE,XE) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-22020 |
AE91,CE96,97,EE96,97,98..G,GL |
1 | ||
| 84930-1601005 |
AE91,95..FXG,SE DARK BEIGE,TRIM4# |
1 | ||
| 84930-1601003 |
AE91..FXG,G,SE SHADOW GRAY,TRIM1# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-22020 |
AE91,CE96,97,EE96,97,98..G,GL |
1 | ||
| 84930-1601005 |
AE91,95..FXG,SE DARK BEIGE,TRIM4# |
1 | ||
| 84930-1601003 |
AE91..FXG,G,SE SHADOW GRAY,TRIM1# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-20071 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 84931-19015 |
AE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE) |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-12071 |
AE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE) |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12210 |
AE91,95..CBR,EFI |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-50219 | ||||
| 90159-60081 | ||||
| 90159-60229 | ||||
| 90189-06048 | ||||
| 90430-08252 | ||||
| 91651-60616 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-16021 |
AE91,92,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-16021 |
AE91,92,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-12030 |
AE91,92..FXG,FXGT,FXZI,FXZS,G |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-12030 |
AE91,92..FXG,FXGT,FXZI,FXZS,G |
1 | ||
| Common parts | ||||
| 90179-06009 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 93315-15010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
