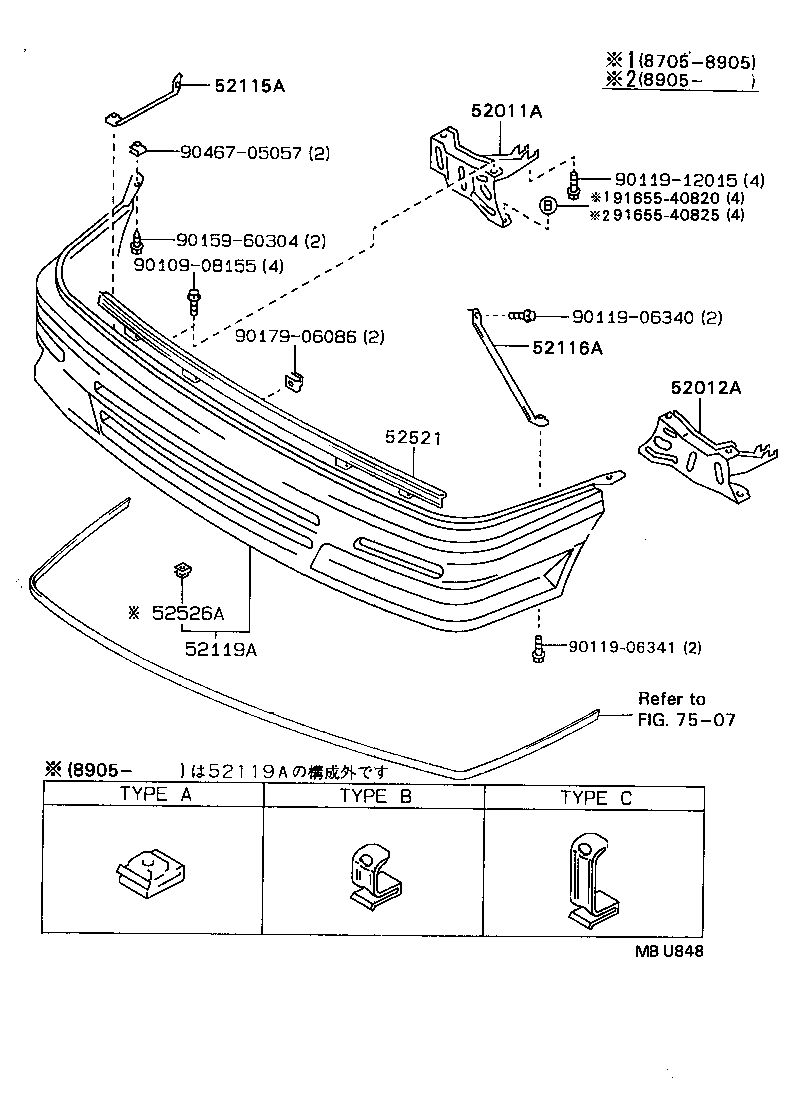

Toyota Corolla AE91 FRONT BUMPER & BUMPER STAY

Part #	Description	Period	Qty
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-12380	AE91,92,EE90..3D,5D	05/1987 - 05/1989	1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-12390	AE91,92,EE90..3D,5D	05/1987 - 05/1989	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12270	AE91,92,EE90..3D,5D	05/1987 - 05/1989	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12210	AE91,92,EE90..3D,5D	05/1987 - 05/1989	1
52119A - COVER, FRONT BUMPER
52119-1A270	AE91,EE90..(3D,5D)..CBR	05/1987 - 05/1989	1
52119-1A30003	AE91..FXG ｱﾘ(ﾌﾙｶﾗ-),GRAY M,GRAY M,168	05/1987 - 05/1989	1
52119-1A31003	AE91,EE90..FXG,FXL GRAY M,168	05/1987 - 05/1989	1
52119-1A30015	AE91,92..(3D,5D)..(4FC,5F) ｱﾘ(ﾌﾙｶﾗ-),BEIGE M,BEIGE M,27E	05/1987 - 05/1989	1
52119-1A31005	AE91,EE90..FXG,FXL M BEIGE M,4H6	05/1987 - 05/1989	1
52119-1A31008	AE91,EE90..FXG,FXL SUPER WHITE 2,040	05/1987 - 05/1989	1
52119-1A30008	AE91..FXG ｱﾘ(ﾌﾙｶﾗ-),SUPER WHITE 2,SUPER WHITE 2,040	05/1987 - 05/1989	1
52119-1A31002	AE91,EE90..FXG,FXL SUPER RED 2,3E5	05/1987 - 05/1989	1
52119-1A30002	AE91..FXG ｱﾘ(ﾌﾙｶﾗ-),SUPER RED 2,SUPER RED 2,3E5	05/1987 - 05/1989	1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12090	AE9#,CE90,EE90 ﾀｲﾌﾟ B	05/1987 - 08/1987	2
52565-12090	AE91,92,EE90..3D,5D ﾀｲﾌﾟ B	08/1987 - 05/1988	4
52565-12040	AE9#,CE9#,EE9# ﾀｲﾌﾟ A	05/1987 - 05/1989	4
52565-12090	AE9#,CE9#,EE9# ﾀｲﾌﾟ B	05/1988 - 05/1989	1
Common parts
90109-08155
90119-06340
90119-06341
90119-12015
90159-60304
90179-06086
90467-05057
91655-40820
91655-40825
Linked diagrams
7507

AE91-AHPGU (1987)
