AE91-AHMGU (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

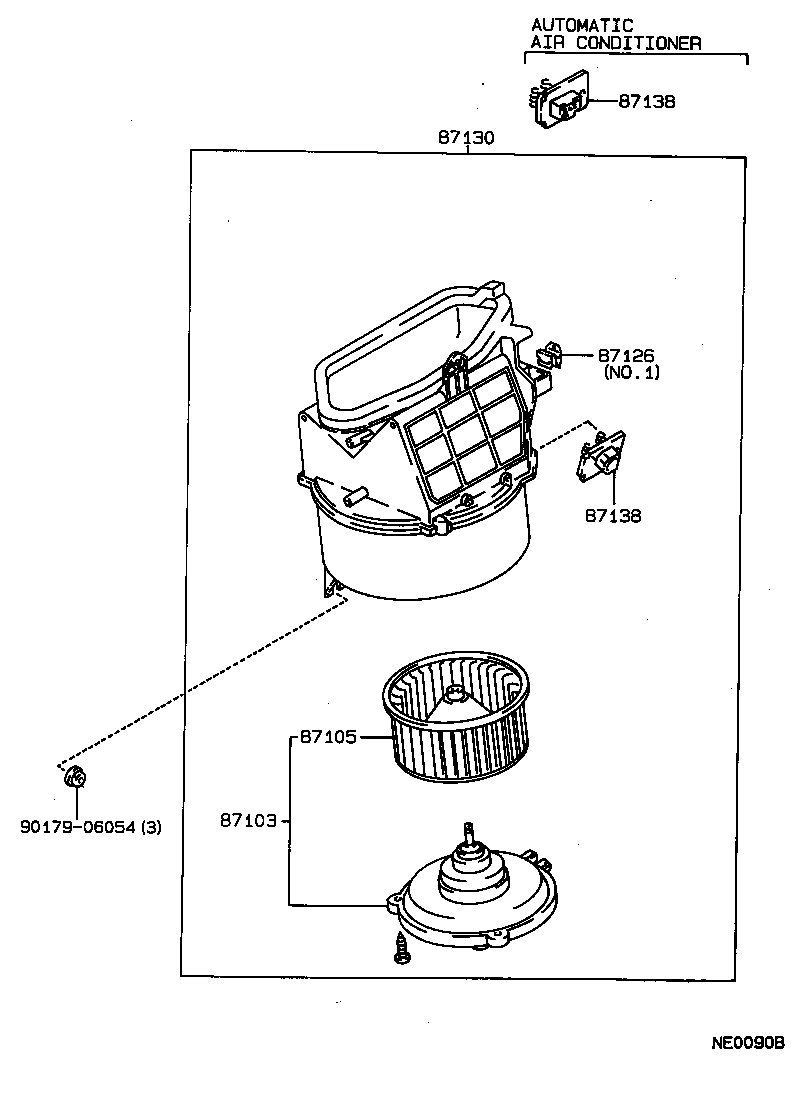

ILLUST NO. 1 OF 3(8705- )

Click highlighted areas on diagram

LEVER CONTROL TYPE

diagram 87103 87105 87126 87130 87138 87138 9017906054
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-12010

AE9#,CE9#,EE9#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-32010

AE9#,CE9#,EE9#

 1
87126 - CLAMP, HEATER CONTROL
87126-12040

AE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9#

NO.1

 1
87126-12050

AE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9#

NO.2

 2
87130 - BLOWER ASSY, HEATER, FRONT
87130-12250

AE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9#

 1
87138 - RESISTOR, HEATER BLOWER
88635-12040

AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE

ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)

 1
87138-12120

AE9#,CE9#,EE9#

 1
87138 - RESISTOR, HEATER BLOWER
88635-12040

AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE

ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)

 1
87138-12120

AE9#,CE9#,EE9#

 1
Common parts
90179-06054

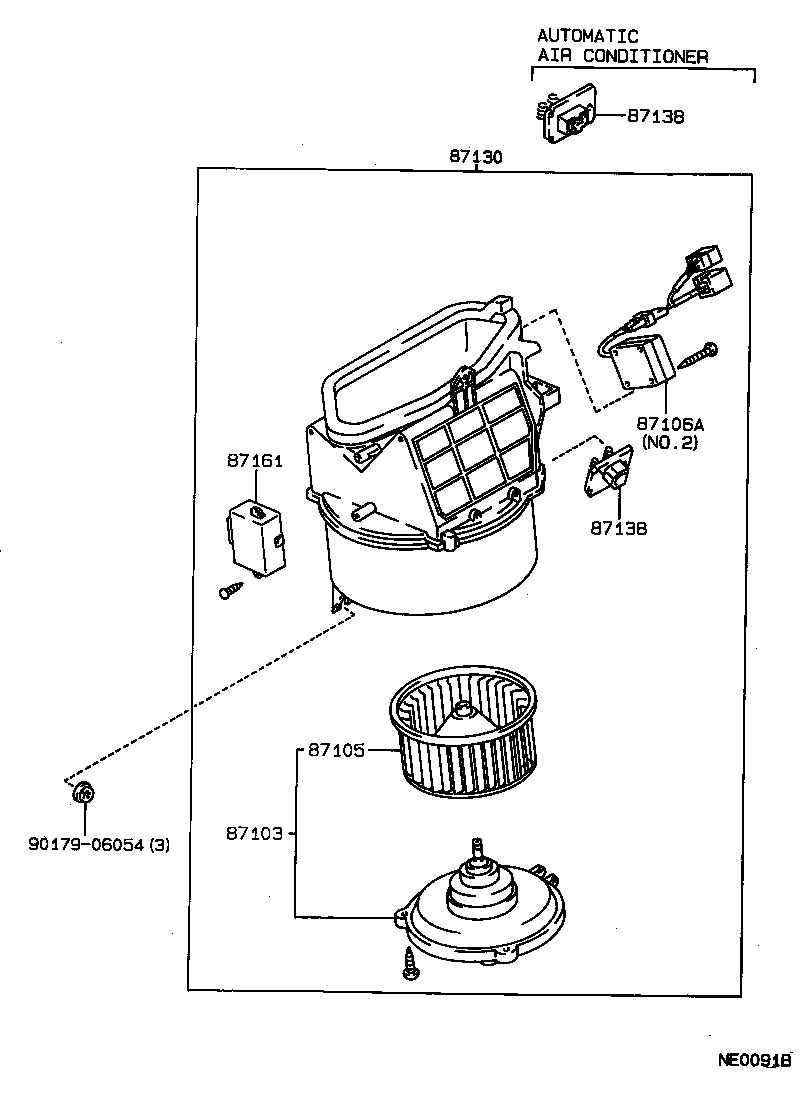

ILLUST NO. 1 OF 3(8705- )

Click highlighted areas on diagram

PUSH CONTROL TYPE

diagram 87103 87105 87106A 87130 87138 87138 87161 9017906054
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-12010

AE9#,CE9#,EE9#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-32010

AE9#,CE9#,EE9#

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-12250

AE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9#

 1
87138 - RESISTOR, HEATER BLOWER
88635-12040

AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE

ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)

 1
87138-12120

AE9#,CE9#,EE9#

 1
87138 - RESISTOR, HEATER BLOWER
88635-12040

AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE

ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)

 1
87138-12120

AE9#,CE9#,EE9#

 1
Common parts
90179-06054

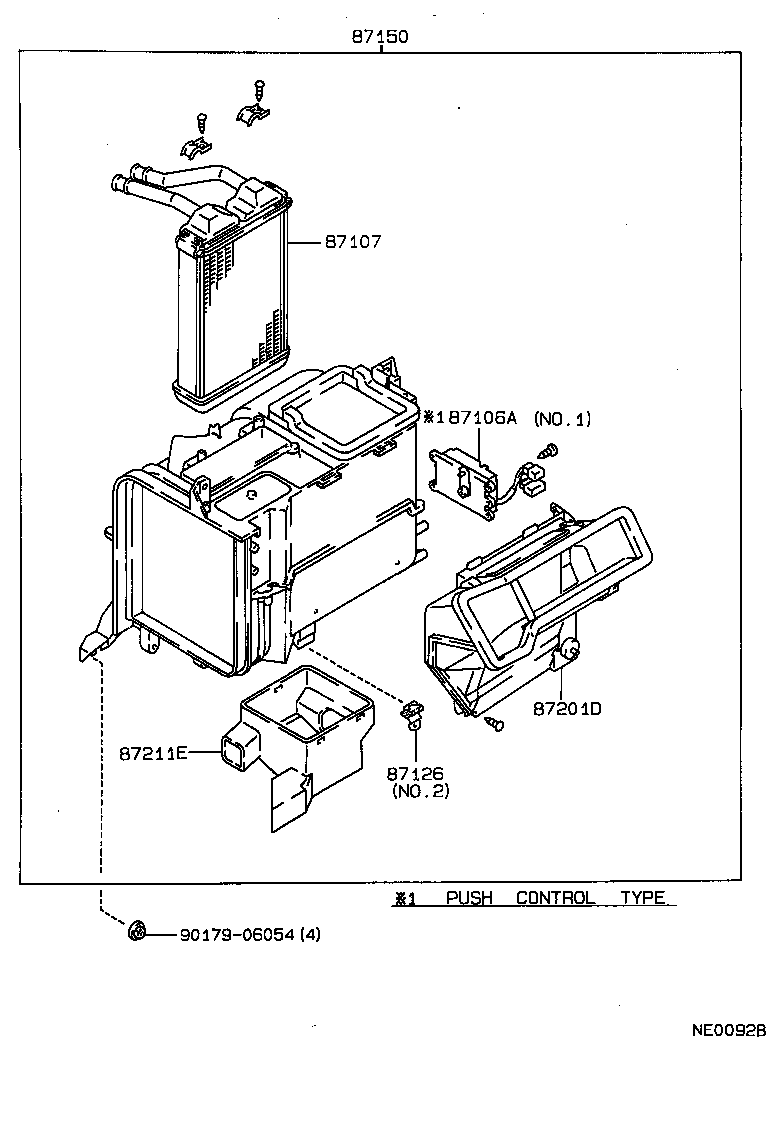

ILLUST NO. 2 OF 3(8705- )

Click highlighted areas on diagram

diagram 87106A 87107 87126 87150 87201D 87211E 9017906054
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-12380

AE9#,EE9#

 1
87107-12390

AE9#,EE9#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87126 - CLAMP, HEATER CONTROL
87126-12040

AE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9#

NO.1

 1
87126-12050

AE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9#

NO.2

 2
87150 - RADIATOR ASSY, HEATER
87150-12370

AE91..CBR;AE91..FXZI;AE92,95,EE9#

 1
87150-12380

AE91..CBR;AE91..FXZI;AE92,95,EE9#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87201D - DUCT SUB-ASSY, AIR
87201-12230

AE9#,CE9#,EE9#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87201-12150

AE9#,CE9#,EE9#

 1
87201-12260

AE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9#

 1
87201-12270

AE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87211E - DUCT, AIR
87211-12120

AE9#,CE9#,EE9#

 1
87211-12130

AE9#,CE9#,EE9#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
Common parts
90179-06054

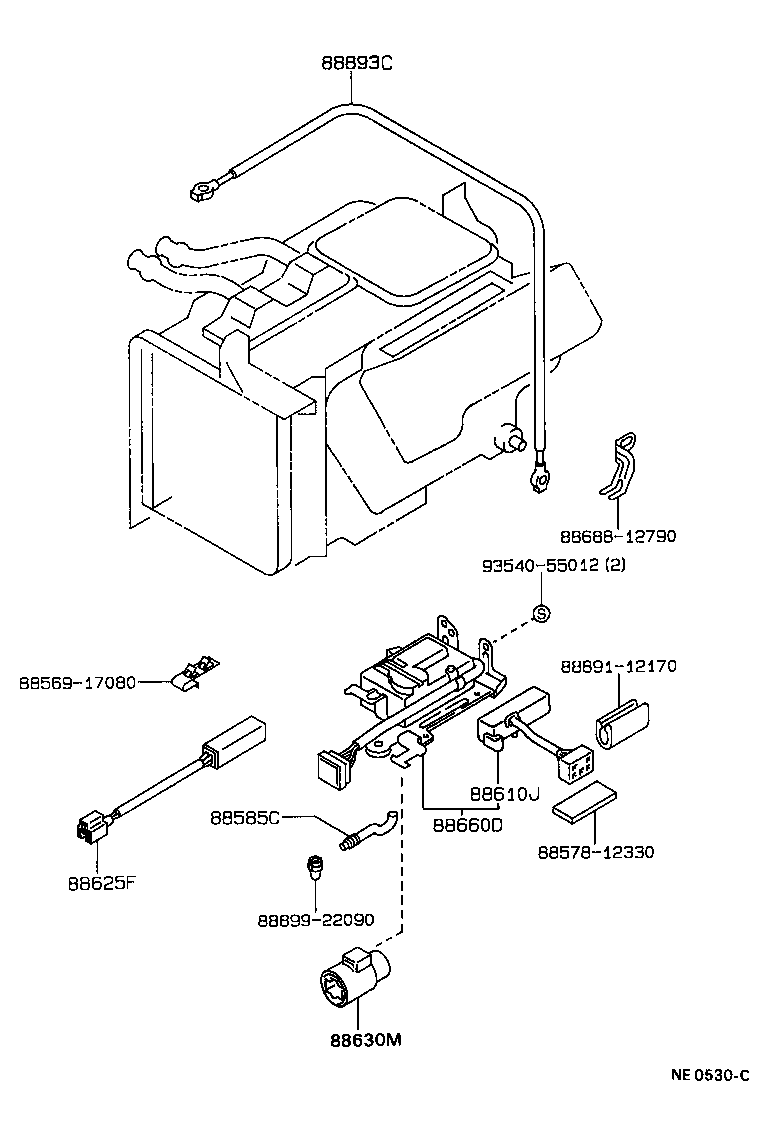

ILLUST NO. 3 OF 3(8705- )

Click highlighted areas on diagram

AUTOMATIC AIR CONDITIONER

diagram 8856917080 8857812330 88585C 88610J 88625F 88630M 88660D 8868812790 8889112170 88893C 8889922090 9354055012
Part # Description Qty Price
88585C - SHAFT
88585-12060

AE91..FXG,FXZI

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88585-12060

AE91,92..FXG,FXGT,FXZI,G,GT

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88585-12050

AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE

 1
88585-12060

CE90..XE;AE91..SE..EFI;AE9#..FXG,FXGT,FXL,FXZI,G,GT,TX,XE

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88610J - SWITCH ASSY, CONTROL
88610-12070

AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE

 1
88625F - SENSOR, TEMPERATURE
88625-10070

AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE

 1
88630M - RELAY ASSY, COOLER
88630-95702

AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE

 1
88660D - SERVO ASSY, AIR CONDITIONER
88660-12020

AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE

 1
88660-12030

AE91..FXG,FXZI

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88660-12030

AE91,92..FXG,FXGT,FXZI,G,GT

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88660-12030

CE90..XE;AE91..SE..EFI;AE9#..FXG,FXGT,FXL,FXZI,G,GT,TX,XE

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88893C - CABLE, CONTROL
88893-12080

AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE

 1
Common parts
88569-17080
88578-12330
88688-12790
88891-12170
88899-22090
93540-55012
