AE91-AHMGK (1987)
Toyota Corolla

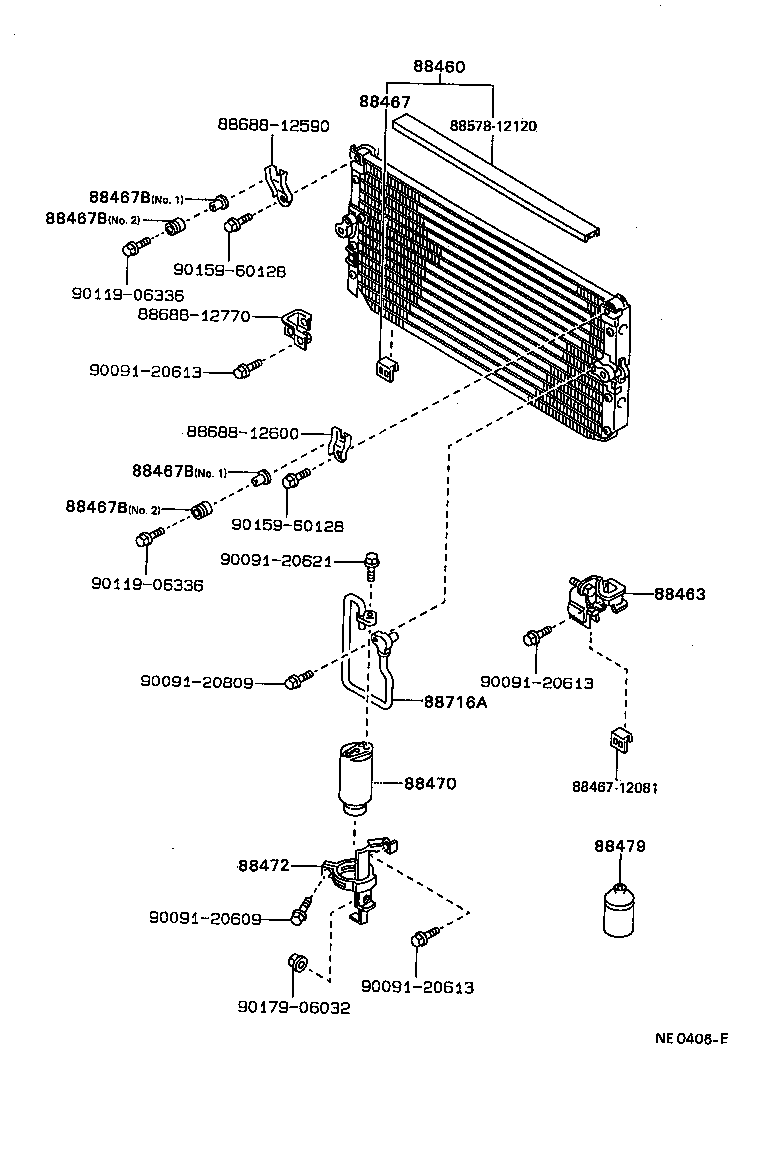

ILLUST NO. 1 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-12380 |
CE90..5F..SE;AE9#..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-12040 |
AE9#,CE90,EE90..DX,FXD,FXG,FXGT,FXL,FXZI,GT,TX,XE |
1 | ||
| 88463-12040 |
AE91..4FC..EFI;AE91,95..MTM..(DX,FXG,FXL,FXZI,G,TX,XE);AE92,CE9#,EE90,97,98..DX,FXD,FXGT,FXL,GL,GT,STD,TX,XE |
1 | ||
| 88463-12040 |
AE91..4FC..EFI;AE91..(3FC,4F,5F)..(DX,FXG,FXL,FXZI,G,TX,XE);AE92,CE9#,EE9#..DX,FXD,FXGT,FXL,GL,GT,STD,TX,XE |
1 | ||
| 88463-12040 |
AE91..4FC..EFI;AE91..(3FC,4F,5F)..(DX,FXG,FXL,FXZI,G,TX,XE);AE92,95,CE9#,EE90,97,98..DX,FXD,FXGT,FXL,GL,GT,STD,TX,XE |
1 | ||
| 88463-12041 |
AE91..4FC..EFI;AE92,CE90..FXGT,GT,SE;AE91,95..5F..(FXG,FXZI,G,SE) |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12080 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE |
2 | ||
| 88467-12080 |
AE91..4FC..EFI;AE92,CE90..FXGT,GT,SE;AE91,95..5F..(FXG,FXZI,G,SE) |
2 | ||
| 88467-12081 |
AE91..4FC..EFI;AE92,CE90..FXGT,GT,SE;AE91,95..5F..(FXG,FXZI,G,SE) |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-20040 |
AE9#..FXG,FXGT,FXL,FXZI,G,GT,SE,TX,XE NO.2 |
4 | ||
| 88467-14070 |
AE91,95..FXG,FXL,FXZI,G,SE,TX,XE NO.1 |
4 | ||
| 88467-14070 |
AE91,95..FXG,FXZI,G,SE NO.1 |
4 | ||
| 88467-20040 |
AE9#..FXG,FXGT,FXZI,G,GT,SE NO.2 |
4 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-20040 |
AE9#..FXG,FXGT,FXL,FXZI,G,GT,SE,TX,XE NO.2 |
4 | ||
| 88467-14070 |
AE91,95..FXG,FXL,FXZI,G,SE,TX,XE NO.1 |
4 | ||
| 88467-14070 |
AE91,95..FXG,FXZI,G,SE NO.1 |
4 | ||
| 88467-20040 |
AE9#..FXG,FXGT,FXZI,G,GT,SE NO.2 |
4 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-20040 |
AE9#..FXG,FXGT,FXL,FXZI,G,GT,SE,TX,XE NO.2 |
4 | ||
| 88467-14070 |
AE91,95..FXG,FXL,FXZI,G,SE,TX,XE NO.1 |
4 | ||
| 88467-14070 |
AE91,95..FXG,FXZI,G,SE NO.1 |
4 | ||
| 88467-20040 |
AE9#..FXG,FXGT,FXZI,G,GT,SE NO.2 |
4 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-20040 |
AE9#..FXG,FXGT,FXL,FXZI,G,GT,SE,TX,XE NO.2 |
4 | ||
| 88467-14070 |
AE91,95..FXG,FXL,FXZI,G,SE,TX,XE NO.1 |
4 | ||
| 88467-14070 |
AE91,95..FXG,FXZI,G,SE NO.1 |
4 | ||
| 88467-20040 |
AE9#..FXG,FXGT,FXZI,G,GT,SE NO.2 |
4 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-12020 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE L=167 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-12040 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE 400G |
1 | ||
| 90986-02004 |
AE9#,CE90..FXG,FXGT,FXL,FXZI,G,GT,SE,TX,XE 250G |
1 | ||
| 90986-02001 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE 400G |
2 | ||
| 90986-02004 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE 250G |
1 | ||
| 90986-02001 |
AE9#,CE90..FXG,FXGT,FXL,FXZI,G,GT,SE,TX,XE 400G |
1 | ||
| 90986-02002 |
AE9#,CE90..FXG,FXGT,FXL,FXZI,G,GT,SE,TX,XE 300G |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-12240 |
AE9#,CE90..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| Common parts | ||||
| 88467-12081 | ||||
| 88578-12120 | ||||
| 88688-12590 | ||||
| 88688-12600 | ||||
| 88688-12770 | ||||
| 90091-20609 | ||||
| 90091-20613 | ||||
| 90091-20621 | ||||
| 90091-20809 | ||||
| 90119-06336 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
ILLUST NO. 2 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453A - FAN, COOLING | ||||
| 88453-12050 |
AE9#..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 88453A - FAN, COOLING | ||||
| 88453-12050 |
AE9#..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-12100 |
AE9#..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-12100 |
AE9#..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-20040 |
AE9#..FXG,FXGT,FXL,FXZI,G,GT,SE,TX,XE NO.2 |
4 | ||
| 88467-14070 |
AE91,95..FXG,FXL,FXZI,G,SE,TX,XE NO.1 |
4 | ||
| 88467-14070 |
AE91,95..FXG,FXZI,G,SE NO.1 |
4 | ||
| 88467-20040 |
AE9#..FXG,FXGT,FXZI,G,GT,SE NO.2 |
4 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-20040 |
AE9#..FXG,FXGT,FXL,FXZI,G,GT,SE,TX,XE NO.2 |
4 | ||
| 88467-14070 |
AE91,95..FXG,FXL,FXZI,G,SE,TX,XE NO.1 |
4 | ||
| 88467-14070 |
AE91,95..FXG,FXZI,G,SE NO.1 |
4 | ||
| 88467-20040 |
AE9#..FXG,FXGT,FXZI,G,GT,SE NO.2 |
4 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12120 |
AE9#..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12120 |
AE9#..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-12170 |
AE9#..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 88590-12170 |
AE92;AE91..4FC..EFI;AE91,95..5F..(FXG,FXZI,G,SE) |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-12170 |
AE9#..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 88590-12170 |
AE92;AE91..4FC..EFI;AE91,95..5F..(FXG,FXZI,G,SE) |
1 | ||
| 88596C - PLATE, CAUTION, NO.2 | ||||
| 88723-12020 |
AE91..4FC..FXZI;EE90..4F..(FXD,FXL,TX,XE);AE92,EE96,97,98..4F,4FC,5F;AE91,95..MTM..(DX,FXG,FXL,FXZI,G,TX,XE) |
1 | ||
| 88723-12020 |
EE90..4F..(FXD,FXL,TX,XE);AE9#..DX,FXG,FXGT,FXL,FXZI,GT,TX,XE |
1 | ||
| 88723-12020 |
AE91..4FC..FXZI;AE92,EE97,98..4F,4FC,5F;EE90..4F..(FXD,FXL,TX,XE);AE91,95..MTM..(DX,FXG,FXL,FXZI,G,TX,XE) |
1 | ||
| 88596C - PLATE, CAUTION, NO.2 | ||||
| 88723-12020 |
AE91..4FC..FXZI;EE90..4F..(FXD,FXL,TX,XE);AE92,EE96,97,98..4F,4FC,5F;AE91,95..MTM..(DX,FXG,FXL,FXZI,G,TX,XE) |
1 | ||
| 88723-12020 |
EE90..4F..(FXD,FXL,TX,XE);AE9#..DX,FXG,FXGT,FXL,FXZI,GT,TX,XE |
1 | ||
| 88723-12020 |
AE91..4FC..FXZI;AE92,EE97,98..4F,4FC,5F;EE90..4F..(FXD,FXL,TX,XE);AE91,95..MTM..(DX,FXG,FXL,FXZI,G,TX,XE) |
1 | ||
| Common parts | ||||
| 88467-30270 | ||||
| 88688-12780 | ||||
| 88718-22420 | ||||
| 88892-12180 | ||||
| 90099-04376 | ||||
| 90119-06336 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
ILLUST NO. 3 OF 3(8705- )AE91,95
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88470C - BOLT, FUSE | ||||
| 88475-12020 |
AE9#..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 88475-12020 |
CE90..TX;AE9#..FXG,FXGT,FXL,FXZI,G,GT,SE,TX,XE |
1 | ||
| 88485 - MUFFLER | ||||
| 88485-12020 |
AE9#..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 88485-12020 |
AE9#..FXG,FXGT,FXL,FXZI,G,GT,SE,TX,XE |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-32020 |
AE9#..FXG,FXGT,FXZI,G,GT,SE NO.2 |
1 | ||
| 88645-12050 |
AE9#..FXG,FXGT,FXZI,G,GT,SE NO.1 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-32020 |
AE9#..FXG,FXGT,FXZI,G,GT,SE NO.2 |
1 | ||
| 88645-12050 |
AE9#..FXG,FXGT,FXZI,G,GT,SE NO.1 |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-12410 |
AE9#..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88706-12040 |
AE9#..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12490 |
AE91..4FC..EFI;AE91,95..5F..(FXG,FXZI,G,SE) |
1 | ||
| 88711-12490 |
AE91,95..FXG,FXZI,G,SE |
1 | ||
| 88711-12491 |
AE91,95..FXG,FXZI,G,SE |
1 | ||
| 88711-12491 |
AE91,95..FXG,FXL,FXZI,G,SE,TX,XE |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-12690 |
AE91,95..FXG,FXZI,G,SE |
1 | ||
| 88712-12690 |
AE91..4FC..EFI;AE91,95..5F..(FXG,FXZI,G,SE) |
1 | ||
| 88712-12780 |
AE91,95..FXG,FXZI,G,SE |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-12280 |
AE9#..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-12260 |
AE9#..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-12400 |
AE9#..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-12490 |
AE9#..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88467-30270 | ||||
| 88578-12310 | ||||
| 88688-12540 | ||||
| 88688-12620 | ||||
| 88688-12820 | ||||
| 88714-10010 | ||||
| 88718-1A100 | ||||
| 88718-1A120 | ||||
| 88718-1A150 | ||||
| 88718-1A230 | ||||
| 88718-1A320 | ||||
| 88891-12070 | ||||
| 90091-20609 | ||||
| 90091-20621 | ||||
| 90091-20809 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
| 91651-60835 | ||||
| 93383-16014 | ||||
| 96111-10360 | ||||
