AE91-AHKNU (1987)
Toyota Corolla

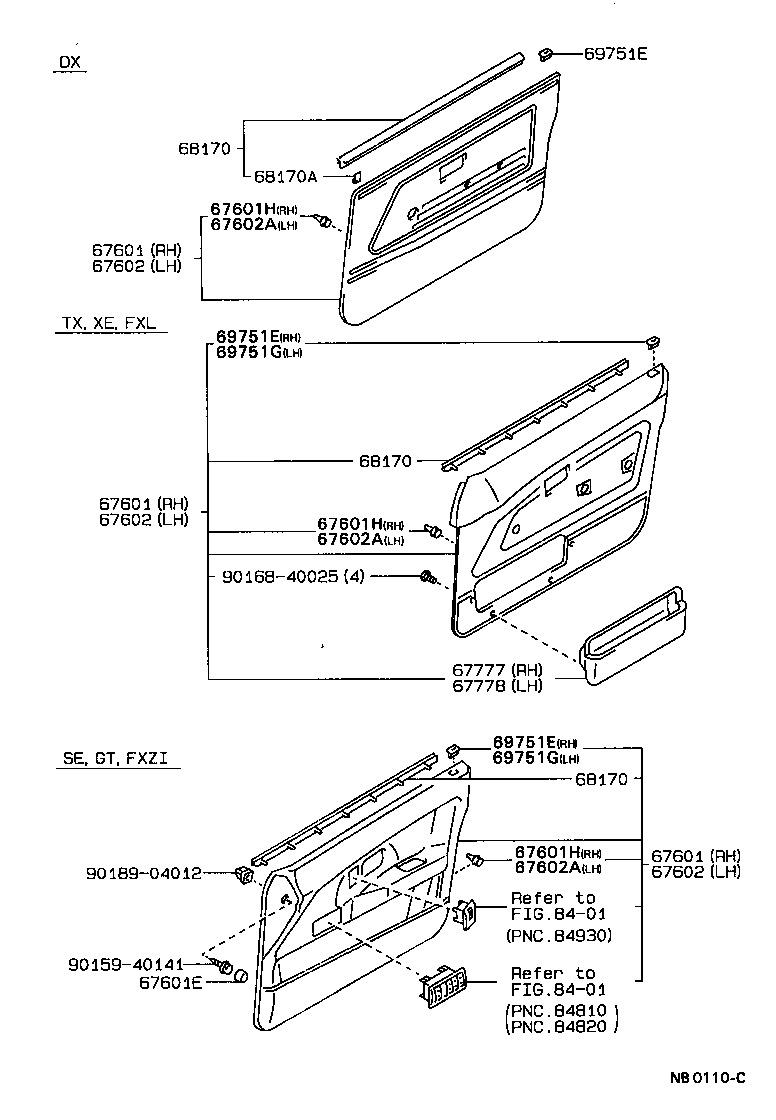

ILLUST NO. 2 OF 2(8705-8905)4D,5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A58003 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX) SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A58005 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX) DARK BEIGE,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A58003 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX) SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A58005 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX) DARK BEIGE,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A58003 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX) SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A58005 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX) DARK BEIGE,TRIM4# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
AE91,95,CE90,95,97,EE90,97..(4D,5D,WG)..(FXL,GL,LT,TX,XE) |
10 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
AE91,95,CE90,95,97,EE90,97..(4D,5D,WG)..(FXL,GL,LT,TX,XE) |
10 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
AE91,95,CE90,95,97,EE90,97..(4D,5D,WG)..(FXL,GL,LT,TX,XE) |
10 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E53003 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX) SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E53005 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX) DARK BEIGE,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E53003 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX) SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E53005 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX) DARK BEIGE,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E53003 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX) SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E53005 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX) DARK BEIGE,TRIM4# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
AE91,95,CE90,95,97,EE90,97..(4D,5D,WG)..(FXL,GL,LT,TX,XE) |
10 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
AE91,95,CE90,95,97,EE90,97..(4D,5D,WG)..(FXL,GL,LT,TX,XE) |
10 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
AE91,95,CE90,95,97,EE90,97..(4D,5D,WG)..(FXL,GL,LT,TX,XE) |
10 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-1207005 |
AE91,95,CE90,97,EE90,97..FXL,GL,TX,XE DARK BEIGE,TRIM4# |
1 | ||
| 67777-1207003 |
AE9#,CE90,95,97,EE90,97..FXGTV,FXL,FXV,FXVS,GL,LT,TX,XE SHADOW GRAY,TRIM1# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12200 |
AE91,95,EE90..(4D,5D)..(FXL,TX,XE) 右側 |
1 | ||
| 68172-12130 |
AE91,95,EE90..(4D,5D)..(FXL,TX,XE) 左側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12200 |
AE91,95,EE90..(4D,5D)..(FXL,TX,XE) 右側 |
1 | ||
| 68172-12130 |
AE91,95,EE90..(4D,5D)..(FXL,TX,XE) 左側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12200 |
AE91,95,EE90..(4D,5D)..(FXL,TX,XE) 右側 |
1 | ||
| 68172-12130 |
AE91,95,EE90..(4D,5D)..(FXL,TX,XE) 左側 |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006003 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX,XE) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX,XE) DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203005 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX,XE) DARK BEIGE,TRIM4# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006003 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX,XE) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX,XE) DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203005 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX,XE) DARK BEIGE,TRIM4# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006003 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX,XE) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX,XE) DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203005 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX,XE) DARK BEIGE,TRIM4# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006003 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX,XE) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX,XE) DARK BEIGE,TRIM4# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006003 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX,XE) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX,XE) DARK BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90168-40025 | ||||
| 90189-04012 | ||||
| Linked diagrams | ||||
| 8401 | ||||

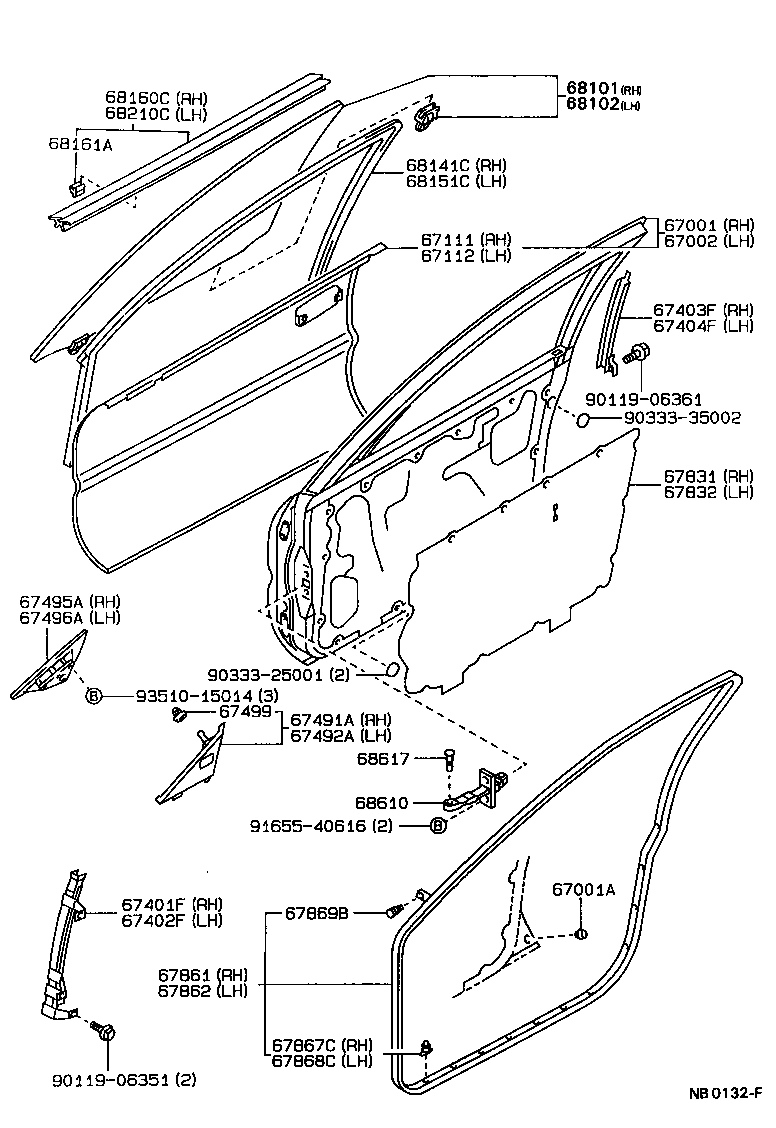

ILLUST NO. 1 OF 2(8705- )4D,5D,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-1A140 |
AE91,95,CE9#,EE9#..(4D,5D,V,WG)..(DX,FXL,GL,STD,TX,XE) |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09035 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-1A120 |
AE91,95,CE9#,EE9#..(4D,5D,V,WG)..(DX,FXL,GL,STD,TX,XE) |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12440 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12430 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-12290 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-12310 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-12090 |
AE9#,CE90,EE90..4D,5D |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-12090 |
AE9#,CE90,EE90..4D,5D |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12150 |
AE92,95,CE9#,EE96,97,98..4D,V,WG;AE91,EE90..(4D,5D,WG)..(DX,FXG,FXL,FXZI,G,SE,XE) |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12130 |
AE92,95,CE9#,EE96,97,98..4D,V,WG;AE91,EE90..(4D,5D,WG)..(DX,FXG,FXL,FXZI,G,SE,XE) |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-12120 |
AE91..SE..EFI;EE90..(4D,5D)..(DX,FXL,XE);AE91..(4D,5D)..3FC..(DX,FXL);AE92,95,CE9#,EE96,97,98..DX,GL,GT,STD,TX,XE;AE91..(4D,5D,WG)..(4F,4FC,5F)..(DX,FXG,FXL,FXZI,G,XE) |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-12120 |
AE91..SE..EFI;EE90..(4D,5D)..(DX,FXL,XE);AE91..(4D,5D)..3FC..(DX,FXL);AE92,95,CE9#,EE96,97,98..DX,GL,GT,STD,TX,XE;AE91..(4D,5D,WG)..(4F,4FC,5F)..(DX,FXG,FXL,FXZI,G,XE) |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-12030 |
AE95,CE90;AE91,92,CE96,97,EE9#..DX,FXD,FXG,FXGT,FXL,FXZI,G,GL,GT,SE,STD,XE |
2 | ||
| 67499-32010 |
CE90;AE9#,CE96,97,EE9#..DX,FXD,FXG,FXGT,FXL,FXZI,G,GL,GT,SE,STD,XE |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-12360 |
AE91..5D..EFI;AE91..(4D,5D,WG)..CBR;AE92,95,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-12360 |
AE91..5D..EFI;AE91..(4D,5D,WG)..CBR;AE92,95,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-12710 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 67861-12440 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-12580 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 67862-12670 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-12050 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
16 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-12030 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
16 | ||
| 67868-12050 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
16 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-12020 |
AE9#,CE9#,EE9# |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-12550 |
AE9#,CE90,EE90..(4D,5D)..(FXG,FXL,FXZI,GT,SE) *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-12550 |
AE92,95..GT,SE;AE91,CE90,EE90..(4D,5D)..(FXG,FXL,FXZI,SE,XE) *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-12530 |
AE91,CE90,96,97,EE9#..CTD,DX,L,STD *TEM,厚さ=3.5 |
1 | ||
| 68101-12540 |
AE9#,CE9#,EE9#..(4D,5D,V,WG)..(FXG,FXL,FXZI,G,GL,GT,L,LT,SE,TX,XE) *TT,厚さ=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-12550 |
AE9#,CE90,EE90..(4D,5D)..(FXG,FXL,FXZI,GT,SE) *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-12530 |
AE91,CE90,96,97,EE9#..CTD,DX,L,STD *TEM,厚さ=3.5 |
1 | ||
| 68102-12550 |
AE92,95..GT,SE;AE91,CE90,EE90..(4D,5D)..(FXG,FXL,FXZI,SE,XE) *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-12540 |
AE9#,CE9#,EE9#..(4D,5D,V,WG)..(FXG,FXL,FXZI,G,GL,GT,L,LT,SE,TX,XE) *TT,厚さ=3.5 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-12310 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 68141-12311 |
AE91,CE96,97,EE9#..5D,V,WG |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-12030 |
AE91,EE90..5D |
1 | ||
| 68151-12031 |
AE91,CE96,97,EE9#..5D,V,WG |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-12170 |
AE91,CE90,96,97,EE9#..CTD,DX,GL,L,STD |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-12160 |
AE91,CE90,96,97,EE9#..CTD,DX,GL,L,STD |
12 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-12120 |
AE91,CE90,96,97,EE9#..CTD,DX,GL,L,STD |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-12050 |
AE91..5D..EFIS;AE9#,CE9#,EE9#..DX,FXD,FXG,FXGT,FXL,FXZI,G,GL,GT,SE,STD,TX,XE |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-22020 |
AE9#,CE9#,EE9# |
2 | ||
| Common parts | ||||
| 90119-06351 | ||||
| 90119-06361 | ||||
| 90333-25001 | ||||
| 90333-35002 | ||||
| 91655-40616 | ||||
| 93510-15014 | ||||
