AE91-AHHNU (1987)
Toyota Corolla
Production
May 1987
-
May 1989
Engine
5AF
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )3D,5D

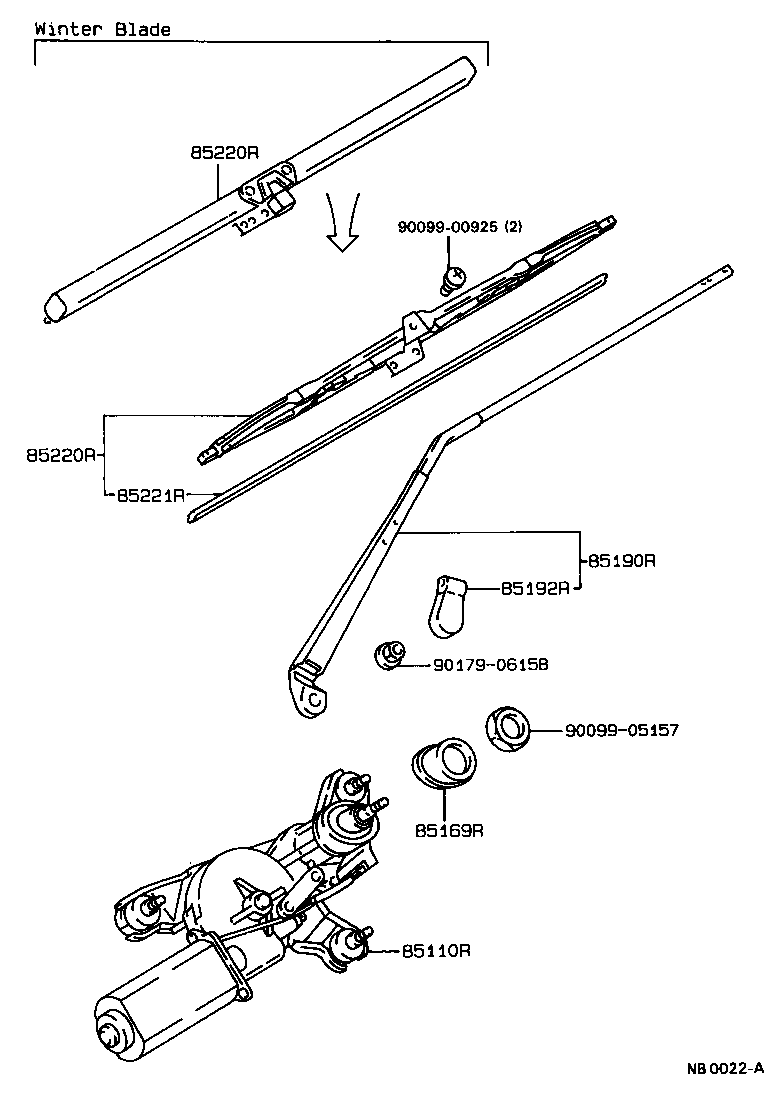

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85110-12700 |
AE91,92,EE90..3D,5D |
1 | ||
| 85169R - WASHER, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85179-12700 |
AE91,92,EE90..3D,5D |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85190-12860 |
AE91,92,EE90..3D,5D |
1 | ||
| 85192R - COVER, REAR WIPER ARM | ||||
| 85192-13060 |
EE98..4F;EE98..3FC..DX;AE91,92,CE96,97,EE90,96,97..(3D,5D,V,WG)..(DX,FXD,FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL) |
1 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85220-12620 |
AE91,92,EE90..FXG,FXGT,FXL,FXZI ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ |
1 | ||
| 85220-12600 |
AE91,92,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS |
1 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85220-12620 |
AE91,92,EE90..FXG,FXGT,FXL,FXZI ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ |
1 | ||
| 85220-12600 |
AE91,92,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS |
1 | ||
| 85221R - BLADE, REAR WIPER | ||||
| 85221-16090 |
AE91,92,EE90..3D,5D |
1 | ||
| Common parts | ||||
| 90099-00925 | ||||
| 90099-05157 | ||||
| 90179-06158 | ||||
